Static electricity can create serious problems in modern industrial production. Charged materials may attract dust, adhere to machine surfaces, repel one another, feed incorrectly, wrap around rollers, shock operators, or damage sensitive electronic components. These problems become more difficult to control as production lines operate faster, process thinner materials, and adopt stricter quality requirements.
Basic static control equipment may be sufficient for slow or low risk processes. More demanding applications require equipment capable of delivering fast neutralization, stable ion balance, uniform coverage, reliable operation, and measurable performance under actual production conditions.
High performance static elimination equipment is an ionization system engineered to neutralize strong or rapidly generated electrostatic charges with fast decay time, controlled ion balance, uniform coverage, stable output, and reliable operation at the required production speed and working distance.
Performance should not be judged only by the advertised ion output or operating distance. The most suitable equipment must match the material, charge level, line speed, working width, treatment time, machine airflow, installation space, and environmental conditions.
This guide explains the main types of static elimination equipment, the characteristics that define high performance, the data buyers should compare, and the practices required to maintain effective static control over time.
This guide covers the technical, operational, and purchasing factors that determine whether static elimination equipment can deliver high performance in an industrial process.
The discussion begins with a practical definition of performance and an explanation of how industrial ionization works. It then examines equipment types, decay time, ion balance, coverage, installation, airflow, environmental conditions, testing, and maintenance.
Additional sections address equipment selection, common performance problems, ownership cost, and supplier evaluation. These subjects help buyers compare complete solutions rather than relying on one isolated specification.
The following sections can also be used as a qualification checklist when planning a new installation or reviewing an existing static control system.
High performance static elimination equipment provides fast, uniform, stable, and measurable neutralization across the required treatment area under real production conditions.
The term high performance should describe an actual process result rather than a general marketing claim. An ionizer may produce a large number of ions in a laboratory but perform poorly on a moving production line if the ions cannot reach the charged material quickly enough.
True performance includes several connected measurements. Positive and negative decay time show how quickly the equipment neutralizes each charge polarity. Ion balance shows whether the ion field has a positive or negative electrical offset. Coverage testing confirms whether performance is uniform across the treatment width.
Reliability is also part of performance. Equipment that produces excellent results immediately after cleaning but deteriorates rapidly in the production environment may not provide the best long term solution. Output stability, contamination resistance, maintenance access, component quality, and monitoring functions should therefore be considered.
The required performance level depends on the application. A general packaging line may tolerate a higher residual voltage than a sensitive electronics or semiconductor process. Buyers should define measurable acceptance limits before comparing equipment.
Static elimination equipment works by generating positive and negative ions that move toward a charged surface and neutralize the excess electrical charge.
Static electricity commonly develops when two materials contact and separate. Electrons transfer between the surfaces, leaving one surface positively charged and the other negatively charged. Friction, pressure, rapid movement, peeling, unwinding, cutting, and spraying can increase the charge.
Conductive objects can often be discharged through proper grounding. Insulating materials are more difficult because charge cannot move freely through them. Plastic film, paper, rubber, glass, synthetic textile, coated materials, and many electronic substrates therefore require ionization.
An ionizer creates a strong electric field around sharp emitter points. The electric field converts nearby air molecules into positive and negative ions. A negatively charged surface attracts positive ions, while a positively charged surface attracts negative ions.
The ions may move through natural attraction, fan generated airflow, compressed air, or existing process airflow. The delivery method must provide enough useful ions across the complete target before the material leaves the treatment area.
Common static elimination equipment includes ionizing air bars, ionizing blowers, ionizing nozzles, ionizing guns, static neutralizing heads, and monitored ionization systems.

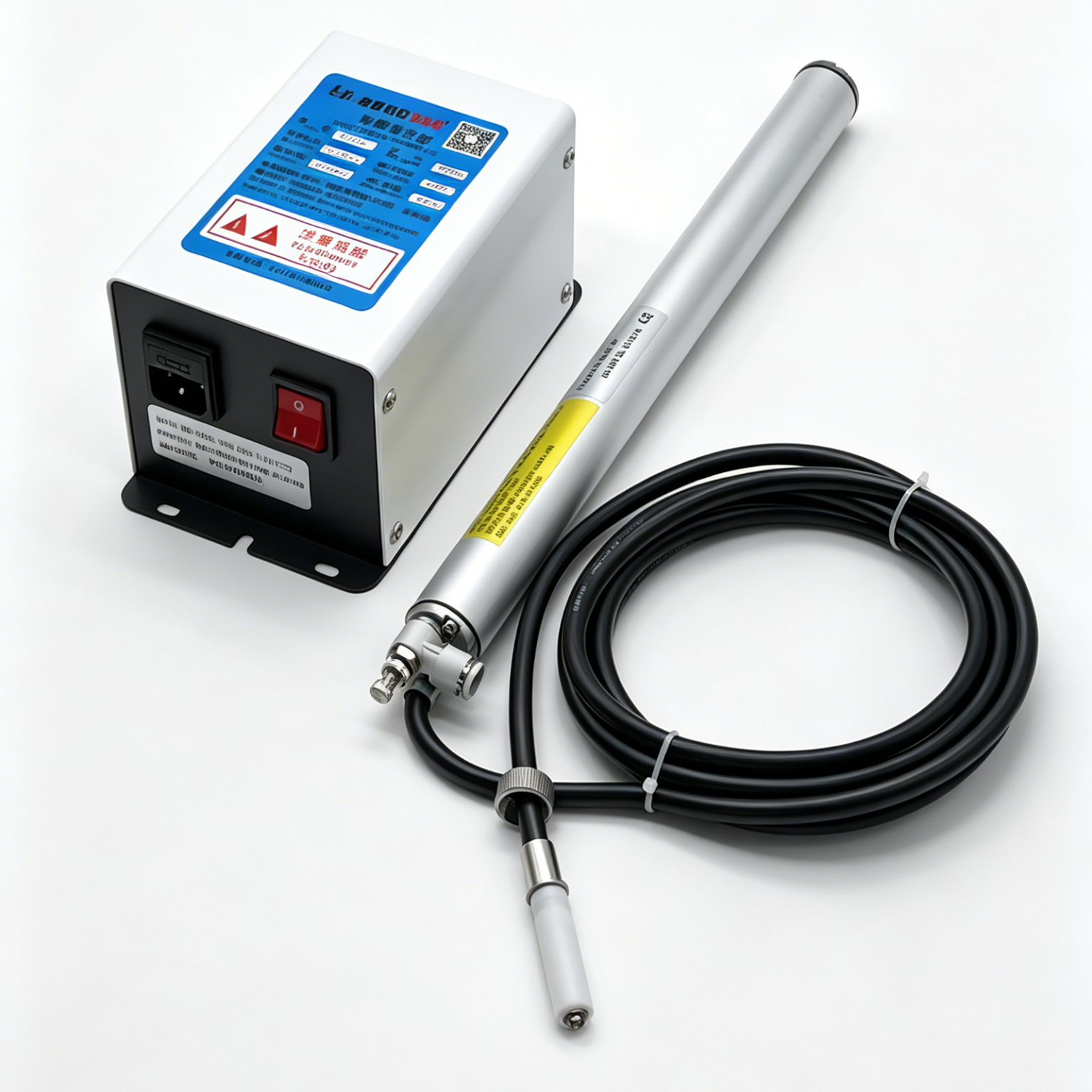

Ionizing air bars are suitable for conveyors, webs, sheets, assembly lines, and other applications requiring treatment across a defined width. They can operate without additional air at suitable distances or use compressed air to improve ion transport.
Ionizing blowers combine an ion source with a fan. They treat a wider area and are useful at workstations, assembly areas, and enclosed production spaces. Air volume and direction should be controlled so that lightweight products are not disturbed.
Ionizing nozzles focus ionized air into a smaller area. They are useful for cavities, recessed components, narrow material paths, and localized cleaning. Ionizing guns allow an operator to direct ionized air toward parts during manual cleaning or assembly.
| Equipment Type | Best Suited Application | Main Consideration |
|---|---|---|
| Ionizing air bar | Webs, sheets, conveyors, and continuous lines | Length, distance, and coverage |
| Ionizing blower | Workstations and larger open areas | Air volume and treatment direction |
| Ionizing nozzle | Focused or recessed treatment | Compressed air and target position |
| Ionizing gun | Manual cleaning and assembly | Operator consistency and air quality |
| Compact ionizing head | Restricted machine spaces | Short range coverage |
| Monitored ionization system | Critical automated processes | Sensor accuracy and control integration |
The equipment type should be selected according to the shape and movement of the target. A wide air bar is inefficient for a small cavity, while a narrow nozzle cannot treat a wide film web uniformly.
Performance is determined by ion output, ion balance, working distance, coverage, airflow, material speed, initial charge, emitter condition, environmental factors, and installation position.
Ion output affects the number of positive and negative ions available for neutralization. However, high output alone does not guarantee good results. The ions must reach the material evenly and within the available treatment time.
Material speed is critical. A stationary object may remain within the ion field for several seconds, while a fast moving web may receive treatment for only a fraction of a second. High speed applications may require stronger delivery, a longer treatment area, or several ionizers.
The initial charge level also matters. Reducing a moderate voltage is generally easier than neutralizing a very high charge generated continuously by rollers, peeling, or friction. The equipment should be evaluated at the maximum expected process condition.
These variables should be evaluated together. Improving one factor may not correct a problem caused by another. For example, increasing airflow will not solve incomplete coverage caused by an ionizing bar that is too short.
Decay time indicates how quickly static elimination equipment reduces a known positive or negative charge between defined voltage levels.
Fast decay is essential when the material moves quickly or when the distance between static generation and the sensitive production step is short. The ionizer must complete sufficient neutralization before the material leaves the effective treatment zone.
Positive and negative decay values should be evaluated separately. An ionizer may neutralize one polarity faster than the other. This difference can affect materials that change charge polarity during processing or applications that require controlled residual voltage.
Decay results are meaningful only when test conditions are stated. Distance, airflow, starting voltage, ending voltage, temperature, humidity, and equipment settings can all affect the result. Buyers should avoid comparing values collected under different conditions.
| Decay Test Factor | Reason It Matters |
|---|---|
| Starting voltage | Defines the initial charge used for the test |
| Ending voltage | Defines when the decay measurement stops |
| Distance | Affects ion concentration at the target |
| Airflow | Changes ion transport speed |
| Polarity | Shows positive and negative performance |
| Environment | Temperature and humidity influence results |
Required decay time should be based on process exposure. An extremely fast laboratory value provides limited benefit if the installed position, material speed, or surrounding airflow prevents the same performance in production.
Ion balance matters because an excessive positive or negative offset can leave a residual charge or charge a surface that was previously neutral.
Ionizing equipment should deliver positive and negative ions in a controlled relationship. When output is balanced, a neutral surface remains close to neutral. If one polarity dominates, the surface may develop an electrical offset.
Balance is particularly important in electronics, semiconductor, optical, medical device, and precision assembly applications. Sensitive components may be affected by lower charge levels than those that cause visible sparks or operator shocks.
Ion balance can change because of contamination, emitter wear, incorrect settings, environmental conditions, damaged components, or unstable power. A balance value measured when the equipment is new should not be assumed to remain unchanged throughout its operating life.
Automatic balance control can improve stability in demanding applications, but it does not eliminate the need for testing. Sensors, feedback settings, and emitter condition should be checked periodically to confirm that the complete system remains within the required range.
Coverage and working distance are evaluated by measuring decay time, ion balance, and residual voltage at several positions across the target under actual installation conditions.
The physical length of an ionizing bar is not always equal to its active treatment length. End caps, connectors, air inlets, and internal components may create inactive areas. Buyers should confirm the active length when selecting equipment.
Increasing working distance can widen the ion field, but it also reduces ion concentration. Ions may recombine, attach to airborne particles, or be captured by nearby metal structures before reaching the target. A wide visible treatment area does not guarantee fast neutralization.
Measurements should be taken at the center, both edges, and intermediate positions. For multiple bar installations, overlap zones should also be tested. This coverage profile reveals weak areas that a single center measurement cannot identify.
Material movement must be considered. A web may shift laterally, sheets may enter at different positions, and molded parts may vary in height. The equipment should maintain adequate coverage throughout the complete operating range.
Airflow carries ions toward the target, but incorrect pressure, poor distribution, turbulence, or competing machine airflow can reduce neutralization performance.
Compressed air can improve ion transport over longer distances and into recessed areas. It is useful for high speed materials and complex shapes, but the air must be clean, dry, stable, and appropriate for the production environment.
Excessive pressure can create turbulence, disturb lightweight products, spread contamination, increase noise, and waste energy. The best setting is usually the lowest stable pressure that provides acceptable coverage and decay time.
Air distribution should be uniform across the equipment. Blocked openings, restricted tubing, clogged filters, small valves, leaks, or an undersized supply can produce uneven treatment. Pressure should be measured near the ionizer while the production line is operating.
Existing airflow can also redirect ions. Cooling fans, exhaust systems, air knives, cleanroom ventilation, open doors, and rapid web movement may carry ions away from the target. Installation testing should include all normal machine airflow.
High performance static elimination is needed in industries where static creates costly defects, safety concerns, contamination, material handling instability, or damage to sensitive products.
Electronics and semiconductor manufacturing require controlled ion balance and fast charge decay. Ionization is used near assembly, inspection, handling, testing, and packaging processes where insulating materials or isolated conductors cannot be controlled through grounding alone.
Printing, packaging, and converting processes use ionizers to control film, foil, paper, labels, and laminates. High speed movement and repeated roller contact can generate strong charges that cause adhesion, repulsion, misfeeding, poor stacking, dust attraction, and winding problems.
Plastic molding and automotive production use static elimination before painting, coating, printing, bonding, and inspection. Neutralizing the surface helps reduce dust attraction and contamination related defects.
| Industry | Common Static Problem | Performance Priority |
|---|---|---|
| Electronics | Damage to sensitive components | Stable balance and verified decay |
| Semiconductor | Charge on wafers and handling materials | Precision and low contamination |
| Printing | Sheet adhesion and feeding errors | Fast neutralization |
| Flexible packaging | Web instability and winding defects | Wide uniform coverage |
| Plastic molding | Dust attraction on molded parts | Directed treatment |
| Automotive | Contamination before painting or bonding | Reliable surface neutralization |
| Medical devices | Particle attraction and sensitive assemblies | Clean and controlled ionization |
| Optical production | Dust on lenses and display materials | Low disturbance treatment |
| Textiles | Fiber attraction and handling problems | Durable wide area treatment |
| Battery production | Particle attraction and process instability | Clean operation and monitoring |
The required equipment configuration varies by industry. Selection should be based on measured process conditions rather than on a general industry label.
Buyers should select equipment by matching its verified decay time, balance, coverage, distance, airflow, environmental suitability, and control functions to the actual production requirement.
The selection process should begin with measurements. Determine the static voltage, polarity, working width, maximum process speed, and acceptable residual voltage. Identify where the charge is generated and where it begins to cause a problem.
Next, review the mechanical environment. Confirm available mounting space, distance to the target, nearby rollers, guards, frames, movement range, and maintenance access. Photographs and machine drawings can help prevent installation conflicts.
Environmental conditions should also be documented. Dust, fibers, oil mist, adhesive vapor, moisture, chemicals, temperature, humidity, and clean manufacturing requirements affect equipment design and maintenance.
Suppliers should explain the proposed configuration and provide performance data collected under relevant conditions. Critical applications may justify a sample test with the actual material before the final purchase.
Static elimination equipment should be installed after the primary charge generation point, within its effective distance, with complete coverage and a clear path between the emitters and the target.
Position is critical. If an ionizer is installed before a roller, liner separation, cutting operation, or other major charging event, the material can become charged again immediately after treatment. The equipment should normally be positioned between the generation point and the location where static causes a defect.
Nearby grounded metal structures can capture ions. Rollers, frames, guards, and brackets should not obstruct the ion path. The bar should also be protected from accidental contact with moving materials while maintaining adequate coverage.
Grounding should be completed according to electrical and safety requirements. Conductive machine components should be grounded so that charge can dissipate safely. Ionization and grounding work together but perform different functions.
The installation should allow safe cleaning, inspection, and testing. Equipment placed in an inaccessible location may not receive proper maintenance, leading to gradually declining performance.
Performance is tested using an electrostatic field meter for actual surface voltage and a charged plate monitor for decay time and ion balance.
A field meter measures the electric field associated with a charged surface. The reading depends on measuring distance, angle, target size, and nearby grounded objects. Tests should use consistent positions and documented conditions.
Measurements before the ionizer show the incoming charge. Measurements immediately after treatment show the residual charge. Additional downstream measurements can identify whether the material becomes charged again later in the process.
A charged plate monitor provides standardized positive decay, negative decay, and ion balance measurements. It should be positioned at the intended working distance and tested with the normal airflow and equipment settings.
Testing should be completed at normal and maximum production speeds. All relevant fans, exhaust systems, rollers, guards, and machine functions should be operating so that the results represent actual production.
High performance static elimination equipment requires regular emitter cleaning, visual inspection, grounding checks, airflow inspection, and periodic decay and balance testing.
Emitter points attract dust because of the strong electric field around them. Oil, adhesive, powder, fibers, ink mist, and other deposits can weaken the field and reduce ion production. Performance may decline gradually even though the equipment remains powered.
Cleaning frequency should be based on contamination and measured performance. A clean assembly area may allow a longer interval than a printing, textile, coating, or molding process. Maintenance records can reveal how quickly decay time increases between cleanings.
Power should be isolated before direct cleaning. Approved brushes, swabs, and cleaning agents should be used. Abrasive tools and unsuitable chemicals may damage emitters, insulation, seals, or housing surfaces.
| Maintenance Activity | Purpose | Recommended Basis |
|---|---|---|
| Visual inspection | Identify contamination and damage | Process risk and operating hours |
| Emitter cleaning | Restore ion output | Measured performance trend |
| Grounding check | Support safe charge dissipation | Scheduled preventive maintenance |
| Air system inspection | Maintain stable ion transport | Pressure and filter condition |
| Decay testing | Verify neutralization speed | Application sensitivity |
| Balance testing | Confirm controlled electrical offset | Application sensitivity |
Baseline values should be recorded when the system is commissioned. Future test results can then be compared with the original condition, making gradual deterioration easier to identify.
Poor performance is commonly caused by contaminated emitters, excessive distance, incomplete coverage, poor airflow, incorrect installation, high process speed, weak grounding, equipment damage, or new static generation after treatment.
Contamination is one of the most frequent causes. The emitter points may appear dirty, but performance should be confirmed through decay testing before and after cleaning. A significant improvement indicates that the maintenance interval may need to be shortened.
Installation errors can prevent ions from reaching the target. The bar may be too far away, aimed incorrectly, blocked by a guard, or positioned near a grounded roller that captures ions. Process airflow may also carry the ions away.
Production changes should be investigated whenever performance declines. A faster speed reduces treatment time, a wider material may extend beyond the active area, and a new polymer may generate a stronger charge. A downstream roller or liner separation may recharge material after successful neutralization.
Only one major variable should be changed at a time. Controlled troubleshooting helps identify the true cause and creates useful information for future maintenance.
Total ownership cost should include purchase price, installation, energy, compressed air, maintenance, replacement parts, service life, downtime, and the financial impact of static related defects.
A lower purchase price does not necessarily provide lower total cost. Equipment with weak coverage or unstable output may require additional bars, repeated adjustments, frequent cleaning, or early replacement.
Compressed air can become a significant operating expense. Where air is required, pressure and flow should be optimized. Using more air than necessary increases energy cost and may create turbulence without improving static elimination.
Maintenance access also affects cost. Equipment that can be inspected and cleaned quickly reduces machine downtime. Accessible emitters, practical mounting, clear alarms, and complete instructions can lower long term service expenses.
| Cost Area | Evaluation Question |
|---|---|
| Purchase | What equipment and accessories are included? |
| Installation | Are special brackets, controls, or air components required? |
| Energy | What power and compressed air will be consumed? |
| Maintenance | How often must the equipment be cleaned and tested? |
| Parts | Are replacement components readily available? |
| Downtime | How quickly can faults be diagnosed and corrected? |
| Quality loss | What is the cost of defects caused by uncontrolled static? |
The best economic choice is the system that meets the required static control target reliably at the lowest practical cost over its operating life.
High performance static elimination equipment delivers fast decay, controlled ion balance, uniform coverage, stable output, and reliable operation when correctly matched to the production process.
Performance depends on the complete application. Material type, initial charge, process speed, working width, treatment distance, airflow, environment, emitter condition, and installation position all influence the final result.
Industrial buyers should compare measurable values rather than general claims. Positive and negative decay time, ion balance, active coverage, working distance, and stability should be reviewed under clearly stated test conditions.
Correct installation and maintenance are equally important. Even advanced equipment can perform poorly if it is blocked by machine structures, installed before the main charging point, exposed to uncontrolled airflow, or allowed to accumulate contamination.
By defining clear acceptance targets, validating performance under actual production conditions, and maintaining the equipment according to measured need, manufacturers can reduce dust attraction, material handling problems, operator shocks, electronic damage, quality defects, and unplanned downtime.
