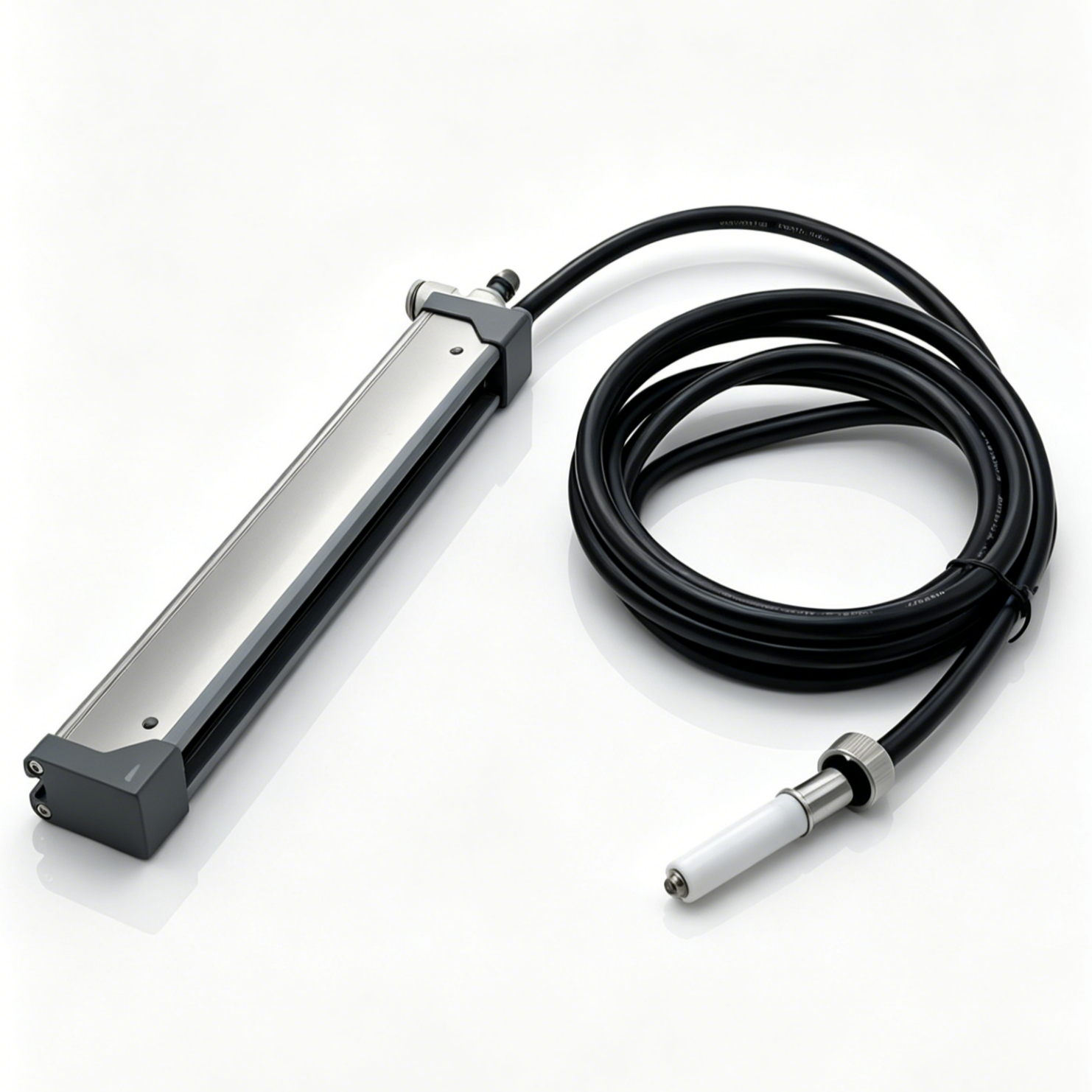

Ionizing air bars are widely used to control static electricity in electronics manufacturing, printing, packaging, plastics processing, textile production, medical device assembly, and other industrial operations. By producing positive and negative ions, an ionizing air bar neutralizes the electrical charges that accumulate on products, films, sheets, machine components, and other insulated surfaces.
One of the most important questions when selecting or installing this equipment is its effective operating distance. A bar may generate ions successfully, but those ions must reach the charged surface in sufficient concentration to neutralize static within the available process time. The physical distance between the bar and the target therefore has a major influence on static elimination performance.
Most industrial ionizing air bars work effectively at a distance of approximately 50 to 500 millimeters from the target surface. Compressed air models may operate effectively at distances of 300 to 1000 millimeters or more, while specialized long range systems can reach beyond 1000 millimeters under suitable conditions. The actual working distance depends on ionization technology, airflow, static voltage, material speed, installation angle, contamination, and environmental conditions.
Maximum advertised distance should not be treated as the recommended distance for every application. A bar positioned close to a slowly moving plastic sheet may neutralize static very quickly, while the same bar placed farther away from a high speed film web may provide inadequate decay performance. Buyers should therefore evaluate working distance together with ion balance, decay time, coverage width, production speed, and installation conditions.
This article explains the practical operating range of an ionizing air bar, the factors that determine how far ions can travel, and the methods used to identify a suitable installation distance. It also provides practical guidance for long range applications and common industrial operating conditions.
This article covers the operating range, performance factors, testing methods, installation principles, and selection criteria that determine how far an ionizing air bar can work.
The working distance of an ionizing bar cannot be evaluated from a single specification. It must be considered as part of a complete static control system. The following sections examine both the technical principles and the practical production factors involved.
Each section connects operating distance with measurable results. This makes it easier for engineers and purchasing teams to compare equipment based on actual application requirements rather than relying only on a maximum distance value.
The typical effective working distance is between 50 and 500 millimeters for general industrial ionizing air bars, although compressed air and specialized long range models may operate from 300 to more than 1000 millimeters away.
A short working distance, such as 50 to 150 millimeters, normally provides the highest ion concentration at the target. At this range, ions have less time to recombine with oppositely charged ions or attach to airborne particles. Static decay is therefore usually faster, making short distances suitable for electronics assembly, narrow material paths, precision handling stations, and high speed processes.
A medium working distance of approximately 150 to 500 millimeters is common in printing, converting, packaging, injection molding, and general industrial production. This distance offers a practical balance between neutralization speed and installation flexibility. It provides enough clearance for moving material, machine guards, rollers, tooling, and operator access while still delivering useful ion density.
Long range operation generally begins at about 500 millimeters. At this distance, natural ion movement may not be sufficient, especially when the target is moving quickly or the surrounding air is turbulent. Compressed air, a blower, or another controlled airflow source is often needed to transport ions toward the charged surface.
| Operating Range | Typical Application | Expected Performance | Common Requirement |
|---|---|---|---|
| 50 to 150 mm | Electronics, precision assembly, narrow webs | Very fast neutralization | Accurate positioning |
| 150 to 300 mm | Printing, packaging, plastics | Fast to moderate neutralization | Stable mounting and clear ion path |
| 300 to 500 mm | Wide materials and general machinery | Moderate neutralization | Good airflow and sufficient exposure time |
| 500 to 1000 mm | Large surfaces and restricted installations | Application dependent | Air assistance usually recommended |
| More than 1000 mm | Specialized long range applications | Requires verification | Strong controlled airflow and performance testing |
These ranges are general reference values rather than universal guarantees. The correct distance is the distance at which the bar achieves the required static decay time and residual voltage under actual production conditions.
The effective range is determined by ion output, airflow, electrode design, target charge, environmental conditions, installation geometry, and the amount of time available for neutralization.
An ionizing bar produces positive and negative ions around its emitter points. These ions must move through the surrounding air and reach the charged material. During this journey, some ions recombine, disperse, or become attached to dust and moisture. Ion concentration normally decreases as distance increases, which limits the useful range of the bar.
The electrical design of the ionizer also affects performance. Voltage waveform, output frequency, emitter spacing, electrode shape, and control method influence the quantity and distribution of ions. A well designed bar can create a uniform ion field across its active length, but the useful range still depends on how efficiently those ions are transported to the target.
Air movement is especially important. Without forced airflow, ions move primarily through electrical attraction, natural air movement, and limited repulsion from the emitter region. With compressed air or blower assistance, ions can be carried farther and distributed more quickly across a target surface.
The maximum operating distance stated in technical information is often measured under controlled conditions. Actual factories contain cross airflow, dust, moving machinery, changing humidity, and irregular products. On site testing is therefore essential when reliable static control is required.
As the distance between the ionizing bar and the target increases, ion density normally decreases and static decay time becomes longer.
Static decay time describes how long an ionizer takes to reduce a charged surface or test plate from a specified initial voltage to a lower voltage. A common evaluation measures the time needed to reduce a charge from 1000 volts to 100 volts. The exact test conditions should always be recorded because plate size, distance, airflow, and test location affect the result.
When a bar is placed close to the target, more ions reach the surface in a shorter period. Increasing the distance expands the ion field, but it also spreads the ions over a larger area. The same ion output is distributed through a greater volume of air, so the available ion density at any specific point generally becomes lower.
The relationship between distance and decay time is not perfectly linear. Doubling the distance does not necessarily double the neutralization time. Airflow patterns, electrical field strength, bar design, and surrounding structures may cause performance to decline more rapidly at certain distances.
| Change in Distance | Likely Effect on Ion Density | Likely Effect on Decay Time | Recommended Action |
|---|---|---|---|
| Distance decreases | Increases | Becomes shorter | Check that coverage remains uniform |
| Distance increases moderately | Decreases | Becomes longer | Measure performance at the target |
| Distance increases substantially | May become insufficient | May exceed process time | Add controlled airflow or another bar |
| Distance varies across the surface | Becomes uneven | Varies by position | Adjust mounting geometry |
A longer distance can sometimes improve coverage uniformity because the ion cloud has more room to spread. However, this benefit is useful only if sufficient ion density still reaches the entire surface. The ideal distance is therefore not always the shortest possible distance. It is the position that produces adequate decay speed, uniform coverage, safe clearance, and stable operation.
Non air assisted bars are generally best for short and medium distances, while air assisted bars can deliver ions over greater distances and into difficult areas.
A non air assisted ionizing bar does not use compressed air to transport ions. It is often installed close to a web, sheet, conveyor, or component. This design can be economical, quiet, and easy to maintain. It is suitable when the target passes close to the bar and remains within the ionization zone long enough for the charge to decay.
An air assisted ionizing bar introduces compressed air through holes or nozzles near the emitter points. The airflow carries positive and negative ions toward the target. This arrangement can increase effective distance, accelerate neutralization, penetrate recessed areas, and overcome moderate opposing air currents.
Air assistance is not automatically the best choice for every installation. Excessive pressure can create turbulence, move lightweight products, spread contamination, or increase operating costs. Clean and properly filtered air may be necessary in electronics, optical, pharmaceutical, medical, and clean manufacturing environments.
| Feature | Non Air Assisted Bar | Air Assisted Bar |
|---|---|---|
| Typical working distance | 50 to 500 mm | 300 to 1000 mm or more |
| Neutralization speed | Good at short range | Fast across longer distances |
| Air consumption | None | Application dependent |
| Installation complexity | Relatively simple | Requires air supply and adjustment |
| Operating cost | Generally lower | Generally higher |
| Suitability for recessed areas | Limited | Better |
| Risk of disturbing light materials | Low | Must be evaluated |
Blower supported systems offer another option. They move a larger volume of air at a lower pressure and may be suitable for broad coverage. The correct method depends on target distance, required decay time, surface geometry, cleanliness requirements, noise limitations, and energy cost.
Production speed, material type, surface shape, surrounding airflow, contamination, and available exposure time can make the practical working range much shorter than the maximum laboratory range.
Material speed is one of the most important conditions. A static bar may neutralize a stationary test plate effectively at 500 millimeters, but a web moving rapidly through a short treatment zone may leave before neutralization is complete. Increasing the ionized path length, moving the bar closer, or installing multiple bars may be necessary.
Material type also matters. Insulating materials such as plastic film, foam, paper with certain coatings, synthetic textiles, and molded polymer parts can retain charge for long periods. Charge may also exist on both sides of a material. Treating only one side may not provide sufficient control, particularly when the material is thick or when its charge distribution is irregular.
Surface geometry changes the ion path. A flat film provides a relatively predictable target, while trays, containers, molded parts, cavities, and stacked products may create shielded areas. Ions tend to follow the available airflow, so recessed surfaces may require directed air or several ionization positions.
Cross airflow from ventilation systems, cooling fans, extraction equipment, or moving machinery can transport ions away from the target. Before selecting a long operating distance, engineers should observe the actual direction and stability of air movement around the intended installation position.
Maintenance conditions must also be included. A new bar with clean emitter points may work at a relatively long distance, while the same unit may lose performance after dust, oil, adhesive vapor, or process residue accumulates. The design distance should include a reasonable performance margin for normal operation between maintenance intervals.
The correct installation distance should be established by comparing the required decay time with the actual exposure time and then confirming the result through static voltage measurements under normal production conditions.
The first step is to define the static control objective. Some applications only need to prevent dust attraction or material sticking. Others require a controlled low voltage condition to protect sensitive electronic devices. A vague requirement such as removing static is not sufficient for engineering selection.
The available exposure time can be estimated from the length of the active treatment zone and the material speed. If a web passes through a 300 millimeter treatment zone at 600 millimeters per second, the approximate exposure time is 0.5 seconds.
Exposure time equals treatment length divided by material speed.
The required decay time of the ionizing system should normally be shorter than the available exposure time. A safety margin is recommended because actual charge levels, material position, speed, humidity, and contamination can vary during production.
A handheld electrostatic field meter can be used for process measurements when operated at the correct sensing distance. A charged plate monitor is more suitable for evaluating ion balance and decay performance in a standardized manner. The measurement method should remain consistent so that results can be compared over time.
Testing should include both positive and negative charges. An ionizer may neutralize one polarity faster than the other if the ion balance is not properly controlled. Distance can influence this difference, so buyers should review complete decay and balance data rather than relying on one neutralization value.
Long range performance can be improved by using controlled airflow, optimizing the mounting position, removing obstructions, increasing treatment time, maintaining clean emitter points, and using multiple ionizing bars when necessary.
Controlled airflow is usually the most direct way to extend ion delivery. The air should move toward the charged surface without producing excessive turbulence. More air is not always better. The objective is to carry ions efficiently and distribute them uniformly across the target.
The mounting angle can also make a major difference. A bar positioned directly toward a moving surface may provide strong treatment, while a slight angle can extend the effective treatment path. However, an incorrect angle may direct ions away from part of the material. Measurements across the entire width are necessary to confirm uniformity.
When one bar cannot provide adequate coverage or decay speed, installing additional bars may be more reliable than forcing a single bar to operate at its maximum range. Several bars can create a longer treatment zone, address both sides of a material, or cover products with changing heights.
Long range design should include a margin above the minimum acceptable performance. If the system only meets the requirement when completely clean and perfectly aligned, normal process variation may cause failure. A more conservative distance or an additional ionization source can provide greater stability.
Energy consumption should also be considered. Extending distance through excessive compressed air can raise operating costs considerably. A closer mounting position, improved bracket design, or multiple efficient treatment points may provide a better long term solution.
Common mistakes include mounting the bar too far away, placing grounded metal between the bar and target, using an incorrect angle, ignoring cross airflow, covering the emitter area, and failing to clean the electrodes.
A frequent mistake is choosing a location based only on available space. The most convenient location for installation may not provide a clear ion path. A machine guard, roller, frame, or cable can attract ions or block airflow before the ions reach the charged material.
Another mistake is installing the bar beside the cause of static without considering what happens afterward. Static can be regenerated when film separates from a roller, products slide along guides, sheets are stacked, or protective liners are removed. The ionizing bar should normally be positioned close to the location where charge causes a process problem and after the last major charge generating event whenever possible.
Grounded metal placement deserves special attention. Ions can be attracted to grounded machine components. If a large grounded roller sits directly between the bar and the target, a substantial part of the ion output may be lost. The resulting working distance will appear shorter even though the bar itself is functioning normally.
Electrical grounding must also follow the equipment instructions. Poor grounding can affect safety, stability, and performance. Power cables should be routed correctly, and the bar should not be exposed to conditions beyond its environmental rating.
Installation should always allow access for inspection and cleaning. A bar located where it cannot be maintained may gradually lose range as contamination builds up. Maintenance accessibility is therefore part of effective distance planning rather than a separate concern.
Buyers should select an ionizing air bar according to verified decay performance at the required distance, target width, line speed, environment, airflow availability, and acceptable residual voltage.
A maximum operating distance alone does not provide enough information for comparison. Buyers should request decay time data at several distances and confirm the test conditions. Useful information includes initial voltage, final voltage, test plate size, airflow setting, measurement position, and ion balance.
The required active length should match the target width. For wide materials, the active ionization area should cover the full working width with an appropriate margin. If the bar is shorter than the material, edge regions may retain static even when the center is neutralized effectively.
The production environment must be considered as well. Dusty printing and converting operations may require accessible electrodes and frequent cleaning. Clean manufacturing may require low particle generation and clean air compatibility. Processes involving solvent vapor, combustible dust, moisture, chemicals, or high temperatures may require equipment designed specifically for those conditions.
| Application Requirement | Selection Priority |
|---|---|
| Short distance and high speed | Fast decay and uniform ion distribution |
| Long installation distance | Air assistance and verified long range performance |
| Wide moving web | Full width coverage and edge consistency |
| Sensitive electronics | Stable ion balance and controlled decay |
| Complex molded product | Directed airflow and multiple treatment angles |
| Dusty production area | Easy cleaning and strong maintenance accessibility |
| Variable product height | Broad effective range and flexible mounting |
A production trial is valuable for critical applications. It allows the buyer to evaluate the ionizer with real materials, real speeds, and actual machine airflow. The final purchasing decision can then be based on measurable improvement in residual voltage, dust control, feeding stability, product quality, and process reliability.
An ionizing air bar commonly works from about 50 to 500 millimeters away, while air assisted or specialized systems may work from 300 to more than 1000 millimeters under suitable conditions. The best working distance is the position that achieves the required static decay and residual voltage during actual production.
Distance has a direct effect on ion density, coverage, and neutralization time. Short placement usually delivers faster results, but sufficient clearance, uniform coverage, and machine access must also be maintained. Longer distances can be practical when airflow transports ions effectively and the production process provides enough treatment time.
Buyers should avoid selecting equipment solely from a stated maximum range. Decay time, ion balance, material speed, target geometry, airflow, cleanliness, and installation position must be evaluated together. Performance data should be reviewed at the intended distance rather than only at the shortest test position.
The most dependable method is to define a measurable static control target, estimate the available exposure time, select a suitable starting distance, and verify the result with appropriate instruments during normal production. Testing across the center, edges, and irregular areas of the target helps identify weak zones that might otherwise be overlooked.
With correct selection, installation, testing, and maintenance, an ionizing air bar can provide stable static neutralization across a wide range of industrial distances. A properly engineered operating range reduces dust attraction, material sticking, feeding problems, electronic damage, process interruptions, and quality defects while supporting safer and more consistent production.
