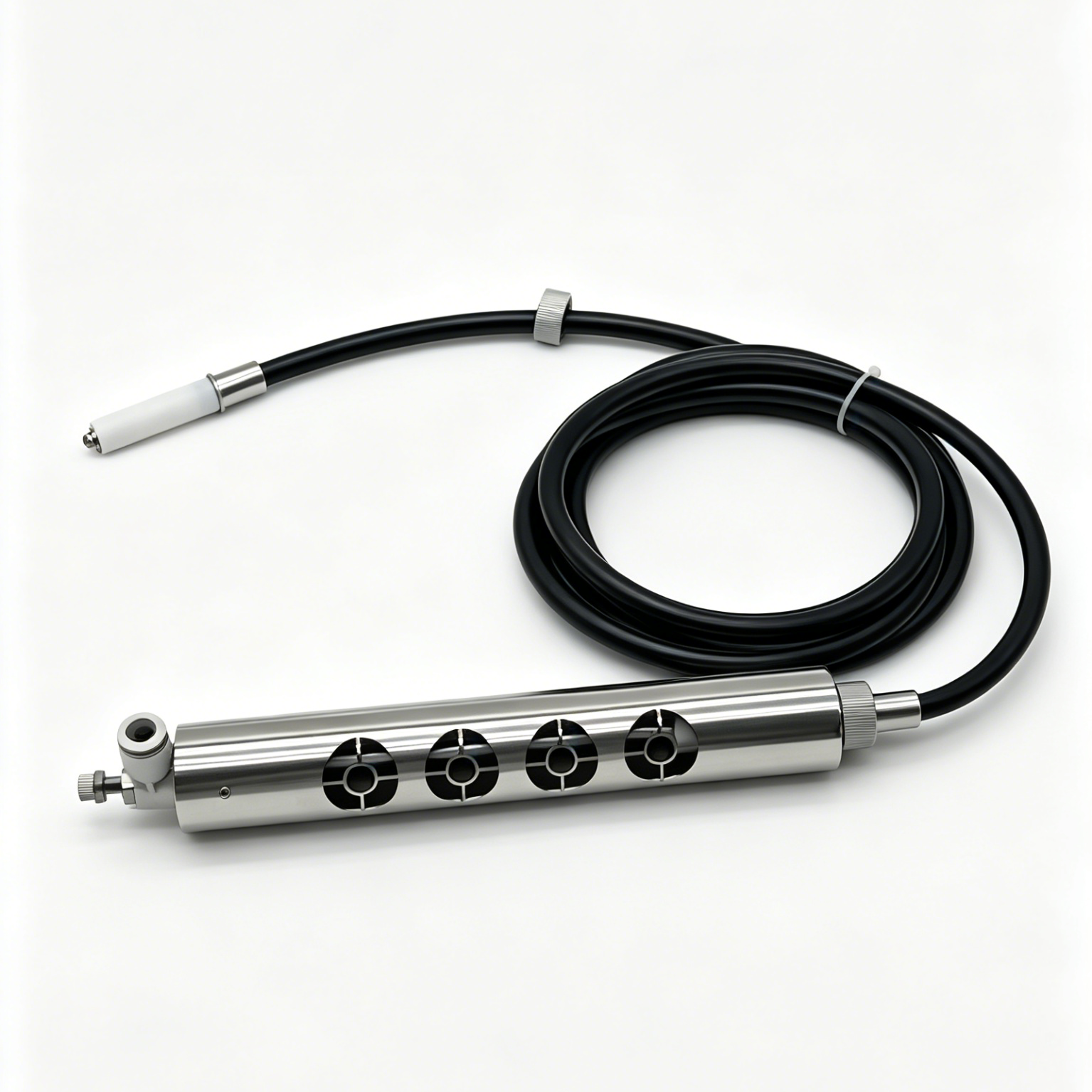

Ionizing air bars are widely used to neutralize static electricity in electronics assembly, printing, packaging, plastics processing, textile production, semiconductor manufacturing, and other industrial environments. By generating positive and negative ions, an ionizing air bar reduces the electrical charge on materials, machine components, and products. This helps prevent dust attraction, material jams, operator shocks, electrostatic discharge damage, and quality defects.
Although an ionizing air bar normally requires less attention than many mechanical production components, it is not completely maintenance free. Dust, adhesive residue, oil mist, fibers, and airborne process contamination can gradually accumulate around the emitter points. If this contamination is not removed, ion output may decrease, neutralization time may increase, and ion balance may move outside the acceptable range.
Most ionizing air bars require visual inspection every week, basic emitter cleaning every one to four weeks, and a performance test every three to six months. However, the correct maintenance frequency depends on the production environment, operating hours, contamination level, installation distance, compressed air quality, and required static control performance. Clean applications may need only monthly cleaning, while dusty or adhesive processes may require cleaning every few days.
A good maintenance program should therefore be based on actual operating conditions rather than a single fixed schedule. Production managers should combine routine inspection, safe cleaning, static voltage measurement, ion balance testing, and maintenance documentation. This approach keeps the ionizing equipment working consistently and helps prevent unexpected quality problems.
The following guide explains how much maintenance an ionizing air bar requires, what should be checked, how often cleaning should be performed, which warning signs indicate declining performance, and how manufacturers can develop an effective preventive maintenance plan.
An ionizing air bar generally requires a low to moderate amount of routine maintenance. The main tasks are inspecting the equipment, cleaning the emitter points, checking electrical and pneumatic connections, and periodically verifying static neutralization performance.
Ionizing air bars contain few or no moving mechanical parts, depending on their design. As a result, they do not normally require lubrication, frequent component adjustment, or extensive mechanical servicing. Most maintenance work can be completed by trained production or maintenance personnel in a relatively short period. A basic inspection and cleaning may take only several minutes when the bar is accessible and the contamination is light.
However, low maintenance should not be confused with no maintenance. The emitter points operate at high voltage and attract contamination through electrical forces. Even when the surrounding machine appears clean, microscopic particles may accumulate on the tips. This buildup can restrict ion generation and reduce the number of useful ions reaching the charged material.
The required maintenance level is also determined by the importance of static control in the application. A packaging line may tolerate a moderate change in neutralization performance before production is affected. A semiconductor, medical device, or sensitive electronics process may require much tighter ion balance and decay time limits. In these applications, more frequent testing and documentation are necessary even when the equipment looks clean.
Maintenance requirements should therefore be evaluated according to both equipment condition and process risk. The physical cleaning work may remain simple, but the verification process can be more detailed in critical manufacturing environments.
A practical starting schedule is a weekly visual inspection, emitter cleaning every one to four weeks, and a documented performance test every three to six months. The schedule should be shortened when contamination or performance measurements indicate that more frequent maintenance is necessary.
No single maintenance interval is correct for every installation. An air bar operating in a clean electronics assembly room may remain stable for several weeks. The same equipment installed near cutting dust, printing powder, plastic particles, adhesive vapor, or textile fibers may become contaminated much faster. Continuous production also creates more operating exposure than a line used for one shift per day.
During the first several months after installation, the user should inspect the bar frequently and record its condition. If visible contamination appears after seven days, a monthly cleaning schedule will be insufficient. If the emitters remain clean and performance measurements are stable after four weeks, the interval may be extended carefully.
The following table provides general starting intervals. The actual schedule should follow the equipment instructions, the process risk assessment, and measured performance.
| Maintenance activity | Typical starting frequency | Purpose |
|---|---|---|
| Visual condition check | Daily or weekly | Identify contamination, damage, loose mounting, or abnormal operation |
| Emitter point inspection | Weekly | Detect dust, fibers, oil, resin, and adhesive deposits |
| Basic emitter cleaning | Every one to four weeks | Restore efficient and consistent ion generation |
| Compressed air check | Weekly or monthly | Confirm correct pressure, flow, dryness, and filtration |
| Cable and grounding inspection | Monthly | Confirm safe and stable electrical operation |
| Static voltage measurement | Monthly or quarterly | Verify that the process charge is being controlled |
| Ion balance and decay time test | Every three to six months | Confirm objective neutralization performance |
| Complete system review | Annually | Evaluate installation, component condition, and maintenance history |
Maintenance frequency should never be extended simply to reduce labor. It should be extended only when inspection records and test results demonstrate that the longer interval is reliable. A condition based schedule usually provides better results than an arbitrary calendar schedule.
Emitter points require regular cleaning because deposits on their surfaces interfere with corona discharge, reduce ion output, slow static neutralization, and may create unstable ion balance.
The emitter points are the parts of an ionizing air bar that generate positive and negative ions. Their tips must maintain a strong and controlled electrical field. When contamination covers or changes the shape of the tip, the electrical field becomes less effective. The bar may continue to operate, but its actual neutralization performance can decline gradually.
Contamination can include ordinary dust, paper fibers, plastic powder, textile lint, oil mist, adhesive residue, smoke particles, coating material, and moisture combined with dirt. Some deposits are dry and easy to remove. Others form a hard or sticky layer that requires more careful cleaning with an approved solution.
Dirty emitter points do not always cause an obvious alarm. The power indicator may remain on, and the equipment may still produce some ions. The first sign of deterioration may instead appear in the process, such as renewed dust attraction, poor sheet separation, material wrapping, inaccurate sensor readings, or electrostatic discharge failures.
Regular cleaning prevents this gradual loss of performance. It also reduces the possibility that severe contamination will become difficult to remove. Frequent light cleaning is normally safer and faster than waiting until a thick deposit has formed.
A routine inspection should cover the emitter points, bar housing, mounting position, electrical cable, grounding connection, power supply, compressed air system, operating indicators, and surrounding production area.
Begin with the physical condition of the air bar. Check whether dust or process residue is visible around the emitter openings. Look for cracks, deformation, corrosion, impact damage, or loose components. The housing should be securely mounted and should not contact moving material or machine parts.
The installation position should also be checked. Machine vibration, maintenance work, or accidental impact can change the angle or distance of the bar. Even a clean air bar may perform poorly if it has moved too far from the charged surface or if a metal machine frame blocks the ion path. Confirm that the bar still faces the target area and covers the complete material width.
Electrical cables should be inspected for cuts, abrasion, crushing, loose connectors, or exposure to excessive heat. Grounding connections must remain secure and free from corrosion. Proper grounding is important for safe operation and stable static control. Any damaged high voltage component should be handled according to qualified service procedures.
If the air bar uses compressed air, inspect the tubes, fittings, pressure regulator, filters, and drains. Check for leaks and verify that the pressure matches the approved operating range. Excessive pressure can increase noise and operating cost, while insufficient pressure may prevent ions from reaching the target effectively.
A checklist makes the inspection consistent between different operators and shifts. It also prevents minor abnormalities from being overlooked until they cause a larger production problem.
Ionizing air bar performance should be tested by measuring residual static voltage at the process and, when tighter control is required, by checking ion balance and static decay time with suitable measuring instruments.
A visual inspection cannot confirm how quickly static charge is being neutralized. An air bar may look clean while its performance is affected by installation distance, airflow, grounding, emitter wear, or electrical problems. Objective measurement is therefore necessary to verify that maintenance has restored acceptable operation.
A noncontact electrostatic field meter can be used to measure the charge on the material before and after the neutralization point. Measurements should be taken at a controlled distance and at repeatable locations. The production speed, material type, humidity, and machine condition should also be recorded because these factors influence the result.
For applications requiring controlled ionization, a charged plate monitor can measure decay time and ion balance. Decay time indicates how quickly the ionizer reduces a known positive or negative charge to specified voltage levels. Ion balance indicates whether the ion output leaves the test plate close to neutral or creates an unwanted residual charge.
Test conditions must remain consistent if results are to be compared over time. The same instrument location, operating distance, airflow setting, and production state should be used whenever possible. Measurement instruments should also receive appropriate calibration or verification.
| Indicator | What it shows | Possible cause of poor results |
|---|---|---|
| Residual static voltage | Charge remaining on the product | Insufficient coverage, poor position, contamination, or inadequate ion output |
| Positive decay time | Speed of neutralizing a positive charge | Weak negative ion delivery or poor airflow |
| Negative decay time | Speed of neutralizing a negative charge | Weak positive ion delivery or poor airflow |
| Ion balance | Difference between positive and negative ion delivery | Uneven contamination, emitter damage, or control instability |
| Process defect rate | Practical effect on production quality | Static control problem or another process variable |
Performance should ideally be measured before and after maintenance. This creates evidence that cleaning or adjustment produced an improvement and helps determine when the next maintenance action will be needed.
The production environment is one of the most important factors controlling maintenance frequency. Clean and controlled areas usually permit longer intervals, while dusty, oily, fibrous, or adhesive environments require much more frequent inspection and cleaning.
In electronics assembly and clean manufacturing, visible contamination may accumulate slowly. However, performance limits can be strict because sensitive components may be damaged by relatively small electrostatic discharges. Maintenance in these environments often emphasizes measurement, documentation, and control of ion balance rather than frequent removal of heavy deposits.
Printing, paper processing, packaging, and textile production generate large amounts of fibers and particles. These materials can collect rapidly around emitter points. In such conditions, daily observation and weekly cleaning may be necessary. Bars located near trimming, slitting, cutting, or folding stations generally require more attention than units installed in cleaner areas.
Adhesive, coating, rubber, and plastics applications may create sticky deposits. These deposits can capture additional dust and become progressively harder to remove. Maintenance personnel should inspect the bar frequently and use only cleaning materials compatible with the emitter points and housing.
Humidity and temperature also influence static behavior. Low humidity often increases charge generation and makes a small reduction in ionizer performance more noticeable. A seasonal maintenance schedule may therefore be appropriate. Facilities may need closer monitoring during dry months even if the contamination rate has not changed.
| Operating environment | Likely maintenance demand | Suggested initial cleaning interval |
|---|---|---|
| Clean electronics assembly | Low contamination with strict performance control | Every three to four weeks |
| Controlled clean production area | Low contamination with documented testing | Every two to four weeks |
| General packaging line | Moderate dust and continuous material movement | Every one to two weeks |
| Paper or textile processing | High fiber and particle exposure | Every three to seven days |
| Adhesive or coating process | Sticky deposits and dust accumulation | Several times per week or as inspection indicates |
| Oily industrial environment | Oil mist combined with dust | Weekly or more frequently |
These intervals are starting references rather than universal requirements. Actual performance data should always determine the final schedule.
Maintenance is required when static related defects return, dust attraction increases, materials begin sticking or separating poorly, operator shocks occur, emitter contamination becomes visible, or performance measurements move outside the accepted range.
One of the clearest warning signs is a change in material behavior. Plastic film may cling to rollers, sheets may feed together, labels may shift, products may attract dust, or lightweight parts may repel each other. These symptoms suggest that charge is not being neutralized as effectively as before.
Production quality can also indicate declining performance. Printing defects, coating irregularities, inaccurate placement, sensor interference, contamination, and electrostatic discharge damage may increase. However, these defects can have several causes, so the ionizing system should be measured rather than blamed automatically.
Visible contamination around the emitter points is another important warning. Dark rings, fibers, powder, oil, or adhesive deposits should be removed before they become severe. Abnormal sound, odor, sparking, damaged cables, or irregular operating indicators require immediate attention. The equipment should be safely shut down and assessed by qualified personnel when an electrical fault is suspected.
Maintenance should be performed before these symptoms become serious. Trend data can reveal deterioration early and allow service to be scheduled during planned production stops.
Safe maintenance requires stopping the equipment, isolating electrical power and compressed air when applicable, allowing the high voltage circuit to discharge, using approved cleaning materials, and preventing damage to the sharp emitter points.
Ionizing air bars operate with high voltage, even though the available current is commonly limited by the equipment design. Maintenance personnel should never assume that touching energized components is safe. Power must be switched off and isolated according to the facility procedure before cleaning begins.
Compressed air should also be isolated where necessary. Unexpected airflow can move contamination toward the operator or cause loose tools to shift. The bar should be allowed to reach a safe condition before it is handled. Personnel should use suitable protective equipment based on the cleaning agent and contamination present.
A soft brush, approved swab, or lint free cleaning material is commonly used for emitter cleaning. If a cleaning liquid is required, it must be compatible with the emitter material, insulation, housing, seals, and surrounding process. Excess liquid should not enter electrical areas. The bar must be completely dry before power is restored.
Emitter points are sharp and can be damaged by excessive force. Personnel should clean them gently and avoid bending, scraping, grinding, or changing their shape. Metal tools should not be used unless the equipment maintenance instructions explicitly permit them.
If an emitter point is broken, heavily corroded, or permanently coated, ordinary cleaning may not be sufficient. The affected component should be evaluated and replaced through an approved service procedure.
An effective preventive maintenance plan combines fixed inspections with condition based cleaning, objective performance limits, clear responsibilities, safe procedures, and complete maintenance records.
The first step is to establish a baseline when the ionizing air bar is new, clean, and correctly installed. Record the installation distance, angle, air pressure, production speed, material type, residual voltage, decay time, and ion balance where applicable. This information provides a reliable reference for future comparisons.
Next, define acceptable performance limits based on the process. A packaging line may focus on reliable material separation and manageable residual voltage. An electronics process may require formal ion balance and decay time limits. The limits should be clear enough that personnel know when cleaning, adjustment, repair, or replacement is necessary.
Assign responsibility for each task. Operators may perform daily observation, maintenance technicians may clean and inspect the equipment, and quality personnel may complete periodic performance tests. Without clear ownership, maintenance can be delayed because everyone assumes another department will perform it.
All activities should be recorded. Useful records include the inspection date, bar identification, condition before cleaning, method used, measurement results, defects found, components replaced, and name of the responsible person. Historical records make it possible to identify recurring problems and optimize the service interval.
After several maintenance cycles, the facility can use these records to determine the actual contamination rate. The schedule can then be adjusted according to evidence while maintaining the required level of process control.
Yes. Regular maintenance can reduce production defects, prevent unplanned downtime, lower compressed air waste, protect electrical components, and extend the useful life of an ionizing air bar.
The direct labor required for cleaning is usually small compared with the cost of poor static control. Static related problems can cause rejected products, machine stoppages, contamination, inaccurate feeding, damaged electronic components, and additional manual handling. Preventing even a small number of these events can justify the maintenance effort.
Routine inspection also identifies loose brackets, damaged cables, blocked air passages, and leaking fittings before they develop into larger failures. Correcting a minor air leak or cable abrasion early is generally less expensive than replacing damaged equipment after an unexpected shutdown.
Compressed air is an important operating cost for air assisted ionizing bars. A poorly maintained filter, damaged tube, or incorrect pressure setting can waste energy while still providing inadequate performance. Checking air quality and pressure helps the system operate efficiently.
Clean emitters allow the ionizing system to perform its intended function without unnecessary adjustment. Increasing air pressure to compensate for dirty emitters may increase noise and energy consumption without correcting the underlying problem. Cleaning and testing should be completed before major operating changes are made.
Service life is influenced by operating conditions, emitter material, contamination, cleaning methods, electrical stability, and physical protection. Gentle and regular cleaning helps preserve the emitter shape and insulation condition. In contrast, aggressive scraping, unsuitable chemicals, and operation under heavy contamination may shorten equipment life.
| Regular maintenance | Maintenance neglect |
|---|---|
| Short planned cleaning periods | Unexpected production interruptions |
| Stable neutralization performance | Increasing residual static voltage |
| Lower defect and contamination risk | More rejected or reworked products |
| Early detection of component damage | Larger and more expensive failures |
| Controlled compressed air use | Air leakage and unnecessary energy cost |
| Documented process reliability | Uncertain equipment condition |
| Longer useful equipment life | Premature component replacement |
Maintenance should therefore be treated as part of production quality management rather than merely an equipment cleaning task. Its value comes from maintaining predictable results across the entire process.
An ionizing air bar usually requires only a modest amount of maintenance, but regular inspection, emitter cleaning, connection checks, and performance testing are essential for reliable static neutralization.
For many installations, a reasonable starting plan includes weekly visual inspection, cleaning every one to four weeks, and performance verification every three to six months. High contamination applications may require cleaning several times per week, while clean environments may support longer intervals. The final schedule should always be based on actual contamination and measured performance.
The emitter points are the most important maintenance area because deposits can reduce ion output and disturb ion balance. Personnel should clean them only after power has been safely isolated and should use compatible tools and cleaning materials. Cables, grounding, mounting brackets, compressed air components, installation distance, and operating indicators should also be checked.
Visual inspection alone is not sufficient for critical applications. Residual static voltage, decay time, and ion balance measurements provide objective evidence that the air bar is working correctly. Measurements taken before and after maintenance also help the facility optimize its cleaning interval.
A documented preventive maintenance program delivers the best long term results. By assigning responsibility, defining performance limits, recording maintenance activities, and responding to early warning signs, manufacturers can improve product quality, reduce downtime, control operating costs, and extend equipment service life.
