Static electricity can develop throughout an industrial production process whenever materials contact, separate, slide, unwind, peel, cut, mix, spray, or move through dry air. Although the charge may be invisible, its effects are often easy to recognize. Products attract dust, sheets stick together, film wraps around rollers, components move unpredictably, operators receive shocks, and sensitive electronic devices suffer damage.
Many factories attempt to solve these problems by installing one static eliminator near the affected area. This may provide temporary improvement, but reliable static control requires a complete process strategy. The charging source, material properties, grounding system, ionizer location, airflow, production speed, environment, maintenance condition, and measurement method must all be evaluated together.
To improve static control in production, identify where charge is generated, measure it under actual operating conditions, ground conductive objects, apply ionization to insulating materials, optimize equipment placement, control environmental influences, maintain all devices, and verify performance with documented tests.
The goal is not always to reduce every surface to zero voltage. The practical goal is to keep charge below the level that causes contamination, material handling problems, electric shocks, electronic damage, ignition risk, or production instability.
This guide explains how to improve static control systematically, from the initial process audit to equipment selection, installation, testing, maintenance, operator training, and continuous improvement.
This guide presents a complete method for identifying, controlling, measuring, and preventing static electricity problems in industrial production.
The first sections explain how static is generated and how a production audit should be performed. The guide then covers grounding, ionization, equipment positioning, coverage, airflow, humidity, material handling, and employee practices.
Later sections address performance measurement, preventive maintenance, troubleshooting, documentation, and continuous improvement. These topics help manufacturers build a stable control process instead of depending on temporary corrective actions.
Production managers, process engineers, quality teams, maintenance personnel, and purchasing departments can use the following sections as a practical improvement checklist.
Static electricity is mainly caused by contact and separation between materials, with charge levels influenced by material type, pressure, friction, speed, surface condition, humidity, and grounding.
When two materials touch, electrons may move from one surface to the other. After the materials separate, one surface can retain a positive charge while the other retains a negative charge. This process can occur between different materials or between similar materials with different surface conditions.
Common charging events include film leaving a roller, labels separating from release liners, sheets sliding across guides, molded parts leaving tools, powders moving through tubes, and operators handling insulating products. Faster movement and repeated contact can increase the charge.
Insulating materials are especially likely to retain static because electrons cannot move freely through them. Plastic, paper, glass, rubber, synthetic textiles, foam, labels, and coated materials may hold charge even when part of the machine is grounded.
Conductive objects can also become charged when they are electrically isolated. A metal roller with insulated bearings, a cart with nonconductive wheels, or a tool resting on an insulating surface may accumulate charge. Effective control begins by determining whether each charged object is conductive, dissipative, or insulating.
A static control audit should map the complete process, identify every contact and separation event, measure charge at defined locations, and connect each reading to a specific production problem.
Begin at the point where raw material enters the process and follow it to the finished product. Examine unwinding, feeding, conveying, printing, coating, laminating, cutting, molding, assembly, inspection, winding, and packaging stages.
Record where materials touch rollers, belts, guides, liners, tools, fixtures, or one another. Static should be measured before and after these locations. This shows which operations generate charge and whether an existing control device is effective.
The audit should include machine speed, material type, product width, temperature, humidity, airflow, and operating condition. A measurement taken while the line is stopped may not represent full production because movement and separation influence charge generation.
A successful audit produces a static map of the production line. This map makes it possible to prioritize the locations that create the greatest quality, safety, or productivity risk.
Static charge should be measured with suitable instruments at controlled distances and clearly documented process locations while the machine operates under representative conditions.
An electrostatic field meter is commonly used to identify surface related electric fields. The reading depends on the measuring distance, target size, instrument angle, and nearby grounded objects. Operators should follow a consistent measurement method.
Measurements should be taken immediately before and after a static control device. The first reading represents the incoming charge, while the second shows the residual charge. Additional measurements farther downstream can reveal whether the material becomes charged again.
Charge polarity should be recorded. A process may generate positive charge on one material and negative charge on another. Polarity information helps identify the charging relationship and evaluate whether the ionizer neutralizes both conditions effectively.
| Measurement Item | Why It Matters |
|---|---|
| Measurement location | Connects the reading to a process stage |
| Distance from target | Supports repeatable results |
| Charge polarity | Identifies positive or negative charge |
| Material type | Explains differences between products |
| Production speed | Shows the influence of process movement |
| Temperature and humidity | Documents environmental influence |
| Machine condition | Distinguishes stopped and operating results |
Measurements should be treated as comparative process data rather than isolated numbers. Trends collected at consistent locations are more useful than occasional readings taken with different methods.
Grounding improves static control by providing conductive objects, machine frames, tools, fixtures, and personnel with a controlled path for electrical charge to dissipate.
Every conductive machine component should have a reliable electrical connection to ground where appropriate. Paint, corrosion, oil, dirt, loose hardware, plastic bearings, and insulating mounting materials can interrupt an intended path.
Bonding connects conductive components so that they remain at a similar electrical potential. This helps prevent isolated metal parts from accumulating charge. Grounding and bonding connections should be protected from mechanical damage and included in preventive maintenance.
Visual inspection alone cannot confirm electrical continuity. A cable may appear connected while paint or contamination prevents direct contact. Suitable instruments should be used to verify the grounding path according to facility requirements.
Grounding cannot neutralize most insulating surfaces because charge cannot travel freely through them. Connecting a grounding wire to one edge of a plastic film does not remove charge from the complete web. Ionization is necessary where direct grounding is ineffective.
Ionization should be used when static remains on insulating materials, isolated conductors, moving products, or surfaces that cannot be grounded directly.
Ionizers create positive and negative ions around controlled emitter points. A negatively charged surface attracts positive ions, while a positively charged surface attracts negative ions. This reduces the surface voltage toward a neutral condition.

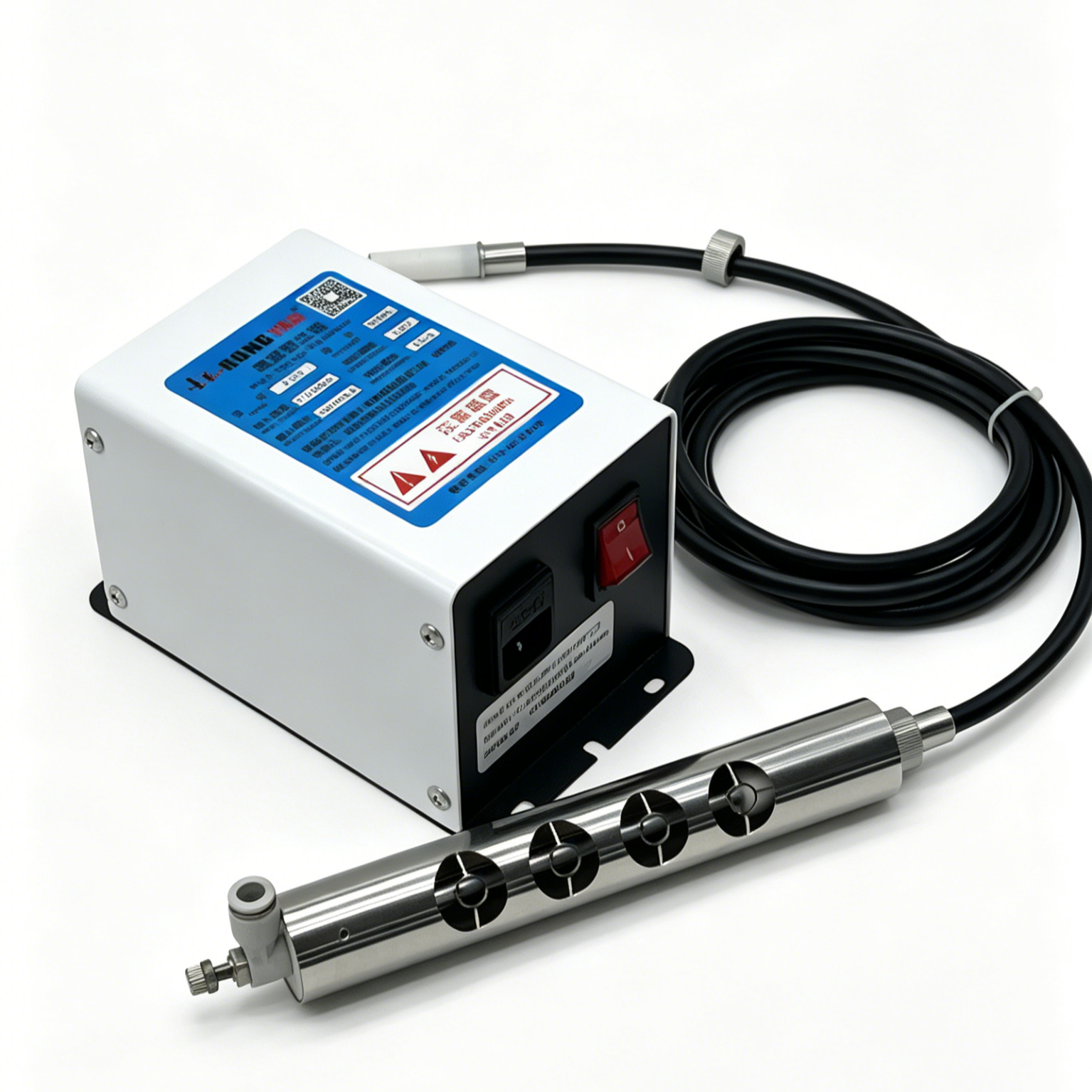

Ionizing air bars are suitable for webs, sheets, conveyors, and continuous production widths. Ionizing blowers serve workstations and larger open areas. Nozzles provide focused treatment for cavities and small targets, while ionizing guns support manual cleaning.
The ionizer must be selected according to target geometry, working distance, material speed, charge strength, and required residual voltage. A compact device designed for a short distance cannot be expected to neutralize a wide, fast moving web from far away.
Ionization works best as part of a coordinated system. Ground conductive machine parts first, then use ions to treat surfaces that cannot be discharged through grounding.
Static eliminators should normally be installed after the main charge generation point and before static produces a quality, handling, safety, or reliability problem.
If a film is neutralized before leaving a roller, the separation from that roller can immediately generate a new charge. Positioning the ionizer after separation usually provides better control.
The distance between the emitter and target must remain within the effective operating range. Excessive distance reduces ion concentration because ions spread, recombine, attach to airborne particles, or are redirected by airflow.
The ion path should remain clear. Grounded rollers, guards, brackets, machine frames, and product fixtures may attract ions before they reach the charged surface. Installation drawings should show surrounding structures as well as the ionizer.
Maintenance access must also be considered. The emitter points require cleaning and performance testing. A difficult installation may encourage operators to postpone service, leading to gradual performance decline.
Ionizer coverage can be improved by matching the active treatment length to the maximum product width, controlling distance, creating overlap between devices, and measuring performance at several positions.
The external housing length is not always equal to the active ionizing length. End caps, electrical connections, and internal components may not produce ions. The active area must cover the complete material width.
Material movement should be included in the coverage calculation. A web may shift from side to side, while molded parts may enter the treatment area in different positions. The ion field should remain effective throughout this movement.
Multiple bars may be necessary for wide production lines or complex products. Their treatment zones should overlap to prevent untreated gaps. The overlap should be verified through measurement rather than assumed from the physical arrangement.
Coverage testing should include the center, both edges, intermediate positions, and areas where product geometry changes. A single reading directly in front of the middle of the bar cannot prove uniform performance.
Airflow affects static neutralization by transporting, distributing, redirecting, or removing ions before they reach the charged target.
Compressed air can carry ions over longer distances or into recessed areas. It is useful for irregular products and fast moving materials, but the pressure must be controlled. Excessive air can disturb lightweight products and create turbulence.
Clean and stable compressed air is essential. Oil, moisture, and particles can contaminate emitters and internal passages. Filters, regulators, tubing, valves, and connectors should be inspected regularly.
Existing machine airflow can either support or oppose ion delivery. Exhaust systems, cooling fans, air knives, cleanroom ventilation, and moving webs may redirect ions. A system that performs well when the machine is stopped may become ineffective at full speed.
Airflow should be evaluated under normal operating conditions. Pressure should be measured near the ionizer rather than only at the central compressor because shared systems and restricted tubing can reduce the available pressure.
Low humidity generally increases static retention, while temperature and environmental airflow can change material behavior, ion movement, and equipment performance.
In dry air, insulating surfaces often retain charge for longer periods. A process that operates normally during humid weather may experience stronger static during dry seasons or within conditioned production areas.
Increasing humidity may reduce some static problems, but it is not a universal solution. Moisture can affect printing, coating, adhesive performance, dimensional stability, corrosion, clean manufacturing, and product storage.
Temperature can change material flexibility, surface resistance, coating behavior, and process tension. These changes may alter the amount of charge generated even if the production speed remains the same.
Environmental conditions should be recorded during every important static measurement. Seasonal data can reveal patterns and help determine whether equipment settings or maintenance intervals should change during dry periods.
Materials and process settings can reduce static by limiting contact pressure, friction, separation speed, unnecessary sliding, and incompatible surface combinations.
Production speed has a strong influence on charge generation and treatment time. Increasing speed may create more static while giving the ionizer less time to neutralize each section of material.
Web tension, roller pressure, guide alignment, and surface cleanliness can also affect charge. Excessive tension or unnecessary sliding may increase contact and separation. A contaminated roller may change both friction and electrical behavior.
Material composition matters. Different polymers, coatings, additives, papers, release liners, and surface treatments can generate different charge polarities and magnitudes. A process setting that works for one product may not work for another.
Where product requirements allow, static dissipative additives or surface treatments may reduce charge retention. However, these changes must be evaluated for appearance, printing, bonding, cleanliness, conductivity, mechanical properties, and long term stability.
Operator practices improve static control through correct grounding, proper garment use, consistent material handling, routine inspection, and immediate reporting of abnormal conditions.
Personnel can generate and carry charge by walking, handling plastic, moving on chairs, or wearing unsuitable clothing. Sensitive production may require wrist straps, compatible footwear, grounded flooring, controlled garments, or continuous monitoring.
Operators should understand why grounding and ionization are different. A wrist strap controls the operator but does not neutralize an insulating product. An ionizer neutralizes surfaces but does not replace a required personnel grounding system.
Handling methods should be standardized. Rapid peeling, sliding, stacking, and separation can increase charge. Where practical, operators should avoid unnecessary friction and should keep products within the intended static control area.
Employees should be trained to recognize warning signs such as dust attraction, small shocks, sheets feeding together, film clinging, repeated jams, and ionizer alarms. Early reporting allows maintenance teams to respond before quality deteriorates.
Performance should be verified with surface voltage measurements, positive and negative decay testing, ion balance testing, grounding checks, and process observations under actual operating conditions.
Surface voltage should be measured at defined locations before and after treatment. This confirms whether the system reduces the actual production charge. Downstream testing shows whether later process steps generate a new charge.
A charged plate monitor is commonly used to measure ionizer decay time and ion balance. Both positive and negative decay should be tested at the actual working distance and airflow setting.
Wide treatment areas require measurements across the complete width. The center, edges, intermediate positions, and overlap areas should be included. Uniformity is as important as the fastest result.
| Test | Purpose | Recommended Condition |
|---|---|---|
| Surface voltage before treatment | Measure incoming charge | Normal production speed |
| Surface voltage after treatment | Measure residual charge | Same material and speed |
| Positive decay time | Evaluate positive charge neutralization | Actual distance and airflow |
| Negative decay time | Evaluate negative charge neutralization | Same conditions as positive decay |
| Ion balance | Identify positive or negative offset | Representative environment |
| Grounding continuity | Confirm charge dissipation paths | Machine in a safe test condition |
| Coverage profile | Verify uniformity across the target | Several measuring positions |
Baseline data should be collected when the system is installed or restored to good condition. Future results can then be compared with this reference.
Preventive maintenance improves static control by keeping emitter points, grounding connections, filters, fans, cables, air passages, and monitoring devices in effective operating condition.
Ionizer emitters attract contamination because of the strong electric field around them. Dust, oil, adhesive, ink, powder, and fibers can reduce ion output and shift ion balance. The equipment may remain powered even when its performance has declined substantially.
Cleaning frequency should be determined by process conditions and measured performance. A clean electronics area may permit a longer interval than a textile, printing, molding, coating, or converting line.
Power should be isolated before direct cleaning. Approved brushes, swabs, and cleaning agents should be used. Abrasive tools can damage emitter geometry, while unsuitable chemicals may affect insulation, seals, or housing surfaces.
| Maintenance Task | Purpose |
|---|---|
| Clean emitter points | Restore ion generation |
| Inspect cables and connectors | Identify electrical damage |
| Verify grounding | Maintain charge dissipation paths |
| Inspect filters and fans | Maintain stable airflow |
| Check compressed air | Confirm pressure, quality, and distribution |
| Measure decay time | Verify neutralization speed |
| Measure ion balance | Confirm controlled electrical offset |
| Review alarms | Identify faults and maintenance needs |
Maintenance records should include measurements before and after service. This information demonstrates whether cleaning restored performance and helps optimize future intervals.
Persistent static problems should be troubleshot by confirming the charge, measuring before and after treatment, inspecting the equipment, checking installation conditions, and changing one variable at a time.
First, confirm that the production problem is actually caused by static. Dust, sticking, misfeeding, and unstable movement can also result from mechanical alignment, contamination, material quality, vibration, or process settings.
Next, compare voltage immediately before and after the static eliminator. A substantial reduction indicates that the ionizer works and that charge may be generated again farther downstream. Little reduction indicates a problem with output, distance, coverage, airflow, contamination, or installation.
The investigation should include recent changes. New materials, faster line speed, different web tension, lower humidity, additional rollers, modified guards, new exhaust systems, or changed maintenance practices can all affect static control.
Changing one variable at a time makes the result easier to interpret. If position, pressure, speed, and distance are changed simultaneously, the team may restore performance without identifying the true cause.
Documentation and training make static control repeatable by defining correct settings, test methods, maintenance intervals, responsibilities, and response procedures.
Installation records should include equipment location, distance, angle, active coverage, power connection, grounding, compressed air setting, and initial test results. Photographs and drawings help preserve the approved configuration.
Operating procedures should explain how to start, stop, inspect, and monitor the static control equipment. Operators should know which alarms require production to stop and which conditions require maintenance support.
Maintenance procedures should define safe isolation, cleaning tools, approved agents, inspection points, testing methods, and acceptance limits. Clear procedures reduce variation between technicians.
Training should be practical. Employees should understand where static is generated, how the control devices work, what warning signs to observe, and why unauthorized repositioning can reduce performance.
A factory can create an improvement plan by ranking static risks, defining measurable targets, correcting basic grounding and maintenance issues, optimizing ionization, and monitoring results over time.
Begin by ranking problems according to safety, product damage, defect cost, production downtime, and frequency. A charge that threatens sensitive devices or ignition safety requires greater priority than a minor operator discomfort issue.
Define measurable targets for each critical location. These may include maximum residual voltage, decay time, ion balance, grounding resistance, defect rate, dust level, or frequency of material jams.
Correct simple causes first. Restore broken grounding, clean contaminated emitters, repair damaged cables, adjust incorrect distance, remove ion path obstructions, and restore compressed air pressure. These actions may provide substantial improvement without purchasing new equipment.
| Improvement Stage | Main Action | Expected Result |
|---|---|---|
| Assessment | Map charge generation and measure voltage | Clear understanding of the problem |
| Basic correction | Repair grounding and clean equipment | Restore existing control performance |
| Optimization | Adjust position, distance, coverage, and airflow | Improve neutralization efficiency |
| Equipment upgrade | Add or replace ionization where necessary | Meet process performance targets |
| Verification | Measure voltage, decay, and balance | Confirm measurable improvement |
| Standardization | Document settings and procedures | Maintain consistent operation |
| Continuous review | Track trends and process changes | Prevent future deterioration |
After improvements are completed, continue collecting data. Changes in materials, speed, equipment layout, airflow, and environment can create new static risks. Periodic review keeps the control strategy aligned with the production process.
Improving static control requires a coordinated process that combines measurement, grounding, ionization, correct installation, environmental awareness, preventive maintenance, operator training, and continuous verification.
The first step is to understand exactly where charge is generated and where it causes a problem. A detailed production audit and consistent voltage measurements create the foundation for every later decision.
Ground conductive objects and use ionization for insulating materials or isolated conductors. Position static eliminators after the main charging event, maintain complete coverage, and verify that airflow and machine structures do not prevent ions from reaching the target.
Static control equipment must be cleaned, inspected, and tested regularly. Decay time, ion balance, surface voltage, and grounding measurements provide stronger evidence than indicator lights or visual inspection alone.
By setting measurable targets and documenting the approved process, manufacturers can reduce dust attraction, material adhesion, feeding errors, operator shocks, electrostatic discharge damage, rejected products, and unplanned downtime while improving overall production stability.
