Ionizing needles, also known as emitter points, are essential components in ionizing air bars and other industrial static elimination equipment. These sharp conductive points use a controlled electrical field to generate positive and negative ions. The ions travel toward charged materials and neutralize the static electricity that can attract dust, disrupt material handling, damage sensitive electronic components, or reduce product quality.
During long term industrial operation, ionizing needles can become contaminated, worn, corroded, bent, or damaged. Cleaning can restore performance when contamination is the main problem, but physical wear or permanent damage usually requires replacement. Correct replacement is important because unsuitable needles, incorrect installation, poor spacing, or loose connections can affect ion balance, neutralization speed, electrical safety, and equipment reliability.
To replace ionizing needles safely, shut down and isolate the power source, release compressed air pressure where applicable, identify the correct replacement needle, remove the emitter assembly according to the equipment design, install the new needle without damaging its tip, reassemble the ionizer, and verify ion balance and decay time before returning the equipment to production.
Not every ionizing needle is designed for individual replacement. Some ionizers use removable emitter cartridges, while others use fixed needles integrated into a sealed module. Users should inspect the equipment structure and technical documentation before attempting replacement. If the emitter assembly is sealed or requires specialized electrical work, the entire module may need to be replaced by qualified personnel.
This guide explains when replacement is necessary, how to select suitable emitter points, which tools are required, how to complete the replacement procedure, and how to confirm that the ionizer is operating correctly afterward.
Ionizing needles create the concentrated electrical field required to generate positive and negative ions for static neutralization.
An ionizing needle has a very sharp conductive tip. When the ionizer applies a controlled electrical potential, the electrical field becomes concentrated around this tip. The surrounding air molecules are ionized, creating charged particles that can neutralize static electricity on a product, material, or machine surface.
The condition of the needle tip directly affects ion generation. A clean and properly shaped tip can produce ions efficiently. A rounded, contaminated, bent, or corroded tip may produce fewer ions or create an uneven distribution. This can increase the time required to reduce static voltage and may also cause the ionizer to leave a residual positive or negative charge.

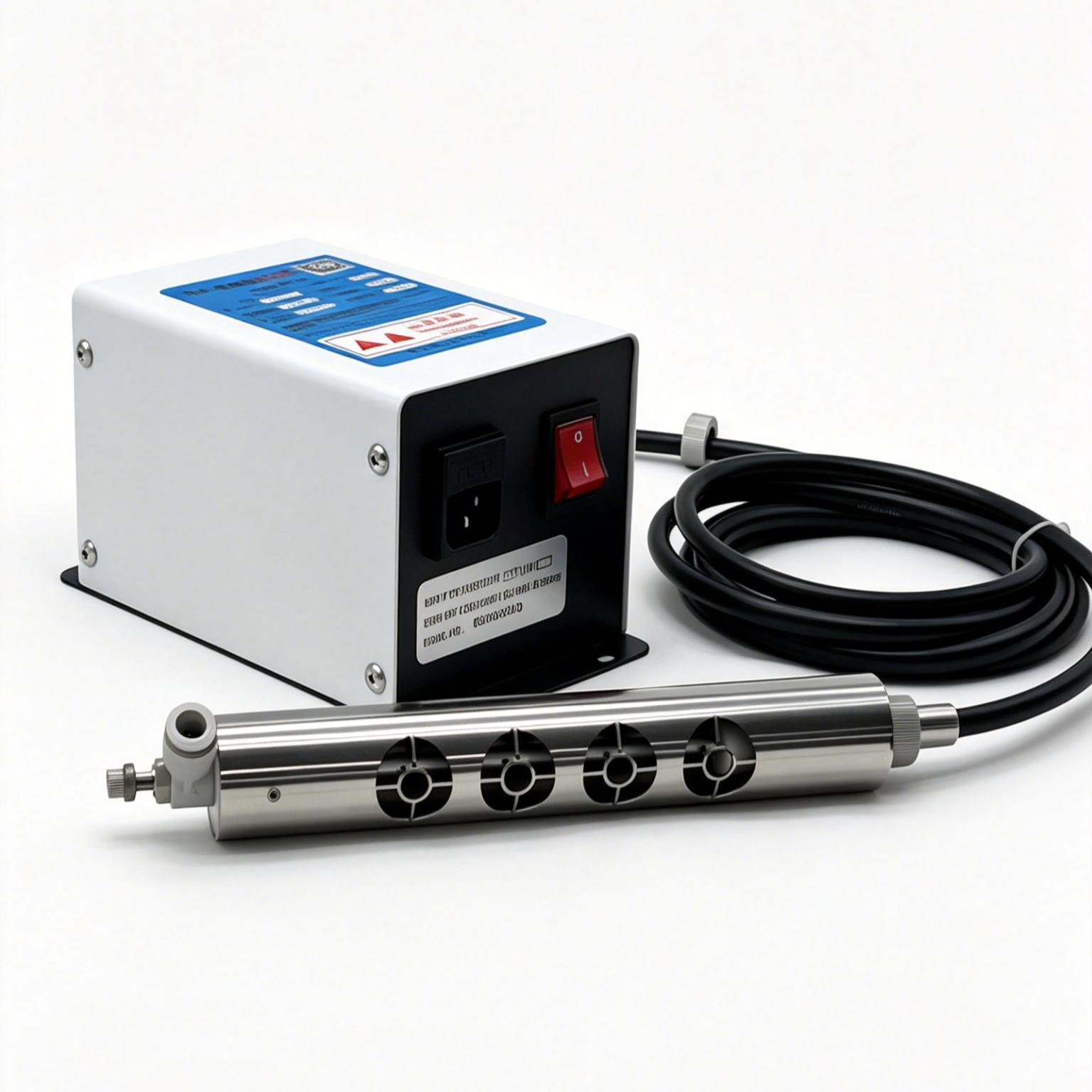

In an ionizing air bar, multiple needles are positioned along the bar to provide treatment across a specific width. Their output must be reasonably uniform to prevent untreated areas. If one or more needles are damaged, the bar may still appear to operate normally, but the ion distribution across the target material can become inconsistent.
Ionizing needles are commonly used in applications such as electronics assembly, semiconductor processing, plastic film production, printing, label converting, packaging, injection molding, textile manufacturing, optical component production, and battery assembly. Although the applications differ, the basic requirement is the same: the emitters must generate sufficient ions and deliver them to the charged surface effectively.
Ionizing needles should be replaced when they are bent, broken, severely corroded, excessively rounded, permanently contaminated, electrically unstable, or unable to meet the required ion balance and decay time after cleaning.
Visible physical damage is one of the clearest replacement indicators. A bent needle changes the position and direction of the electrical field. A broken needle may stop generating useful ions entirely. If the sharp tip has become noticeably rounded because of long term electrical activity or aggressive cleaning, its ion generating efficiency may decline.
Corrosion is another important warning sign. Moisture, process chemicals, cleaning agents, and contaminated compressed air can attack the emitter material. Light surface contamination may be removable, but deep pitting, flaking, or material loss requires replacement. Continuing to use a severely corroded needle can create unstable performance and increase contamination in sensitive environments.
Performance measurements should also influence the decision. If decay time remains unacceptably long after the emitters have been cleaned and the installation conditions have been verified, worn needles may be the cause. An ion balance value that repeatedly moves outside the approved range can also indicate uneven emitter condition or electrical deterioration.
Needle replacement should be based on condition and performance rather than age alone. Operating environment, contamination level, material type, electrical design, maintenance quality, and daily operating hours all affect emitter life. Regular inspection and performance testing provide a more reliable basis for replacement decisions than a universal calendar interval.
Clean an ionizing needle when it is structurally sound and affected only by removable contamination, but replace it when physical damage, permanent corrosion, excessive wear, or persistent performance failure is present.
Cleaning is normally the first corrective action when dust, fibers, adhesive residue, oil, or other process contamination has accumulated around the emitter point. A soft brush or lint free swab with a compatible cleaning material may restore the original electrical field and improve ion output. The equipment must be isolated from power before any cleaning begins.
Replacement becomes necessary when cleaning cannot restore the shape or surface condition of the emitter. A bent needle should not be forced back into position unless the equipment instructions specifically permit this action. Manual reshaping may weaken the needle, change its alignment, or cause it to break later during operation.
Performance should be measured before and after cleaning whenever possible. If cleaning produces a significant improvement in decay time and ion balance, immediate replacement may not be necessary. If the results remain outside the established acceptance limits, further inspection should determine whether the cause is emitter wear, power supply condition, grounding, airflow, or installation distance.
| Needle Condition | Recommended Action | Reason |
|---|---|---|
| Loose dust on an undamaged tip | Clean and retest | The contamination is likely removable |
| Adhesive or oil residue | Use an approved cleaning material, then retest | The emitter may still be physically usable |
| Slight discoloration without material loss | Inspect, clean, and measure performance | Discoloration alone may not require replacement |
| Bent or misaligned needle | Replace the needle or emitter module | The electrical field and ion direction may be affected |
| Broken or missing tip | Replace immediately | Effective ion generation cannot be assured |
| Deep corrosion or pitting | Replace | The emitter surface is permanently damaged |
| Poor test results after cleaning | Investigate the system and replace if the needle is worn | The problem may involve the emitter or another component |
Maintenance teams should avoid replacing emitters without investigating the complete system. New needles will not correct poor performance caused by an unstable power supply, blocked airflow, incorrect working distance, damaged cables, or inadequate grounding. Accurate diagnosis prevents unnecessary replacement and repeated failures.
The replacement needle must match the original emitter in material, dimensions, mounting design, electrical characteristics, environmental compatibility, and equipment configuration.
Ionizing needles are not universal components. Differences in diameter, length, tip geometry, holder structure, electrical connection, insulating material, and mounting method can affect both performance and safety. A needle that physically fits into a holder may still be unsuitable for the electrical design.
Emitter materials may include stainless steel, tungsten, titanium, and other conductive materials selected for specific operating environments. Material choice can influence wear resistance, corrosion resistance, particle generation, cleanroom compatibility, and maintenance requirements. The appropriate material should be determined by the equipment design and production process.
Users should also determine whether the equipment requires a single replacement needle, a complete emitter cartridge, or an entire emitter rail. Some ionizing bars are designed for convenient field replacement, while sealed designs may not permit individual needle removal. Attempting to disassemble a sealed module can damage insulation and create an electrical hazard.
Keep replacement emitters in clean, protective packaging until installation. The tips should not contact hard surfaces, tools, or other needles. For critical processes, record the replacement component specification and production batch so that future performance or material issues can be traced accurately.
Use clean, correctly sized, electrically appropriate tools and approved cleaning materials to protect the needle tip, emitter holder, insulation, and surrounding components.
The required tools depend on the emitter design. Common items include insulated hand tools, a correctly sized driver, needle removal tool, small torque tool, soft brush, lint free swabs, clean gloves, adequate lighting, and a suitable container for removed components. Measuring equipment may include a charged plate monitoring instrument, static voltage meter, and grounding tester.
Do not use pliers directly on the sharp tip unless the equipment procedure specifically requires a dedicated gripping method. Improvised tools can scratch, bend, or contaminate the new emitter. If a specialized removal tool is required, obtain it before starting the replacement.
Clean gloves are especially important in cleanrooms and sensitive manufacturing environments. Fingerprints can leave oil or moisture on the emitter or insulating surface. Gloves also reduce the risk of puncture injuries when handling sharp needles, although they should never replace careful handling.
All tools should be checked for cleanliness and condition before use. A dirty tool can transfer contamination to the new emitter. A worn driver can damage the holder or fastener, making future maintenance more difficult.
Before replacing ionizing needles, stop the production equipment, disconnect and isolate electrical power, release compressed air pressure, verify that stored energy has dissipated, and prevent unexpected restart.
Ionizers generate a high electrical potential. Although many industrial designs limit current, the emitter system must still be treated as energized electrical equipment. Never touch, loosen, or remove an emitter while power is connected. Switching off a control signal may not fully isolate the power supply, so use the approved energy isolation procedure.
If compressed air is connected to the ionizing bar, close the supply valve and release residual pressure. Stored air can eject contamination or move small parts during disassembly. Confirm that the pressure indicator reads zero before opening any air passage or emitter assembly.
Some power supplies can retain electrical charge after disconnection. Follow the required waiting period and verify the safe condition before touching electrical components. Only qualified personnel should open a high voltage enclosure or perform work beyond normal user service procedures.
The removed needles are sharp and should be placed immediately into a puncture resistant container. Do not leave them on a workbench or production machine. Disposal should follow the facility’s procedures for sharp metal components and contaminated process parts.
Replace ionizing needles by isolating the equipment, documenting the original arrangement, opening the serviceable emitter assembly, removing damaged needles carefully, installing matching replacements, reassembling the bar, and completing performance tests.
Before removing anything, photograph or record the original needle position, orientation, spacing, and holder arrangement. This reference is useful when multiple components must be disassembled. It also helps prevent incorrect reassembly.
Clean loose contamination from the surrounding area before opening the emitter assembly. This prevents dust from falling into the housing. Use only the access method intended for maintenance. Avoid forcing covers, clips, or holders because damaged insulation can affect high voltage performance.
Remove one needle at a time when practical. This reduces the possibility of installing emitters in the wrong positions. If the design uses a replaceable cartridge, remove and replace the complete cartridge rather than attempting to separate permanently integrated parts.
Do not overtighten threaded emitters or holder fasteners. Excessive force can crack insulating material, damage threads, or alter the needle position. If a torque value is specified, use a suitable torque tool.
When several emitters show similar wear, replacing the complete set may provide more uniform performance than replacing only one needle. However, this decision should consider the equipment design, measured results, maintenance cost, and process criticality. After multiple needle replacement, full width performance testing is particularly important.
After installation, verify that every replacement needle is straight, secure, correctly positioned, clean, and aligned consistently with the other emitters.
Use adequate lighting and magnification to inspect the new tip. The needle should not be bent, scratched, chipped, or contaminated. Compare its height, angle, and insertion depth with neighboring emitters. Uneven installation can create irregular ion distribution across the treatment area.
Check the emitter holder and surrounding insulating surface for cracks, displaced seals, trapped fibers, cleaning residue, or damaged contacts. Even when the new needle is correct, poor holder condition can cause unstable performance or electrical tracking.
Gently confirm that the needle is secure using the approved inspection method. Do not push sideways on the tip. A loose emitter may move during vibration or airflow and can create intermittent electrical contact.
If the bar contains many emitter points, inspect the complete length rather than focusing only on the replaced needle. Maintenance activity can accidentally move or contaminate adjacent emitters. A complete final inspection reduces the chance of introducing a new problem.
After replacing ionizing needles, measure ion balance, positive decay time, negative decay time, and residual static voltage under controlled and documented operating conditions.
Start the ionizer according to the approved procedure and observe its status indicators. Listen for unusual noise and check for alarms, visible discharge, abnormal odor, heat, or unstable airflow. If any abnormal condition appears, stop the system and inspect the installation before proceeding.
A charged plate monitoring instrument can measure both ion balance and decay time. Position the instrument at the normal working distance and use the same test conditions as previous inspections. Measure both positive and negative decay because an emitter problem can affect one polarity more than the other.
Test several positions across a long ionizing bar. A measurement at the center alone may not detect weak output near the repaired area or at the ends. For wide materials, performance should be evaluated across the complete treatment width.
| Test | Purpose | Important Conditions to Record |
|---|---|---|
| Ion balance | Checks residual positive or negative voltage | Distance, airflow, temperature, and humidity |
| Positive decay time | Checks removal of positive charge | Starting voltage, ending voltage, and measurement position |
| Negative decay time | Checks removal of negative charge | Starting voltage, ending voltage, and measurement position |
| Static voltage on material | Confirms actual production effectiveness | Material type, line speed, and measuring distance |
| Full width output check | Identifies local weak areas | Measurement locations and bar coverage |
Compare the results with the equipment acceptance criteria and previous baseline values. If performance is still poor, do not assume the new needle is defective. Check power supply stability, grounding, compressed air pressure, installation distance, nearby grounded objects, process speed, environmental airflow, and charge generation after the treatment point.
The most common mistakes include working on energized equipment, using incompatible needles, touching the emitter tip, damaging insulation, installing needles at different depths, and returning the ionizer to service without testing.
Replacing a needle based only on physical dimensions is a serious mistake. The emitter material, electrical characteristics, tip geometry, and holder design must also match. An unsuitable replacement may provide weak performance even if it fits into the mounting position.
Another common error is gripping the sharp section of the new needle with pliers. This can scratch the surface, bend the emitter, or change the tip shape. Always handle the needle at the approved gripping area and use a dedicated tool when required.
Skipping performance verification can allow an installation error to remain undetected. A status indicator generally confirms that the system is powered, but it does not prove that ion balance and neutralization speed meet process requirements. Measured testing is essential after replacement.
If the same emitter position fails repeatedly, investigate the holder, electrical contact, airflow distribution, contamination source, and internal power circuit. Repeatedly replacing the needle may address the symptom without correcting the underlying cause.
Extend needle life through regular gentle cleaning, clean compressed air, suitable environmental protection, correct installation, stable power, and scheduled performance monitoring.
Contamination should be removed before it becomes a thick or hardened deposit. Frequent gentle cleaning is generally safer than occasional aggressive cleaning. Use a soft brush or approved lint free cleaning material and avoid scraping the tip.
For air assisted ionizers, maintain the compressed air filtration system. Water, oil, and particles carried by the air supply can contaminate emitters and insulating surfaces. Check filters, moisture separators, pressure regulators, hoses, and fittings at planned intervals.
Install the ionizing bar where it is protected from product impact, excessive heat, chemical spray, and direct contamination whenever possible. The bar must still remain close enough to the charged material for effective neutralization. Suitable mounting combines performance with mechanical protection.
A maintenance record should show how often each bar requires cleaning and replacement. If one ionizer consumes needles much faster than similar units, compare its environment, air quality, electrical condition, operating hours, and installation position. This analysis can reveal opportunities to reduce maintenance cost and improve process reliability.
A complete replacement checklist should cover diagnosis, component verification, safe isolation, removal, installation, inspection, testing, documentation, and production release.
Using a standardized checklist improves consistency between technicians and reduces the chance that an important step will be missed. It is especially valuable when many ionizing bars are installed across multiple production lines.
The checklist should identify the equipment, production location, emitter position, replacement specification, technician, date, and reason for replacement. Measurements before and after replacement should also be included so that the result can be verified objectively.
Acceptance criteria should be defined for the specific application. Sensitive electronic processes may require tighter ion balance and faster decay performance than general dust control applications. The checklist should reference the correct internal standard rather than applying one universal limit.
If any test result is outside the approved range, keep the equipment under maintenance control until the problem is resolved. Additional action may include reinstalling the needle, replacing other worn emitters, cleaning the complete bar, correcting airflow, improving grounding, adjusting the installation position, or inspecting the power supply.
Replacing ionizing needles safely and correctly requires more than removing an old point and inserting a new one. Successful replacement depends on correct diagnosis, compatible components, safe energy isolation, precise installation, and measured performance verification.
Ionizing needles are central to the operation of industrial static eliminators. Their sharp geometry creates the electrical field needed to generate positive and negative ions. Wear, corrosion, bending, breakage, and permanent contamination can reduce ion output and create uneven performance across the treatment area.
Before replacement, determine whether cleaning can restore the emitter. If physical damage or persistent performance failure is present, select a replacement that matches the original material, dimensions, electrical design, and mounting method. Never assume that all emitter points are interchangeable.
Safety must remain the first priority throughout the procedure. Disconnect and isolate electrical power, release compressed air pressure, allow stored energy to dissipate, and prevent unexpected restart. Handle removed needles as sharp components and protect new emitter tips from contact or contamination.
After installation, inspect alignment, spacing, insertion depth, holder condition, and insulation. Then measure ion balance, positive decay time, negative decay time, and actual static voltage where required. Testing confirms whether the replacement restored the ionizer to the necessary operating condition.
Finally, record the reason for replacement, component specification, measurements, and technician information. Accurate records help industrial users identify wear patterns, improve maintenance intervals, control replacement costs, and maintain consistent static neutralization across critical production processes.
