Static electricity can interfere with nearly every stage of industrial production. It can attract dust, cause sheets to stick together, make film wrap around rollers, interrupt feeding, shock operators, disturb weighing, damage electronic components, and create defects during printing, coating, painting, bonding, assembly, or packaging.
Buying a static eliminator may initially appear simple, but product selection involves more than choosing a bar length or comparing prices. Neutralization performance depends on the material, incoming charge, production speed, working width, installation distance, airflow, environmental conditions, and location of the static generation point.
The right industrial static eliminator is the system that safely reduces the actual process charge to an acceptable level within the available treatment time while providing complete coverage, stable ion balance, practical maintenance, and reliable long term operation.
A product with excellent laboratory data can still perform poorly when installed too far from the material, blocked by machine components, exposed to uncontrolled airflow, or used on a production line that moves faster than the specified test conditions.
This buying guide explains how industrial customers can define their requirements, compare static eliminator technologies, evaluate performance data, calculate coverage, review suppliers, and avoid common purchasing mistakes.
This guide covers the technical, operational, commercial, and maintenance factors that buyers should evaluate before purchasing an industrial static eliminator.
The first sections explain static generation and the main equipment categories. The guide then examines application data, decay time, ion balance, working distance, coverage, airflow, environmental suitability, and installation requirements.
Later sections address performance testing, maintenance, safety, supplier evaluation, total ownership cost, and the questions buyers should ask before placing an order.
Purchasing teams, engineers, production managers, and maintenance personnel can use these sections as a practical equipment selection checklist.
An industrial static eliminator is equipment that uses positive and negative ions to neutralize electrical charges on materials, products, components, and machine processes.
Static electricity commonly develops when two materials contact and separate. Electrons transfer between their surfaces, leaving one material positively charged and the other negatively charged. Friction, pressure, speed, and repeated separation can increase the resulting voltage.
Conductive objects can often be discharged by connecting them to a verified ground. Insulating materials are more difficult because charge cannot move freely through them. Plastic film, paper, rubber, glass, synthetic textiles, labels, and many coated surfaces therefore require ionization.
A static eliminator produces positive and negative ions near controlled emitter points. A negatively charged material attracts positive ions, while a positively charged material attracts negative ions. When enough opposite polarity ions reach the surface, the voltage is reduced.
The ions can move toward the target through natural attraction, fan airflow, compressed air, or existing machine airflow. The correct delivery method depends on treatment distance, target shape, process speed, and surrounding conditions.
Industrial static control is necessary when charge causes contamination, material handling instability, operator shocks, electrostatic discharge damage, quality defects, or process interruptions.
Dust attraction is a common problem in plastics, automotive production, optical manufacturing, printing, coating, and packaging. A charged surface attracts particles from the surrounding air, and these particles may remain attached through later processing.
Static also affects material movement. Sheets can cling together and enter a machine in pairs. Film can stick to rollers or machine frames. Lightweight parts may repel one another, jump from conveyors, or fail to enter packaging correctly.
In electronics and semiconductor manufacturing, electrostatic discharge can damage sensitive devices. Some failures are immediate, while others weaken the component and cause a later reliability problem. The process may require both grounding and ionization.
Potential ignition risks require specialized engineering attention. Processes containing flammable gases, vapors, solvents, or combustible dust must receive a formal hazard assessment. Ordinary static elimination equipment should never be assumed suitable for a classified area.
The main types include ionizing air bars, ionizing blowers, ionizing nozzles, ionizing guns, compact ionizing heads, and monitored ionization systems.

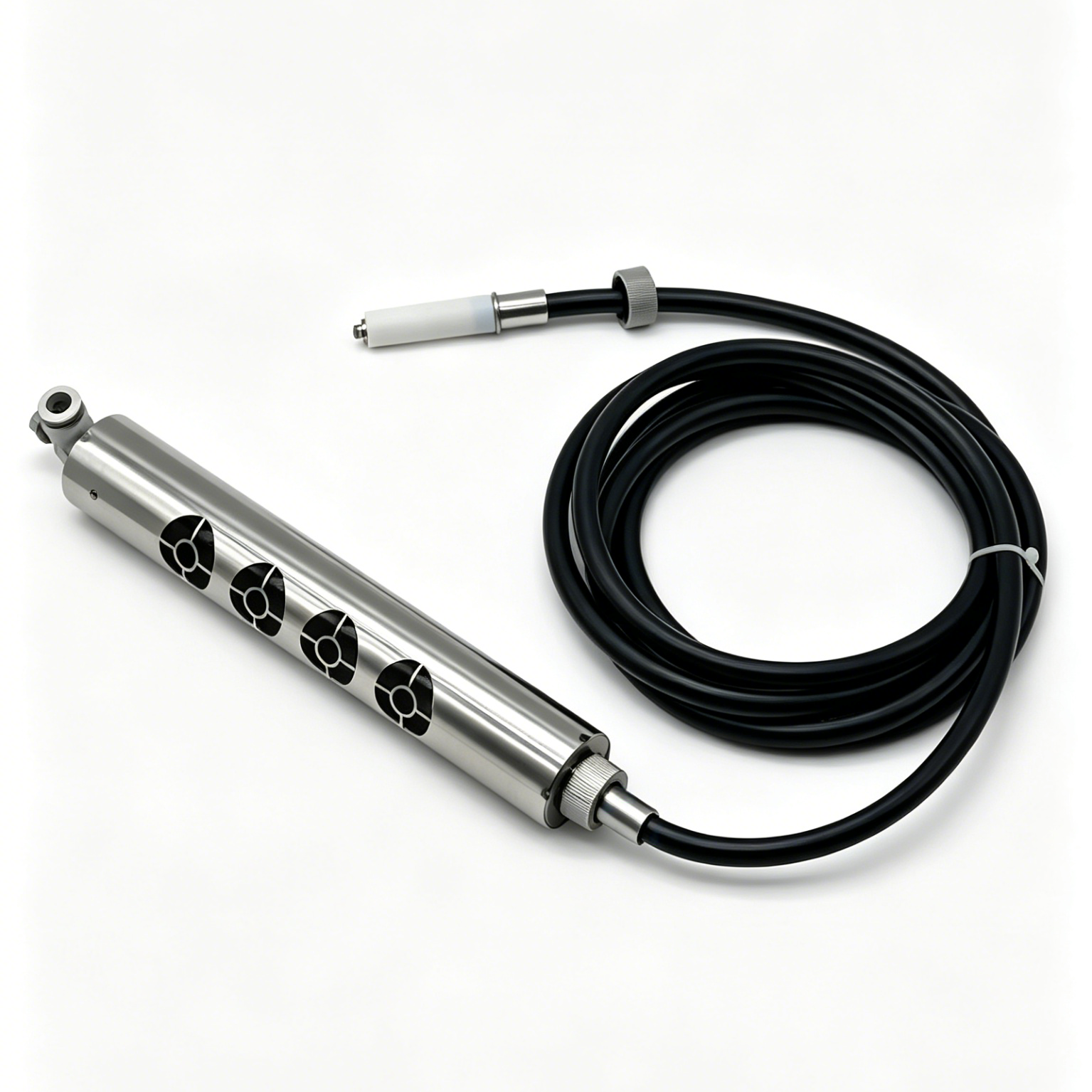

Ionizing air bars are designed for continuous treatment across a defined width. They are widely used on webs, sheets, conveyors, printing presses, packaging equipment, molding machines, and automated assembly lines.
Ionizing blowers use fans to distribute ions over a wider area. They are suitable for workstations, inspection areas, trays, manually handled parts, and products that remain in the treatment area for a relatively long period.
Ionizing nozzles direct ionized compressed air toward a focused target. They can reach cavities, narrow passages, recessed surfaces, and irregular products. Ionizing guns provide similar focused treatment under manual operator control.
| Equipment Type | Typical Application | Main Selection Factor |
|---|---|---|
| Ionizing air bar | Wide webs, sheets, and conveyors | Active length and working distance |
| Ionizing blower | Workstations and larger open areas | Air volume and coverage |
| Ionizing nozzle | Small or recessed targets | Air pressure and direction |
| Ionizing gun | Manual cleaning and treatment | Operator technique and air quality |
| Compact ionizing head | Restricted machine spaces | Short range performance |
| Monitored ionization system | Critical automated processes | Balance control and alarm functions |
The target geometry should determine the equipment category. A narrow nozzle is not suitable for uniform treatment of a wide web, while a long bar may be unnecessary for one small cavity.
Buyers should collect data about the material, static voltage, polarity, process speed, working width, installation distance, environment, airflow, and required residual charge before requesting a quotation.
The first step is to identify where static is generated. Common sources include roller separation, unwinding, peeling, cutting, molding, conveying, sliding, blowing, spraying, and operator handling.
The second step is to identify where static causes the defect. The ideal treatment point is generally after the main charge generation event and before the charge attracts dust, disrupts movement, shocks an operator, or exposes a sensitive component.
Static voltage and polarity should be measured with a suitable instrument. Measurements should be taken at documented distances and locations. General descriptions such as strong static or frequent shock do not provide enough data for accurate equipment selection.
Machine drawings, photographs, and process videos can help potential suppliers understand complex installations. Complete information reduces the risk of receiving a quotation for technically unsuitable equipment.
The most important specifications are positive decay time, negative decay time, ion balance, active coverage, effective working distance, output stability, and performance under actual process conditions.
Decay time indicates how quickly the eliminator reduces a known charge between defined voltage levels. Fast decay is important for rapidly moving material because each section of the surface remains within the ion field for only a short period.
Positive and negative decay values should both be examined. An eliminator may neutralize one polarity faster than the other. Test data should state the starting voltage, ending voltage, distance, airflow, temperature, humidity, and measuring method.
Ion balance describes the electrical offset created by the ion field. If one polarity dominates, the equipment may leave a residual voltage or charge a neutral object. Controlled balance is particularly important for electronics, semiconductor, optical, medical, and precision manufacturing.
| Specification | What It Indicates | What Buyers Should Verify |
|---|---|---|
| Positive decay time | Speed of positive charge neutralization | Test voltage, distance, and airflow |
| Negative decay time | Speed of negative charge neutralization | Same conditions as the positive test |
| Ion balance | Positive or negative electrical offset | Acceptable range for the process |
| Active length | Width that generates useful ions | Difference between active and housing length |
| Working distance | Usable distance to the target | Decay performance at the planned distance |
| Coverage uniformity | Consistency across the treatment area | Measurements at several positions |
| Output stability | Ability to maintain performance | Results during extended operation |
A high advertised output does not guarantee successful treatment. The ions must reach the material evenly and within the available process time.
Working distance should be evaluated by measuring decay time, balance, and actual surface voltage at the planned installation position.
As distance increases, ions spread over a larger area. This may improve physical coverage, but ion concentration generally decreases. Some ions recombine, attach to airborne particles, or are carried away before reaching the target.
A very short distance can also create problems. Coverage may become narrow, and a moving web or product may contact the emitter area because of vibration, flutter, thickness variation, or incorrect positioning.
Nearby grounded metal can influence the effective range. Rollers, frames, brackets, and guards may attract ions before they reach the charged material. Working distance should therefore be evaluated within the complete machine layout.
The supplier recommendation provides a starting point, but final verification should occur after installation. Measurements should be taken while the production line, exhaust systems, fans, and other airflow sources are operating.
A static eliminator needs enough active coverage to treat the entire charged surface, including material movement, edge areas, height variation, and any overlap between multiple devices.
The external housing length should not be mistaken for active treatment length. End caps, connectors, cable entries, and internal components may not produce ions. Buyers should request the active length in the technical specification.
For web and sheet applications, the active area should cover the maximum material width. Additional coverage may be necessary if the material shifts laterally during production or if several product sizes use the same line.
Very wide processes may require several bars. Adjacent treatment zones should overlap so that no untreated gap remains. Overlap areas should be tested because the physical position of the housings does not prove uniform ion distribution.
Coverage should be measured at the center, edges, and intermediate points. A single measurement directly in front of the center can conceal weak performance elsewhere.
Compressed air is necessary when ions must travel farther, reach recessed areas, overcome opposing airflow, or neutralize a fast moving target within a short treatment period.
Many ionizing air bars can operate without compressed air at suitable short distances. Windless operation may be preferred when airflow could disturb thin film, lightweight parts, powder, or sensitive product positioning.
Compressed air improves ion transport and can reduce decay time. It is valuable for irregular components, cavities, complex machine layouts, and longer working distances. However, excessive pressure is not automatically better.
High pressure can disturb materials, create turbulence, spread contamination, increase noise, and consume unnecessary energy. The preferred setting is the lowest stable pressure that provides acceptable neutralization and coverage.
Air quality is essential. Oil, water, and particles can contaminate emitters, block passages, and affect the product. Filters, regulators, tubing, valves, and connectors should be selected for the required flow and cleanliness.
Temperature, humidity, dust, oil, chemicals, airflow, cleanliness, and potential ignition hazards influence static generation, equipment performance, maintenance, and product suitability.
Low humidity commonly increases static retention because charge dissipates more slowly from insulating surfaces. A process that works well in humid months may develop stronger static during a dry season.
Increasing humidity is not always an appropriate solution. Moisture can affect coating, printing, dimensional stability, corrosion, cleanroom operation, product quality, and microbial control. Ionization provides localized treatment without changing the entire factory environment.
Dust, fibers, oil mist, adhesive vapor, ink residue, and powder can collect on emitter points. Heavily contaminated processes need accessible equipment, appropriate cleaning methods, and shorter maintenance intervals.
Potentially explosive atmospheres require special evaluation. Buyers should provide complete information about flammable gases, vapors, solvents, and combustible dust. Standard static eliminators must not be used without confirming suitability for the classified environment.
Buyers should review treatment position, mounting space, working distance, angle, ion path, grounding, airflow, power, compressed air, cable routing, and maintenance access before ordering.
The installation position should relate to the charging event. If a film is neutralized before separating from a roller, the separation can create a new charge immediately afterward. The bar should normally be placed after the roller and before the charge causes a problem.
The ion path should remain open. Machine guards, grounded rollers, frames, brackets, and product fixtures can block or capture ions. Drawings should show both the bar and surrounding structures.
Power cables must be routed away from heat, sharp edges, chemicals, moving components, and crushing hazards. Signal cables may require separation from motors, drives, and other sources of electrical interference.
The equipment must be accessible for cleaning and testing. A bar hidden behind a difficult guard may not receive proper maintenance, even if its initial position provides good performance.
Buyers should test actual surface voltage, positive decay time, negative decay time, ion balance, and coverage under representative production conditions.
An electrostatic field meter can compare voltage before and after treatment. Measurements should use consistent distance, angle, and target position because these variables affect the reading.
A charged plate monitor measures decay time and ion balance. It should be placed at the intended working distance with the normal air pressure and equipment settings. Both polarities should be tested.
Production validation should occur at normal and maximum line speeds. Fans, exhaust systems, guards, rollers, and process equipment should operate normally because they can change ion distribution.
For wide equipment, measurements should be taken across the complete treatment area. Baseline results provide a reference for later maintenance and troubleshooting.
Buyers should compare cleaning frequency, emitter access, filter requirements, testing procedures, spare parts, alarm functions, and the time needed to complete routine service.
Emitter points attract dust and process contamination because of the electric field around them. Deposits can reduce ion output, increase decay time, and shift ion balance even though the equipment remains powered.
Maintenance frequency depends on the process. A clean electronics area may require less frequent cleaning than a printing, converting, molding, textile, or coating line. Measured performance should guide the schedule.
Power must be isolated before direct cleaning. The supplier should specify approved brushes, swabs, and cleaning agents. Abrasive tools can damage emitter geometry, while unsuitable chemicals can affect insulation or housing materials.
| Maintenance Item | Buyer Question |
|---|---|
| Emitter cleaning | Can the points be accessed without major disassembly? |
| Filter service | Are replacement filters available? |
| Air passage cleaning | Can blocked outlets be inspected easily? |
| Decay testing | What test interval is recommended? |
| Balance testing | Can balance be adjusted or controlled? |
| Spare parts | Which components can be replaced? |
| Fault diagnosis | Are alarms and troubleshooting instructions provided? |
Maintenance records should contain measured results, not only service dates. Trends in decay time and balance help identify deterioration before production defects appear.
Buyers should consider electrical protection, current limitation, grounding, insulation, environmental suitability, cable safety, compressed air, ozone, and safe maintenance procedures.
Static eliminators use high voltage to create ions. Well designed systems limit current and protect users during normal operation. Nevertheless, qualified personnel should perform electrical installation, and power should be isolated before cleaning or servicing.
Grounding requirements should be clearly stated. A loose ground, damaged cable, incorrect power connection, or unsuitable mounting method can reduce performance and create safety concerns.
Compressed air systems require suitable pressure control, tubing, connectors, and isolation procedures. Air should never be directed toward personnel in an unsafe manner, and excessive pressure should be avoided.
Buyers should review all applicable facility, electrical, environmental, and process requirements before ordering. Product documentation should correspond to the exact configuration being purchased.
Buyers should select a supplier with strong application knowledge, verified performance data, consistent quality control, complete documentation, reliable delivery, and responsive technical support.
A qualified supplier should ask detailed questions before recommending equipment. If the recommendation is based only on required length and quantity, important factors such as speed, voltage, distance, airflow, and environment may be overlooked.
Performance claims should include test conditions. The supplier should explain positive and negative decay time, ion balance, active coverage, working distance, air requirements, and expected limitations.
Manufacturing quality should include incoming inspection, controlled assembly, electrical testing, functional testing, final inspection, and product traceability. Critical applications may require an individual test report.
After delivery, the supplier should provide installation assistance, maintenance guidance, troubleshooting, and replacement parts. Long term support can be more valuable than a small difference in initial price.
Total ownership cost should include purchase price, accessories, installation, energy, compressed air, maintenance, spare parts, service life, downtime, and static related quality losses.
A low purchase price can become expensive if the system provides incomplete coverage, requires frequent adjustment, consumes excessive air, or needs early replacement. The complete cost should be evaluated over the expected operating period.
Compressed air can create a significant recurring expense. Buyers should ask about the required flow and pressure rather than considering only the availability of a compressed air connection.
Maintenance time also has financial value. Equipment that can be cleaned quickly and tested without extensive disassembly reduces production interruption. Accessible emitters, removable mounting, and clear documentation support lower service cost.
| Cost Category | Items to Include |
|---|---|
| Initial equipment | Bar, power supply, cables, controls, and accessories |
| Installation | Brackets, wiring, air components, and engineering time |
| Operation | Electricity and compressed air |
| Maintenance | Cleaning labor, filters, tests, and tools |
| Replacement | Emitters, cables, power units, and other components |
| Downtime | Production loss during faults and service |
| Quality loss | Rejected products, contamination, and process defects |
The best economic choice is the system that meets the required performance reliably at the lowest practical lifetime cost, not necessarily the system with the lowest purchase price.
Buyers should avoid choosing by price alone, ignoring process measurements, confusing housing length with active length, relying on unsupported distance claims, and failing to plan for installation and maintenance.
One common mistake is purchasing equipment before confirming that static causes the problem. Dust, feeding errors, and material movement can also result from mechanical alignment, contaminated rollers, vibration, or unsuitable process settings.
Another mistake is choosing the strongest advertised output without reviewing decay time at the required distance. High output at a short laboratory distance may not provide adequate performance on a fast production line.
Buyers may also forget that material becomes charged again after contact and separation. A perfectly functioning eliminator will appear ineffective if another roller, liner, guide, or winding operation generates new static downstream.
Finally, purchasing teams sometimes omit maintenance access and spare parts from the evaluation. A low cost system can create long interruptions if it is difficult to clean or if replacement components are unavailable.
Buyers should ask questions that confirm application suitability, measurable performance, installation requirements, maintenance needs, product quality, safety, delivery, and long term support.
Technical questions reveal whether the proposed eliminator can control the actual process. Buyers should ask why the selected technology is suitable and what performance can be expected at the planned distance and speed.
Quality and safety questions should cover inspection procedures, test records, grounding, electrical protection, environmental suitability, and documentation. Written responses can become part of the project approval record.
Commercial questions should clarify included accessories, lead time, warranty, spare parts, service response, and expected operating costs. A complete quotation makes comparison more accurate.
The best industrial static eliminator is the equipment that provides verified charge reduction, complete coverage, stable balance, safe operation, practical maintenance, and acceptable total ownership cost in the actual production environment.
Successful selection begins with process data. Buyers should identify the material, charge generation point, incoming voltage, polarity, working width, production speed, installation distance, environmental conditions, and acceptable residual charge.
Equipment categories should be matched to target geometry. Ionizing bars are suitable for wide continuous materials, blowers cover workstations and open areas, and nozzles provide focused treatment for small or recessed targets.
Performance comparisons should focus on positive and negative decay time, ion balance, active coverage, effective distance, and stability. Every value should include clear test conditions.
Correct installation, regular cleaning, objective testing, and dependable supplier support are essential for maintaining results. By evaluating the complete system rather than purchase price alone, manufacturers can reduce contamination, material handling problems, operator shocks, electronic damage, defects, and unplanned downtime.
