Ionizing air bars are widely used to control static electricity in electronics manufacturing, semiconductor production, printing, packaging, plastic processing, textile manufacturing, battery assembly, medical device production, and many other industrial applications. By generating positive and negative ions, an ionizing air bar can neutralize static charges that cause dust attraction, material sticking, electrostatic discharge, operator shocks, sensor interference, and quality defects.
However, installing an ionizing air bar does not automatically guarantee effective static neutralization. Its actual performance depends on installation distance, mounting position, coverage, emitter cleanliness, grounding, airflow, production speed, material characteristics, temperature, humidity, and maintenance quality. Even a correctly selected bar can produce poor results if it is installed too far from the charged surface or allowed to become contaminated.
To maximize the performance of an ionizing air bar, install it close to the point where static is generated, maintain a clear path between the emitters and target, cover the entire charged area, optimize airflow, clean emitter points regularly, verify grounding, and measure ion balance and decay time under normal production conditions.
Static control should be treated as a complete process rather than an isolated equipment purchase. The strongest results come from understanding where charge is generated, how it moves through the production line, and how quickly it must be neutralized. This allows users to position, operate, and maintain the ionizing air bar according to actual production requirements.
This guide explains the most important factors affecting ionizing air bar performance and provides practical methods for increasing neutralization speed, improving ion balance, extending emitter life, and reducing static related production problems.
Ionizing air bar performance is determined primarily by neutralization speed, ion balance, effective coverage, and the residual static voltage remaining on the material.

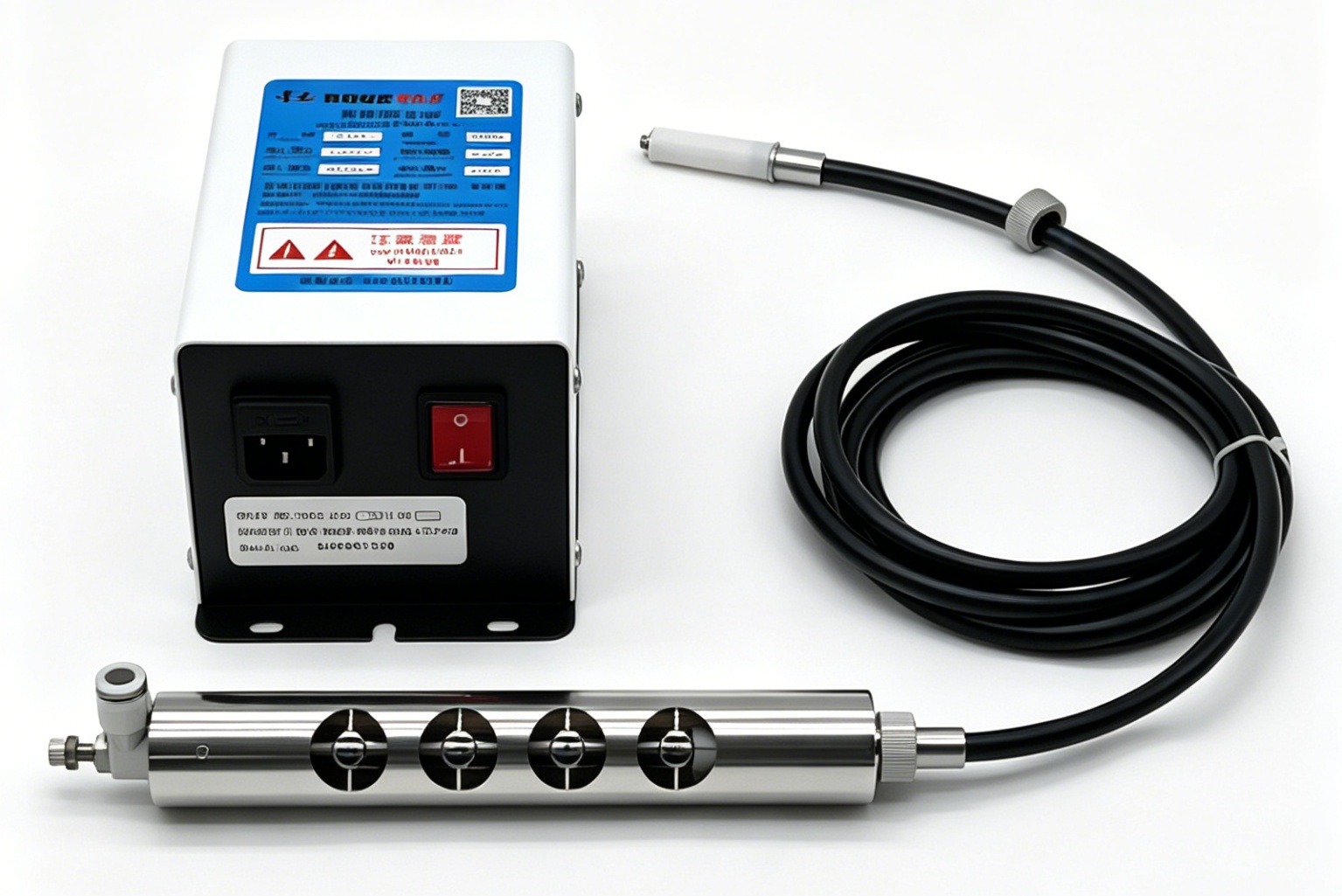

An ionizing air bar produces positive and negative ions around a series of sharp emitter points. These ions travel toward a charged object and combine with the opposite electrical charge on its surface. Effective performance means that enough ions reach the target quickly and uniformly to reduce the charge to an acceptable level.
Decay time is one of the most important performance measurements. It indicates how long the ionizer takes to reduce a known positive or negative charge between defined voltage levels. A shorter decay time generally means faster static neutralization, but the required result depends on line speed, material type, process sensitivity, and the time available before the product reaches the next operation.
Ion balance indicates the residual voltage resulting from the relative output of positive and negative ions. If the balance is strongly positive or negative, the bar may leave an unwanted charge on the target. Sensitive electronic components and semiconductor devices often require tighter balance control than general dust removal or material handling applications.
These indicators should be evaluated together. A bar may provide fast decay at the center while leaving charged edges. It may also neutralize positive charges quickly but require more time for negative charges. Testing across several positions and both polarities provides a more complete understanding of actual performance.
Locate the exact points where materials contact, separate, rub, unwind, or change direction so the ionizing air bar can neutralize charge before it affects production.
Static electricity commonly develops through contact and separation between different materials. Plastic film separating from a roll, paper moving across a roller, a liner being removed from an adhesive surface, or a molded part leaving a tool can all generate electrical charge. Faster separation and greater friction often increase the charge level.
The location where static becomes visible is not always the location where it was generated. Dust may begin to collect several meters after a charged film leaves an unwind roll. A sheet feeding problem may appear at a stacking station even though the charge developed during cutting. A process survey should therefore examine the complete material path.
Use a suitable static voltage instrument to measure the charge before and after suspected generation points. Maintain a consistent measurement distance and record material type, speed, temperature, humidity, and machine condition. These details are necessary because static readings can change with distance and environmental conditions.
Install the ionizing air bar after the main charge generation point whenever practical. If it is placed before material separation, the surface may become charged again immediately afterward. Correct positioning can improve results without increasing power or air consumption.
Install the ionizing air bar where it has a clear and direct path to the charged surface, preferably immediately after the final major static generation point.
Positive and negative ions can be attracted to grounded machine frames, rollers, guards, and other conductive objects. If these components are positioned between the bar and the target, many ions may be absorbed before reaching the charged material. This reduces effective ion density and increases decay time.
The bar should also be protected from direct contact with moving products. Film, paper, sheets, and loose components can strike the emitter area if the mounting position is unstable. Physical contact may contaminate, bend, or damage emitter points and can change the approved working distance.
Use rigid mounting brackets that resist vibration. The position should remain stable during machine acceleration, normal production, and maintenance activity. Adjustable brackets are useful during commissioning, but they must be secured after the optimum position has been confirmed.
If static is generated at several points, one bar may not be sufficient. Treating only the final location may allow upstream static to cause dust attraction, web misalignment, or machine interference. Multiple ionizers can be installed at important generation points when process measurements show that repeated treatment is necessary.
Position the ionizing air bar within its effective operating range and as close to the charged surface as practical without risking contact or disrupting the process.
Ion density generally decreases as working distance increases. Positive and negative ions can recombine with each other while traveling through the air. They can also be attracted to surrounding grounded structures. As a result, fewer usable ions reach the target at a longer distance.
A short distance usually improves neutralization speed, but closer is not always better. The material must not touch the emitter points, and the bar must not interfere with machine operation. Irregular products, vibration, material flutter, and maintenance access should be considered when determining the minimum safe distance.
Air assisted ionizing bars can transport ions over a greater distance, but airflow does not eliminate the effect of distance completely. Excessive pressure may move lightweight materials or spread dust. The distance and airflow should be optimized together using decay time and static voltage measurements.
| Working Distance Condition | Possible Performance Effect | Recommended Action |
|---|---|---|
| Too close to moving material | Risk of impact and emitter contamination | Increase clearance while maintaining effective treatment |
| Within the effective range | Fast and stable neutralization | Record and preserve the approved position |
| Moderately excessive distance | Longer decay time and weaker coverage | Move the bar closer or improve ion transport |
| Very long distance | Incomplete neutralization | Select a more suitable arrangement or add treatment points |
| Distance changes during production | Unstable static control | Improve material control and mounting rigidity |
Measure the actual distance rather than estimating it visually. Record the value after commissioning so future inspections can identify movement. If production changes introduce a thicker material or different product path, verify the distance and repeat performance testing.
The active treatment area should cover the complete width and shape of the charged material with sufficient overlap to prevent untreated gaps and charged edges.
The physical length of an ionizing air bar does not always equal its effective treatment width. The position of the first and last emitter points, distance, mounting angle, airflow, and nearby machine components affect how ions are distributed.
If the bar is shorter than the charged material, the edges may retain significant voltage. Charged edges can continue to attract dust, wrap around rollers, interfere with stacking, or create discharge risks. The bar should normally extend across the required treatment area or be positioned so that ion distribution reaches both edges effectively.
When several bars are installed across a wide process, their treatment zones should overlap. A gap between active zones can leave a strip of residual charge. Verify coverage by measuring voltage at multiple positions rather than testing only at the center.
Three dimensional products require additional attention. A bar aimed at one surface may not neutralize hidden sides, deep cavities, or areas blocked by product geometry. Multiple bars, nozzles, or changes in product orientation may be necessary for complete treatment.
Recheck coverage after changing product width, material type, bar distance, air pressure, or line speed. A configuration that works for one product may leave untreated areas on another.
Use clean, dry, and stable airflow at the lowest pressure that delivers ions effectively without disturbing products, increasing contamination, or wasting energy.
Compressed air can increase the speed and distance at which ions travel toward the target. It is particularly useful for irregular parts, recessed surfaces, fast moving materials, and applications where the ionizer cannot be installed close to the charged object.
Higher air pressure does not always produce better neutralization. Excessive airflow can move lightweight film, scatter small parts, create turbulence, increase noise, and consume unnecessary energy. It may also disturb controlled airflow in clean manufacturing environments.
Pressure should be measured during actual production. Shared air systems may experience pressure changes as other machines start and stop. Blocked filters, undersized piping, leaks, and damaged hoses can also reduce the pressure reaching the ionizing air bar.
Oil, water, rust, and particles in compressed air can contaminate the emitter points and insulating surfaces. This increases cleaning requirements and may reduce electrical stability. Maintain filtration and moisture control according to the needs of the production process.
External airflow should also be considered. Cooling fans, extraction ducts, room ventilation, and fast moving webs can redirect ions away from the target. Observe and measure performance with all normal machine airflow systems operating.
Maintain secure and electrically reliable grounding for the ionizing air bar, power supply, machine frame, and other conductive components according to the approved installation design.
Grounding and ionization perform different functions. Conductive components can release charge through a grounding path, while insulating materials generally require positive and negative ions. A complete static control system often uses both approaches.
Loose connections, corrosion, paint, dirt, and damaged grounding conductors can interrupt electrical continuity. A grounding point may appear mechanically secure while providing poor electrical contact. Visual inspection should therefore be combined with measurement using a suitable instrument.
The ionizing air bar and its power supply must be grounded according to their electrical design. Improper grounding can contribute to unstable output, inconsistent ion balance, electrical noise, and unreliable measurements.
Do not assume that placing an insulating material on a grounded surface will remove all charge. Plastic film, coated paper, glass, and many composite materials do not transfer charge efficiently. Ionization must reach the charged surface directly.
Record grounding inspection results as part of preventive maintenance. If performance changes after machine modifications, verify grounding continuity before adjusting the ionizer.
Clean emitter points at planned intervals using approved soft tools because contamination can reduce ion output, increase decay time, and shift ion balance.
Emitter points create the concentrated electrical field needed for ion generation. Dust, oil, adhesive residue, fibers, and process contamination around the tips weaken or distort this field. The bar may remain energized while its effective neutralization performance gradually declines.
Before cleaning, stop the equipment, disconnect and isolate electrical power, and release compressed air pressure where applicable. Never touch or clean emitter points while the ionizer is energized.
Loose dust can usually be removed with a clean soft brush. Persistent contamination may require a lint free swab lightly moistened with a compatible cleaning solution. Avoid excessive liquid because it can enter electrical components or leave residue on insulating surfaces.
Do not use knives, abrasive paper, hard metal brushes, or aggressive scraping. These methods can round or bend the needle tips. A damaged emitter may create uneven ion output and should be replaced using a compatible component.
Cleaning frequency should be based on actual contamination and performance. Dusty printing, textile, plastics, and converting processes may require frequent cleaning. Clean electronics and controlled environments may allow longer intervals, although sensitive processes may still require frequent performance testing.
Monitor humidity, temperature, contamination, line speed, material type, and surrounding airflow because changes in these conditions can significantly affect static generation and ionizer performance.
Low humidity often increases static problems because charges remain on insulating surfaces for longer periods. Higher humidity can improve surface conductivity for some materials, but environmental control alone is rarely sufficient for industrial static elimination.
Temperature can affect electronic components, insulation, air movement, and the material being processed. Equipment installed near heaters, dryers, ovens, cooling sections, or hot molds should be suitable for the local temperature at the installation point.
Production speed is another major factor. Faster material movement can generate higher charge while reducing the time available for neutralization. If a line is upgraded to operate faster, the existing ionizer should be tested again under the new conditions.
| Process Change | Possible Static Effect | Recommended Response |
|---|---|---|
| Lower humidity | Charge remains longer on surfaces | Increase monitoring and verify ionization performance |
| Higher line speed | More charge and less treatment time | Retest decay and residual voltage |
| New material | Different charge polarity or magnitude | Complete a new static survey |
| New surface coating | Changed conductivity and charge behavior | Reevaluate bar position and settings |
| More dust or adhesive residue | Faster emitter contamination | Shorten cleaning intervals |
| Changed ventilation | Ions may be redirected | Test performance with ventilation operating |
Material changes can be especially important. A new film, paper, coating, adhesive, liner, or packaging structure may have different electrical properties. Include static control verification in process qualification whenever materials or operating conditions change.
Record environmental conditions during performance testing. Measurements taken at different humidity, temperature, or airflow conditions may not be directly comparable without this information.
Measure ion balance, positive decay time, negative decay time, and residual product voltage with suitable calibrated instruments under repeatable operating conditions.
Visual inspection and operating indicators cannot confirm that enough ions reach the target. A status light may show that power is present even when emitter contamination, excessive distance, or blocked airflow has reduced effective performance.
A charged plate monitoring instrument is commonly used to evaluate ion balance and decay time. Ion balance shows whether the positive and negative ion outputs create an acceptable residual voltage. Decay time shows how quickly the ionizer reduces a known positive or negative charge.
Test conditions must be repeatable. Use the same distance, instrument position, air pressure, environmental conditions, and machine status whenever possible. Testing at an undocumented position makes historical comparisons unreliable.
Create baseline values when the bar is clean, correctly positioned, and operating effectively. Future results can be compared with these values. Gradual increases in decay time can indicate contamination, emitter wear, airflow restriction, or electrical deterioration.
For long bars and wide materials, test several positions. A center measurement may not reveal weak output near one end or a damaged emitter. Full width testing can identify localized performance gaps before they create visible defects.
When performance declines, inspect emitter cleanliness, installation distance, coverage, grounding, airflow, power connections, process speed, environmental conditions, and possible charge generation after treatment.
Begin with simple and common causes. Dirty emitter points, blocked air outlets, loose connections, and a moved mounting bracket can all reduce performance. Correct these issues and repeat the measurement before replacing major components.
If static remains on only one part of a wide product, investigate coverage and local emitter condition. If performance is poor across the entire width, check working distance, power supply, grounding, airflow, and overall emitter contamination.
A material that measures low voltage immediately after the bar but high voltage farther downstream may be becoming charged again. Inspect rollers, guides, protective film removal, cutting, stacking, and other contact points after treatment.
| Observed Problem | Possible Cause | Recommended Check |
|---|---|---|
| Slow decay across the complete width | Dirty emitters, excessive distance, weak power, or low airflow | Clean, inspect, and measure each operating condition |
| Poor performance at one edge | Insufficient coverage or damaged end emitter | Check bar length, alignment, and local output |
| Unstable ion balance | Uneven contamination, grounding issue, or electrical fault | Inspect emitters and verify electrical connections |
| Good stationary test but poor production result | High speed or process airflow | Test under normal operating conditions |
| Performance improves after cleaning but declines quickly | Severe contamination source | Improve filtration, shielding, or cleaning frequency |
| Static returns downstream | New charge generation after the ionizer | Survey the remaining material path |
Avoid changing several variables at the same time. Adjust one factor, record the result, and then continue. This approach helps identify the real cause and prevents unnecessary changes.
If cleaning, positioning, airflow adjustment, and grounding verification do not restore performance, qualified personnel should inspect the emitter condition, cables, connectors, and power supply. Do not open high voltage equipment unless authorized and trained to do so.
A preventive maintenance program should combine frequent visual checks, scheduled emitter cleaning, grounding inspection, airflow maintenance, performance testing, and accurate record keeping.
Maintenance frequency should reflect operating hours, contamination, process sensitivity, and performance history. A heavily contaminated film or textile process may require weekly cleaning, while a cleaner area may support a longer interval. Critical ESD applications may require frequent testing even when emitters appear clean.
Operators can complete simple daily checks for alarms, visible contamination, airflow, cable damage, and unusual noise. Trained maintenance personnel should perform cleaning, grounding inspection, mechanical adjustment, and component replacement.
Qualified personnel should conduct electrical diagnosis and detailed performance testing. Clearly defined responsibilities prevent unsafe work and ensure that important tasks are completed consistently.
| Interval | Recommended Task | Main Objective |
|---|---|---|
| Every shift | Check indicators, alarms, airflow, and visible damage | Detect immediate problems |
| Weekly | Inspect emitter contamination, cables, hoses, and mounting position | Identify gradual deterioration |
| Monthly | Clean emitters and inspect grounding and air filtration | Restore normal operating condition |
| Quarterly | Measure ion balance, decay time, and full width performance | Verify actual static control |
| Annually | Complete a detailed system review and replace worn components | Support long term reliability |
These intervals are general examples and should be adjusted using actual data. If emitters are heavily contaminated during every monthly inspection, the cleaning interval is too long. If repeated inspections show little contamination and stable performance, the interval may be reviewed according to process risk.
Maintenance records should include equipment identification, date, emitter condition, cleaning method, replaced parts, grounding results, airflow settings, ion balance, decay time, and technician information. Trend analysis can reveal gradual deterioration and recurring process problems.
Use a standardized checklist to verify installation, coverage, grounding, airflow, emitter condition, operating environment, measured performance, and maintenance records.
A checklist improves consistency across production shifts and maintenance teams. It also reduces the chance that a simple issue such as a loose bracket, blocked air outlet, or changed working distance will be overlooked.
Each ionizing air bar should have a unique identification number. The checklist should reference its production line, installation position, approved distance, airflow setting, acceptance criteria, and maintenance interval.
If any critical item fails, the ionizer should be cleaned, adjusted, repaired, or replaced as necessary. Performance must be retested before the equipment is released for sensitive production.
The checklist should be reviewed whenever the production line changes. A new product, material, speed, coating, machine arrangement, or ventilation condition can affect static generation and ion transport.
Maximizing ionizing air bar performance requires correct placement, suitable working distance, complete coverage, optimized airflow, reliable grounding, clean emitters, controlled process conditions, measured verification, and preventive maintenance.
An ionizing air bar performs best when it is installed close to the point where static is generated and has a clear path to the charged surface. Treating the material after contact and separation prevents charge from developing again immediately after ionization.
Coverage must include the complete width and shape of the product. Working distance and airflow should be optimized together, especially on fast moving materials or irregular parts. Excessive distance reduces ion density, while excessive air pressure can create turbulence and waste energy.
Emitter cleanliness is essential. Dust, oil, adhesive residue, and fibers can weaken the electrical field and increase decay time. Safe, regular cleaning helps preserve ion output, while damaged or worn emitters should be replaced with compatible components.
Objective performance testing is the most reliable way to confirm success. Measure ion balance, positive decay time, negative decay time, and residual product voltage under documented conditions. Compare the results with baseline data and process acceptance criteria.
Finally, integrate the ionizing air bar into the facility’s preventive maintenance and quality systems. Regular inspection, staff training, accurate records, and performance trending help identify deterioration before it causes defects or downtime. By applying these practices consistently, industrial users can achieve faster static neutralization, more stable production, lower maintenance costs, and a longer service life for their static control equipment.
