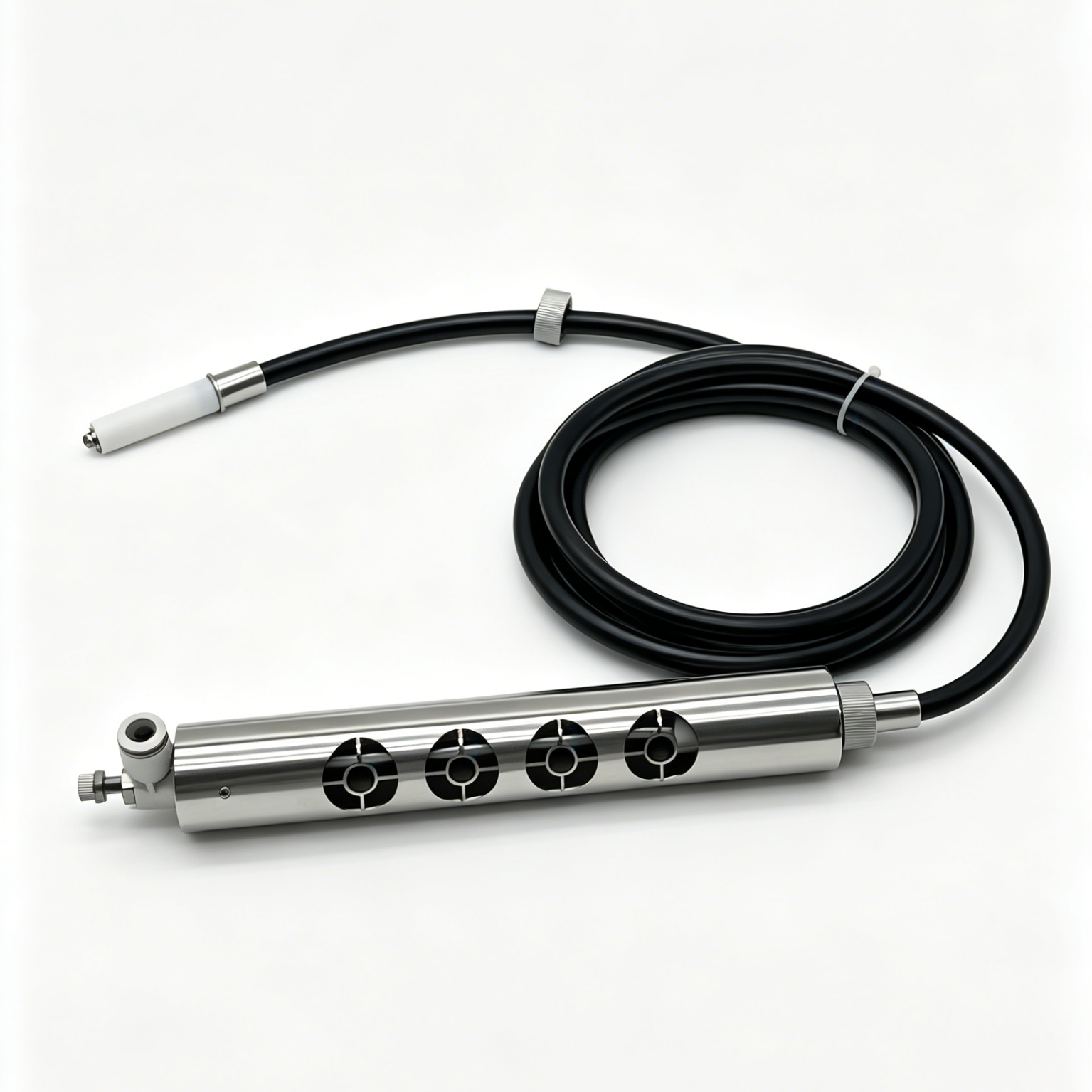

Ionizing air bars play an important role in controlling static electricity across electronics manufacturing, printing, packaging, plastics processing, textile production, semiconductor operations, battery manufacturing, and other industrial environments. By generating positive and negative ions, these devices neutralize electrical charges on materials, machine components, and product surfaces. Effective ionization can reduce dust attraction, material jams, electrostatic discharge risks, contamination, operator discomfort, and quality defects.
Although an ionizing air bar may operate continuously for long periods, its performance can gradually decline when dust, adhesive residue, oil, fibers, and process contamination accumulate around the emitter points. Loose electrical connections, incorrect mounting distance, damaged cables, inadequate grounding, and unstable air pressure can also reduce neutralization performance. Preventive maintenance is therefore essential for keeping the equipment reliable and avoiding unexpected production interruptions.
An effective preventive maintenance checklist should cover equipment shutdown, visual inspection, emitter cleaning, air supply inspection, grounding verification, electrical checks, ion balance testing, static decay testing, documentation, and scheduled replacement of damaged components. The exact maintenance frequency should be based on contamination levels, operating hours, process sensitivity, and the manufacturer’s technical requirements.
A structured maintenance program does more than keep an ionizing air bar clean. It allows maintenance teams to identify gradual performance changes before they cause rejected products or machine downtime. It also creates reliable records that can support quality audits, ESD control programs, troubleshooting, and equipment replacement decisions.
The following preventive maintenance checklist explains what should be inspected, how often each task should be completed, which measurements should be recorded, and how industrial users can improve long term static control performance.
Preventive maintenance keeps an ionizing air bar operating within the required ion balance and neutralization performance range while reducing the risk of sudden equipment failure.
Emitter points require a strong and stable electrical field to generate ions effectively. Contamination deposited on or around these points changes the electrical field and restricts ion production. As contamination increases, the bar may need more time to neutralize a charged surface. The system may continue to produce ions, but its actual performance at the target material can become insufficient for the production process.
Poor ionization may appear as repeated material attraction, dust contamination, web handling problems, incorrect sheet feeding, electrostatic shocks, or unexplained product defects. In an electronics or semiconductor environment, insufficient static control can increase the risk of electrostatic discharge damage. In printing, converting, and packaging applications, it can contribute to misalignment, adhesion problems, and production interruptions.
Preventive maintenance also makes operating costs more predictable. Cleaning an emitter point or tightening a connection is usually faster and less expensive than stopping a production line to investigate a serious static problem. Routine inspection helps maintenance teams identify wear, contamination, and installation changes while corrective action is still simple.
Regular maintenance can provide several operational benefits:
Before maintaining an ionizing air bar, switch off the power, isolate the energy source, release compressed air pressure, and confirm that the equipment cannot restart unexpectedly.
Ionizing air bars use a high electrical potential to create ions. Even when the operating current is limited, maintenance personnel should never touch emitter points or open electrical enclosures while the system is energized. Follow the equipment instructions and the facility’s energy isolation procedure before beginning any cleaning or inspection work.
If the bar uses compressed air, close the supply valve and release stored pressure from the line. Unexpected airflow can move cleaning liquid, contamination, or small components toward the operator. Pressure isolation also makes it easier to inspect hoses, fittings, nozzles, and filters safely.
Maintenance personnel should wear suitable personal protective equipment for the production environment. Depending on the application, this may include safety glasses, clean gloves, protective clothing, or ESD controlled garments. In a cleanroom, all cleaning tools and materials must meet contamination control requirements.
Never scrape emitter points with a hard metal tool. Avoid bending, grinding, or reshaping the points. Do not immerse the ionizing air bar in liquid unless it was specifically designed for that cleaning method. If a cleaning solvent is required, use only a compatible material and apply it carefully to prevent liquid from entering electrical components.
Maintenance frequency should be determined by operating hours, environmental contamination, process sensitivity, and measured performance rather than by using one fixed schedule for every application.
A clean electronics assembly area may require less frequent emitter cleaning than a printing, textile, plastics, or adhesive converting line. Paper dust, plastic particles, coating residue, oil mist, and fibers can accumulate quickly around exposed emitter points. Equipment operating continuously also requires inspection more frequently than equipment used for only a few hours per week.
The first maintenance schedule can be based on the equipment instructions and an assessment of the operating environment. The interval should then be adjusted using actual inspection findings. If the emitter points are heavily contaminated at every monthly inspection, the cleaning interval may need to be shortened to every week or every two weeks.
Performance measurements are particularly useful for determining the correct schedule. A visible inspection may show that the bar appears clean, while decay time testing reveals a significant loss of neutralization speed. Conversely, a small amount of visible contamination may not yet have affected process performance. Maintenance decisions should therefore combine visual condition, measurement data, and process results.
| Maintenance Interval | Recommended Tasks | Typical Purpose |
|---|---|---|
| Every shift | Check operating indicator, alarms, airflow, unusual noise, and obvious damage | Detect immediate operating problems |
| Weekly | Inspect emitter contamination, mounting position, air pressure, and cable condition | Identify gradual changes before performance declines |
| Monthly | Clean emitter points, inspect grounding, check filters, and examine electrical connections | Restore normal operating condition |
| Quarterly | Measure ion balance and decay time, inspect installation distance, and review records | Confirm actual neutralization performance |
| Annually | Complete electrical inspection, replace worn parts, verify measuring instruments, and review the maintenance plan | Support long term reliability and compliance |
These intervals are general starting points rather than universal requirements. Critical ESD processes may require daily or weekly performance verification. Highly contaminated operations may also need much more frequent cleaning. Always adapt the schedule to the risk level and actual operating conditions.
A visual inspection should identify contamination, physical damage, loose mounting hardware, cable wear, air leakage, corrosion, and changes in the position of the ionizing air bar.
Begin by examining the complete length of the bar under adequate lighting. Look for dust deposits, fibers, adhesive residue, oil, discoloration, cracks, impact marks, and signs of overheating. Pay particular attention to the emitter area because small deposits around the points can reduce ion output.
Inspect the equipment housing and end connections for mechanical damage. A bar installed near moving materials may be struck by a product, tool, or machine component. Even when the housing remains intact, an impact can change the bar’s position or damage an internal connection. Any evidence of impact should be investigated before the equipment is returned to service.
Check all mounting brackets and fasteners. Vibration can loosen hardware over time and alter the distance or angle between the bar and the target surface. The ionizing air bar should remain stable and should not contact the moving material. Confirm that no new machine component is blocking airflow or ion movement.
Record any abnormal condition even when it does not require immediate replacement. A small crack, slight discoloration, or recurring loose fitting can become significant over time. Photographs taken from a consistent position can help maintenance teams compare equipment condition between inspections.
Emitter points should be cleaned gently with an approved soft brush, lint free swab, or compatible cleaning material after the equipment has been completely isolated from power.
Emitter contamination is one of the most common causes of reduced ionizer performance. Dust and residue collect near the sharp points where ions are generated. This buildup weakens or distorts the electrical field, which can reduce ion output, increase decay time, and shift ion balance.
Use a soft, clean brush to remove loose dust. For material that cannot be removed by dry cleaning, use a lint free swab lightly moistened with an approved cleaning solution. The swab should be damp rather than saturated. Excess liquid can enter the housing and damage electrical insulation or internal components.
Clean around each emitter point carefully without applying sideways pressure. The original shape, position, and sharpness of the point must be preserved. A bent or damaged emitter can create uneven ion distribution and may require replacement. Do not use abrasive paper, knives, steel brushes, or other aggressive tools.
The cleaning material must be suitable for both the ionizing bar and the production environment. A chemical that cleans adhesive effectively may damage plastic insulation or leave a conductive residue. In cleanrooms, use low particle materials and follow the facility’s approved cleaning procedures.
After cleaning, compare performance with previous measurements. A significant improvement in decay time confirms that contamination was affecting ion generation. If performance remains poor, investigate air supply, grounding, power, emitter wear, installation distance, and internal electrical condition.
For air assisted ionizing bars, preventive maintenance should verify air pressure, flow stability, filtration, hose condition, fitting security, and the cleanliness of all air outlets.
Compressed air transports ions from the emitter area toward the charged object. If pressure is too low, ions may not reach the target quickly enough. If pressure is unnecessarily high, operating costs can increase and turbulence may disturb lightweight materials, spread contamination, or interfere with process airflow.
Check the pressure at the correct measurement point while the system is operating. A regulator reading may not represent the actual pressure at the bar when several devices share the same supply line. Pressure can drop because of undersized piping, clogged filters, leaking fittings, or simultaneous demand from other equipment.
Inspect filters and moisture separators. Oil, water, and particles carried by compressed air can contaminate emitter points and internal passages. In sensitive applications, the air quality should match the process requirements. Replace or service filtration elements according to pressure drop, contamination condition, and the approved maintenance interval.
Air leakage can often be detected by sound, pressure loss, or a suitable leak detection method. Repair leaks promptly because they waste energy and reduce neutralization performance. After servicing the air system, verify that airflow reaches the complete product width and does not create unwanted movement of the material.
Electrical maintenance should confirm secure power connections, undamaged insulation, reliable grounding, correct supply conditions, and normal status indicators.
A stable power supply is necessary for consistent ion generation. Inspect the power cable along its entire accessible length. Look for cuts, crushed sections, abrasion, exposed conductors, loose strain relief, and damage caused by heat or chemicals. A damaged cable should be replaced with a compatible component rather than temporarily repaired in a way that reduces safety or insulation performance.
Grounding is essential for safe and stable static control. Verify that the ionizing air bar, its power supply, machine frame, and related conductive components are connected according to the approved installation design. A loose or corroded grounding point can affect performance and create inconsistent measurement results.
Grounding verification should be completed with a suitable instrument and by trained personnel. A connection that looks secure may have poor electrical continuity because of paint, oxidation, contamination, or loose hardware. Record the measurement and compare it with the facility’s acceptance requirement.
Do not open or repair a high voltage power supply unless the work is permitted by the equipment instructions and completed by qualified personnel. Internal components may retain electrical energy after the power is disconnected. When an internal fault is suspected, isolate the unit and follow the approved repair or replacement process.
Ion balance and decay time should be measured with suitable calibrated equipment to confirm that the ionizing air bar can neutralize static charges within the process requirement.
Visual inspection alone cannot confirm ionization performance. Ion balance indicates whether the ionizer produces a balanced supply of positive and negative ions at the measurement position. A large positive or negative offset may place a residual charge on sensitive products instead of neutralizing them effectively.
Decay time measures how quickly the ionizer reduces a known charge from one voltage level to another. It is commonly evaluated with a charged plate monitoring instrument. The test should normally include both positive and negative charge conditions because the results may differ.
Test conditions must be repeatable. Record the distance between the instrument and the ionizing bar, air pressure, airflow setting, production line status, temperature, humidity, and bar position. Measurements taken under different conditions cannot be compared reliably.
| Measurement | What It Shows | Possible Cause of Poor Results |
|---|---|---|
| Ion balance | Residual positive or negative voltage | Dirty emitters, uneven emitter wear, incorrect adjustment, or electrical fault |
| Positive decay time | Ability to neutralize a positive charge | Weak negative ion output, excessive distance, or blocked airflow |
| Negative decay time | Ability to neutralize a negative charge | Weak positive ion output, emitter contamination, or installation problem |
| Static voltage at the product | Actual charge remaining during production | Insufficient coverage, excessive process speed, or new charge generation after treatment |
| Air pressure | Condition of ion transport airflow | Leaks, filter blockage, incorrect regulator setting, or unstable supply |
Establish a baseline when the ionizing air bar is clean, correctly installed, and operating normally. Future results can then be compared with this reference. If decay time gradually increases, clean the emitters and repeat the test. Persistent poor results may indicate emitter wear, power supply deterioration, airflow problems, or an unsuitable installation position.
Preventive maintenance should confirm that the ionizing air bar remains at the correct distance, angle, orientation, and position relative to the charged material.
Machine vibration, maintenance work, product impacts, and production changes can alter the position of an ionizer. Even a small movement may affect performance when the bar treats a narrow area or operates close to a fast moving material. Measure the working distance instead of relying only on visual judgment.
Make sure there are no grounded metal structures, guards, rollers, ducts, or machine parts blocking ion movement. Ions should have a clear path from the emitter area to the charged surface. Poor positioning can cause ions to be absorbed by nearby conductive objects before reaching the product.
The bar should normally treat the material as close as practical to the point where static is generated or where static creates a process problem. If the material passes through additional rollers, separates from another surface, or experiences friction after neutralization, it may become charged again. Maintenance inspections should therefore consider the complete process rather than only the condition of the bar.
Any major production change should trigger a new static control assessment. A bar selected for one material width, line speed, and installation distance may not provide adequate results after the process changes. Retesting helps determine whether repositioning, airflow adjustment, or additional ionization coverage is necessary.
Damaged, worn, corroded, or electrically unreliable components should be replaced promptly with compatible parts that meet the required safety and performance specifications.
Emitter points gradually wear because of electrical activity, contamination, cleaning, and chemical exposure. Replacement may be necessary when they become rounded, bent, severely corroded, broken, or impossible to clean. Continued operation with damaged emitters can produce uneven ion output and unstable balance.
Cables and connectors should be replaced when their insulation, locking features, contacts, or strain relief components are damaged. Air hoses should be replaced when they become brittle, cracked, permanently crushed, or contaminated internally. Mounting hardware should also be renewed if corrosion or thread damage prevents secure positioning.
A declining power supply may produce intermittent operation, alarms, unusual heat, inconsistent test results, or complete loss of ionization. Confirm external power, grounding, connections, and emitter cleanliness before concluding that the power supply has failed. Electrical diagnosis should be performed by qualified personnel.
| Component | Replacement Indicator | Risk if Not Replaced |
|---|---|---|
| Emitter point | Bent, broken, rounded, corroded, or permanently contaminated | Poor ion output and unstable balance |
| Power cable | Cut insulation, exposed conductor, crushing, or heat damage | Electrical failure and safety risk |
| Connector | Loose contact, corrosion, broken lock, or overheating | Intermittent operation |
| Air hose | Cracks, leakage, severe bending, or internal contamination | Pressure loss and contamination |
| Filter element | High pressure drop, saturation, or visible contamination | Restricted airflow and dirty emitters |
| Mounting bracket | Cracking, deformation, corrosion, or inability to hold position | Incorrect distance and possible equipment contact |
After replacing any component, repeat the relevant inspection and performance tests. Component replacement is not complete until the system has been returned to its approved condition and the result has been documented.
Every preventive maintenance activity should be documented with the date, equipment identification, findings, actions, measurements, replacement parts, and responsible technician.
Maintenance records create a history of each ionizing air bar. This history helps teams determine how quickly contamination returns, how often parts fail, and whether neutralization performance is declining. Without records, maintenance intervals are often based on memory and may not reflect actual equipment condition.
Use a unique identification number for every ionizer and power supply. The maintenance form should state the machine location, application, bar length, installation distance, air pressure, and operating schedule. This prevents measurement results from being assigned to the wrong unit.
Trend ion balance and decay time values over several inspections. Gradual deterioration can reveal a developing problem before the measurement exceeds the acceptance limit. Records can also show whether cleaning restores performance consistently or whether the equipment is approaching the end of its useful service life.
Review the records periodically rather than storing them without analysis. Repeated contamination may indicate poor filtration or an unsuitable installation location. Repeated cable damage may show that routing or mechanical protection needs improvement. Preventive maintenance data should guide process improvement as well as equipment servicing.
The complete checklist should move systematically from safety isolation and physical inspection to cleaning, operating checks, performance testing, documentation, and final release.
A standard checklist improves consistency between technicians and production shifts. It also reduces the chance that an important item will be overlooked. The following checklist can be adapted to the equipment design, process risk, and facility maintenance system.
The checklist should include clear acceptance limits whenever possible. Instructions such as “check performance” are less useful than requirements that specify the measuring position, test method, and acceptable range. Precise criteria allow different technicians to reach consistent conclusions.
If an item fails inspection, the checklist should define what happens next. Depending on the risk, the action may involve cleaning and retesting, replacing a component, adjusting the installation, isolating the equipment, or requesting specialist support. Critical failures should never be closed without evidence that normal performance has been restored.
The most common mistakes are cleaning energized equipment, using aggressive tools, ignoring grounding, relying only on visual inspection, and failing to verify performance after maintenance.
Cleaning only when production problems appear is reactive rather than preventive. By the time static causes visible defects, the ionizer may have been operating below the required performance level for a considerable period. A scheduled program reduces this hidden risk.
Another mistake is assuming that a clean looking emitter always performs correctly. Electrical deterioration, poor grounding, incorrect distance, weak airflow, or an internal power problem may exist without obvious visual signs. Ion balance and decay time measurements are necessary for critical applications.
Using unsuitable cleaning materials can create additional problems. Abrasive tools may damage emitter geometry, while excessive solvent can enter the housing or leave residue. Cleaning should follow an approved procedure using materials compatible with the equipment and the production environment.
Overcleaning can also be harmful when technicians repeatedly apply unnecessary mechanical force or aggressive chemicals. The maintenance interval should be frequent enough to prevent harmful buildup but should not introduce avoidable wear. Inspection results and performance data provide the best basis for balancing these requirements.
A preventive maintenance checklist protects ionizing air bar performance by combining safe cleaning, systematic inspection, measured verification, timely component replacement, and accurate record keeping.
Ionizing air bars may appear to be simple devices, but their performance depends on several connected factors. Clean emitter points, stable electrical power, reliable grounding, correct compressed air supply, suitable installation distance, and clear ion movement are all necessary for effective static neutralization. A weakness in any one of these areas can increase decay time or create an unacceptable ion balance.
The most effective maintenance program uses several levels of control. Operators perform brief daily checks, maintenance teams complete scheduled cleaning and inspection, and qualified personnel conduct periodic electrical and performance verification. This shared approach helps identify both sudden failures and gradual deterioration.
Maintenance intervals should always reflect actual operating conditions. Clean and controlled environments may support longer intervals, while printing, textile, plastics, adhesive, and dusty production processes may require frequent emitter cleaning. Sensitive electronics and semiconductor applications may also need more frequent measurement even when visible contamination is limited.
Finally, preventive maintenance should be treated as a performance management process rather than a cleaning task. By recording ion balance, decay time, static voltage, air pressure, environmental conditions, and equipment condition, industrial users can make informed decisions about servicing, replacement, and process improvement. A disciplined checklist ultimately supports safer operation, more stable product quality, fewer production interruptions, and a longer useful life for the complete static control system.
