Release liners make adhesive products easier to manufacture, transport, and apply. They protect the adhesive surface until a label, tape, film, or converted component reaches its intended application. However, separating the adhesive material from its liner can generate electrostatic charge precisely when the exposed surface becomes most vulnerable to contamination and handling problems.
In automated production, these effects may appear as label misalignment, adhesive contamination, unstable waste handling, or unexpected attraction between materials and machine components. In sensitive electronic applications, electrostatic discharge can introduce an additional quality concern. Effective control requires attention to the product, the departing liner, and the process immediately after separation.
Control static during release liner removal by positioning suitable ionization where it can reach the newly separated surfaces, maintaining the required grounding of conductive equipment, and stabilizing the peeling process. Evaluate the exposed adhesive product and removed liner independently. Verify results at actual operating speeds using repeatable measurements and relevant production quality checks.
The best arrangement depends on liner construction, adhesive chemistry, product geometry, available installation space, and downstream requirements. A narrow label dispensing station may need a different solution from a wide adhesive laminating line or an electronic component assembly cell.
This practical guide explains how to identify charging locations, choose treatment positions, select suitable equipment, and maintain consistent performance.
Static develops when the adhesive and release surface separate, while the electrical properties of the materials determine how readily the resulting charge can dissipate.
A release liner typically consists of a supporting material and a release surface designed to separate from an adhesive under specified conditions. Supporting materials may include paper or polymer film. Their electrical behavior depends on construction, coatings, moisture, and any conductive or dissipative features.
During peeling, the adhesive surface and release surface move apart. Charge can remain on either departing material. Visible rubbing is unnecessary because contact and separation alone can produce electrification. The amount and distribution of charge depend on the complete material combination and operating conditions.
The charge may be uneven across the width or length of the product. Differences in coating, contamination, contact history, or peeling behavior can create localized electrical conditions. Consequently, a single measurement at one convenient location may not represent the entire process.
Treating the incoming laminate does not guarantee control after separation. The peel event can create new charge after upstream treatment. Static control planning should therefore focus on surfaces as they become accessible rather than assuming the intact material can be fully treated beforehand.
Suspect static when unwanted attraction, contamination, or placement instability corresponds with measurable charging, but investigate mechanical and adhesive causes at the same time.
In label application, electrostatic attraction or repulsion can affect how a released label approaches its target. Industrial application guidance identifies charge generated during separation from silicone release liners as a contributor to label creasing and misalignment. Treatment at separation is used to address that contribution. :chatgpt-content-reference{index="0"}
In adhesive converting, the newly exposed surface may attract particles before bonding or lamination. The resulting contamination can become enclosed in the assembly. However, particles can also originate from liner edges, nearby cutting operations, clothing, or unsuitable air supplies.
Waste liners may cling to guards or interfere with collection. Similar symptoms can result from adhesive deposits, damaged rollers, incorrect tension, or poor routing. Confirm that charge is present where the problem occurs before assigning static as the primary cause.
For electronic products, investigate electrostatic discharge within the complete handling process. Device sensitivity, fixtures, personnel practices, and nearby charged objects all matter. An ionizer should support the established process requirements rather than substitute for a complete electrostatic control program.
| Observed symptom | Possible static contribution | Additional checks |
|---|---|---|
| Labels shift during application | Electrical forces influence positioning | Dispense timing, alignment, and target surface condition |
| Particles appear on exposed adhesive | Charged surfaces attract contamination | Particle sources and environmental cleanliness |
| Liner clings to equipment | Charged liner is attracted to nearby surfaces | Routing, deposits, and mechanical clearance |
| Release becomes inconsistent | Static may affect handling after separation | Release force, temperature, and material compatibility |
| Electronic defects occur near peeling | Electrostatic discharge may be involved | Device handling controls and failure analysis |
Map the adhesive product and removed liner as separate paths, identifying charge generating events, accessible surfaces, and the next sensitive operation on each route.
Begin at the incoming roll or assembly and follow the material through the peel point. Record the peel plate, support rollers, fixtures, and any later contact surfaces. Note where the exposed adhesive travels and how long it remains uncovered before application.
Then follow the removed liner. It may bend around a peel plate, pass through driven rollers, and wind onto a waste shaft. Each later contact and separation event can change its charge condition. A treatment point near the product may have little influence on this separate route.
Mark possible ionizer locations and measure the available gaps. Include normal movement, product size changes, threading requirements, and access for cleaning. Photographs and simple dimensioned drawings are useful when discussing the application with an equipment supplier.
Finally, establish repeatable measurement locations on both paths. Choose positions that provide useful information without requiring access near moving machinery. Consistent geometry makes later comparisons more meaningful and helps distinguish treatment performance from measurement variation.
Position ionization close to the peel region where the relevant surfaces are exposed, with a clear treatment path before the product reaches its sensitive downstream operation.
The best position is not necessarily directly above the peel plate. Depending on the geometry, the departing liner may block the exposed adhesive or the supporting fixture may shield another surface. Assess the route from the emitting region to the actual target.
For a moving adhesive web, a short accessible span after separation can provide a practical treatment location. For individual labels, the available exposure may be brief and confined. A compact ionizing nozzle may be more practical than a full width bar when the treatment area is small.
If both paths require control, evaluate whether one device can serve them adequately. Separate treatment may be necessary when the liner and product move in different directions or operate at substantially different distances from the emitter. Validate each path independently.
Nearby grounded metal can influence the delivery of ions to the target. Follow the selected equipment’s clearance requirements around peel plates, rollers, guards, and mounting brackets. Preserve mechanical clearance for foreseeable material movement and changes in product configuration.
Select equipment using the actual treatment width, operating distance, throughput, product sensitivity, and airflow restrictions rather than choosing by nominal voltage or housing length alone.

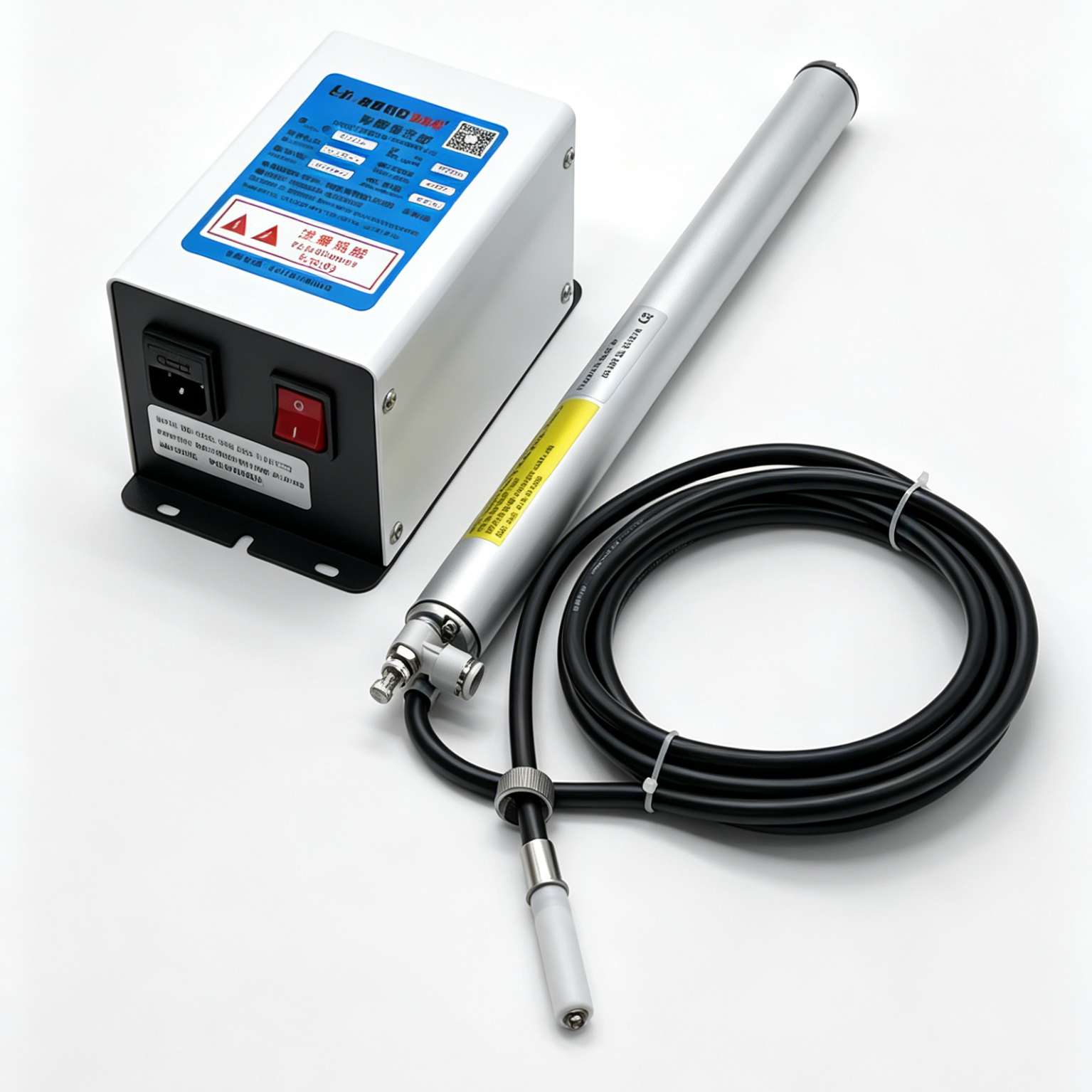

An ionizing air bar can suit a wide, continuous treatment area when its active length covers the relevant material. Confirm the active emitting region because overall assembly length may include end sections that do not provide equivalent treatment coverage.
A nozzle can provide localized treatment in a confined dispensing area. A blower may suit a workstation with variable product positions, provided its airflow and treatment performance meet the application requirements. The equipment format should follow the target geometry.
Maximum operating speed matters because the available exposure time changes with movement. Request performance information that reflects speed and working distance together. A stationary laboratory result does not establish adequate treatment on every moving adhesive product.
For sensitive electronic assemblies, define ion balance and charge decay requirements through the responsible process team. For optical or clean production, consider particle generation, construction materials, cleaning compatibility, and air quality. These requirements should be included before equipment is selected.
| Equipment format | Potential application | Main condition to verify |
|---|---|---|
| Ionizing bar | Continuous adhesive webs and broad treatment areas | Active width, working gap, and speed capability |
| Ionizing nozzle | Confined peel points and individual label paths | Target coverage and acceptable air movement |
| Ionizing blower | Workstations with variable product placement | Coverage, exposure time, and airflow suitability |
| Airless ionizing bar | Applications where dedicated airflow is undesirable | Performance at the installed distance and speed |
Maintain stable peel speed, angle, and tension, and validate material changes because both charging behavior and ionizer exposure depend on the complete process.
Peel speed influences release behavior and treatment time. Faster travel reduces the time spent within a fixed treatment region. Charging may also change, but the relationship is material dependent and should be measured rather than assumed.
Peel angle affects how the liner and product separate and whether their surfaces remain accessible to ions. Changing the angle may improve treatment access while also changing mechanical release conditions. Review placement accuracy, peel force, and product support after any adjustment.
Tension should keep the liner path stable without stretching the product or disturbing release. Flutter and sudden movement can carry the material outside the intended treatment region. Excessive tension can create separate quality issues that ionization cannot correct.
When comparing liner materials, include electrical behavior alongside release force, dimensional stability, cleanliness, and adhesive compatibility. A conductive or dissipative construction may help in a suitable system, but its benefit depends on a usable discharge path and the behavior of the complete coated structure.
Do not apply unapproved antistatic chemicals to an exposed adhesive or release surface. Such changes may affect bonding, release performance, contamination limits, or customer qualification. Evaluate material modifications through the established product approval process.
Use grounding to control relevant conductive components and environmental controls to improve consistency, while retaining ionization for insulating surfaces that cannot discharge effectively through grounding alone.
Machine frames, conductive fixtures, and other designated components should follow the equipment’s bonding and grounding requirements. An isolated conductive part near the peel point may accumulate charge and create a separate discharge concern.
A grounded roller does not necessarily remove charge from an insulating liner or adhesive construction. Charge may remain on regions that cannot conduct to the contact point. Similarly, grounding an underlying metal substrate may not neutralize an insulating coating on its surface.
Humidity can influence charge dissipation, particularly in moisture responsive materials, but it is not a universal solution. Coatings and polymer layers can limit its effect. Any environmental adjustment should also remain compatible with adhesive performance, product storage conditions, and downstream processing.
Where personnel handle sensitive products, incorporate approved grounding and workstation practices into the established electrostatic control procedure. If the area contains flammable vapors or combustible dust, equipment suitability and installation must reflect the site’s area assessment.
Neutralize the accessible surface before contamination develops, minimize unnecessary exposure, and control particles without introducing unapproved air or cleaning contact.
Exposed adhesive can capture particles through its own tack, whether or not static is present. Reducing charge may lower electrostatic attraction, but it does not make the adhesive resistant to contamination. Clean handling remains essential.
Locate liner removal close to the bonding or application step where practical. A shorter controlled route reduces the opportunity for airborne particles and handling contact. Check nearby activities such as cutting, unpacking, and waste collection for contamination sources.
For air assisted ionization, confirm that the compressed air meets the process requirements. Oil, moisture, or particles introduced at this point can undermine the intended improvement. Use the specified filtration and drying arrangement and inspect it routinely.
Avoid directing loose debris across the exposed adhesive. Airflow, extraction, and waste routing should work together. If cleaning is required, validate a method compatible with the adhesive and product rather than assuming brushing or wiping is acceptable.
Manage the departing liner through a stable collection path and add targeted treatment where measured charge contributes to clinging or collection problems.
Waste liner can remain close to the product after peeling, especially in compact machines. If it flutters or wraps around nearby components, it can interrupt production or carry contamination toward the exposed adhesive.
Provide a defined route with suitable guides and tension. On waste winders, account for increasing roll diameter and the resulting changes in material geometry. A bar facing the growing roll must operate effectively throughout the required distance range.
When possible, treat an accessible liner span before the troublesome contact or winding stage. Measure at the location that matters rather than relying on the condition immediately after peeling. Later rollers may introduce new charge.
Inspect mechanical conditions before adding equipment. Poor alignment, deposits, damaged guides, and unsuitable winding settings can cause collection failures independently of static. The objective is to remove a demonstrated electrical contribution while maintaining reliable transport.
Verify the installation through consistent measurements and production checks across the intended material, speed, and geometry range.
Record baseline conditions before evaluating treatment. Include material identification, peel speed, product width, liner routing, ambient conditions, and instrument settings. Use the measurement distance specified for the instrument and preserve the same surrounding geometry during comparisons.
Measure the product and liner separately where practical. Nearby opposite charges can influence the net field detected by an instrument. A low reading does not necessarily establish that every surface region or enclosed layer is adequately neutralized.
Compare the material condition before and after ionization at useful locations. Check several positions across wider webs. Manufacturer guidance distinguishes detecting equipment output from measuring the resulting charge condition on the material itself. :chatgpt-content-reference{index="1"}
Test maximum intended throughput and representative operating configurations. For illustration, material moving at 120 meters per minute travels at 2 meters per second. An assumed treatment length of 0.10 meter would provide approximately 0.05 second of exposure. This timing example does not establish the actual effective treatment length or performance of any ionizer.
Acceptance criteria should reflect the process. They may include a residual reading obtained through an agreed method, label placement consistency, reduced liner clinging, or contamination inspection results. Avoid adopting a universal voltage target without considering the product and measurement procedure.
Preserve performance through emitter cleaning, repeatable mounting positions, supply checks, and troubleshooting based on where and when the problem returns.
Adhesive fragments, dust, and other deposits may accumulate around emitters. Establish inspection intervals from the equipment instructions and actual contamination exposure. Follow approved isolation, cleaning, drying, and restart procedures.
Check mounting position after threading or maintenance. A bar moved away from its validated location may remain powered while providing inadequate treatment. Position marks or mechanical stops can help operators restore the approved geometry.
When performance declines, inspect cleanliness and supply conditions before changing the process. If problems occur only at higher speeds, investigate treatment capability. If one path improves while the other does not, review access and coverage separately.
If electrical measurements improve but defects remain, revisit adhesive release, alignment, tension, and cleanliness. Static control should be judged by a defined electrical condition and the actual production outcome it was intended to improve.
| Observed pattern | Possible explanation | Useful next check |
|---|---|---|
| Liner improves but product remains charged | Treatment primarily reaches the liner | Inspect access to the exposed product surface |
| Performance worsens at higher speed | Available treatment is insufficient | Validate equipment capability at the installed gap |
| Only part of the width improves | Incomplete coverage or uneven geometry | Check active length and material position |
| Results decline gradually | Contamination or supply deterioration | Inspect emitters, filters, and connections |
| Static returns farther downstream | Another charging event occurs | Measure before and after later contact points |
| Placement defects remain despite improved readings | Mechanical or adhesive causes remain | Review timing, alignment, and release conditions |
Reliable static control in release liner removal requires attention to both the exposed adhesive product and the departing liner, supported by suitable placement, stable mechanics, and verified performance.
Start by mapping the process and identifying where charge affects quality or handling. Position ionization where the relevant surface becomes accessible, and select equipment for the actual width, distance, speed, and sensitivity of the application.
Support the installation with appropriate grounding, controlled contamination, and consistent liner transport. These measures address different process needs and should be developed together.
Finally, preserve the validated arrangement through maintenance and repeatable checks. Reassess performance when liner construction, adhesive formulation, throughput, or machine geometry changes so that static control continues to match the production process.
