Industrial automation depends on accurate material handling, reliable sensors, repeatable robotic movement, stable product positioning, and consistent production conditions. Static electricity can interfere with all of these functions. Charged products may stick to grippers, cling to conveyors, attract particles, repel nearby components, feed incorrectly, or discharge through sensitive electronic equipment.
Static problems often become more noticeable after a factory increases production speed or introduces automatic handling. Faster movement creates more frequent contact and separation, while reduced manual intervention leaves less opportunity for operators to correct misaligned products, remove dust, or separate materials that are sticking together.
Effective static elimination for industrial automation requires a coordinated system that combines reliable grounding, correctly positioned ionizers, suitable airflow, machine control integration, performance monitoring, preventive maintenance, and documented acceptance testing under actual production conditions.
The correct solution must match the material, charge level, product geometry, working width, line speed, installation distance, robotic movement, environmental conditions, and acceptable residual voltage. A static eliminator should become a planned part of the automated process rather than an accessory added after production problems appear.
This guide explains how static affects automation and how manufacturers can design, integrate, test, and maintain a dependable static control system.
This guide covers the technical and operational factors required to control static electricity within automated production equipment.
The first sections examine how static affects automated processes and where charge is generated. The guide then compares ionizing air bars, blowers, nozzles, grounding systems, and other control methods.
Later sections discuss installation, coverage, airflow, robotic handling, machine control integration, monitoring, safety, acceptance testing, maintenance, and system selection.
Automation engineers, machine builders, production managers, quality teams, and maintenance personnel can use the following topics as a design and troubleshooting reference.
Static affects industrial automation by changing product movement, attracting contamination, interfering with sensors, damaging components, and reducing the repeatability of automatic handling.
An automated line depends on predictable material behavior. When thin plastic sheets or labels become charged, they may stick together and enter a feeder in pairs. Film may cling to rollers, while lightweight parts may jump, rotate, or repel one another on a conveyor.
Robotic systems can experience similar problems. A charged component may remain attached to a vacuum cup or mechanical gripper after the release command. The robot may complete its programmed motion while the product remains in the wrong position, causing a placement error or machine stop.
Static also attracts dust, fibers, and other airborne particles. Contamination may affect cameras, optical sensors, adhesive surfaces, printed areas, coatings, or products that require clean assembly. Automated inspection may reject otherwise acceptable products because particles were attracted immediately before inspection.
Electrostatic discharge can damage sensitive electronic devices and interfere with control signals. Although grounding and shielding protect many machine components, insulating products and isolated conductors may still carry charge into a sensitive area.
Static is generated wherever materials contact and separate, including conveyors, rollers, feeders, liners, grippers, vacuum systems, cutting stations, molding tools, and packaging operations.
Contact and separation transfer electrons between surfaces. The resulting charge depends on the material combination, pressure, contact area, separation speed, surface condition, humidity, and available grounding.
Automated equipment can repeat the same charging event hundreds or thousands of times. Even a small charge generated during each cycle can become a significant process problem when the material is insulating and the production speed is high.
Common charging points include a web leaving a roller, a label separating from its liner, a protective film being removed, a plastic component leaving a mold, a sheet sliding through a feeder, or a robot lifting a part from a plastic tray.
A static survey should measure voltage before and after each suspected generation point. This creates a process map and prevents equipment from being installed at a convenient but ineffective location.
Industrial automation can use ionizing air bars, ionizing blowers, ionizing nozzles, compact ionizing heads, directed air systems, grounding, controlled materials, and monitored ionization networks.
Ionizing air bars treat wide or continuous areas. They are commonly installed across conveyors, film webs, sheet paths, and automated assembly lines. Their active length should cover the complete product width.
Ionizing nozzles provide concentrated treatment for cavities, individual components, robotic release points, and restricted machine spaces. Ionizing blowers treat wider open areas such as work cells, inspection zones, or transfer stations.
Grounding should be used for conductive machine components, fixtures, tools, frames, and isolated metal parts. Ionization is required for insulating materials that cannot be neutralized through grounding alone.
| Solution | Suitable Application | Main Design Factor |
|---|---|---|
| Ionizing air bar | Webs, sheets, conveyors, and wide treatment zones | Active length and distance |
| Ionizing nozzle | Small targets, cavities, and robot release points | Direction and air pressure |
| Ionizing blower | Work cells and wider open areas | Air volume and coverage |
| Compact ionizing head | Restricted machine spaces | Short range performance |
| Grounding system | Conductive frames, tools, fixtures, and rollers | Verified electrical continuity |
| Monitored ionization | Critical automatic processes | Alarm logic and control integration |
The best solution often combines several methods. Grounding removes charge from conductive structures, while ionizers treat insulating products and isolated conductors.

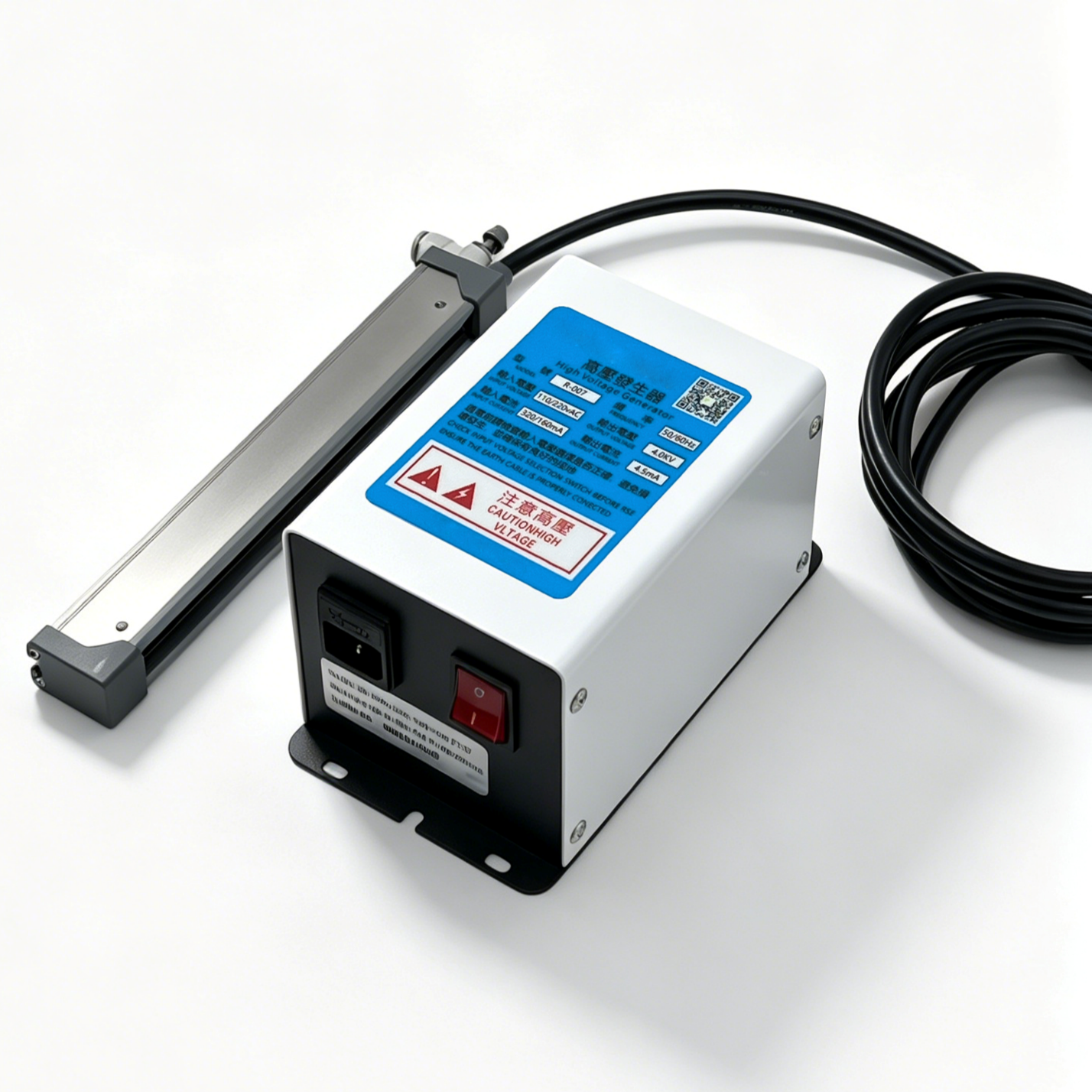

Automated lines should use ionizing air bars when static must be controlled continuously across a conveyor, web, sheet, tray, or production width.
The linear emitter arrangement of an air bar provides broad treatment coverage. This makes the equipment suitable for printing, converting, packaging, electronics assembly, plastic processing, battery production, optical manufacturing, and automated inspection.
Bar length should be selected according to the active treatment width rather than the external housing length. End caps, connectors, and internal components may not generate useful ions. The active area must cover the maximum product position.
High speed processes may require more than one bar. One unit can reduce the initial charge, while another controls charge after a later roller, cutting operation, liner separation, or transfer stage.
The bar should have a clear path to the charged surface. Machine guards, frames, rollers, brackets, and cables should not block ion delivery. The final position must also allow safe cleaning and performance testing.
Ionizing nozzles are more suitable for focused or recessed targets, while blowers are more suitable for work cells, inspection zones, and larger open treatment areas.
A nozzle uses directed compressed air to carry ions into a small area. It can neutralize a component inside a fixture, a molded cavity, a robot gripper, a container opening, or another location that a wide bar cannot reach effectively.
Several nozzles can treat multiple points within one automation cell. Their positions should be fixed and documented so that maintenance does not change the treatment angle. The air supply should remain stable during the complete machine cycle.
A blower distributes ions through fan generated airflow. It can treat products that pause in an inspection, assembly, or transfer area. The treatment time must be long enough for the charge to decay before the next automatic operation.
Blower airflow can be obstructed by enclosures, robots, fixtures, shelves, or moving machine doors. Performance should be tested at the actual product position during normal operation.
Grounding supports automated static control by providing conductive machine parts and isolated metal objects with a reliable path for charge to dissipate.
Machine frames may be grounded, but individual rollers, tools, fixtures, rails, and carts can remain electrically isolated. Paint, oil, corrosion, plastic bearings, nonconductive wheels, and loose connections can interrupt the grounding path.
Bonding straps and grounding cables connect conductive components to a common reference. Connections should be mechanically secure, protected from repeated movement, and suitable for the surrounding environment.
Continuity should be verified with an appropriate measuring instrument. A visual inspection cannot detect resistance caused by paint or contamination. Measurements should be recorded during commissioning and preventive maintenance.
Grounding does not replace ionization for plastic film, paper, glass, rubber, synthetic textile, and other insulating materials. Automated systems normally require both methods because conductive machines and insulating products behave differently.
Static in robotic handling can be controlled by neutralizing products before pickup, during transfer, or immediately before release while grounding conductive robot fixtures and tools.
A charged part can remain attached to a vacuum cup or gripper after the mechanical holding force is removed. Ionization near the release position can reduce this electrostatic attraction and improve placement repeatability.
Ionization may also be needed before pickup. Neutralizing parts within a tray or feeder can prevent them from repelling, clinging together, or shifting as the robot approaches.
The treatment position should not interfere with robot movement, vision systems, or safety guarding. Flexible cables and air tubing must be protected from repeated bending, abrasion, and accidental contact.
Cycle timing can improve efficiency. A nozzle may operate only during the pickup or release stage, reducing compressed air consumption. However, the activation period must allow enough time for the required neutralization.
Static eliminators should be installed after the primary charging event, before the charge causes a process problem, and within a clear and effective treatment distance.
Installing a bar before a major contact and separation point often produces poor results. For example, neutralizing a film before it leaves a roller does not prevent the roller separation from generating a new charge.
The correct position is generally close enough to provide fast neutralization but far enough to cover the target and avoid contact with moving products. Web flutter, product height changes, robot movement, and vibration should be considered.
Nearby grounded metal can capture ions before they reach the target. Rollers, machine frames, guards, and brackets should be evaluated during the design stage. Airflow from exhaust systems or fans may also change the effective position.
The installation should support maintenance. Operators need access to emitter points, air outlets, filters, connectors, and test locations without dismantling major machine sections.
Coverage and treatment time should be calculated from the active ionizing area, material width, product movement, process speed, treatment length, working distance, and required residual voltage.
Coverage must include the complete target area. If products move laterally on a conveyor, the treatment area should cover every possible position. For webs, the active bar length should extend across both edges.
Treatment time depends on the length of the effective ion field and the material speed. A faster conveyor gives the ions less time to reach and neutralize each product. Increasing the treatment length can provide more exposure without reducing line speed.
A simplified treatment time relationship is:
Treatment time equals effective treatment length divided by material speed.
This calculation provides an initial estimate, but it does not include charge strength, airflow, product shape, or ion concentration. The final design must be validated through measurements.
| Coverage Factor | Effect on Performance |
|---|---|
| Active bar length | Determines usable treatment width |
| Material width | Defines minimum required coverage |
| Lateral movement | Requires additional edge coverage |
| Working distance | Affects ion spread and concentration |
| Production speed | Determines available exposure time |
| Initial voltage | Influences required neutralization capacity |
| Target shape | Affects ion access to surfaces |
For multiple bars, treatment areas should overlap. Measurements should be taken at the center, edges, intermediate positions, and overlap zones.
Airflow affects automated ionization by carrying ions toward the target or redirecting them away from the required treatment area.
Compressed air improves ion transport over longer distances and into irregular product shapes. It can reduce decay time, but excessive pressure may disturb lightweight products, spread contamination, create noise, and increase operating cost.
The air supply should be clean, stable, and appropriately filtered. Oil, moisture, and particles can contaminate emitters and products. Restricted tubing, undersized valves, leaking connectors, and clogged filters can reduce performance.
Automatic machines often contain cooling fans, vacuum exhaust, extraction systems, air knives, pneumatic cylinders, and fast moving products. These elements create changing airflow throughout the cycle.
Airflow testing should occur while the complete machine is operating. A static eliminator that performs well with doors open and the machine stopped may perform differently when enclosures are closed and extraction systems are active.
Static eliminators can be integrated through remote start signals, operating feedback, fault outputs, alarm logic, production recipes, and coordinated activation during specific machine cycles.
Remote control allows the ionizer to operate only when the production process requires treatment. This can reduce operating hours and compressed air use. The control sequence must ensure that ionization begins early enough to provide effective treatment.
A basic feedback signal can confirm that power is available. More advanced systems may report equipment faults, output conditions, maintenance warnings, or communication status to the machine controller.
Alarm logic should reflect process risk. A packaging line may continue operating while displaying a maintenance warning, while a sensitive electronics process may need to stop if ionization fails.
| Control Function | Purpose | Design Consideration |
|---|---|---|
| Remote start | Coordinate operation with production | Allow sufficient treatment time |
| Operating feedback | Confirm energized condition | Define what the signal actually verifies |
| Fault output | Warn of abnormal operation | Connect to clear operator actions |
| Cleaning reminder | Support preventive maintenance | Combine with measured performance |
| Recipe setting | Adjust treatment for different products | Protect approved parameters |
| Data communication | Support monitoring and records | Define required values and update frequency |
Control integration should be documented with electrical drawings, signal descriptions, normal states, fault states, and recovery procedures. Monitoring should not be mistaken for direct proof of static neutralization unless the system measures actual ionization performance.
Useful monitoring functions include power status, output condition, fault alarms, ion balance feedback, air pressure monitoring, maintenance reminders, and recorded performance trends.
Power status is the simplest function, but it only shows that the equipment is energized. It does not prove that dirty emitter points are producing sufficient ions or that the ions are reaching the target.
Output monitoring can identify certain electrical problems, while balance feedback can support sensitive applications. Air pressure sensors can detect a restricted filter, disconnected tube, closed valve, or inadequate supply.
Maintenance reminders can be based on operating hours, but contamination does not always develop at a constant rate. A change in material, coating, adhesive, or environment may make cleaning necessary earlier.
The most reliable strategy combines automatic monitoring with scheduled decay, balance, and surface voltage measurements. Process data can reveal gradual deterioration before it causes machine stops or quality defects.
An automated static control system should be tested for surface voltage reduction, positive and negative decay time, ion balance, coverage, control response, alarm behavior, and performance at maximum production speed.
An electrostatic field meter can measure charge before and after treatment. The measuring distance and location must remain consistent. Testing several positions helps identify where charge is generated again.
A charged plate monitor measures decay time and ion balance. It should be positioned at the actual product location with the normal airflow and machine configuration. Both positive and negative decay should be recorded.
Production validation should include maximum speed, all normal product sizes, robot movement, closed guards, extraction systems, fans, and pneumatic operations. The complete automation cycle can affect ion delivery.
Baseline data should be stored with the machine records. Future maintenance results can then be compared with the approved condition.
Static elimination equipment should be maintained through scheduled inspection, emitter cleaning, grounding checks, airflow service, cable inspection, and periodic performance testing.
Emitter points attract dust, oil, adhesive, fibers, powder, and other contaminants. Deposits weaken ion generation, slow decay, and can shift ion balance. Equipment may remain energized even when performance has declined.
Cleaning frequency should reflect the process environment. A clean assembly cell may require less frequent cleaning than a printing, textile, molding, coating, or converting machine.
Power must be isolated before direct cleaning. Approved brushes, swabs, and cleaning agents should be used. Abrasive tools can damage the emitters, while unsuitable chemicals may affect insulation and housing materials.
| Maintenance Task | Purpose |
|---|---|
| Clean emitter points | Restore ion generation |
| Inspect cables and connectors | Identify wear and electrical damage |
| Verify grounding | Maintain charge dissipation paths |
| Inspect filters and air lines | Maintain clean and stable airflow |
| Test decay time | Confirm neutralization speed |
| Test ion balance | Confirm controlled electrical offset |
| Verify alarms | Confirm machine response to faults |
| Review stored trends | Identify gradual deterioration |
Maintenance results should be recorded before and after cleaning. This demonstrates whether the service restored performance and helps optimize the maintenance interval.
Manufacturers should select a static elimination solution by matching verified performance, coverage, distance, response time, environmental suitability, control functions, and maintenance needs to the automated process.
The selection process should begin with actual process data. Measure the charge, identify its polarity, record material speed, define the treatment width, and determine the acceptable residual voltage.
Mechanical integration should be reviewed before purchasing. Confirm mounting space, robot clearance, cable routing, air connections, surrounding structures, and cleaning access. Machine drawings and process videos can support accurate selection.
Performance data should include positive and negative decay time, ion balance, working distance, and test conditions. Values obtained at an unrealistic short distance may not represent the proposed installation.
A production trial is advisable for critical applications. The test should use the actual material, maximum speed, normal machine enclosure, and complete airflow conditions.
Automation related static problems should be troubleshot by measuring charge through the complete cycle, verifying equipment operation, inspecting installation conditions, and identifying process changes.
First, confirm that static is causing the automation problem. A failed pickup or placement may also result from vacuum loss, mechanical wear, sensor alignment, programming, contamination, or dimensional variation.
Measure charge immediately before and after ionization. A strong reduction shows that the eliminator works at that location. Charge found farther downstream may indicate a new contact and separation event.
Check whether the problem occurs at a particular speed, product recipe, robot position, humidity level, or machine stage. Intermittent static often follows a repeatable process condition.
Only one major variable should be changed at a time. Controlled testing makes the cause easier to identify and prevents temporary adjustments from becoming undocumented machine settings.
Reliable static elimination in industrial automation requires a complete strategy that combines grounding, suitable ionization, correct positioning, machine control integration, performance monitoring, and preventive maintenance.
Static can interfere with feeding, conveying, robotic pickup, component release, inspection, assembly, and packaging. The correct solution begins with identifying the charging event and measuring the process under real operating conditions.
Ionizing air bars are effective for wide continuous treatment, while nozzles serve focused targets and blowers cover larger open areas. Conductive machine parts should be grounded, while insulating materials require positive and negative ions.
Automation makes monitoring and control integration especially valuable. Remote commands, operating feedback, pressure sensing, fault alarms, and maintenance warnings can improve reliability, but direct performance testing remains necessary.
By validating surface voltage, decay time, ion balance, coverage, and alarm behavior at maximum production speed, manufacturers can reduce contamination, feeding errors, robotic placement failures, product damage, and unplanned machine downtime.
