EIESD: The Science Behind Ionizing Air Bars

Static electricity is an invisible yet powerful force that affects countless industrial manufacturing processes. From electronics assembly and semiconductor production to plastic molding, packaging, printing, and pharmaceutical manufacturing, electrostatic charges can attract contaminants, damage sensitive components, reduce production efficiency, and even create safety hazards. As manufacturing technologies become increasingly precise, controlling electrostatic discharge (ESD) has become a critical part of quality assurance.

Among the many static control technologies available today, ionizing air bars have become one of the most effective solutions for neutralizing static charges across large production areas. Unlike grounding methods that only work on conductive materials, ionizing air bars can eliminate static electricity on both conductive and insulating surfaces, making them suitable for a wide variety of industrial applications.

Ionizing air bars work by generating balanced positive and negative ions that attach to electrically charged surfaces, neutralizing excess charges and safely eliminating static electricity without direct contact. Their ability to continuously maintain electrostatic balance makes them an essential solution for modern industrial environments.

Understanding the scientific principles behind ionizing air bars helps manufacturers choose the right static control solution while improving production quality, equipment reliability, and workplace safety. This article explains how ionizing air bars operate, the physics of ion generation, their industrial applications, major performance factors, maintenance practices, and future technological developments.

Whether you are designing a new production line or upgrading an existing ESD protection system, understanding the science behind ionization allows you to maximize performance while minimizing product defects caused by electrostatic discharge.

Table of Contents

1. What Is an Ionizing Air Bar?

2. The Science of Static Electricity

3. How Ionizing Air Bars Generate Ions

4. The Neutralization Process Explained

5. Main Components of an Ionizing Air Bar

6. Types of Ionizing Air Bar Technologies

7. Industrial Applications of Ionizing Air Bars

8. Key Performance Factors

9. Benefits and Limitations

10. Maintenance and Best Practices

11. Choosing the Right Ionizing Air Bar

12. The Future of Ionizing Air Technology

13. Conclusion

What Is an Ionizing Air Bar?

An ionizing air bar is a static elimination device that continuously produces balanced positive and negative ions to neutralize electrostatic charges on nearby surfaces without physical contact.

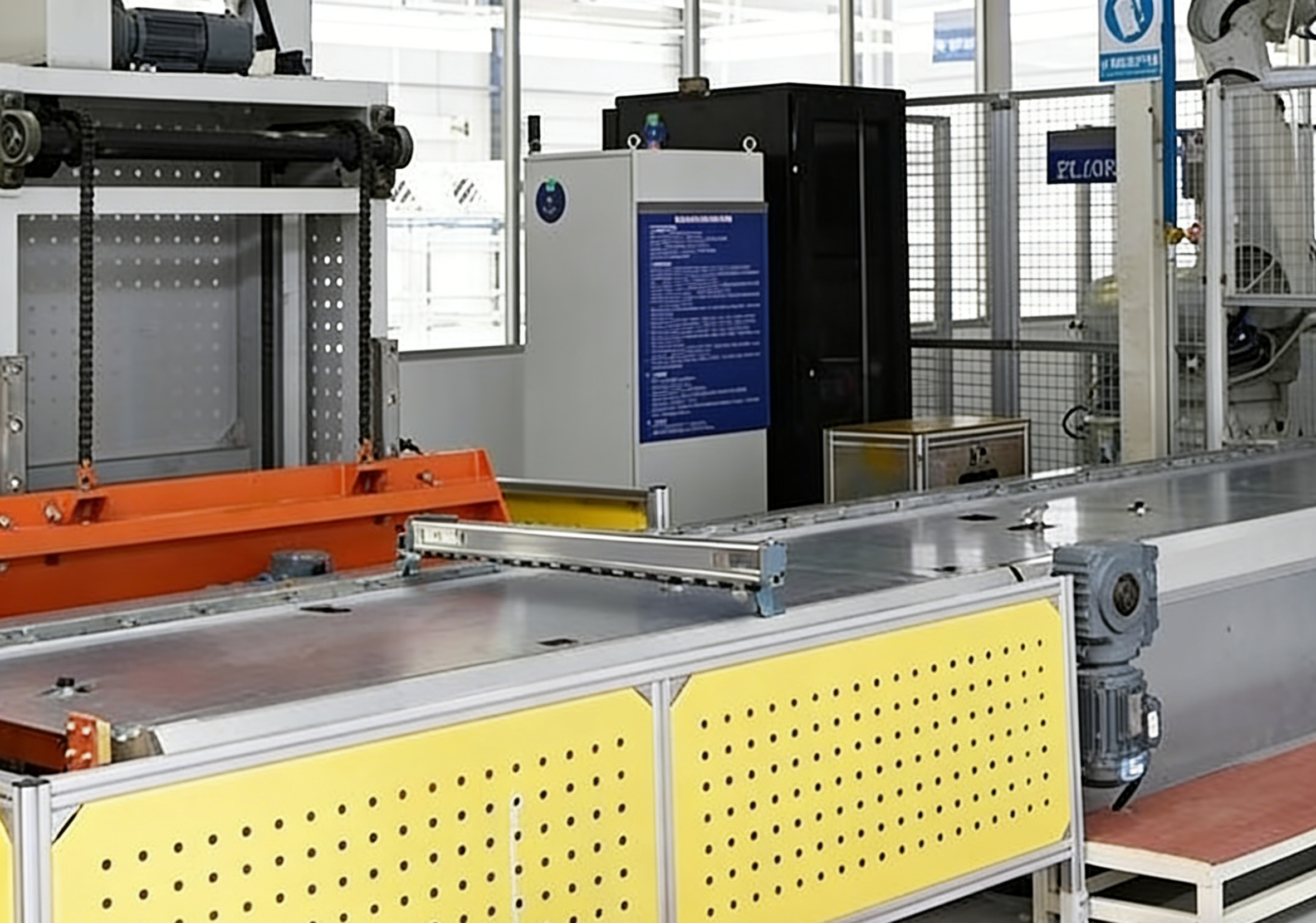

Ionizing air bars are installed above, beside, or below production lines where static electricity frequently accumulates. They create an ion-rich environment that enables charged materials to return to electrical neutrality within seconds.

Unlike grounding devices, which require conductive pathways to discharge electricity, ionizing air bars work effectively on insulating materials such as plastics, films, glass, rubber, textiles, and coated products. This makes them particularly valuable in industries where non-conductive materials dominate production.

Their non-contact operation also prevents mechanical wear or product damage. Delicate electronic assemblies, optical components, medical products, and precision films can all be treated safely while maintaining high manufacturing throughput.

The Science of Static Electricity

Static electricity occurs when electrons are transferred between materials, creating an imbalance of positive and negative electrical charges.

Every object contains positive protons and negative electrons. Under normal conditions these charges remain balanced. However, friction, separation, or contact between different materials can transfer electrons from one surface to another.

The material losing electrons becomes positively charged, while the material gaining electrons becomes negatively charged. Since many industrial materials are electrical insulators, these charges cannot easily dissipate and continue accumulating throughout production.

Common sources of static electricity include:

• Film unwinding

• Plastic molding

• Conveyor belt movement

• Paper feeding

• Packaging operations

• Textile processing

• Electronic component handling

The resulting electrostatic field can reach several thousand volts even though the current remains extremely low. Despite the low current, these voltages are sufficient to attract airborne particles, disrupt automated equipment, or destroy sensitive semiconductor devices.

How Ionizing Air Bars Generate Ions

Ionizing air bars generate ions by applying high voltage to emitter points, creating an electric field that ionizes nearby air molecules.

The heart of every ionizing air bar is its high-voltage power supply. Thousands of volts are delivered to precision emitter needles positioned along the length of the bar. The resulting electric field is strong enough to remove electrons from surrounding air molecules.

This process, known as corona discharge, produces both positively and negatively charged ions. The ionizing air bar carefully balances the production of both polarities to prevent introducing new electrostatic imbalances.

The generated ions are transported through the surrounding air toward electrically charged objects. Depending on the polarity of the charged surface, the appropriate ions are naturally attracted until the excess electrical charge is eliminated.

The effectiveness of ionization depends on maintaining a balanced ion output and delivering sufficient ion density across the working area.

The Neutralization Process Explained

Static neutralization occurs because opposite electrical charges attract, allowing ions to cancel excess charges on material surfaces.

If a plastic sheet carries a positive charge, negative ions generated by the air bar migrate toward its surface. These ions recombine with the positive charge, gradually restoring electrical neutrality.

Likewise, if a surface carries excess negative charge, positive ions perform the same neutralization process. Since both ion polarities are continuously produced, the system automatically adapts to changing electrostatic conditions.

The process requires no mechanical contact and occurs continuously throughout production, enabling high-speed manufacturing without interruptions.

Main Components of an Ionizing Air Bar

An ionizing air bar combines multiple engineered components that work together to generate, distribute, and balance ions safely.

Although designs vary, most industrial ionizing air bars contain several essential components that determine overall performance.

Emitter Needles

Emitter needles concentrate high voltage into extremely small points, allowing corona discharge to occur efficiently. Their material selection directly affects durability and contamination resistance.

High Voltage Power Supply

The power supply converts standard electrical input into the high voltages required for ion generation while maintaining stable output over extended operating periods.

Housing Structure

The housing protects internal components while positioning emitters uniformly across the working width. Industrial housings are often constructed from corrosion-resistant materials suitable for demanding manufacturing environments.

Monitoring Electronics

Advanced systems include feedback circuits that continuously monitor ion balance, emitter condition, and operational stability to maintain consistent neutralization performance.

Types of Ionizing Air Bar Technologies

Different ionizing air bars use various ion generation methods depending on industrial requirements, environmental conditions, and precision levels.

The most widely used technology is AC ionization, where alternating current naturally produces both positive and negative ions. AC systems offer cost-effective static elimination for general industrial environments.

DC ionization separately generates positive and negative ions using independent voltage sources. This approach often provides faster neutralization over longer distances and allows finer control of ion balance.

Pulsed DC technology alternates positive and negative ion emission at programmable intervals. These systems achieve excellent balance stability and are commonly used in electronics manufacturing where extremely low residual voltages are required.

Industrial Applications of Ionizing Air Bars

Ionizing air bars are widely used wherever static electricity threatens product quality, manufacturing efficiency, or operational safety.

Electronics manufacturing represents one of the largest application areas. Sensitive integrated circuits can be permanently damaged by electrostatic discharge far below the level detectable by humans. Ionizing air bars provide continuous protection during assembly, testing, and packaging.

Plastic processing facilities use ionizing air bars to prevent dust attraction, improve product appearance, and eliminate sticking between plastic sheets or molded components. Cleaner surfaces reduce rejection rates and improve downstream processing.

Printing and packaging industries benefit from improved sheet handling, fewer paper jams, more accurate registration, and cleaner printed surfaces. Static elimination also reduces production downtime associated with material handling issues.

Additional industries include:

• Semiconductor manufacturing

• Medical device production

• Optical lens manufacturing

• Pharmaceutical packaging

• Food packaging

• Automotive component production

• Battery manufacturing

• Textile processing

Key Performance Factors

Several engineering factors determine how effectively an ionizing air bar removes static electricity in industrial environments.

Ion balance is among the most important performance indicators. Excess positive or negative ions may leave residual charges on products, reducing neutralization efficiency.

Working distance significantly influences ion density reaching the target surface. Proper installation ensures maximum neutralization while minimizing energy consumption.

Environmental conditions also play a major role. Humidity, airflow, airborne contamination, and temperature can all affect ion transport and overall system performance.

Benefits and Limitations

Ionizing air bars provide highly effective static elimination, although proper installation and maintenance are essential for achieving optimal performance.

The primary advantage is non-contact static neutralization across both conductive and insulating materials. Manufacturers gain improved product quality, reduced contamination, enhanced equipment reliability, and greater worker safety.

Another major benefit is compatibility with automated production. Once installed, ionizing air bars operate continuously with minimal operator intervention, supporting high-volume manufacturing environments.

However, no technology is without limitations. Emitter contamination, improper positioning, poor maintenance, and incorrect system sizing can reduce ion output and neutralization effectiveness. Understanding these limitations enables facilities to design more reliable static control systems.

Maintenance and Best Practices

Routine inspection, cleaning, and performance verification ensure that ionizing air bars continue delivering consistent static elimination over their service life.

Emitter needles gradually collect dust and airborne contaminants that interfere with corona discharge. Scheduled cleaning restores ion production and extends equipment lifespan.

Periodic ion balance testing helps verify that both positive and negative ions remain properly balanced. Industrial facilities often integrate these checks into preventive maintenance schedules.

Proper installation is equally important. Maintaining recommended working distances, avoiding airflow obstruction, and protecting equipment from excessive contamination all contribute to reliable long-term operation.

Recommended maintenance practices include:

1. Inspect emitters regularly.

2. Clean emitter needles carefully.

3. Verify ion balance periodically.

4. Monitor high-voltage output.

5. Replace worn components when necessary.

6. Keep surrounding equipment clean.

Choosing the Right Ionizing Air Bar

Selecting the appropriate ionizing air bar requires evaluating production speed, working distance, environmental conditions, and static control requirements.

Manufacturers should begin by identifying where static electricity is generated within the production process. Different production lines require different working lengths, mounting configurations, and ion output capacities.

Environmental factors such as dust, humidity, temperature, and airflow should also influence equipment selection. More demanding environments often require rugged designs with enhanced contamination resistance.

Decision makers should compare several technical specifications before purchasing:

• Working width

• Ion balance accuracy

• Discharge speed

• Operating voltage

• Maintenance requirements

• Installation flexibility

• Environmental protection level

The Future of Ionizing Air Technology

Future ionizing air bars will become smarter, more energy efficient, and increasingly integrated with automated manufacturing systems.

Modern manufacturing is rapidly moving toward intelligent factories where production equipment continuously communicates through industrial networks. Static control devices are evolving alongside this trend by incorporating real-time monitoring, diagnostics, and predictive maintenance capabilities.

Improved sensor technologies allow future ionizing air bars to automatically adjust ion output based on changing electrostatic conditions. This adaptive operation improves efficiency while reducing unnecessary energy consumption.

Advances in materials science are also leading to more durable emitter designs with greater resistance to contamination and wear, reducing maintenance frequency and extending operational lifespan.

Conclusion

Ionizing air bars represent one of the most effective technologies available for controlling static electricity in modern manufacturing. By generating balanced positive and negative ions through carefully controlled corona discharge, these devices neutralize electrostatic charges without contacting the product itself. This scientific principle allows manufacturers to protect sensitive components, improve product cleanliness, reduce production defects, and enhance workplace safety across a broad range of industries.

As industrial production continues to demand greater precision, faster automation, and higher product quality, understanding the science behind ionizing air bars becomes increasingly valuable. From the physics of ion generation and charge neutralization to system selection, maintenance, and future technological developments, effective static control remains a fundamental element of reliable manufacturing. Organizations that invest in properly designed ionization systems can achieve more stable production processes, lower operating costs, and consistently higher-quality products in today's competitive industrial environment.
