Static electricity is a persistent challenge in modern manufacturing. It can attract dust, cause materials to stick together, make film wrap around rollers, disturb automated handling, shock operators, damage sensitive components, and create defects during printing, coating, painting, bonding, inspection, or packaging.
Industrial ionizing air bars are widely used to control these problems because they can neutralize charge on insulating materials that cannot be discharged through ordinary grounding. Their linear design makes them particularly suitable for conveyors, material webs, sheet processing equipment, assembly lines, and other applications requiring treatment across a defined width.
An industrial ionizing air bar is a static elimination device that generates positive and negative ions across an active treatment length. When correctly selected, installed, and maintained, it can provide fast and uniform charge neutralization, improve product quality, stabilize material handling, protect sensitive products, and reduce production interruptions.
Successful static control requires more than placing an ionizer near a machine. Performance depends on charge level, material type, working width, production speed, installation distance, airflow, emitter condition, surrounding structures, environmental conditions, and the location of the static generation point.
This guide explains the operating principles, equipment types, industrial applications, selection criteria, installation practices, performance tests, maintenance procedures, troubleshooting methods, and cost considerations associated with industrial ionizing air bars.
This guide covers the complete life cycle of an industrial ionizing air bar, from understanding static generation to selecting, installing, testing, maintaining, and replacing the equipment.
The first sections explain what an ionizing air bar is and how it neutralizes charged materials. The guide then compares ionization technologies and examines the industries and processes that benefit from static control.
Additional sections discuss bar length, coverage, working distance, compressed air, ion balance, decay time, installation, grounding, environmental conditions, automation integration, maintenance, safety, and troubleshooting.
Engineers, production managers, purchasing teams, quality personnel, machine builders, and maintenance technicians can use the following topics as a practical technical reference.

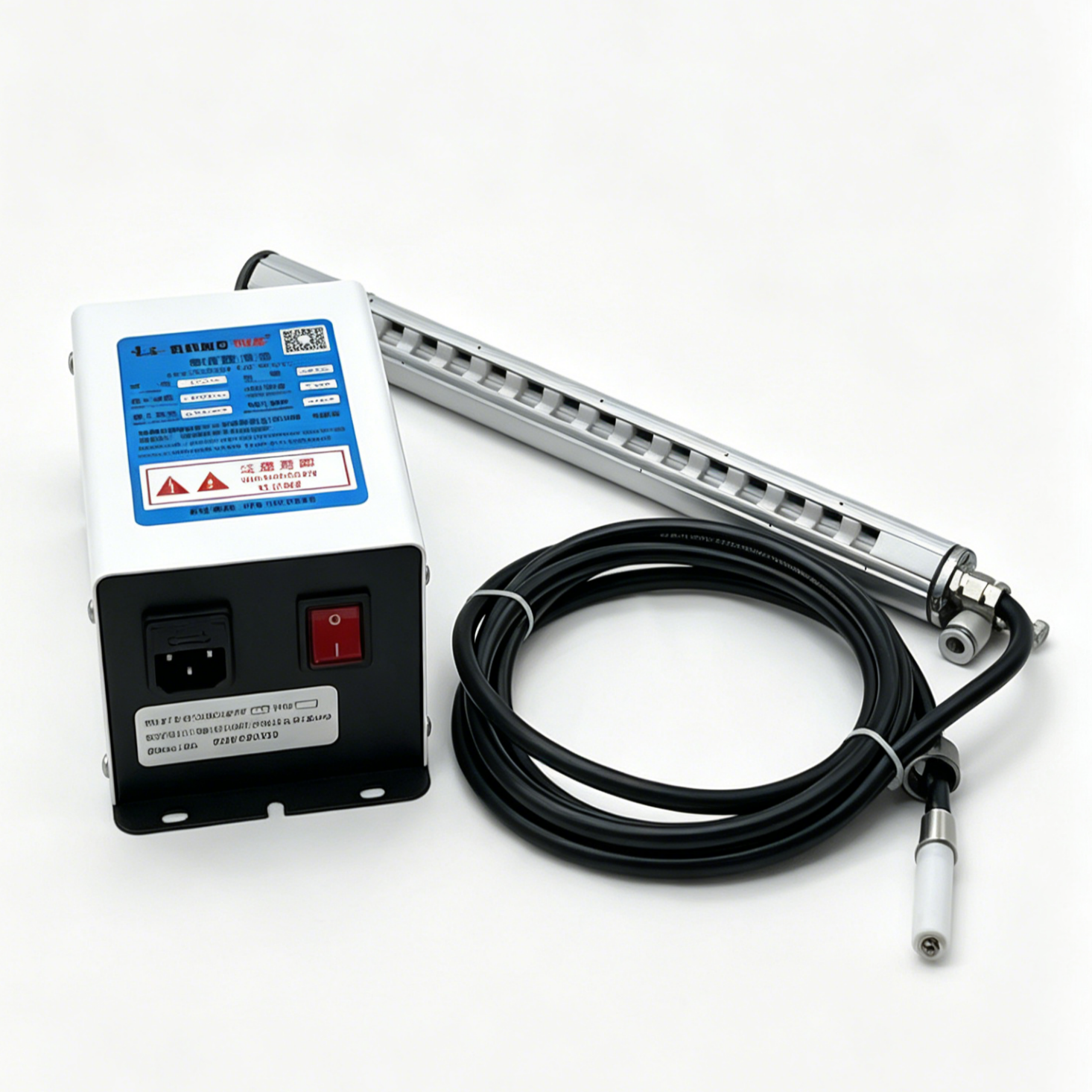

An industrial ionizing air bar is a linear device that generates positive and negative ions to neutralize static charge across moving materials, products, components, and production areas.
The bar contains multiple emitter points arranged along a housing. These emitters are connected to a controlled high voltage source that creates an electric field strong enough to ionize nearby air molecules.
The generated ions move toward a charged surface through electrical attraction, natural airflow, compressed air, fan airflow, or existing machine airflow. A negatively charged material attracts positive ions, while a positively charged material attracts negative ions.
The bar format provides continuous treatment across a defined width. This makes it suitable for paper, film, foil, labels, textiles, glass, electronic assemblies, molded plastic parts, conveyors, and automated processing equipment.
Industrial bars are available in different lengths, output levels, control methods, emitter arrangements, housing materials, and airflow configurations. The correct type should be selected according to the application rather than by external dimensions alone.
Static electricity is primarily generated when materials contact and separate, causing electrons to transfer from one surface to another.
When two surfaces touch, electrons can move between them. After separation, one surface may retain excess electrons and become negatively charged, while the other loses electrons and becomes positively charged.
The amount of charge depends on material combination, contact pressure, separation speed, surface area, friction, temperature, humidity, contamination, and grounding. Repeated contact can build increasingly high voltage.
Common industrial charging events include film leaving a roller, labels separating from release liners, sheets sliding over guides, molded parts leaving tools, powders moving through tubes, and products moving along conveyors.
Insulating materials retain static because charge cannot move freely through them. Plastic, paper, rubber, glass, synthetic textiles, foam, and many coated materials can remain charged long after the original contact event.
An ionizing air bar works by delivering positive and negative ions to a charged surface, where opposite polarity ions combine with the surface charge and reduce its voltage.
Sharp emitter points create a concentrated electric field. This field separates electrons from nearby air molecules and produces positive and negative ions around the emitter area.
The charged surface attracts the polarity it needs. A negative surface attracts positive ions, while a positive surface attracts negative ions. As neutralization progresses, the electrical attraction becomes weaker.
The process does not require the material to conduct electricity. This makes ionization valuable for insulating surfaces that cannot be neutralized through direct grounding.
Neutralization speed depends on the number of useful ions reaching the target. Distance, airflow, material speed, charge level, emitter cleanliness, environmental conditions, and surrounding metal structures all affect this number.
Ionization is needed because grounding removes charge from conductive objects but generally cannot neutralize charge distributed across an insulating surface.
A conductive machine frame allows electrons to move through it. When the frame has a reliable connection to ground, charge can dissipate through that path. Conductive rollers, tools, fixtures, and machine parts should therefore be grounded where appropriate.
Insulating materials behave differently. Charge may remain concentrated in one area of a plastic film or paper sheet because electrons cannot move freely across the surface. Connecting one edge to ground will not normally neutralize the entire material.
An ionizing air bar delivers charge carriers directly to the surface. The material does not need to conduct electricity internally, making the method effective for film, plastic, paper, glass, rubber, and other insulators.
A complete static control strategy uses grounding for conductive objects and ionization for insulating materials and isolated conductors. Neither method should be expected to replace the other in every situation.
Common types include alternating current bars, direct current bars, pulsed direct current bars, windless bars, compressed air bars, compact bars, and monitored ionization systems.
Alternating current designs generate positive and negative ions in alternating cycles. They are commonly used for general industrial applications where the working distance and process speed match the equipment design.
Direct current systems may use separate positive and negative emitter circuits. Pulsed direct current systems control ion production through timed cycles and can support selected longer distance or adjustable balance applications.
Windless bars rely on electrical attraction and surrounding air movement. They are useful where strong airflow could disturb lightweight products, powder, thin film, or precisely positioned components.
| Ionizing Bar Type | Main Advantage | Important Consideration |
|---|---|---|
| Alternating current | Suitable for many industrial applications | Match output to distance and speed |
| Direct current | Controlled positive and negative ion generation | Maintain stable balance |
| Pulsed direct current | Useful for selected longer range treatment | Adjust settings for the actual process |
| Windless bar | Does not disturb lightweight materials | Usually requires a suitable short distance |
| Compressed air bar | Improves ion transport and penetration | Requires clean and stable air |
| Monitored system | Provides status, alarms, and feedback | Requires correct control integration |
The best technology is the one that achieves the required residual voltage within the available treatment time while remaining practical to install and maintain.
Industrial ionizing air bars are used wherever static causes dust attraction, material adhesion, feeding problems, electrostatic discharge risk, contamination, operator shocks, or production instability.
Printing and packaging lines use bars to control paper, labels, plastic film, and laminated materials. Neutralization can improve feeding, stacking, winding, printing, cutting, sealing, and product transfer.
Electronics and semiconductor production use ionization near assembly, inspection, testing, handling, and packaging. The bars help reduce charge on insulating materials and isolated objects that cannot be grounded directly.
Plastic molding and automotive processes use bars before painting, coating, bonding, printing, and inspection. Neutralizing molded parts helps reduce dust attraction and surface contamination.
| Industry | Typical Static Problem | Common Installation Area |
|---|---|---|
| Electronics | Electrostatic discharge damage | Assembly and inspection |
| Semiconductor | Charge on sensitive materials | Handling and processing systems |
| Printing | Sheet adhesion and dust | Feeding, printing, and delivery |
| Flexible packaging | Web sticking and winding defects | After rollers and before winding |
| Plastic molding | Dust attraction on molded parts | After part removal |
| Automotive manufacturing | Contamination before surface treatment | Before painting and bonding |
| Textile processing | Fiber attraction and handling instability | Near rollers and finishing equipment |
| Optical manufacturing | Dust on lenses and display materials | Before coating and inspection |
| Battery production | Particle attraction and unstable handling | Material processing and assembly |
| Medical devices | Contamination and sensitive components | Assembly and packaging |
Industry experience provides a useful starting point, but final equipment selection should always reflect the measured conditions of the individual process.
The main benefits include reduced contamination, improved material handling, fewer production defects, safer operation, better automation, and lower electrostatic discharge risk.
Neutralizing a product reduces the electrical field that attracts dust and fibers. This can improve surface cleanliness before printing, painting, coating, bonding, inspection, and packaging.
Ionizing bars also improve material movement. Sheets separate more reliably, film tracks more consistently, labels release more predictably, and lightweight products are less likely to repel or cling to machine surfaces.
Automated equipment benefits from repeatable pickup, placement, feeding, and release. A charged part may remain attached to a gripper after mechanical holding force is removed, while neutralization helps ensure consistent release.
In sensitive manufacturing, ionization reduces the possibility that charge on an insulator or isolated conductor will discharge through an electronic component. This supports product reliability and reduces hidden damage.
Select the right ionizing air bar by matching its verified decay time, ion balance, active length, working distance, airflow, environmental suitability, and control functions to the production process.
Begin by measuring the static charge. Record voltage, polarity, material type, production speed, working width, and the location where charge is generated. Define the maximum acceptable residual voltage.
Review the mechanical environment. Determine available mounting space, distance to the target, nearby rollers and guards, product movement, vibration, cable routing, and maintenance access.
Document environmental conditions such as temperature, humidity, dust, oil mist, adhesive vapor, chemicals, moisture, and cleanliness requirements. These factors affect equipment design and maintenance frequency.
Suppliers should provide performance values with stated test conditions. Data collected at an unrealistic short distance may not represent the planned installation.
Bar length and coverage should be determined from the maximum material width, active emitter length, product movement, working distance, edge performance, and required neutralization uniformity.
The physical housing length may include inactive sections for end caps, cable entries, power connections, and internal components. Buyers should request the active treatment length rather than assuming that the complete housing produces ions.
The active length should cover the entire charged surface. Additional allowance may be necessary when a web moves laterally or when several product sizes use the same conveyor.
Increasing distance may widen the physical ion field, but it also reduces ion concentration. A wider field does not necessarily provide faster or more uniform neutralization.
Multiple bars may be required for very wide processes. Adjacent treatment zones should overlap, and performance should be measured at the center, edges, intermediate points, and overlap areas.
The correct installation distance is the position that provides sufficient ion concentration and complete coverage without creating contact risk or interfering with material movement.
There is no universal distance for every ionizing air bar. The correct range depends on ionization technology, airflow, emitter arrangement, target shape, production speed, and incoming charge.
If the bar is too far from the target, ions may recombine, attach to airborne particles, or be carried away. Nearby grounded metal can also attract ions before they reach the material.
If the bar is too close, coverage may become narrow. Film flutter, product height variation, vibration, or incorrect adjustment may also allow the material to contact the emitter area.
The recommended range provides a starting point. Final distance should be confirmed by testing at normal and maximum production speeds with all machine airflow operating.
Compressed air is required when ions must travel farther, reach irregular or recessed targets, overcome competing airflow, or neutralize material within a very short treatment time.
Windless operation is suitable for many short distance applications. It avoids disturbing thin film, powder, lightweight parts, and precisely positioned products.
Compressed air increases ion transport speed and can improve access to cavities and complex surfaces. It is also useful for fast moving production where treatment time is limited.
Higher pressure does not always produce better results. Excessive pressure can create turbulence, move products, spread particles, increase noise, and waste energy. The best pressure is the lowest stable setting that achieves the required performance.
Air should be clean, dry, and appropriately filtered. Oil, water, and particles can contaminate the emitters and internal passages. Pressure should be checked close to the bar during normal operation.
Decay time measures how quickly an ionizer reduces a known charge, while ion balance measures the positive or negative electrical offset created by the ion field.
Positive decay time shows how quickly the equipment neutralizes a positive charge. Negative decay time shows the same performance for a negative charge. Both values should be evaluated because the results may differ.
Ion balance indicates whether the ion field favors one polarity. Excessive offset can leave residual voltage or charge a previously neutral surface. Balance is especially important in electronics, semiconductor, optical, and other sensitive applications.
Decay and balance values are meaningful only when test conditions are included. Distance, airflow, starting voltage, ending voltage, temperature, humidity, and equipment settings can all change the result.
| Performance Value | Meaning | Required Test Information |
|---|---|---|
| Positive decay time | Speed of positive charge neutralization | Voltage range, distance, and airflow |
| Negative decay time | Speed of negative charge neutralization | Same conditions as the positive test |
| Ion balance | Positive or negative electrical offset | Distance and environmental conditions |
| Coverage uniformity | Consistency across the treatment width | Measurements at several positions |
| Residual voltage | Actual charge remaining on the product | Material, speed, and measuring location |
Required performance should be based on the actual process. A fast laboratory decay result provides limited value if the installed system cannot achieve the same result at production speed.
An ionizing air bar should be installed after the main charge generation point, within its effective distance, across the complete target width, and with a clear path to the charged surface.
Position is critical. If a film is neutralized before separating from a roller, the separation can immediately generate new static. The bar should normally be installed after the roller and before the charge causes a problem.
Grounded rollers, guards, frames, brackets, and other machine structures can capture or block ions. The complete area between the emitter and target should be reviewed during installation planning.
Mounting hardware should hold the bar at a stable angle and distance. The system should account for web flutter, product height variation, machine vibration, and robot movement.
Cables should be protected from heat, chemicals, sharp edges, crushing, and moving components. Installation should also provide safe access for cleaning, inspection, and performance measurement.
Humidity, temperature, dust, oil, chemicals, airborne particles, and machine airflow can affect static generation, ion transport, emitter cleanliness, and maintenance requirements.
Low humidity generally increases static retention because charge dissipates more slowly from insulating surfaces. A process may experience stronger static during dry seasons or within controlled air conditioning.
Increasing humidity is not always suitable. Moisture can affect coating, adhesive performance, printing, corrosion, dimensional stability, cleanroom control, and product storage.
Dust, fibers, oil mist, adhesive vapor, ink residue, and powder can collect on emitter points. Contamination reduces ion output and may shift ion balance, making regular cleaning essential.
Machine airflow can redirect ions. Exhaust systems, cooling fans, air knives, open doors, cleanroom ventilation, and moving webs should all be operating during performance tests.
Ionizing air bars support automation by providing continuous treatment, improving product positioning, reducing feeding errors, and allowing integration with machine status, alarms, and control signals.
A correctly installed bar treats every product that passes through its active area. This reduces dependence on operator technique and supports repeatable automated operation.
Neutralization can improve robotic pickup and release. Charged parts may cling to vacuum cups, grippers, trays, or fixtures even after mechanical holding force is removed.
Remote start and stop signals can coordinate ionization with the machine cycle. Status feedback, fault alarms, air pressure monitoring, and maintenance reminders can notify operators when attention is required.
Control integration should include defined responses. The machine may issue a warning, pause production, or stop the process depending on the risk associated with lost ionization.
Performance should be tested by measuring surface voltage, positive and negative decay time, ion balance, coverage uniformity, and results at normal and maximum production speed.
An electrostatic field meter can compare voltage before and after treatment. The measuring distance, angle, and target position must remain consistent because these factors influence the reading.
A charged plate monitor measures decay time and ion balance. It should be placed at the intended working distance with the normal air pressure and equipment settings.
Coverage should be tested across the complete active length. Measurements should include the center, edges, intermediate positions, and overlap areas where multiple bars are used.
Baseline results should be recorded during commissioning. Future tests can then identify contamination, wear, airflow changes, or installation movement.
Industrial ionizing air bars require regular emitter cleaning, visual inspection, cable checks, grounding verification, airflow service, and periodic performance measurement.
Emitter points attract dust because of the electric field around them. Oil, ink, adhesive, fibers, powder, and other deposits can weaken ion output and shift balance.
Cleaning frequency should reflect the actual process. A clean assembly area may require less frequent service than a printing, textile, coating, molding, or converting line.
Power must be isolated before direct cleaning. Approved brushes, swabs, and cleaning agents should be used. Abrasive tools can damage emitter geometry, while unsuitable chemicals may affect insulation or housing materials.
| Maintenance Activity | Purpose |
|---|---|
| Inspect emitter points | Identify contamination and damage |
| Clean emitter points | Restore ion output |
| Inspect cables and connectors | Detect wear and electrical damage |
| Verify mounting | Maintain distance and angle |
| Check grounding | Maintain safe charge dissipation |
| Inspect air filters and tubing | Maintain clean and stable air delivery |
| Test decay time | Verify neutralization speed |
| Test ion balance | Confirm controlled electrical offset |
Maintenance records should include measured values before and after service. These results demonstrate whether cleaning restored performance and help determine the correct maintenance interval.
Poor performance should be troubleshot by confirming the static problem, measuring charge before and after treatment, inspecting the equipment, checking installation conditions, and changing one variable at a time.
First, confirm that static is responsible for the production symptom. Dust, sticking, feeding errors, and unstable movement can also result from mechanical alignment, contamination, vibration, material quality, or incorrect process settings.
Measure voltage immediately before and after the bar. A significant reduction shows that the bar is working, even if the product becomes charged again farther downstream. Little reduction indicates an output, position, distance, coverage, airflow, or maintenance issue.
Inspect emitter contamination, power, cables, alarms, air pressure, grounding, and surrounding structures. Review recent changes in material, speed, humidity, tension, rollers, guards, and exhaust airflow.
Controlled troubleshooting prevents random adjustments. Documenting the cause and corrective action creates useful knowledge for future process changes.
Industrial ionizing air bars are generally safe when correctly selected, installed, grounded, maintained, and operated according to applicable electrical and workplace procedures.
The equipment uses high voltage to create ions, but industrial designs normally limit current and protect users during normal operation. Qualified personnel should complete electrical installation and repair.
Power should be isolated before cleaning, wiring, repositioning, or inspecting components. Cables should not be crushed, sharply bent, exposed to unsuitable chemicals, or placed near uncontrolled moving parts.
Applications containing flammable gases, vapors, solvents, or combustible dust require a formal hazard assessment. Standard equipment should not be assumed suitable for a classified environment.
Safety also depends on regular inspection. Damaged insulation, loose connections, unauthorized modifications, and heavy contamination should be corrected before continued operation.
Total ownership cost should include equipment, installation, electricity, compressed air, maintenance, replacement parts, service life, downtime, and static related quality losses.
A low purchase price may provide poor value if the bar has incomplete coverage, unstable output, high air consumption, difficult maintenance, or limited spare part availability.
Compressed air can become a significant operating expense. Where air is necessary, pressure and flow should be optimized rather than set higher than required.
Maintenance access also affects cost. A bar that can be cleaned and tested quickly reduces production interruption. Accessible emitters, practical mounting, clear instructions, and useful alarms improve service efficiency.
| Cost Category | Items to Consider |
|---|---|
| Initial purchase | Bar, power supply, cables, brackets, and controls |
| Installation | Mechanical mounting, wiring, and air components |
| Operation | Electricity and compressed air |
| Maintenance | Cleaning labor, filters, tools, and testing |
| Replacement | Emitters, cables, power units, and other parts |
| Downtime | Lost production during faults and service |
| Quality loss | Contamination, rejected products, and handling defects |
The best economic choice is the ionizing system that achieves the required static control reliably at the lowest practical cost over its complete operating life.
Industrial ionizing air bars provide effective static control when their technology, active length, output, working distance, airflow, and installation are matched to the actual production process.
They neutralize charge on insulating materials that cannot be controlled through grounding alone. This can reduce dust attraction, material adhesion, feeding errors, operator shocks, automation problems, and electrostatic discharge risk.
Successful selection begins with measured application data. Material type, charge polarity, voltage, production speed, working width, treatment distance, environmental conditions, and required residual charge should all be defined.
Correct installation and maintenance are equally important. The bar should be positioned after the primary charging event, provided with a clear ion path, cleaned according to actual contamination, and tested periodically for decay time and balance.
By treating ionization as part of a complete static control program, manufacturers can improve product quality, stabilize material handling, protect sensitive products, increase useful production output, and reduce long term operating costs.
