Ionizing air bars are essential static control devices in electronics manufacturing, printing, packaging, plastics processing, textile production, coating, converting, and many other industrial operations. They generate positive and negative ions that neutralize electrostatic charges on materials, components, and machine surfaces. When an ionizing air bar performs correctly, it can reduce dust attraction, material sticking, feeding errors, operator shocks, and electrostatic discharge risks.
However, static control performance can deteriorate because of contaminated emitter points, incorrect installation, inadequate airflow, poor grounding, damaged cables, environmental changes, or electrical faults. Some problems appear suddenly, while others develop gradually and remain unnoticed until product defects or production interruptions increase.
Effective troubleshooting begins by identifying the exact symptom, making the equipment safe, inspecting the installation, cleaning contaminated components, checking power and airflow, measuring static decay and ion balance, and correcting one possible cause at a time.
Troubleshooting should follow a structured process instead of relying on random adjustments. Increasing air pressure or moving the bar closer to the product may temporarily improve performance, but these actions can hide the actual cause and create new problems. A systematic method produces more reliable results and prevents unnecessary component replacement.
This guide explains how to diagnose common ionizing air bar problems, including complete loss of operation, weak static neutralization, unstable ion balance, uneven treatment, abnormal alarms, and rapid contamination. It also provides practical inspection tables, testing methods, corrective actions, and preventive recommendations.
This troubleshooting guide covers the main electrical, mechanical, pneumatic, environmental, and maintenance problems that can affect ionizing air bar performance.
The first sections explain how to troubleshoot safely and how to recognize common symptoms. Later sections examine power problems, weak neutralization, balance drift, airflow issues, uneven coverage, and abnormal electrical behavior.
The guide also explains how to use measurement equipment to confirm performance. Visual inspection alone cannot determine whether an ionizing air bar is achieving the required decay time and ion balance at the target surface.
Finally, the article provides a complete troubleshooting sequence and recommendations for preventing repeated problems through maintenance, documentation, and process control.
Troubleshooting should begin by identifying all electrical, pneumatic, mechanical, and process hazards before inspecting, cleaning, adjusting, disconnecting, or removing the ionizing air bar.

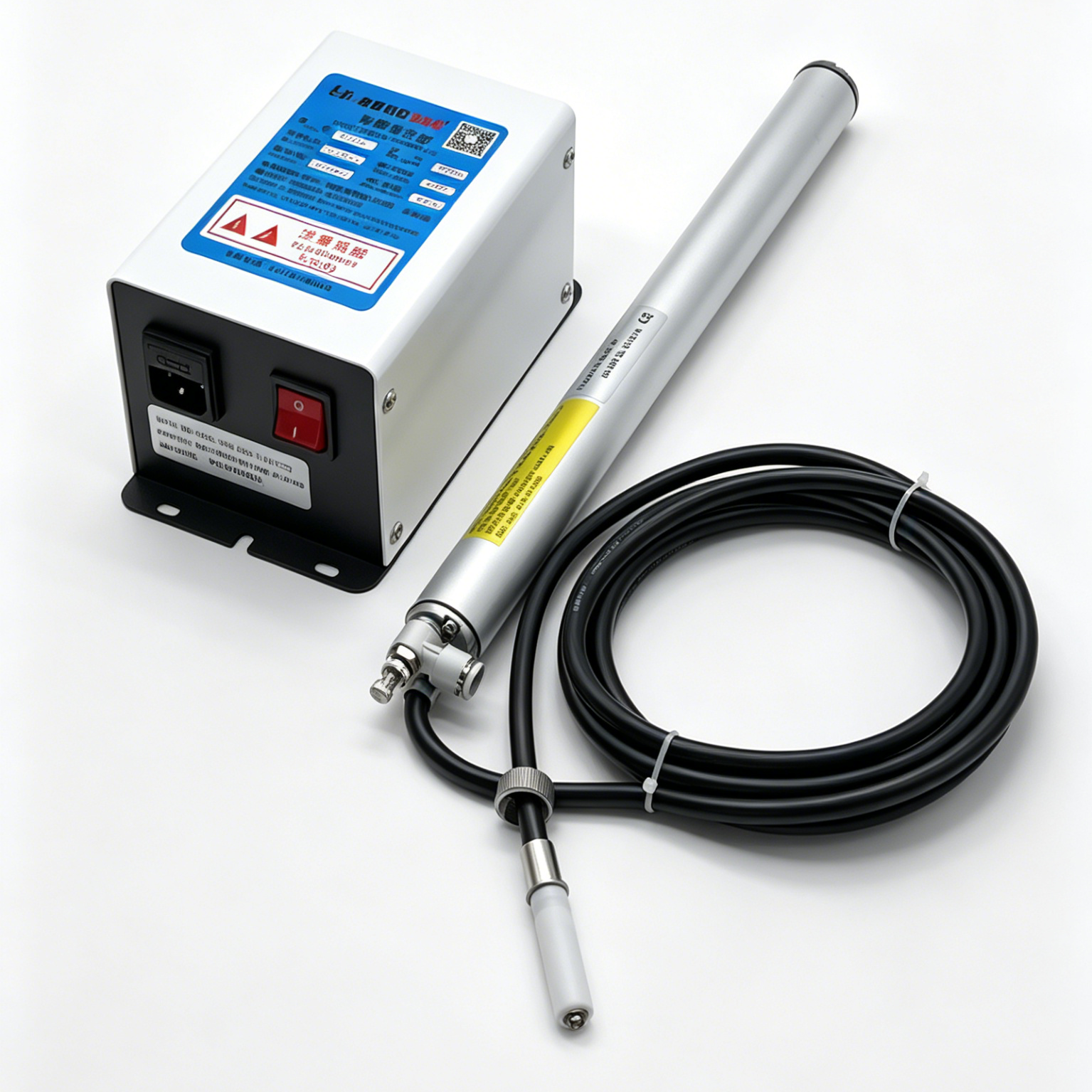

Ionizing air bars use high voltage to create ions at sharp emitter points. Even when the available current is limited, technicians should never touch, clean, or adjust energized emitter points. Before physical maintenance begins, the system should be switched off, safely isolated, and allowed sufficient time for stored electrical energy to dissipate.
Some ionizing air bars use compressed air to transport ions toward the target. The pneumatic supply should be closed and depressurized before hoses, fittings, outlets, or internal passages are serviced. Unexpected airflow may move loose particles, create hose movement, or expose personnel to process contamination.
The surrounding production machine may present additional hazards. Rollers, moving webs, robots, cutting mechanisms, conveyors, and automated actuators may move unexpectedly. If troubleshooting requires access inside a guarded area, the relevant machine energy sources should be controlled according to the approved workplace procedure.
| Safety Item | Required Action | Purpose |
|---|---|---|
| Electrical supply | Switch off and isolate before physical work | Prevents electrical exposure and unexpected operation |
| Stored electrical energy | Wait for the required discharge time | Reduces residual electrical risk |
| Compressed air | Close the supply and release pressure | Prevents unexpected airflow and hose movement |
| Machine movement | Stop and secure dangerous machinery | Protects personnel from mechanical hazards |
| Cleaning chemicals | Confirm compatibility and protective requirements | Prevents material damage and personal exposure |
| Restart control | Prevent unauthorized or automatic restart | Protects personnel during inspection |
Electrical testing on energized equipment should only be performed by qualified personnel using suitable procedures and instruments. If insulation damage, burning, electrical tracking, unusual discharge, or damaged wiring is found, the unit should remain out of service until it has been evaluated properly.
The most common problems include no power, weak ion output, slow static decay, unstable ion balance, uneven neutralization, blocked airflow, repeated alarms, rapid contamination, and intermittent operation.
Accurate symptom identification is the foundation of efficient troubleshooting. A statement such as “the ionizer is not working” does not provide enough information. The technician should determine whether the unit has no electrical power, produces ions but cannot reach the target, works only in certain areas, or operates intermittently.
Production symptoms also provide useful information. Material sticking may indicate inadequate neutralization, but it can also result from mechanical pressure, surface chemistry, humidity, or an incorrect web path. Dust attraction may return because ion output is weak, because the bar is too far from the target, or because the surface becomes charged again after it passes the ionizer.
The time and location of the problem should be recorded. A failure that occurs only at high production speed may indicate insufficient treatment time. A problem limited to one edge of a film may indicate incomplete coverage, localized contamination, or airflow disturbance.
| Observed Symptom | Possible Causes | First Inspection |
|---|---|---|
| No indicator or activity | No input power, open protection device, loose connection | Power source and connectors |
| Slow static decay | Dirty emitters, excessive distance, weak airflow | Emitter condition and mounting |
| Unstable ion balance | Uneven contamination, airflow variation, component aging | Emitters and operating conditions |
| One area remains charged | Insufficient coverage, blocked outlets, poor alignment | Position and active length |
| Intermittent operation | Loose connector, cable damage, unstable input supply | Cables and power connection |
| Frequent alarms | Contamination, electrical leakage, internal fault | Alarm information and insulation condition |
| Rapid dirt accumulation | Oil mist, dust source, unsuitable mounting position | Surrounding process environment |
Technicians should avoid changing several conditions at once. If the bar is cleaned, moved, and supplied with higher air pressure simultaneously, it becomes difficult to identify which action corrected the problem. A controlled approach creates better diagnostic information.
An ionizing air bar may not operate because input power is unavailable, a connector is loose, a cable is damaged, a protection device has activated, a controller setting is incorrect, or an internal electrical component has failed.
Begin with the simplest external checks. Confirm that the correct power source is available and that the main switch, controller, and machine interface are in the required operating state. If the ionizer is controlled by a production machine, an interlock or control signal may prevent activation even though the main supply is present.
Inspect accessible cables and connectors after following the required safety procedure. Look for loose engagement, bent contacts, contamination, cuts, crushing, overheating, and excessive bending. Repeated machine movement can damage a cable internally even when the outer surface appears acceptable.
A protective circuit may disable the unit after detecting an abnormal condition. Before resetting it, determine why it activated. Repeatedly resetting a protection device without finding the cause can worsen damage and create a safety risk.
Do not open sealed high voltage components or attempt internal repairs unless the task is specifically authorized and assigned to qualified personnel. Replacing random components may create additional faults and may not correct the original problem.
Weak or slow neutralization is commonly caused by contaminated emitters, excessive working distance, low airflow, incorrect bar position, high production speed, strong initial charge, or insufficient ionizing capacity.
Contaminated emitter points are one of the most frequent causes. Deposits change the electrical field around the tips and reduce efficient ion production. After safe isolation, inspect the points under adequate lighting and clean them with suitable nonconductive tools and compatible materials.
Working distance has a major influence on performance. Ions can recombine or be displaced before reaching the charged surface. If the bar is mounted too far away, decay time may become too long for the process. A bar mounted too close may also provide poor coverage or create interference with moving materials.
Production speed determines how much treatment time is available. A system that performs well at low speed may not neutralize the surface before it leaves the active treatment area at full speed. The solution may require improved positioning, a longer treatment zone, adjusted airflow, or additional ionizing capacity.
| Possible Cause | Diagnostic Check | Possible Corrective Action |
|---|---|---|
| Dirty emitters | Visual inspection and performance comparison | Clean using the approved procedure |
| Excessive distance | Measure the distance to the target | Restore the specified position |
| Low air pressure | Check pressure during actual operation | Correct supply pressure and restrictions |
| Incorrect angle | Observe whether the bar faces the target area | Realign the mounting bracket |
| High process speed | Compare results at different speeds | Increase effective treatment time |
| Strong initial charge | Measure voltage before treatment | Improve coverage or add treatment capacity |
| Charge generated downstream | Measure at several process positions | Move or add ionization near the final charge source |
The technician should measure static voltage at multiple positions. If the material is neutral immediately after the bar but becomes charged farther downstream, the ionizer may be operating correctly. Friction, separation, peeling, winding, or contact with rollers may be generating a new charge after treatment.
Ion balance may become unstable because of uneven emitter contamination, changing airflow, poor grounding, nearby conductive objects, incorrect settings, environmental variation, or deterioration of electrical components.
Ion balance describes the relationship between positive and negative ion output at the target position. If one polarity dominates, the treated object may retain or acquire residual voltage. Sensitive electronics applications often require tighter balance control than general dust reduction or material handling applications.
Uneven contamination can affect positive and negative ion generation differently. Cleaning all emitter points thoroughly may restore stable balance. Cleaning only the visibly dirty section can leave differences across the active length, so the complete bar should be inspected.
Nearby grounded objects can attract ions and change what reaches the test plate or product. Machine frames, guards, ducts, rollers, and newly installed structures may alter ion distribution. If balance changed after a machine modification, the installation geometry should be reviewed.
Airflow variation can also influence measured balance. Strong process air, extraction systems, cooling fans, or unstable compressed air may carry one portion of the ion cloud away from the target. Tests should be performed under actual production conditions as well as under controlled conditions when diagnosis requires comparison.
If balance remains outside the approved limit after external causes have been corrected, the air bar or controller may require qualified technical evaluation. Adjustment should not be attempted without an approved method and suitable measurement equipment.
Airflow problems reduce the number of ions reaching the target, create uneven treatment, increase decay time, and may allow static related defects to continue even when the high voltage system is operating normally.
Air assisted ionizing bars use compressed air to transport ions over a greater distance or into complex surfaces. If pressure is too low, ion delivery may be insufficient. If pressure is unstable, static neutralization may vary during the production cycle.
Blocked outlets can create localized weak zones. Dust, oil, fibers, or adhesive residue may restrict one part of the bar while the remaining outlets appear normal. This commonly produces uneven static removal across film, sheet, or product width.
Air quality is equally important. Moisture and oil from the compressed air supply can contaminate emitter points and insulation. This creates a repeating cycle in which the bar is cleaned but becomes dirty again shortly after returning to service.
| Airflow Problem | Likely Effect | Recommended Check |
|---|---|---|
| Low supply pressure | Slow ion delivery | Measure pressure during production |
| Pressure fluctuation | Inconsistent neutralization | Monitor the supply during machine cycles |
| Blocked outlet | Localized charged area | Inspect airflow across the full bar length |
| Leaking hose | Reduced available airflow | Inspect hoses and fittings |
| Oil in the air supply | Rapid emitter contamination | Check filtration and air treatment |
| Moisture in the supply | Contamination and possible electrical instability | Inspect drainage and drying equipment |
| Excessive pressure | Material disturbance and energy waste | Set pressure according to process needs |
More pressure is not always better. Excessive airflow may disturb lightweight products, spread contamination, increase noise, consume unnecessary energy, or redirect ions away from the intended target. The pressure should be optimized through performance measurement rather than increased without a defined limit.
Uneven static removal is usually caused by incomplete bar coverage, incorrect alignment, localized emitter contamination, blocked air outlets, edge effects, varying working distance, or uneven initial charge.
The active ionizing length should cover the full area requiring treatment. A bar that is narrower than the material may leave charged edges. Even when the physical bar appears wide enough, inactive end sections and mounting obstructions may reduce the effective treatment width.
Material shape can also create distance variation. A flat web may pass the bar uniformly, while a sagging film or curved component may be much farther from some emitter points. The sections at greater distance can show slower decay and higher residual voltage.
Initial charge is not always uniform. Friction, separation, tension, roller material, and surface contamination may generate stronger charges in specific locations. Troubleshooting should therefore include measurements before and after the ionizing bar across the entire material width.
Several shorter bars may be used across a wide process when a single unit cannot provide sufficient coverage. Their treatment areas should overlap appropriately so that charged gaps are not created between units. Performance should be measured in the overlap zones rather than assumed from physical dimensions.
Emitter contamination interferes with the electrical field that generates ions, resulting in reduced output, slower decay, unstable balance, uneven coverage, alarms, and abnormal electrical leakage.
Emitter points naturally attract some airborne contamination because of the electrical field around them. Dust, paper fibers, textile fibers, plastic particles, oil mist, and adhesive residue can collect around the sharp tips and their insulating bases.
Dry contamination may reduce performance gradually. Oily or sticky deposits can cause faster deterioration because they trap additional particles. Conductive contamination or moisture can create leakage paths across insulating surfaces and may trigger an alarm or unstable discharge.
Cleaning must be performed only after safe isolation. Use a soft nonconductive brush or lint free applicator and a compatible cleaning agent where required. Avoid metal tools, abrasive materials, excessive liquid, and aggressive force that could bend or blunt emitter points.
| Contamination | Typical Source | Corrective Approach |
|---|---|---|
| Dry dust | Paper, plastic, or surrounding environment | Gentle cleaning with a nonconductive brush |
| Fibers | Textile, paper, or nonwoven processes | Careful removal without bending emitters |
| Oil film | Lubrication or contaminated compressed air | Use a compatible cleaner and correct the source |
| Adhesive residue | Label, tape, or coating process | Use an approved cleaner without scraping |
| Moisture | Air supply or environmental condensation | Dry completely and investigate moisture control |
| Conductive particles | Process dust or surrounding operations | Isolate, clean carefully, and review extraction |
If contamination returns quickly, frequent cleaning is not the complete solution. The source should be investigated. Possible improvements include better filtration, improved extraction, a different mounting orientation, shielding from process mist, or cleaner compressed air.
Alarms and abnormal electrical behavior may be caused by heavy contamination, moisture, damaged insulation, loose connections, incorrect grounding, blocked discharge areas, or failure of an electrical component.
Begin by recording the exact alarm status and the operating conditions present when it occurred. Do not disconnect power immediately if doing so would erase useful diagnostic information and it is safe to observe the indicator. Once the information has been recorded, follow the approved shutdown procedure.
Inspect the emitter area and insulating surfaces for contamination, moisture, discoloration, cracking, or carbon tracking. Dark marks that remain after gentle cleaning may indicate electrical damage. The unit should not be energized if insulation integrity is uncertain.
Unusual clicking, visible discharge, repeated restarting, burning odor, or excessive heat requires immediate attention. These signs may indicate more than normal ion generation. The equipment should be isolated and evaluated by qualified personnel.
Protection devices should not be bypassed. An alarm is intended to identify a condition requiring attention. Forcing the system to operate may damage the ionizer, affect nearby equipment, or create an avoidable safety risk.
Humidity, temperature, dust concentration, process airflow, material speed, charge generation, and nearby grounded objects can change ionizing performance even when the air bar itself is functioning correctly.
Low humidity often allows static charges to persist longer because surfaces and the surrounding air provide less natural charge dissipation. During dry weather or controlled low humidity production, the ionizer may need to neutralize a stronger and more persistent charge.
High humidity may reduce static accumulation on some materials, but it does not eliminate the need for static control. Moisture can also contribute to contamination or condensation if environmental conditions are poorly controlled. Process requirements should determine the acceptable humidity range.
Strong ventilation, cooling fans, extraction systems, and machine airflow can redirect ions. A bar that performs well when the machine is stopped may produce different results during full production. Testing should therefore include actual operating conditions.
| Variable | Possible Effect | Diagnostic Method |
|---|---|---|
| Humidity | Changes charge persistence | Compare performance at recorded humidity levels |
| Temperature | May influence electronics and process behavior | Record temperature during testing |
| Material speed | Changes available treatment time | Test at low and full production speeds |
| Extraction airflow | May pull ions away from the target | Compare results with actual airflow operating |
| Material type | Changes charge generation and retention | Record performance for each material |
| Nearby metal structures | May attract or redirect ions | Review equipment changes and test positions |
When a problem appears after a material, speed, machine, or environmental change, the ionizer should not automatically be considered defective. The installation may need to be optimized for the new operating condition.
Ionizing performance should be tested by measuring static voltage, positive and negative decay time, and ion balance at defined locations under controlled and actual production conditions.
A static field measuring instrument can help identify where charge is generated and whether the ionizer reduces it. Measurements should be taken at consistent distances because reading accuracy depends strongly on measurement geometry. Results before and after treatment provide more information than a single measurement.
A charged plate monitor is commonly used to evaluate decay time and ion balance. Decay testing determines how quickly a known charge is reduced. Balance testing identifies the residual electrical tendency produced by the ionizer at the measurement position.
Test conditions should be documented carefully. Bar distance, plate location, air pressure, control settings, production airflow, temperature, and humidity can all influence the result. Consistent methods make it possible to compare measurements over time.
The acceptance criteria should match the application. General material handling may tolerate different values from sensitive electronics production. If no clear limits exist, the company should establish them through process requirements, risk assessment, and consistent measurement.
The recommended procedure is to define the symptom, review recent changes, make the system safe, inspect external conditions, clean and correct obvious issues, restore operation, measure performance, and document the final result.
Start by speaking with operators and reviewing production information. Determine when the problem began, whether it is continuous or intermittent, which materials are affected, and whether any machine settings or environmental conditions recently changed.
Next, inspect the installation before adjusting it. Record the current distance, angle, pressure, settings, and visible condition. This preserves useful information and prevents the original configuration from being lost during diagnosis.
After safe isolation, inspect emitters, outlets, cables, connectors, grounding, brackets, and pneumatic components. Correct one issue at a time where practical, then repeat the performance test. This approach makes the cause easier to identify.
If the problem cannot be reproduced, monitor the conditions under which it normally occurs. Intermittent faults may be related to machine vibration, cable movement, changing air pressure, heat, humidity, or a particular stage of the production cycle.
Recurring problems can be prevented through scheduled inspection, safe emitter cleaning, performance testing, contamination control, stable installation, staff training, and accurate maintenance records.
Maintenance intervals should reflect actual operating conditions. A bar near paper dust, adhesive, fibers, powder, or oil mist may require frequent cleaning. A unit in a controlled environment may need less frequent cleaning but should still undergo scheduled performance verification.
Operators should receive basic training in recognizing warning signs. Increased material sticking, dust attraction, operator shocks, abnormal indicators, uneven airflow, and repeated feeding errors should be reported early rather than accepted as normal process variation.
Historical data is especially valuable. Recording decay time, balance, air pressure, cleaning dates, contamination type, and corrective actions allows maintenance personnel to identify trends. A gradual decline can then be corrected before it becomes a failure.
| Maintenance Task | Purpose | Frequency Basis |
|---|---|---|
| Visual emitter inspection | Detects contamination and damage | Environmental contamination level |
| Emitter cleaning | Restores efficient ion generation | Condition and performance data |
| Airflow inspection | Maintains consistent ion delivery | Pneumatic system condition |
| Cable and connector inspection | Prevents intermittent operation | Movement and mechanical exposure |
| Grounding verification | Supports safe and stable operation | Site electrical control plan |
| Decay and balance testing | Confirms actual performance | Process sensitivity and risk |
| Mounting inspection | Maintains distance and alignment | Machine vibration and adjustments |
| Record review | Identifies recurring causes | Scheduled maintenance review |
Repeated contamination should lead to investigation of the source. Better extraction, improved compressed air treatment, shielding, process cleaning, or a different mounting location may reduce maintenance needs and improve long term reliability.
Successful ionizing air bar troubleshooting depends on safe work practices, accurate symptom identification, systematic inspection, controlled testing, and correction of the underlying cause rather than only the visible symptom.
The most common performance problems include contaminated emitters, incorrect working distance, unstable airflow, poor alignment, damaged cables, loose connections, grounding issues, environmental changes, and insufficient treatment time. Many of these problems can be corrected before they cause major production losses if they are identified early.
Visual inspection is important, but it should be supported by measurable performance data. Static voltage, decay time, ion balance, air pressure, distance, and production speed provide objective evidence that the ionizing system is working correctly.
A documented troubleshooting process also improves future maintenance. Records show which failures occur repeatedly, which corrective actions are effective, and when components begin to deteriorate. This information helps companies reduce diagnosis time and plan maintenance more efficiently.
By combining safe troubleshooting with preventive inspection and regular performance testing, manufacturers can maintain stable static neutralization, improve product quality, reduce downtime, extend equipment life, and protect sensitive industrial processes.
