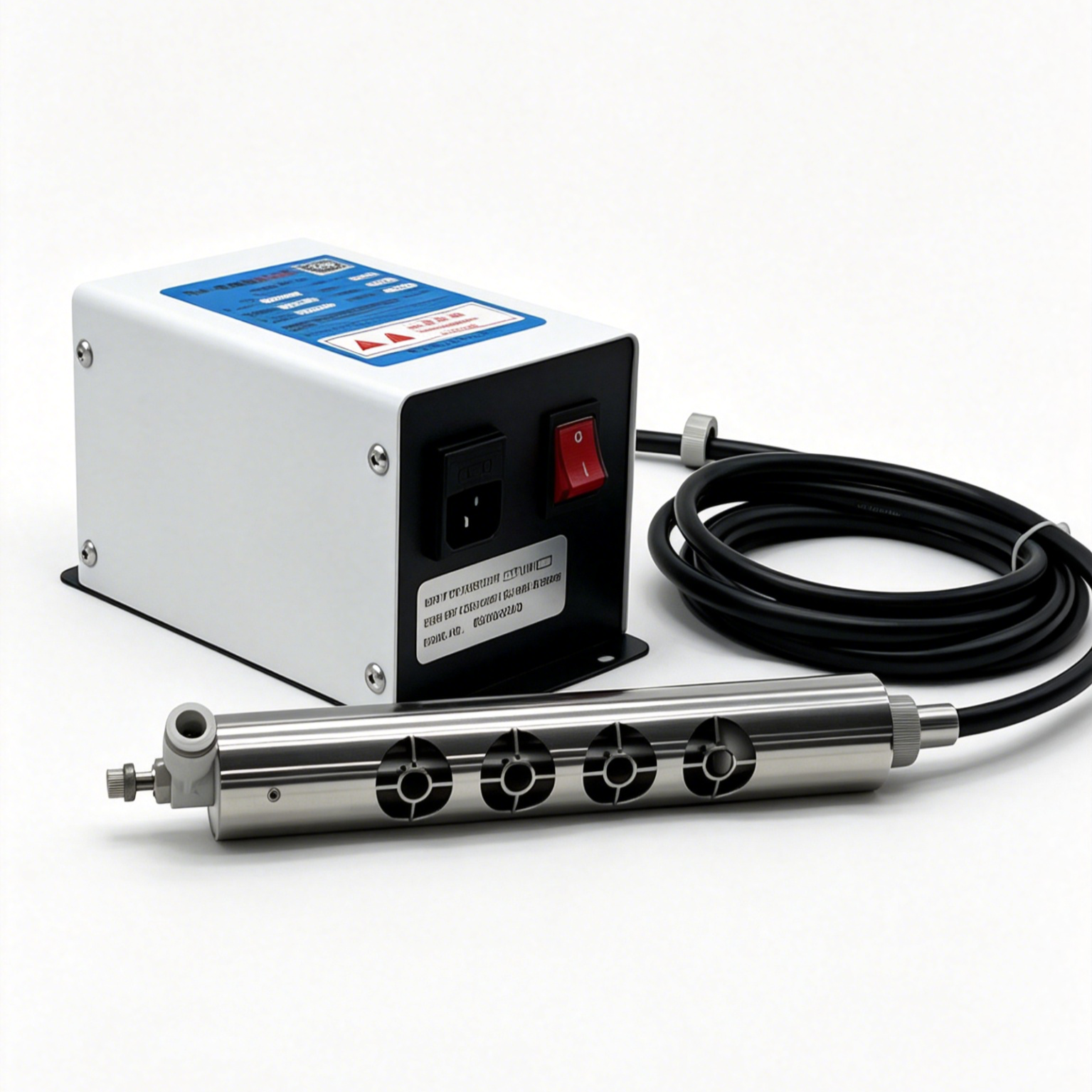

Static electricity can disrupt production even after a company installs static elimination equipment. Materials may continue attracting dust, operators may still receive shocks, webs may cling to rollers, and sensitive electronic components may remain exposed to electrostatic discharge. In many cases, the ionizer is blamed immediately. However, poor static elimination is often caused by installation conditions, contamination, process changes, grounding problems, unsuitable equipment selection, or inadequate performance testing.
Effective static control requires more than producing positive and negative ions. The ions must reach the charged surface in sufficient quantities, within an appropriate period, and without being obstructed by airflow, machine structures, contamination, or excessive distance. The static neutralization system must also match the material speed, charge level, working width, environmental conditions, and sensitivity of the application.
Poor static elimination is commonly caused by incorrect installation distance, contaminated emitter points, unsuitable ionizer capacity, obstructed airflow, inadequate grounding, high production speed, environmental changes, poor ion balance, or incorrect performance measurement. The best solution is to evaluate the entire process rather than replacing the ionizing air bar without identifying the actual cause.
A systematic investigation can distinguish an equipment problem from an application problem. Maintenance personnel should examine where static is generated, where it is measured, how quickly the material moves, whether the bar covers the complete working area, and whether the ions have a clear path to the charged surface.
This guide explains the most common reasons for poor static elimination and provides practical methods for diagnosing and correcting them in industrial production environments.
Incorrect installation reduces performance when the ionizing air bar is too far from the material, positioned at the wrong angle, blocked by machine components, or installed after the point where static is causing the problem.
Installation distance has a major influence on neutralization speed. Positive and negative ions must travel from the emitter points to the charged surface. As distance increases, ions spread over a larger area, recombine with ions of the opposite polarity, attach to airborne particles, or are carried away by uncontrolled air movement. Consequently, fewer useful ions arrive at the target.
Installing the bar extremely close to the material is not always the correct answer. A very short distance may produce concentrated treatment but insufficient coverage, particularly on wide or moving materials. The material may also touch the emitter points because of vibration, web flutter, product height variation, or an incorrect machine adjustment. The installation distance should follow the equipment specification and be verified under actual operating conditions.
The installation position must relate to the point of static generation. Static can be created when two surfaces contact and separate, such as a film leaving a roller, a label separating from a release liner, or a molded part leaving a tool. If the ionizing bar is installed before this event, the material can become charged again immediately afterward. The bar should normally be positioned after the primary charging event and before the charge produces dust attraction, adhesion, shocks, discharge, or process instability.
Nearby metal structures can also affect ion delivery. A grounded machine frame, roller, guard, or bracket may attract ions before they reach the charged material. The bar therefore needs an open ion path and suitable clearance from surrounding objects. Installation should also prevent dirt, oil, coating residue, and process vapors from falling directly onto the emitter area.
| Installation Problem | Likely Effect | Recommended Check |
|---|---|---|
| Excessive distance | Slow decay and weak neutralization | Measure the actual distance across the complete working width |
| Insufficient distance | Narrow coverage or contact risk | Observe material movement and product height variation |
| Wrong process location | Material becomes charged again | Identify every contact and separation point |
| Blocked ion path | Ions are captured by machine structures | Inspect guards, rollers, frames, and brackets |
| Incorrect angle | Uneven treatment across the target | Confirm that the active face is directed toward the charged surface |
Contaminated emitter points reduce ion output, create uneven ion distribution, increase decay time, and may shift the ion balance away from the desired range.
Ionizing air bars use high voltage at sharp emitter points to create a corona discharge. The geometry and cleanliness of these points are important. Dust, adhesive mist, oil, fibers, powder, ink residue, and other deposits can cover the sharp surface and weaken the electric field. When this occurs, the bar may remain powered while producing considerably fewer useful ions.
Emitter contamination frequently develops gradually. Operators may not notice a sudden failure because the neutralization performance declines over days or weeks. Early signs can include increasing dust attraction, occasional shocks, unstable sheets, longer charged plate decay time, or different readings across the length of the bar. A visual inspection may reveal dark rings, lint, hardened adhesive, or uneven deposits around the emitter points.
Cleaning frequency should be based on the process rather than an arbitrary calendar interval. A clean electronics assembly area may require less frequent attention than a printing, converting, woodworking, textile, or powder handling process. Maintenance records can help establish an appropriate interval by comparing cleaning dates with measured decay time and ion balance.
The correct cleaning procedure depends on the ionizer design and the type of contamination. Power must be isolated according to approved safety procedures before direct cleaning. Suitable brushes, swabs, and approved cleaning agents may be used when permitted by the equipment instructions. Abrasive tools should be avoided because they can damage emitter geometry, insulation, and protective surfaces.
Yes. An ionizing air bar with insufficient length, output, coverage, or operating range may be unable to neutralize the complete material surface within the available process time.
The physical length of an ionizing bar does not automatically equal its effective treatment width. The active emitter area, installation distance, airflow pattern, edge coverage, and surrounding machine structure determine the useful coverage. If the working material is wider than the effective ion field, untreated zones may retain a significant charge.
Ionizing capacity must also match the strength of the incoming charge. A slowly moving sheet with a moderate surface voltage may be relatively easy to neutralize. A fast moving insulating film with a high initial voltage and a short treatment period creates a more demanding application. Even a correctly functioning bar may provide disappointing results if it was selected for a less demanding process.
Wide lines may require multiple bars or a carefully designed arrangement. The treatment zones should overlap sufficiently so that gaps do not remain between adjacent ionizers. Coverage should be verified across the center and both edges because performance at the ends of an ionizing bar can differ from performance near the middle.
Selection should consider the following factors:
Airflow problems prevent ions from reaching the target evenly and can cause slow, inconsistent, or incomplete static neutralization.
Some ionizing air bars use compressed air to transport ions over a longer distance or into difficult areas. If the pressure is too low, the ions may not reach the product effectively. If it is excessively high, turbulence may scatter ions, disturb lightweight materials, spread contamination, or shorten the useful contact time. The appropriate pressure is the lowest stable setting that provides sufficient delivery and coverage for the application.
Compressed air quality also matters. Oil, moisture, and particles can contaminate the emitter points and internal air passages. Restricted tubing, undersized valves, clogged filters, leaking connectors, or excessive demand from other machines can reduce pressure at the bar even when the main supply gauge appears normal. Pressure should therefore be checked close to the operating equipment while production is running.
Windless or fan assisted ionizers can also be affected by uncontrolled air. Exhaust systems, cooling fans, cleanroom airflow, open doors, air knives, and moving webs may redirect the ions. A bar that performs well when the line is stopped may show poor results at full speed because the actual airflow pattern changes.
Air distribution should be evaluated across the complete bar. Uneven output may indicate blocked holes, damaged passages, incorrect regulators, or contamination inside the system. Smoke visualization or suitable airflow instruments can sometimes help identify the direction of air movement, provided that the test is permitted in the production environment.
Proper grounding supports safe and stable ionizer operation, while poor grounding, damaged connections, unstable power, and electrical interference can cause inconsistent static elimination.
Ionization and grounding perform different but complementary functions. Conductive machine parts and personnel should normally be grounded so that charge can flow away safely. Insulating materials cannot be neutralized by grounding alone because charge does not move freely through them. These surfaces require ions of the opposite polarity. If nearby conductive parts are not grounded, they may accumulate charge and create new electrostatic problems.
The ionizing bar, power supply, mounting hardware, and machine frame should be installed according to applicable electrical and safety requirements. A loose earth connection, painted mounting surface, corroded terminal, damaged cable, or incorrect power connection can interfere with performance. A visual inspection is useful, but electrical continuity may also need to be verified with appropriate instruments and approved procedures.
Electrical noise from motors, drives, heaters, switching power supplies, and high voltage equipment can affect monitoring signals or control electronics. Power cables and signal cables may require proper routing, separation, and shielding. If poor elimination appears only when particular equipment operates, electrical interference should be included in the investigation.
Grounding should not be treated as a substitute for ionization. The best system removes charge from conductive objects through grounding and neutralizes insulating materials with correctly delivered ions. Evaluating both parts of the system prevents maintenance teams from focusing on only one possible cause.
High material speed, short exposure time, repeated contact and separation, and changes in material composition can produce static faster than an ionizing bar can neutralize it.
Neutralization requires time. When material moves quickly past an ionizing bar, each section of the surface remains within the effective ion field for only a brief period. Increasing line speed without reviewing the static control system can therefore increase the residual voltage. The solution may involve changing the installation position, extending the treatment zone, improving ion delivery, or adding another ionizer.
Processes can also generate charge after the existing treatment point. Film may be neutralized successfully and then pass over another roller, separate from a liner, slide against a guide, or enter a winding operation. Each event can create a new charge. A static meter reading taken at the final process stage may incorrectly suggest that the first bar failed, even though the material was neutral when it left that bar.
Material changes are another common cause. Different polymers, coatings, additives, release liners, paper moisture levels, and surface treatments can change charging behavior. A line that performs reliably with one product may experience severe static with another. Process recipes should therefore include static control settings when product type, speed, tension, temperature, or pressure changes significantly.
| Process Change | Possible Static Effect | Potential Response |
|---|---|---|
| Higher line speed | Less neutralization time | Extend treatment or increase suitable ion delivery |
| New material | Different charge polarity or magnitude | Measure the new material under production conditions |
| Higher web tension | Greater contact and separation effects | Review rollers, guides, and treatment locations |
| New coating or adhesive | Additional charging and emitter contamination | Adjust maintenance and test intervals |
| Added roller after treatment | Static generated again | Consider an additional treatment point |
Yes. Low humidity, airborne contamination, temperature changes, and strong environmental airflow can increase static generation or reduce the number of ions reaching the material.
Low relative humidity often increases electrostatic problems because surfaces retain charge for longer periods. Under dry conditions, materials that previously showed moderate static may develop much higher voltages. Ionization remains an effective solution, but the system may need more capacity or a longer exposure period during dry seasons.
Humidity should not be increased without considering product quality, corrosion, cleanroom control, microbial risk, and process requirements. It is an environmental factor rather than a universal correction. Sensitive production may require tightly controlled temperature and humidity, while ionization provides local static neutralization without altering the complete facility environment.
Airborne dust, fibers, smoke, oil mist, and chemical vapor can reduce performance by contaminating the emitters or capturing ions. A heavily contaminated atmosphere may require shorter maintenance intervals, protective installation, improved filtration, or a different treatment position. The source of contamination should also be corrected where practical.
Cleanroom airflow deserves special attention. Unidirectional airflow can help carry ions toward the target, but an incorrect bar position may cause ions to be swept away. Equipment must also be suitable for the cleanliness requirements of the area. Materials, particle generation, compressed air quality, and maintenance procedures should be reviewed before installation.
Poor ion balance, worn emitters, damaged cables, power supply faults, and internal contamination can leave a residual charge even when the ionizer appears to be operating.
An ionizer should supply positive and negative ions in a controlled relationship. If the output is strongly biased toward one polarity, the equipment may neutralize an oppositely charged surface initially and then charge it in the other direction. This is particularly important in electronics, semiconductor, optical, medical device, and other sensitive applications.
Ion balance can drift because of emitter contamination, unequal emitter wear, incorrect adjustment, environmental influence, power supply deterioration, or damage. Visual indicators may confirm that the unit is powered, but they do not necessarily prove that balance and decay performance remain within process limits. Direct testing is required.
Physical damage can create intermittent problems. Cables may be crushed, insulation may be cracked, connectors may become loose, and emitter points may be bent or worn. Intermittent faults are often difficult to identify because the system may pass a test when the machine is stationary and fail during vibration, movement, or temperature change.
The expected service life depends on design, operating hours, environment, cleaning practices, and process contamination. Maintenance teams should compare current measurements with the original acceptance results. A gradual decline that continues after careful cleaning and installation correction may indicate that components require professional inspection or replacement.
Incorrect instruments, inconsistent measuring distance, unsuitable test locations, and measurements taken under different process conditions can create misleading conclusions about static elimination performance.
A handheld electrostatic field meter measures the electric field associated with a charged surface. The reading depends on distance, target size, instrument orientation, nearby grounded objects, and surface movement. Measurements taken at different distances cannot be compared reliably unless the instrument automatically compensates for distance.
The test location must also be controlled. Measuring before the ionizer shows the incoming charge, while measuring after it shows the residual charge. Both readings are useful, but they answer different questions. Testing far downstream may include static generated by rollers or guides located after the bar. Measurements should therefore be taken at clearly documented positions.
A charged plate monitor is commonly used to evaluate ion balance and decay time. Decay time indicates how quickly the ionizer reduces a known charge between defined voltage levels. Ion balance indicates whether the plate experiences a positive or negative offset. These values offer more repeatable information than visual observation alone.
Testing should reproduce actual operating conditions. Material type, speed, bar distance, air pressure, temperature, humidity, and machine state should be recorded. A test conducted with a stopped line, clean emitters, and no exhaust airflow may not represent full production. Consistent methods make it possible to detect genuine deterioration rather than normal measurement variation.
Poor static elimination should be troubleshot by confirming the problem, measuring the charge before and after treatment, inspecting the equipment, checking the installation, and changing one variable at a time.
The first step is to define the symptom. Dust attraction, operator shocks, material adhesion, misfeeding, electronic damage, and unstable winding may all involve static, but they can also have mechanical or environmental causes. A suitable meter should confirm that excessive charge is present.
Next, measure the charge immediately before and after the ionization point. A large reduction shows that the bar is working, even if static appears again farther downstream. Little or no reduction suggests insufficient ion delivery, contamination, poor positioning, excessive speed, incorrect balance, or an equipment fault.
A practical troubleshooting sequence is:
Only one major variable should be changed at a time. If distance, pressure, position, and line speed are changed simultaneously, the team may restore acceptable performance without learning which factor caused the problem. Controlled testing creates reusable knowledge for future production changes.
Reliable static control requires documented installation standards, regular cleaning, scheduled performance testing, operator training, and periodic review whenever the production process changes.
A preventive maintenance program should include both physical inspection and performance measurement. Cleaning alone does not prove that the ionizer is operating correctly, and electrical testing alone does not reveal every mechanical or contamination problem. Combining both methods provides a more complete assessment.
Baseline measurements should be recorded when the system is first commissioned. Useful information includes ion balance, decay time, installation distance, air pressure, material voltage before and after treatment, line speed, humidity, temperature, and measurement location. These records provide a reference for future troubleshooting.
Operators should be trained to recognize early warning signs. Increasing dust, unstable sheets, small shocks, web tracking changes, repeated feeding errors, or unusual meter readings should be reported before they become major production problems. Simple daily observation can support more formal weekly, monthly, or process based maintenance.
| Maintenance Activity | Purpose | Suggested Basis |
|---|---|---|
| Visual inspection | Find deposits, damage, and loose components | Based on shift or production risk |
| Emitter cleaning | Restore ion output and balance | Based on contamination rate and test results |
| Static voltage measurement | Confirm process effectiveness | After setup changes and at scheduled intervals |
| Decay and balance testing | Verify ionizer performance | Based on application sensitivity |
| Grounding inspection | Maintain safe charge dissipation | During preventive maintenance and machine changes |
| Process review | Identify new static generation points | Whenever materials, speeds, or equipment change |
Maintenance frequency should reflect actual risk. A critical electronics process may require frequent documented verification, while a general packaging process may tolerate a wider performance range. The interval should be shortened when measurements begin trending toward an unacceptable limit, even if production defects have not yet appeared.
Poor static elimination is rarely caused by one factor alone. The most effective response is a systematic review of ionizer condition, installation, airflow, grounding, process speed, environment, material behavior, and measurement methods.
An ionizing air bar can be powered and visibly operating while still delivering inadequate neutralization. Excessive distance, contaminated emitter points, incomplete coverage, insufficient exposure time, obstructed airflow, poor ion balance, and static generation after the treatment point are among the most frequent causes. Incorrect testing can further complicate diagnosis by producing inconsistent or misleading readings.
Manufacturers can improve reliability by establishing baseline performance data, cleaning emitters according to actual contamination levels, measuring charge at defined locations, and reviewing the system whenever materials or production settings change. Grounding, ionization, airflow, and process design should be treated as connected parts of one static control strategy.
A well maintained and correctly positioned ionizing air bar can provide stable static neutralization, reduce dust attraction, improve material handling, protect sensitive components, and prevent unnecessary production losses. When performance declines, disciplined measurement and step by step troubleshooting will usually identify the cause more quickly than replacing equipment without first evaluating the complete application.
