Ion balance is one of the most important performance indicators in industrial static control. It is especially critical in electronics manufacturing, semiconductor processing, medical device assembly, optical production, precision packaging, and other operations involving electrostatic discharge sensitive components. When an ionizer does not maintain a suitable balance, it may leave a residual charge or even place a new charge on a previously neutral surface.

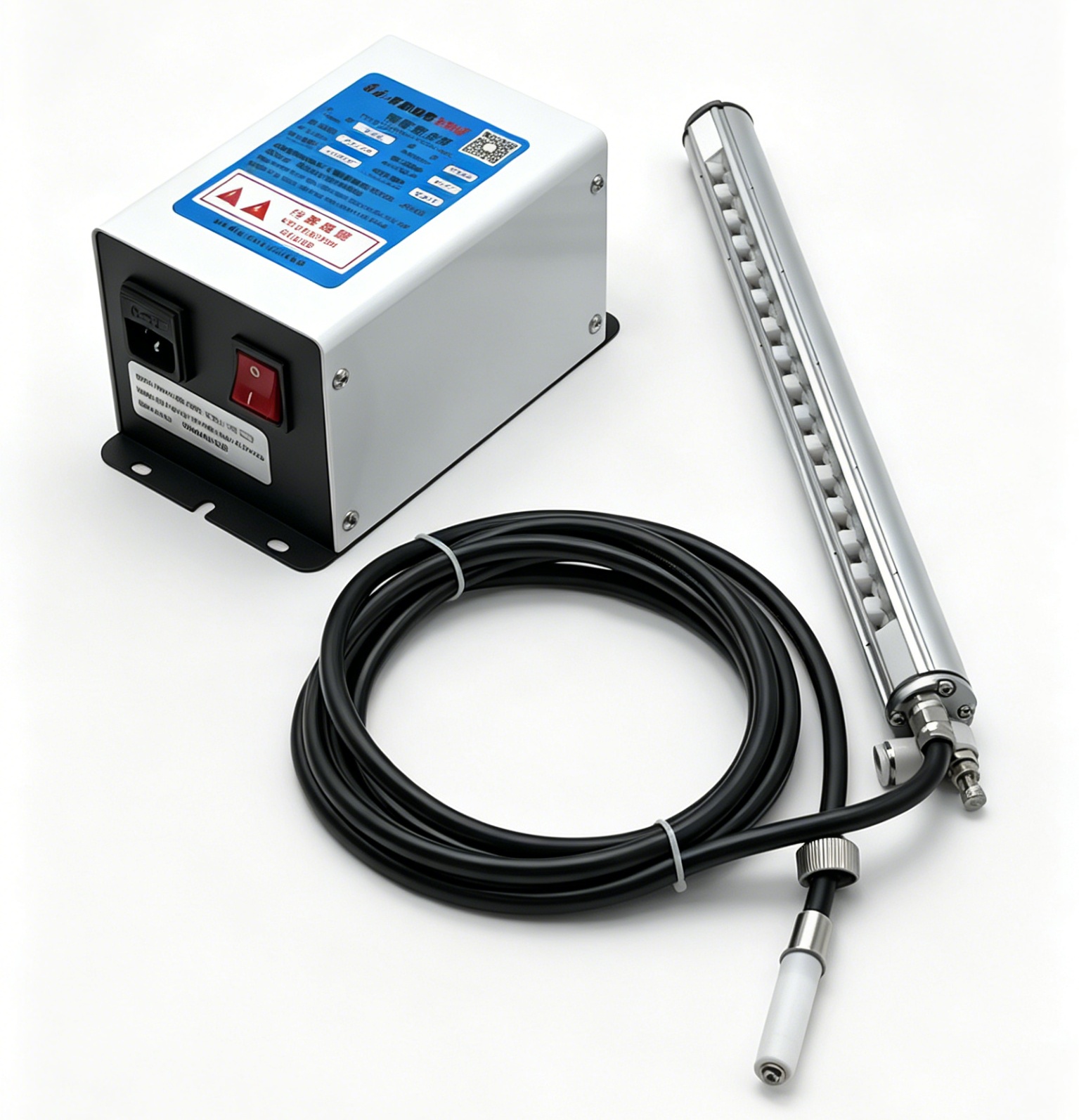

Ionizing air bars produce positive and negative ions to neutralize static electricity on insulated materials and isolated conductors. For this process to work correctly, the quantity and effectiveness of the two ion polarities must remain appropriately balanced at the target surface.
Ion balance is the difference between the positive and negative ion effects produced by an ionizer, expressed as an offset voltage. An ion balance close to zero volts means that the positive and negative ions reaching the target are approximately equal in their charging effect. A large positive or negative offset indicates that one ion polarity is dominant.
Good ion balance helps an ionizing air bar neutralize both positively and negatively charged objects without leaving an excessive residual voltage. The required balance range depends on the sensitivity of the product, the production process, the working distance, and the applicable static control requirements.
This article explains how ion balance works, how it is measured, why it changes, and how industrial users can maintain stable performance. It also examines the relationship between ion balance and static decay time, two values that should always be considered together.
This guide covers the meaning, importance, measurement, influencing factors, acceptable ranges, troubleshooting methods, and industrial applications of ion balance.
Ion balance is not simply a specification printed on a product document. It is a measurable condition at a specific location under defined operating circumstances. Distance, airflow, emitter condition, nearby equipment, and environmental conditions can all change the reading.
The following topics provide a complete introduction for equipment buyers, production engineers, ESD coordinators, quality teams, and maintenance personnel.
Each section focuses on practical performance at the target rather than theoretical output at the emitter. This approach helps users evaluate whether an ionizing system can meet the real requirements of a production process.
Ion balance describes whether the positive and negative ions delivered by an ionizer have an equal charging effect on a neutral isolated object.
An ionizing air bar creates both positive and negative ions around its emitter points. When these ions reach a charged object, ions with the opposite polarity are attracted to the surface. They combine with or compensate for the excess electrical charge, reducing the voltage toward a neutral condition.
If the target has a positive charge, negative ions are needed for neutralization. If the target has a negative charge, positive ions are needed. A balanced ionizer can respond effectively to either condition without continuously charging the object in one direction after the original static charge has been removed.
Ion balance is normally expressed as an offset voltage. A positive reading means that the positive ion effect is stronger at the measurement point. A negative reading means that the negative ion effect is stronger. A reading of zero volts represents an ideal balance between the two polarities, although small variations are normal in practical industrial environments.
| Measured Offset Voltage | General Meaning | Possible Effect |
|---|---|---|
| 0 volts | Positive and negative effects are equal | Minimal tendency to charge a neutral target |
| Positive 5 volts | Slight positive dominance | Small positive residual voltage may develop |
| Negative 10 volts | Moderate negative dominance | Target may develop a negative residual voltage |
| Positive 50 volts | Strong positive dominance | May be unsuitable for sensitive processes |
| Negative 100 volts | Severe negative dominance | Inspection and correction are required |
The effect of a particular offset depends on the application. A residual voltage of several tens of volts may be acceptable in some packaging or plastics processes, while a sensitive semiconductor assembly process may require much tighter control.
Ion balance must always be associated with a measurement location. A bar might show an offset of only a few volts at one point but a larger offset near the edge of its coverage area. For this reason, uniformity across the complete working area is as important as the reading at the center.
Ion balance is important because an unbalanced ionizer can leave residual static, charge a neutral object, reduce process stability, and increase the risk of electrostatic damage or contamination.
The purpose of an ionizing system is to reduce unwanted electrical charge. If one polarity dominates, the system may quickly neutralize a charge of the opposite polarity but respond slowly to a charge of the same polarity. After neutralization, it may continue depositing the dominant ions and create a new residual charge.
This behavior can be especially serious when products are electrically insulated from ground. Conductive objects connected to a reliable ground can release charge through the grounding path. Insulators, isolated conductors, plastic surfaces, circuit boards in certain handling conditions, and semiconductor components may not have an effective path for charge dissipation. They rely heavily on properly balanced ionization.
Good ion balance supports consistent process results. It reduces the possibility that one batch, material position, or product type will leave the ionization zone with a different residual voltage. This consistency is valuable for product quality, equipment reliability, process validation, and troubleshooting.
Ion balance is also important when an ionizer operates continuously near a sensitive product. A small offset applied for a short time may have a limited effect, but the same offset applied for an extended period can charge an isolated object toward the offset level of the ionizer.
For general industrial applications, the business consequences of poor balance can include more rejected products, machine interruptions, cleaning requirements, and customer complaints. In sensitive electronics production, poor balance may create damage that is difficult to detect during ordinary inspection.
An ionizing air bar creates ion balance by generating controlled quantities of positive and negative ions and delivering them to the target with similar effectiveness.
The emitter points inside an ionizing air bar are connected to a high voltage electrical system. Depending on the design, the system may alternate between positive and negative voltage, operate separate positive and negative emitters, or use controlled pulses to generate each polarity.
When a positive high voltage is applied, the electrical field around the emitter creates positive ions. When a negative high voltage is applied, negative ions are produced. The control system determines the timing, strength, and frequency of these outputs.
Generating equal quantities at the emitter does not always guarantee perfect balance at the target. Positive and negative ions may move differently through the air. Their mobility, recombination behavior, interaction with nearby structures, and response to electrical fields can influence how many ions of each polarity reach the measurement point.
| Ionization Method | Basic Operation | Ion Balance Consideration |
|---|---|---|
| Alternating current ionization | Voltage changes between positive and negative polarity | Balance depends on waveform, frequency, and installation |
| Pulsed direct current ionization | Positive and negative emitters operate in controlled pulses | Pulse duration and output can often be adjusted |
| Continuous direct current ionization | Separate emitters continuously generate each polarity | Emitter condition must remain similar across both polarities |
| Feedback controlled ionization | A control system adjusts ion output using measurement feedback | Can compensate for changing conditions within its control range |
Airflow transports ions from the bar toward the target. In a non air assisted bar, natural air movement and the electrical field play a significant role. In a compressed air or blower assisted system, ion delivery is strongly influenced by air velocity and direction.
The physical arrangement of emitter points is designed to distribute positive and negative ions across the active length of the bar. Uniform spacing and stable electrical output help prevent areas where one polarity becomes dominant.
Advanced control systems may allow positive and negative outputs to be adjusted separately. This adjustment can compensate for installation distance, airflow, target position, and surrounding machine structures. Any adjustment should be verified with suitable measuring equipment rather than made only according to visual judgment.
Ion balance is normally measured with an isolated conductive plate connected to a charged plate monitor or another suitable electrostatic measuring instrument.
A charged plate monitor contains a conductive plate that is electrically isolated from ground. When the ionizer directs positive and negative ions toward the plate, the plate develops an electrical potential according to the relative effect of the two ion polarities. The stabilized voltage is recorded as the ion balance or offset voltage.
The monitor should be placed at the intended target location and working distance. Testing directly beside the bar may produce a value that does not represent the product position. The distance, angle, airflow, and surrounding structures used during measurement should reflect the actual installation whenever possible.
The plate is usually allowed to reach a stable reading before the value is recorded. Because many ionizers produce alternating or pulsed outputs, the reading may fluctuate. The test method may require observing the average, peak values, or stabilized offset over a defined period.
Environmental conditions should be recorded because temperature, humidity, ventilation, and external airflow may influence the result. Nearby charged materials and grounded metal structures can also affect the measurement. The test area should be controlled sufficiently to produce repeatable data.
A handheld electrostatic field meter can help measure residual voltage on products, but it is not always a direct replacement for a charged plate monitor. Product voltage measurements show the result of the complete process, while a charged plate monitor provides a controlled method for evaluating ionizer performance.
For a wide ionizing bar, one center measurement is not sufficient. Readings should be taken at several positions along the active length. Testing should also include the actual height variation of products when the ionizer serves a conveyor with objects of different sizes.
An acceptable ion balance range is determined by product sensitivity and process requirements, with tighter limits required for sensitive electronics and wider limits often accepted for general industrial static control.
There is no single ion balance value suitable for every factory. A process handling highly sensitive semiconductor devices may require an offset very close to zero volts. A packaging line that uses ionization mainly to prevent film sticking may operate successfully with a wider range.
The acceptance limit should be defined through a documented static control plan or process risk assessment. Product sensitivity, distance from the ionizer, exposure time, possible discharge paths, and the cost of failure should all influence the decision.
The table below provides general application guidance. It is not a replacement for applicable standards, customer requirements, or a product specific engineering assessment.
| Application Type | Typical Balance Priority | General Control Approach |
|---|---|---|
| Sensitive semiconductor processing | Extremely high | Very tight offset control and frequent verification |
| Electronics assembly | High | Tight balance range based on component sensitivity |
| Medical device production | High | Documented limits and traceable testing |
| Optical component production | Moderate to high | Balance control combined with particle prevention |
| Printing and packaging | Moderate | Range based on feeding, transfer, and dust control needs |
| Plastics processing | Moderate | Range based on residual voltage and process stability |
| General material handling | Application dependent | Functional limit based on the process problem |
A narrow specification at a short laboratory distance may not represent performance at the actual working distance. Buyers and engineers should evaluate balance at the target position. Longer distances, strong airflow, nearby grounded structures, and wide treatment areas can increase variation.
The positive and negative peak values may also matter. An instrument could show an average near zero while the output swings significantly in both directions. Sensitive products may respond to these voltage changes even though the average appears acceptable.
A suitable acceptance range must be both protective and practical. An unnecessarily tight range may increase testing and adjustment without improving product quality. A range that is too wide may fail to control real electrostatic risks. Process data should guide the final requirement.
Ion balance measures the difference between positive and negative ion effects, while decay time measures how quickly the ionizer reduces an existing static charge.
These two values describe different parts of ionizer performance. Decay time indicates neutralization speed. Ion balance indicates the residual charging tendency after the original charge has been reduced. An effective ionizing system needs both adequate decay speed and suitable balance.
For example, an ionizer with high output might neutralize a positive charge rapidly because it produces a large quantity of negative ions. If its positive ion output is weak, however, it may neutralize a negative charge slowly and leave the target with a negative offset. The fast result for one polarity does not mean that the ionizer is properly balanced.
Similarly, a highly balanced ionizer might produce only a small number of ions. Its offset could remain close to zero, but it might take too long to neutralize a moving product. Good balance alone does not guarantee sufficient treatment capacity.
| Performance Indicator | What It Measures | Main Question Answered |
|---|---|---|
| Ion balance | Difference between positive and negative ion effects | Will the ionizer leave or create residual voltage? |
| Positive decay time | Time required to reduce a positive charge | How quickly are negative ions delivered? |
| Negative decay time | Time required to reduce a negative charge | How quickly are positive ions delivered? |
| Residual product voltage | Charge remaining after actual treatment | Is the complete process achieving its goal? |
| Coverage uniformity | Performance variation across the treatment area | Are all target locations controlled? |
Decay testing normally charges an isolated plate to a defined positive voltage and measures the time required for the voltage to fall to a lower level. The test is then repeated with a negative charge. Comparing the two decay times can reveal differences in polarity output.
Industrial acceptance testing should include positive decay, negative decay, ion balance, and measurements at several target positions. Together, these values provide a more complete picture than any individual specification.
Poor ion balance can result from contaminated emitters, electrode wear, incorrect settings, uneven airflow, unsuitable working distance, nearby grounded structures, electrical faults, and changing environmental conditions.
Emitter contamination is one of the most common causes. Dust, oil, adhesive vapor, fibers, ink residue, and process particles collect around the emitter points. The deposits distort the electrical field and may affect one polarity more than the other.
Emitter wear can gradually change tip geometry. Corrosion, impact damage, aggressive cleaning, and long operating periods may alter the shape or surface condition of an electrode. If positive and negative emitters wear differently, the balance can shift.
Airflow must carry both polarities uniformly toward the target. Blocked air openings, unequal nozzle pressure, cross airflow, or a partially obstructed bar can produce different readings across the working area. This problem may be mistaken for an electrical adjustment issue.
| Cause | Possible Balance Effect | Recommended Check |
|---|---|---|
| Dirty emitter points | Unstable or shifted offset | Inspect and clean the emitters |
| Worn electrodes | Gradual long term drift | Examine tip condition and service history |
| Uneven compressed air | Different readings across the bar | Check pressure, flow, and openings |
| Incorrect output setting | One polarity becomes dominant | Verify positive and negative settings |
| Nearby grounded metal | Ions are diverted from the target | Inspect installation geometry |
| Excessive working distance | Weak and variable readings | Test at several distances |
| Damaged cable or insulation | Irregular output or fault condition | Perform a qualified electrical inspection |
| Strong cross airflow | Uneven ion delivery | Observe and measure air direction |
Target position can change the measured balance. A conveyor carrying products of different heights creates different distances between the bar and each product. The ion distribution at the highest product may not match the distribution at the conveyor surface.
External electrical fields can also influence testing. Charged films, machine components, cables, operators, and nearby ionizers may affect the isolated monitor plate. Measurements should be performed under controlled and repeatable conditions.
Changes in humidity do not necessarily alter the ionizer output directly, but they influence charge leakage and the way static accumulates on materials. This can make overall process performance appear different even when the measured offset remains similar.
Ion balance problems can usually be corrected by cleaning the emitters, restoring uniform airflow, optimizing the installation position, verifying electrical condition, and adjusting positive and negative output when the equipment allows it.
The first step should be to confirm that the measurement is valid. Check the monitor calibration status, test location, grounding arrangement, airflow setting, and environmental conditions. An incorrect test setup can produce misleading results and unnecessary adjustments.
Next, inspect the ionizer for contamination. Power must be isolated according to the approved safety procedure before cleaning. Use cleaning materials and tools suitable for the emitter and insulation materials. The emitters should not be bent, scraped, or reshaped.
After cleaning, repeat the ion balance and decay tests at the same positions. If the offset returns to the acceptable range, contamination was probably the main cause. If the problem remains, airflow, installation geometry, output settings, and electrical condition should be investigated.
When output adjustment is available, small changes should be made systematically. The technician should allow the reading to stabilize after each adjustment. Balance should then be checked at several points because correcting the center position does not guarantee acceptable edge performance.
If the bar cannot achieve both acceptable balance and acceptable decay time, replacement or redesign may be necessary. Adding airflow, moving the bar closer, increasing treatment time, or installing an additional ionizer may improve delivery. An electrical fault, damaged emitter assembly, or deteriorated power system requires qualified service.
Operators should not compensate for poor ionization by continuously increasing output without identifying the cause. Excessive output may increase electrode wear, unwanted electrical effects, or maintenance demand while failing to correct an airflow or installation problem.
Ion balance should be tested during installation, after maintenance, at planned intervals, and whenever equipment, materials, airflow, or production conditions change.
The appropriate frequency depends on process sensitivity and contamination rate. A critical electronics process may require frequent verification or continuous monitoring. A general packaging operation may use a longer interval supported by routine residual voltage checks.
New installations should be tested before production approval. Baseline readings should include center and edge positions, positive and negative decay times, balance, working distance, airflow settings, temperature, and humidity. These records provide a reference for future maintenance.
Testing should also be performed after emitter cleaning, electrode replacement, power supply service, bar repositioning, airflow adjustment, or machine modification. These activities can change ion delivery even when the equipment appears to operate normally.
A scheduled test interval should be based on historical data. If balance remains stable for many inspections, the interval may be reviewed according to the quality system. If readings drift quickly, cleaning frequency and process contamination controls should be improved.
Test records should include the instrument identification, calibration status, date, operator, measurement positions, operating settings, environmental conditions, and acceptance decision. Complete records improve traceability and make performance trends easier to identify.
For critical operations, a remote sensor or monitoring system may provide continuous information. However, sensors also require inspection and calibration. Automated data should be reviewed rather than assumed to be correct indefinitely.
Buyers should compare ion balance specifications only when the working distance, test method, airflow, measurement area, operating mode, and environmental conditions are similar.
A balance value without test conditions has limited meaning. A bar measured at 100 millimeters may show a tighter offset than the same bar measured at 600 millimeters. Likewise, a center reading may look better than the maximum variation across the complete active length.
Purchasing teams should request both typical and maximum values where available. A typical value describes common performance, while a maximum specification defines a limit under stated conditions. The equipment should be evaluated according to the guarantee relevant to the application.
Decay time must be reviewed together with balance. An ionizer that provides a very tight offset but cannot neutralize the product within the available process time is not suitable. Conversely, an extremely fast ionizer with excessive offset may introduce a new charge.
| Comparison Question | Why It Matters |
|---|---|
| Was balance tested at the required distance? | Performance changes with distance |
| Were edge positions measured? | Center performance may hide poor uniformity |
| Are both decay polarities reported? | One polarity may perform more slowly |
| Is the value typical or guaranteed? | The two specifications have different meanings |
| Was airflow used during testing? | Airflow significantly affects ion delivery |
| Can output be adjusted? | Adjustment may help match the installation |
| Is feedback control available? | Feedback may compensate for changing conditions |
| How is performance verified? | Clear testing supports long term control |
Buyers should define the process requirement before comparing equipment. Important information includes component sensitivity, initial static voltage, product speed, treatment time, target width, mounting distance, environmental conditions, and acceptable residual voltage.
A production trial can provide valuable confirmation. The bar should be tested with actual products at normal speed and at the intended position. Balance, decay performance, and residual product voltage should be measured before final approval.
Ion balance is the positive or negative offset voltage created by differences between the two ion polarities delivered by an ionizer. A value close to zero indicates that positive and negative ion effects are approximately balanced.
Proper ion balance allows an ionizing air bar to neutralize both positive and negative static charges without leaving a significant residual voltage. It is particularly important for insulated materials, isolated conductors, sensitive electronic components, semiconductor devices, optical products, and precision manufacturing processes.
Ion balance and decay time measure different aspects of performance. Balance describes the residual charging tendency, while decay time describes neutralization speed. Both values must meet the process requirement, and both positive and negative decay results should be evaluated.
Balance can change because of emitter contamination, electrode wear, airflow variation, working distance, machine geometry, electrical condition, and environmental influences. Regular inspection, cleaning, testing, and documentation are therefore necessary for reliable long term performance.
The correct balance range depends on application risk. Sensitive electronics generally require tighter control than printing, packaging, or general material handling. Acceptance limits should be based on product sensitivity, process measurements, applicable requirements, and a documented static control plan.
When selecting an ionizing air bar, buyers should request complete test conditions rather than comparing a single offset value. Working distance, measurement position, airflow, decay time, coverage uniformity, adjustment capability, and maintenance requirements all affect real performance.
By measuring ion balance at the actual target position and maintaining the ionizer correctly, industrial users can improve static neutralization, reduce electrostatic damage, limit dust attraction, stabilize material handling, and support consistent product quality.
