Ionizing bars and air knives are widely used in printing, packaging, plastics processing, electronics manufacturing, automotive production, food packaging, metal processing, and other automated industries. Because both devices can be installed across a conveyor or material web and may use airflow, buyers sometimes assume that they perform the same function.
In reality, an ionizing bar and an air knife solve different production problems. Selecting the wrong device can lead to poor static control, incomplete drying, ineffective particle removal, unnecessary compressed air consumption, or unstable product quality. Understanding their operating principles is therefore essential before specifying equipment for a production line.
An ionizing bar uses positive and negative ions to neutralize static electricity, while an air knife uses a controlled sheet of high velocity air to remove water, dust, particles, debris, or heat from a surface. An ionizing bar primarily changes the electrical condition of a target. An air knife primarily applies mechanical airflow. A combined ionizing air knife performs both functions by adding ions to the air stream.
The correct choice depends on the actual process problem. If plastic film sticks to rollers because of static electricity, an ionizing bar may be appropriate. If water must be removed from a washed component, an air knife is usually required. If static causes dust to remain attached to a product, a combined ionizing air knife may provide the most effective treatment.
This guide compares the functions, operating principles, airflow requirements, working distances, applications, energy costs, installation needs, and maintenance requirements of ionizing bars and air knives. It also explains when both technologies should be used together.
This article covers the fundamental differences between ionizing bars and air knives, including their functions, airflow, applications, performance measurements, installation requirements, operating costs, and selection criteria.
Although the two devices can look similar, their internal designs and performance goals are different. An ionizing bar is evaluated through static decay time, ion balance, and effective coverage. An air knife is evaluated through airflow velocity, pressure, impact force, uniformity, and its ability to remove material from a surface.
The following sections help engineers, production managers, maintenance teams, and purchasing professionals identify which technology is suitable for a particular industrial task.
Each section focuses on measurable process needs rather than appearance alone. This is important because a device that fits mechanically into a machine may still be unsuitable for the required electrical or airflow performance.

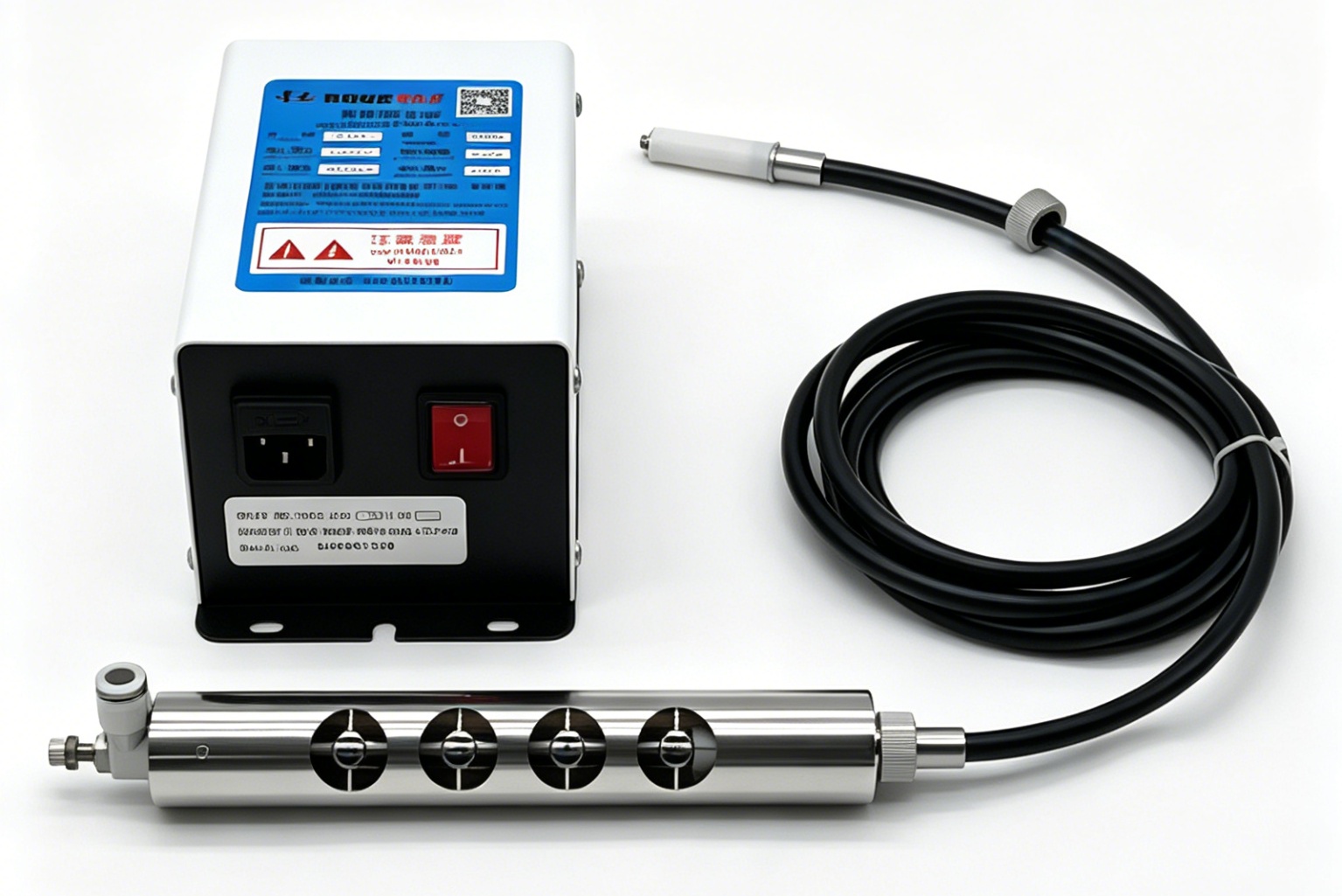

An ionizing bar is a static control device that produces positive and negative ions to neutralize electrical charges on materials, products, and machine surfaces.
Static electricity commonly develops when two materials contact and separate. Plastic film unwinding from a roll, paper passing through rollers, molded parts leaving a tool, protective liners being removed, and components sliding through feeders can all generate charge.
Conductive objects can often be discharged by connecting them to ground. Insulating materials, however, do not release charge easily through a grounding wire. An ionizing bar solves this problem by delivering charged air molecules to the target surface.
If the target carries a positive charge, it attracts negative ions. If it carries a negative charge, it attracts positive ions. As the opposite polarity ions reach the surface, the static voltage decreases toward a neutral condition.
An ionizing bar may operate without forced air when it is installed close to the target. Other designs use compressed air or blower airflow to transport ions over a longer distance or into recessed areas.
Important performance measurements include positive and negative static decay time, ion balance, coverage uniformity, working distance, and residual voltage on the actual product. The best ionizing bar is not necessarily the model with the highest voltage. It is the system that provides controlled neutralization throughout the required treatment area.
An air knife is an airflow device that produces a continuous, controlled sheet of air for drying, cleaning, cooling, separating, or removing unwanted material from a surface.
An air knife usually contains an internal chamber that distributes air across a narrow outlet. The outlet creates a uniform air curtain that moves across the product or process area. The resulting mechanical force removes liquid, dust, chips, or other loose material.
Air knives can be supplied by compressed air or by a blower. Compressed air systems can provide high velocity from a relatively compact device. Blower supplied systems move a larger volume of air and may be more economical for wide, continuous applications.
The air knife itself does not necessarily neutralize static electricity. Ordinary airflow may remove loose particles, but electrostatically attracted dust can remain attached to the surface. In some cases, fast airflow and material movement may also contribute to further static generation.
Air knife performance is normally evaluated through air velocity, volume, pressure, impact force, uniformity, noise, and the ability to achieve the required drying or cleaning result. These measurements are different from the electrical performance values used for an ionizing bar.
A suitable air knife must provide enough force to overcome surface tension, particle adhesion, gravity, or process movement. Excessive force, however, may move lightweight products, disturb coatings, increase noise, or consume unnecessary energy.
The main difference is that an ionizing bar removes electrical charge, while an air knife uses airflow to remove physical substances or change surface conditions.
An ionizing bar treats an electrical problem. Its output consists primarily of positive and negative ions. Although some ionizing bars use airflow, the airflow serves mainly to transport ions toward the charged target.
An air knife treats a physical process problem. Its output is a directed sheet of air that applies force to water, dust, debris, coatings, or heated surfaces. Ion generation is not part of an ordinary air knife.
The devices are therefore evaluated with different performance indicators. Static decay time and ion balance are important for an ionizing bar. Air speed, pressure, impact, and drying or cleaning efficiency are important for an air knife.
| Comparison Item | Ionizing Bar | Air Knife |
|---|---|---|
| Primary purpose | Neutralize static electricity | Apply mechanical airflow |
| Main output | Positive and negative ions | High velocity air curtain |
| Removes static charge | Yes | Not normally |
| Removes water | Not its primary function | Yes |
| Removes loose debris | Limited without strong airflow | Yes |
| Removes electrostatically attached dust | Releases attraction but may need airflow | May be ineffective without ionization |
| Important measurement | Decay time and ion balance | Velocity, pressure, and impact force |
| Air supply | Optional for some designs | Required |
| Typical energy use | Usually low without compressed air | Depends strongly on air source and flow |
| Common combined form | Ionizing air knife | Air knife with ionization |
Appearance can create confusion because both devices may have a long and narrow housing. Product name and physical shape should not replace a review of operating principle and performance data.
Some systems combine the two technologies. A combined ionizing air knife creates ions and carries them in a forceful air stream. It can neutralize static attraction and then remove the released particles from the surface.
An ionizing bar works through electrical ionization and charge neutralization, while an air knife works through pressure, airflow velocity, and mechanical force.
An ionizing bar contains sharp emitter points connected to a controlled high voltage system. The electrical field near each tip ionizes surrounding air molecules. Positive and negative ions then move toward the target through natural air movement, electrical attraction, or assisted airflow.
A charged surface attracts ions of the opposite polarity. When those ions reach the surface, they compensate for the excess charge. As the voltage decreases, the electrical attraction also becomes weaker until the surface approaches the offset level of the ionizer.
An air knife uses an air inlet, internal chamber, and narrow outlet. Air entering the chamber is distributed along the length of the device and exits as a controlled sheet. The velocity and direction of this sheet create force across the target surface.
The electrical field is central to ionizing bar operation, while airflow energy is central to air knife operation. For this reason, increasing air pressure does not convert an ordinary air knife into a static eliminator.
Likewise, increasing the electrical output of a non air assisted ionizing bar does not make it an effective drying device. It may improve ion production within its design range, but it will not provide the mechanical force needed to remove large quantities of water.
Understanding the dominant physical mechanism helps buyers avoid using an unsuitable solution. The process problem should be defined as electrical, mechanical, or a combination of both before equipment is selected.
An ionizing bar is the correct choice for static elimination because it provides positive and negative ions that directly neutralize electrical charge.
An ordinary air knife does not create controlled positive and negative ions. Its airflow may change the location of charged particles or temporarily disturb a material, but it does not reliably neutralize static on an insulating surface.
In some processes, high velocity air can increase triboelectric charging when particles or materials move against surfaces. Airflow can also dry a surface and reduce moisture, potentially allowing charge to remain longer. Therefore, an air knife should not be assumed to solve a static problem.
An ionizing bar should be positioned where charge causes a process problem and after significant charge generating events. Examples include film separation, liner removal, sheet stacking, product ejection, conveyor transfer, and component feeding.
The selected bar must provide adequate decay time and ion balance. Decay time indicates how quickly charge is reduced. Ion balance indicates whether the positive and negative ion effects are appropriately matched.
For high speed materials, the available treatment time may be very short. A bar with excellent performance on a stationary test plate may still be too slow for the actual process if installed too far from the moving web.
Static voltage should be measured before and after treatment. This confirms whether the ionizing bar is solving the problem under normal line speed, material type, humidity, and installation conditions.
An air knife is usually better for removing water, loose dust, chips, and debris, while an ionizing air knife is more effective when static electricity causes particles to remain attached to the surface.
Water removal requires sufficient airflow force to overcome surface tension and move liquid away from the product. A standard ionizing bar without strong airflow cannot perform this task efficiently. An air knife can create a continuous drying curtain across bottles, sheets, metal components, and other products.
Loose debris can also be removed through mechanical airflow. Chips, fibers, trimming waste, and particles can be blown from a surface when the air velocity and angle are suitable. The process must include a method for capturing or directing the removed material so that it does not contaminate another area.
Electrostatically attached dust is more difficult. A charged plastic surface can hold particles even when airflow is applied. Increasing pressure may move some dust, but it can also spread contamination throughout the machine.
| Process Problem | Recommended Technology | Reason |
|---|---|---|
| Water remaining after washing | Air knife | Mechanical airflow removes liquid |
| Loose metal or plastic chips | Air knife | Air impact removes debris |
| Static charge without visible contamination | Ionizing bar | Electrical neutralization is required |
| Dust strongly attracted to plastic | Ionizing air knife | Ionization releases attraction and airflow removes particles |
| Static film sticking | Ionizing bar | Charge is the primary cause |
| Cooling after a heated process | Air knife | Air movement increases heat transfer |
| Dust control on sensitive electronics | Controlled ionized airflow | Static and cleanliness must be managed together |
A combined process normally follows two steps at the same time. Ions neutralize the charged surface and particles, reducing electrostatic attraction. The air stream then carries the released particles away.
Particle removal also requires collection. If dust is only blown from one surface, it may settle on another product or return through recirculating air. Extraction, filtration, or a controlled collection area may be necessary.
For sensitive products, air cleanliness and force must be controlled carefully. Excessive airflow can damage delicate components or drive particles into small openings. A successful cleaning process uses enough force to remove contamination without creating a new quality problem.
A non air assisted ionizing bar generally has lower airflow cost, while an air knife requires a continuous air source and may consume significantly more energy depending on its width, pressure, and operating schedule.
Many ionizing bars use only electrical power. Their energy consumption can be relatively low because the high voltage ionization circuit operates with limited current. These bars are economical when the target is close enough for ions to reach it without forced air.
Air assisted ionizing bars consume compressed air, but their airflow requirement may be lower than that of an air knife designed for drying or forceful cleaning. The purpose of this airflow is primarily ion transport rather than strong mechanical removal.
An air knife requires enough airflow to create an effective air curtain. Compressed air is convenient and provides high velocity, but generating compressed air can be expensive. Leakage, excessive pressure, poor control, and continuous operation during machine idle periods can increase cost.
| Cost Factor | Ionizing Bar | Air Knife | Ionizing Air Knife |
|---|---|---|---|
| Electrical power | Generally low | Depends on compressor or blower | Includes ionization and air generation |
| Compressed air | Not always required | Required for compressed air designs | Normally required for strong air delivery |
| Maintenance labor | Emitter cleaning and testing | Outlet and air system inspection | Both electrical and airflow maintenance |
| Filter requirements | Needed when air assisted | Depends on air quality requirement | Important for clean ionized airflow |
| Performance monitoring | Balance and decay testing | Pressure and airflow testing | Both types of testing |
A blower supplied air knife may offer lower energy cost for wide continuous drying applications. However, the best choice depends on required velocity, available space, noise limitations, product distance, and installation complexity.
Operating controls can reduce waste. The air supply can be activated only when products are present, provided that the control method does not interfere with process performance. Pressure should be set at the lowest level that consistently achieves the required result.
Total cost should include product quality and downtime. A less expensive device that fails to remove static or water may create rejected products, machine interruptions, and labor costs far greater than the equipment price.
An ionizing bar is positioned according to ion delivery and decay performance, while an air knife is positioned according to airflow impact, angle, surface coverage, and the direction in which removed material must travel.
An ionizing bar is often installed close to the charged surface to maximize ion density and reduce decay time. Non air assisted bars normally work best at short or moderate distances. Air assistance can extend the effective range or improve treatment of recessed areas.
An air knife must be positioned so that its air curtain strikes the target at an effective angle. For water removal, the angle should push liquid toward an edge or collection area. For debris removal, the airflow should direct contamination away from the clean product path.
Distance affects both devices, but in different ways. As an ionizing bar moves farther away, ions disperse and recombine, reducing ion density. As an air knife moves farther away, the air stream spreads and loses impact force.
| Installation Item | Ionizing Bar | Air Knife |
|---|---|---|
| Main positioning goal | Deliver balanced ions to the charged target | Apply sufficient air force to the surface |
| Effect of excessive distance | Longer decay time and weaker ion density | Lower impact force and wider air dispersion |
| Angle consideration | Coverage and ion path | Removal direction and air impact |
| Obstruction concern | Grounded metal may attract ions | Machine structures may block or redirect airflow |
| Target movement | Determines available neutralization time | Influences drying or cleaning exposure |
| Measurement after installation | Balance, decay, and residual voltage | Air velocity and removal effectiveness |
Wide materials require uniform performance across their full width. The active ionization length should cover the charged area, while the air knife outlet should deliver consistent airflow from one edge to the other.
Machine guards and structures should be included during final testing. A system may perform well before the guard is installed but poorly afterward because metal or plastic panels alter ion movement or airflow.
Both devices require stable brackets and sufficient mechanical clearance. Vibration, product collision, cable stress, and movement of air connections can reduce reliability and create maintenance problems.
Ionizing bars require emitter cleaning and electrical performance testing, while air knives require airflow inspection, outlet cleaning, filter maintenance, and checks for leaks or pressure loss.
Ionizing bar emitters attract dust and process contamination because they operate within a strong electrical field. Contamination can slow static decay, shift ion balance, and create uneven performance. Regular cleaning helps restore controlled ion generation.
An air knife outlet can become blocked by dirt, moisture, oil, or process debris. Even partial blockage can create an uneven air curtain. Air filters, regulators, blower inlets, tubing, and fittings should also be inspected.
A combined ionizing air knife requires both types of maintenance. Dirty air can contaminate the emitter area, while blocked outlets can prevent ions from reaching the target uniformly.
Power must be isolated before an ionizing device is cleaned or serviced. Emitter points should be cleaned with suitable tools and materials. Abrasive methods can damage the tips and alter electrical performance.
Compressed air must be clean and appropriately regulated. Oil and water contamination can block air passages, damage products, and create deposits around electrical components. Filters and moisture separators should be inspected according to actual operating conditions.
Maintenance intervals should be based on performance data. If decay time or airflow uniformity begins to deteriorate after a specific operating period, cleaning should be scheduled before the process falls outside its acceptance limit.
An ionizing air knife should be used when a process requires both static neutralization and strong airflow for particle removal, surface cleaning, separation, or drying assistance.
This combined device adds positive and negative ions to a controlled air stream. The ions reduce static attraction, while the air force removes released particles or other surface contamination.
It is particularly useful for cleaning plastic parts, films, sheets, containers, and molded products. These materials can hold strong static charges that attract dust. An ordinary air knife may move loose particles but leave electrostatically attached contamination behind.
Combined ionized airflow can also treat complex surfaces and recessed areas. The air carries ions into locations that a non air assisted bar may not reach effectively. Nozzle angle, pressure, distance, and coverage must be optimized to avoid creating untreated zones.
An ionizing air knife is not automatically the best solution for every static problem. If no mechanical cleaning or drying force is needed, a standard ionizing bar may provide lower noise, lower air consumption, and simpler maintenance.
Likewise, if the process only needs water removal and static electricity is not present, an ordinary air knife may be sufficient. Adding unnecessary ionization increases equipment complexity without providing a clear benefit.
The combined system is most valuable when measurements or process observations confirm that static attraction is preventing ordinary airflow from removing contamination effectively.
Buyers should choose an ionizing bar for static electricity, an air knife for mechanical drying or cleaning, and an ionizing air knife when both electrical attraction and physical contamination must be controlled.
Selection should begin with a clear definition of the process problem. Buyers should measure static voltage, identify the material to be removed, record line speed, determine target width, and inspect the available installation space.
If static is suspected, voltage should be measured before and after the problem point. If the main issue is water or loose debris, a cleaning or drying trial can determine the necessary air force. When dust remains attached to a charged surface, both measurements may be required.
The complete production environment should be considered. Electronics and clean manufacturing may require filtered air, stable ion balance, and careful particle control. Packaging and plastics processes may prioritize wide coverage, high speed neutralization, and durable emitter design.
| Process Requirement | Preferred Solution |
|---|---|
| Neutralize charge on film | Ionizing bar |
| Protect sensitive electronic components | Balanced ionizing bar |
| Dry washed metal parts | Air knife |
| Remove loose trimming debris | Air knife |
| Remove dust attracted to plastic | Ionizing air knife |
| Neutralize static inside recessed products | Air assisted ionizing system |
| Cool products after heating | Air knife |
| Prevent sheet sticking without cleaning | Ionizing bar |
Performance data should match the intended installation. Ionizing equipment should be compared by balance, positive and negative decay time, coverage, and working distance. Air knives should be compared by velocity, flow, pressure, uniformity, energy consumption, and demonstrated process result.
A production trial can reduce purchasing risk. Actual materials should be tested at normal speed with realistic machine guards, airflow, contamination, and environmental conditions.
Total ownership cost should include electrical power, compressed air, filters, cleaning labor, replacement parts, noise control, testing, product defects, and production downtime. The lowest purchase price does not always provide the lowest operating cost.
An ionizing bar neutralizes static electricity, while an air knife uses a controlled sheet of air to remove water, dust, debris, or heat. A combined ionizing air knife performs both functions.
The most important distinction is the physical problem being treated. Static electricity is an electrical condition and requires positive and negative ions for neutralization. Water, loose particles, and process debris require mechanical airflow for removal.
An ordinary air knife should not be expected to neutralize static. Although it can remove loose contamination, it may be ineffective against particles held by electrostatic attraction. In some processes, airflow can also contribute to further charging.
A standard ionizing bar should not be expected to provide powerful drying or debris removal unless it is designed with suitable airflow. Its main performance indicators are ion balance, positive and negative decay time, working distance, and coverage uniformity.
When static attraction and surface contamination occur together, an ionizing air knife can offer an effective solution. The ions release the electrical attraction, and the air stream carries contamination away. Proper extraction or collection is still necessary to prevent particles from returning to the product.
Installation, maintenance, and operating costs also differ. Ionizing bars require emitter cleaning and electrical performance testing. Air knives require airflow inspection, filter maintenance, pressure control, and outlet cleaning. Combined systems require attention to both areas.
By identifying whether a process problem is electrical, mechanical, or combined, industrial buyers can choose the correct technology. A carefully selected and properly tested system can reduce static related defects, improve drying and cleaning, prevent material handling problems, and support more reliable production.
