Static electricity is a common source of production problems in industries that process plastic film, paper, labels, textiles, glass, electronic components, molded parts, packaging materials, and other insulating products. Although static charge is often invisible, its effects can be seen in dust attraction, material adhesion, feeding errors, operator shocks, product contamination, and electrostatic discharge damage.
Grounding is highly effective for conductive machine parts, but it usually cannot remove charge from insulating materials. An industrial ionizing air bar provides positive and negative ions across a defined area, allowing it to neutralize moving surfaces that cannot be controlled through grounding alone.
Manufacturers choose industrial ionizing air bars because they provide continuous, fast, and uniform static neutralization across wide materials and automated production areas. A correctly selected bar can reduce dust attraction, prevent material handling problems, protect sensitive products, improve process stability, and support higher production speeds.
The value of an ionizing air bar depends on correct application. Bar length, ion output, working distance, installation position, airflow, material speed, environmental conditions, and maintenance all influence the final result.
This guide explains the main benefits of industrial ionizing air bars, the applications where they provide the greatest value, and the technical factors buyers should evaluate before making a selection.
This guide covers the operating principles, benefits, applications, selection criteria, installation practices, testing methods, and maintenance requirements of industrial ionizing air bars.
The first sections explain how an ionizing bar works and why grounding alone is not sufficient for many production materials. The guide then examines the equipment’s effects on contamination, material handling, electronic protection, automation, and production speed.
Later sections discuss coverage, working distance, compressed air, environmental conditions, equipment selection, installation, performance measurement, maintenance, and total ownership cost.
Production managers, engineers, purchasing teams, quality personnel, and maintenance technicians can use these topics to determine whether an ionizing air bar is appropriate for a particular process.

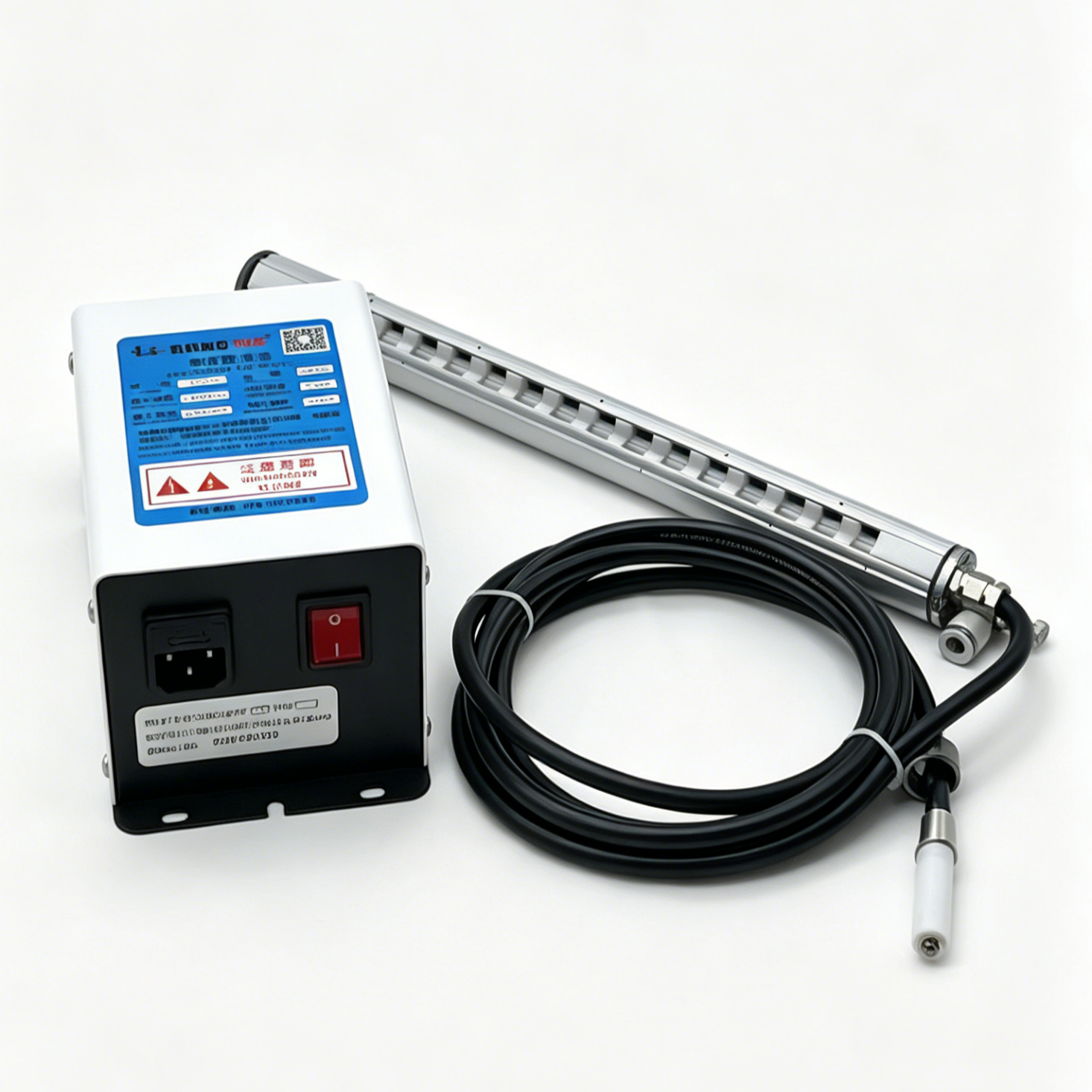

An industrial ionizing air bar is a linear static elimination device that generates positive and negative ions across a defined active length to neutralize electrical charges on materials and products.
The bar contains a series of emitter points connected to a controlled high voltage source. A strong electric field develops near these points and converts surrounding air molecules into positive and negative ions.
The ions travel toward the charged surface through electrical attraction, natural airflow, compressed air, fan airflow, or existing machine airflow. A negatively charged surface attracts positive ions, while a positively charged surface attracts negative ions.
The linear housing allows the ion field to extend across webs, sheets, conveyors, assembly areas, and other production widths. This makes the air bar more suitable than a small nozzle when a broad or continuous area requires treatment.
Industrial bars are available in different lengths, ionization methods, airflow configurations, housing designs, and control levels. The correct configuration depends on the process rather than on length alone.
An ionizing air bar works by supplying ions of both polarities so that a charged surface can attract the opposite polarity and reduce its electrical voltage.
Static charge usually develops through contact and separation. When two surfaces touch, electrons may transfer between them. After separation, one surface may hold excess electrons while the other has an electron shortage.
Insulating materials retain this charge because electrons cannot move freely through the surface. Plastic film, paper, rubber, glass, foam, synthetic textile, and coated materials can therefore remain charged even when they are close to a grounded machine.
The ionizing bar creates a controlled source of airborne charge carriers. These ions move to the material and combine with the excess surface charge. Neutralization continues until the electrical attraction is reduced and the surface approaches a balanced condition.
Neutralization speed depends on ion output, distance, airflow, incoming voltage, material speed, emitter cleanliness, coverage, and environmental conditions. The equipment must deliver enough useful ions before the product leaves the treatment area.
Ionization is needed because grounding removes charge effectively from conductive objects but cannot normally neutralize the complete surface of an insulating material.
A conductive machine frame allows electrons to move through it. When the frame is connected to a verified ground, excess charge can flow away. This makes grounding the first control method for conductive rollers, fixtures, tools, and equipment.
An insulating plastic sheet behaves differently. Charge may remain concentrated in one area because electrons cannot travel easily through the material. Attaching a ground connection to one edge will not usually remove charge across the complete surface.
Ionization delivers opposite polarity charge directly to the insulating surface. It does not require the material to conduct electricity internally. This makes it suitable for film, paper, labels, molded plastic, glass, rubber, foam, and other insulators.
The strongest static control program combines both methods. Conductive objects should be grounded, while insulating products and isolated conductors should be treated with ionization.
An ionizing air bar reduces dust attraction by neutralizing the electrical field that pulls airborne particles toward a charged product surface.
A charged material can attract dust, fibers, hair, powder, and small fragments from the surrounding air. These particles may remain attached through printing, coating, painting, bonding, inspection, assembly, and packaging.
Neutralizing the surface before a critical process reduces additional particle attraction. This can improve visual quality, coating consistency, print clarity, adhesive performance, optical inspection, and final cleanliness.
The bar should be installed before the contamination sensitive operation but after the main charging event. If the material passes over another roller after treatment, it may become charged again and attract particles before reaching the process.
Ionization does not remove every existing contaminant. A cleaning system may still be necessary when particles are already attached mechanically or through oil, moisture, or adhesive residue. The best arrangement often combines surface cleaning with immediate static neutralization.
An ionizing air bar improves material handling by reducing unwanted attraction and repulsion between products, machine surfaces, rollers, guides, conveyors, and packaging materials.
Charged paper or plastic sheets may cling together and enter a feeder in pairs. Thin films can stick to rollers, wrap around guides, or fail to open correctly during bag making and packaging.
Products with similar charge polarity may repel each other. Lightweight components can shift on conveyors, resist stacking, jump from their intended position, or become difficult for robotic grippers to handle.
Neutralization improves consistency by allowing gravity, mechanical guides, vacuum devices, and robotic systems to control product movement without competing electrostatic forces. This can reduce jams and manual corrections.
| Static Handling Problem | Possible Production Effect | Benefit of Ionization |
|---|---|---|
| Sheets cling together | Multiple feeding and machine stops | Improved separation and feeding |
| Film sticks to rollers | Wrapping and tracking problems | More stable web movement |
| Parts repel each other | Unstable conveyor positioning | More predictable placement |
| Labels cling after cutting | Stacking and transfer errors | Improved release and collection |
| Packaging fails to open | Filling interruptions | More reliable opening |
| Parts remain on grippers | Robotic release errors | More consistent product release |
The best treatment position is close to the handling problem while remaining after the charge generation point. Measurements should confirm that the residual voltage is low enough for stable movement.
An ionizing air bar protects sensitive components by neutralizing charge on insulating materials and isolated conductors that cannot be controlled through direct grounding.
Electrostatic discharge can damage electronic components during assembly, inspection, testing, handling, and packaging. Some damage causes immediate failure, while other damage creates a weakness that appears later.
Personnel grounding and controlled work surfaces protect many conductive items, but insulating trays, films, labels, component bodies, and tools may remain charged. Ionization provides a method for reducing these charges.
Ion balance is especially important in sensitive applications. If an ionizer produces too many ions of one polarity, it can leave a residual voltage or charge a neutral object. Positive and negative decay performance should therefore be tested separately.
Ionization should be part of a complete electrostatic control program. It does not replace grounding, personnel controls, suitable packaging, training, monitoring, or process verification.
An ionizing air bar is suitable for automation because it provides continuous treatment, requires no manual handling, covers defined production widths, and can be integrated with machine controls and monitoring systems.
Once installed correctly, the bar can neutralize every product passing through the treatment area. This supports repeatable operation and reduces dependence on operator technique.
The bar can be mounted across a conveyor, beside a robot transfer point, before an inspection station, or after a charge generating roller. Compact configurations can fit within restricted machine areas.
Remote control signals can coordinate operation with the machine cycle. Status outputs and fault alarms can notify the controller when the equipment requires attention. Air valves can also be activated only during the relevant treatment stage.
Automation integration should include a defined response to failure. A general packaging process may display a warning, while a sensitive electronics line may need to stop when required ionization is unavailable.
An appropriately selected ionizing air bar can support faster production by neutralizing charge quickly enough to prevent jams, adhesion, contamination, and handling errors at higher line speeds.
Increasing speed can produce more static because contact and separation occur more rapidly. It also reduces the time that each section of material remains within the ion field.
A system that performs well at low speed may leave excessive residual voltage after production is accelerated. The solution may require stronger ion delivery, a longer treatment zone, reduced installation distance, compressed air, or an additional bar.
Available treatment time can be estimated by dividing effective treatment length by material speed. This calculation provides an initial reference, but actual performance must be verified because ion concentration, charge level, and product geometry also matter.
Static control can improve effective production speed by reducing interruptions even when the nominal line speed remains unchanged. Fewer jams, feeding errors, cleaning stops, and manual corrections increase useful output.
Industries that process insulating materials, operate high speed lines, require clean surfaces, or handle static sensitive products can benefit from industrial ionizing air bars.
Printing and converting operations use bars to neutralize paper, film, foil, labels, and laminates. This supports feeding, stacking, winding, coating, and print quality.
Electronics, semiconductor, optical, and medical device processes use controlled ionization to reduce electrostatic discharge risk and particle attraction. These applications may require tighter balance and cleanliness performance.
Plastic molding, automotive manufacturing, battery production, textiles, glass processing, and packaging also benefit. Ionization is frequently applied before painting, bonding, inspection, assembly, or final packaging.
| Industry | Typical Static Problem | Common Treatment Area |
|---|---|---|
| Electronics | Electrostatic discharge risk | Assembly and inspection |
| Semiconductor | Charge on sensitive materials | Handling and processing equipment |
| Printing | Sheet adhesion and dust | Feeding and delivery sections |
| Flexible packaging | Web sticking and winding defects | After rollers and before winding |
| Plastic molding | Dust on molded products | After part removal |
| Automotive production | Contamination before surface treatment | Before painting or bonding |
| Textiles | Fiber attraction and handling instability | Near rollers and finishing equipment |
| Optical manufacturing | Dust on lenses and display materials | Before inspection and coating |
| Battery production | Particle attraction and process instability | Material handling and assembly |
| Medical devices | Contamination and sensitive assemblies | Assembly and packaging |
The appropriate bar design and performance level should be determined by the actual process rather than by the industry name alone.
Coverage depends on the active bar length, emitter arrangement, working distance, airflow, product width, material movement, and required neutralization speed.
The external housing length may include inactive areas for end caps, connectors, and electronics. Buyers should confirm the active ionizing length and ensure that it covers the complete charged surface.
Working distance affects the width of the ion field. Increasing distance may widen physical coverage, but it normally reduces ion concentration and slows decay. Wider coverage should not be confused with better performance.
Material movement should be included in the coverage requirement. A web may move laterally, while products on a conveyor may enter at different positions. The treatment area should cover all normal movement.
Multiple bars may be used for very wide materials. Their effective areas should overlap to prevent untreated gaps. Measurements should be taken at the center, edges, intermediate positions, and overlap zones.
Installation distance matters because it affects ion concentration, coverage width, decay time, and the number of useful ions that reach the charged surface.
If the bar is too far from the target, ions may recombine, attach to airborne particles, or be redirected by machine airflow. Grounded frames and rollers may also capture them.
If the bar is too close, coverage may become narrow. A moving web or product may also contact the emitters because of flutter, vibration, height variation, or incorrect adjustment.
The recommended operating range provides a starting point, but final distance should be validated with measurements. Tests should be completed at normal and maximum production speeds.
Distance must remain stable during operation. Adjustable brackets should lock securely, and flexible materials should not move outside the effective ion field.
Compressed air is required when ions must travel farther, reach recessed surfaces, overcome competing airflow, or neutralize a rapidly moving material within a short time.
Windless bars can perform well at suitable short distances and are useful where airflow might disturb thin film, lightweight parts, powder, or carefully positioned products.
Compressed air transports ions more quickly and can improve access to complex product shapes. However, high pressure is not always beneficial. Excessive airflow may create turbulence, spread contamination, move products, increase noise, and waste energy.
Air quality is essential. Oil, water, and particles can contaminate emitter points, block internal passages, and affect the product. Appropriate filtration and regulation should be installed.
Pressure should be measured near the bar while production is operating. A reading at the central compressor may not represent the pressure available after tubing, valves, filters, and other equipment.
Buyers should select an ionizing air bar by matching verified decay time, ion balance, active length, working distance, airflow, environmental suitability, and control functions to the actual process.
The selection process should begin with static measurements. Record the incoming voltage, charge polarity, material type, production speed, working width, and acceptable residual voltage.
Mechanical requirements should also be documented. Confirm available installation space, target distance, surrounding rollers and guards, cable routing, air connections, and access for cleaning.
Environmental conditions can affect product choice. Dust, fibers, oil mist, adhesive vapor, moisture, chemicals, temperature, humidity, and clean manufacturing requirements should be identified before ordering.
Performance claims should include test conditions. A fast decay value measured at a short distance may not represent the planned production installation.
An industrial ionizing air bar should be installed after the main charging event, within its effective distance, across the complete target width, and with a clear path to the charged surface.
The first step is to identify where charge is generated. Contact and separation at rollers, liners, guides, conveyors, and tools are common sources. The bar should normally be positioned after these points.
Surrounding metal structures should be reviewed. A grounded roller, guard, frame, or bracket located between the bar and product can attract ions and reduce treatment efficiency.
The bar should face the charged surface at a stable angle and distance. Mounting hardware should resist vibration and allow safe adjustment. Cables should be protected from heat, chemicals, abrasion, crushing, and moving components.
Installation should also allow emitter cleaning, airflow inspection, and measurement. Difficult access increases service time and can lead to neglected maintenance.
Performance is measured through surface voltage testing, positive and negative decay time, ion balance, and coverage measurements under documented production conditions.
An electrostatic field meter can compare surface voltage before and after treatment. Distance and angle must remain consistent because they influence the reading.
A charged plate monitor measures decay time and ion balance. It should be positioned at the intended working distance with normal airflow and equipment settings.
Both positive and negative decay should be tested. The results should state the starting voltage, ending voltage, distance, airflow, temperature, humidity, and measuring method.
| Test | Purpose | Important Condition |
|---|---|---|
| Incoming surface voltage | Measure charge before treatment | Normal material and speed |
| Residual surface voltage | Confirm actual charge reduction | Consistent measuring position |
| Positive decay time | Evaluate positive charge neutralization | Defined voltage range |
| Negative decay time | Evaluate negative charge neutralization | Same conditions as positive decay |
| Ion balance | Identify positive or negative offset | Actual working distance |
| Coverage profile | Verify uniform treatment | Measurements across the complete width |
Testing should occur at maximum planned production speed. Fans, exhaust systems, guards, rollers, and other normal machine conditions should be active.
An ionizing air bar requires regular emitter cleaning, cable inspection, grounding verification, airflow checks, and periodic performance testing.
Emitter points attract contamination because of the strong electric field around them. Dust, oil, adhesive, ink mist, powder, and fibers can reduce ion output and shift ion balance.
Cleaning frequency should reflect the production environment. A clean electronics process may allow a longer interval than a printing, textile, coating, molding, or converting line.
Power must be isolated before cleaning. Approved brushes, swabs, and cleaning agents should be used. Abrasive tools can damage emitter geometry, and unsuitable chemicals may affect insulation or housing materials.
Maintenance records should include measured values before and after service. These trends help determine the correct cleaning interval and identify gradual equipment deterioration.
The business value of an ionizing air bar comes from fewer defects, reduced downtime, more stable material handling, lower contamination, improved automation, and better protection of sensitive products.
The equipment can reduce direct quality losses caused by dust, poor printing, coating defects, inaccurate placement, electronic damage, and unstable winding. It can also reduce labor spent separating materials or cleaning contaminated surfaces.
Production efficiency may improve through fewer jams, feeding errors, robot release failures, and emergency stops. Even when nominal line speed remains unchanged, useful output can increase because less time is lost.
Total ownership cost should include purchase, installation, electricity, compressed air, maintenance, spare parts, service life, and downtime. A low price may not provide good value if performance is weak or service support is unavailable.
| Value Area | Potential Improvement |
|---|---|
| Product quality | Fewer contamination and surface defects |
| Material handling | More reliable feeding, transfer, and stacking |
| Automation | More consistent pickup and release |
| Equipment uptime | Fewer jams and corrective stops |
| Sensitive products | Lower electrostatic discharge risk |
| Labor | Less manual separation and cleaning |
| Process control | More stable and measurable operation |
The best return comes from selecting and installing the equipment according to measured process requirements. An incorrectly positioned bar may provide little value regardless of its technical capability.
Manufacturers choose industrial ionizing air bars because they provide continuous and measurable static neutralization across wide materials, automated production zones, and processes where grounding alone is ineffective.
A correctly applied bar can reduce dust attraction, material adhesion, feeding errors, unstable web movement, robotic handling problems, operator shocks, and electrostatic discharge risks.
Successful application depends on more than purchasing a bar of the correct physical length. Buyers must evaluate active coverage, decay time, ion balance, working distance, material speed, airflow, environment, installation position, and maintenance access.
Performance should be verified with surface voltage measurements and charged plate testing under actual production conditions. Baseline data allows future maintenance teams to detect contamination, wear, or installation changes before they cause defects.
When integrated into a complete static control program that includes grounding, monitoring, maintenance, and operator training, an industrial ionizing air bar can improve product quality, automation reliability, production efficiency, and long term operating stability.
