Industrial manufacturers often install ionizing equipment to remove electrostatic charge from plastic film, paper, electronic components, labels, textiles, molded parts, and other insulating materials. Initial tests may show that the static voltage has been reduced successfully. However, the material may become charged again after it moves farther along the production line.
This situation can create confusion because operators may assume that the ionizing air bar has stopped working. In many cases, the original charge was neutralized correctly, but a later production action generated a new charge. In other cases, the static was not completely removed, or charge migrated from another material, machine component, or isolated conductor.
Static returns after neutralization because the material is exposed to another charging event, receives charge from a nearby source, retains hidden residual charge, or moves beyond the effective range of the ionizing system. Friction, contact and separation, pressure, peeling, temperature changes, induction, poor grounding, excessive line speed, dirty emitters, and incorrect installation can all cause static voltage to rise again.
Effective static control therefore requires more than neutralizing one point on a production line. Engineers must identify where charge is generated, determine whether it is continuously regenerated, and position the ionizer close to the final critical process. They must also verify performance under actual production conditions rather than relying only on a measurement taken when the machine is stopped.
This guide explains why static can return, how to distinguish new charge from incomplete neutralization, how production conditions affect the result, and how to build a reliable static control strategy.
This table of contents presents the main causes, diagnostic methods, and corrective actions associated with static that returns after neutralization.
The sections follow the path of static through an industrial process. They begin with the fundamental difference between eliminating an existing charge and preventing a new charge from being generated.
The guide then examines material movement, ionizer performance, grounding, environmental conditions, measurement methods, and installation strategy. This structure helps maintenance teams investigate the complete process rather than focusing on only one device.
Readers can use the following topics as both an educational guide and a practical troubleshooting sequence for production lines.
Static neutralization is not necessarily permanent because an ionizer removes the charge present at a particular time and location, but it cannot prevent every later production action from generating a new charge.

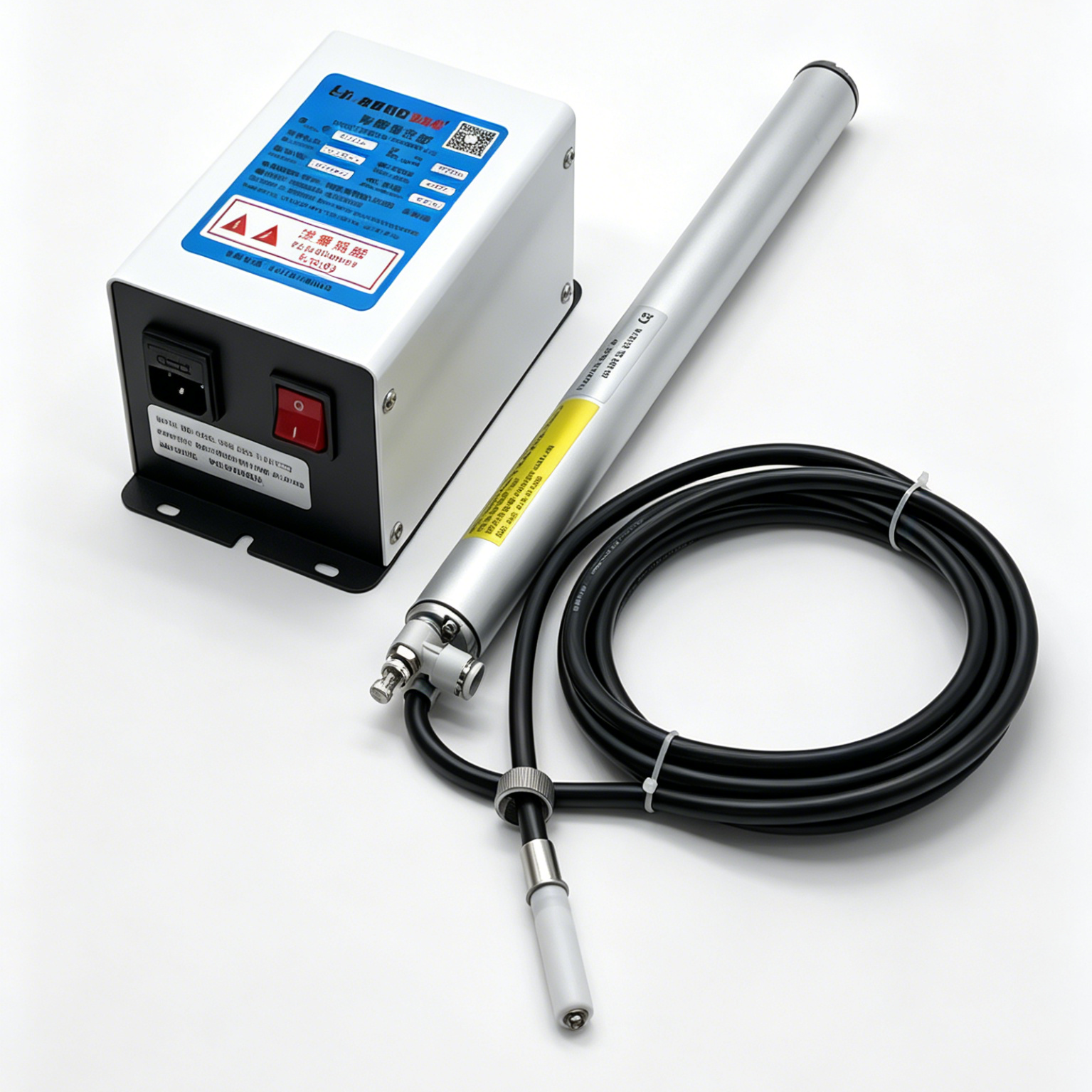

An ionizing air bar produces positive and negative ions. When these ions reach a charged surface, ions with the opposite polarity are attracted to that surface. They combine with the excess charge until the surface approaches an electrically neutral condition. This process can be fast and effective when the ionizer is clean, correctly positioned, and properly matched to the application.
Neutralization does not permanently change the electrical properties of the material. Plastic film, synthetic textile, paper coating, rubber, and many other industrial materials remain electrical insulators after their charge has been removed. If they touch and separate from another surface, they can immediately exchange electrons and become charged again.
This is why static control should be evaluated as a continuous process rather than a single event. The important question is not simply whether the ionizer reduces voltage at its installation point. The more useful question is whether the product remains within an acceptable voltage range until the next critical operation is completed.
For example, film may leave an ionizing air bar at a low voltage and then contact a guide roller. When the film separates from that roller, a new charge may develop. A measurement farther along the line will show static again, but this does not automatically mean the ionizer failed. The original charge may have been removed before a new one was created.
Materials generate new static when contact, separation, friction, pressure, peeling, unwinding, sliding, or rapid movement causes electrons to transfer between different surfaces.
Contact and separation are among the most common sources of industrial static electricity. When two materials touch, electrons can move from one surface to the other. As the materials separate, one may retain excess electrons and become negatively charged, while the other loses electrons and becomes positively charged. The amount and polarity depend on the materials, surface condition, contact area, pressure, and separation speed.
Production lines contain many charging points. Film separates from rollers, labels peel from release liners, sheets slide across guides, molded parts leave tooling, textiles pass over machine surfaces, and packaging materials unwind from rolls. Each action can create a new electrostatic charge even if the material was neutral immediately beforehand.
Friction can increase the frequency and area of contact between surfaces. A web that slips against a roller, a sheet that rubs against a guide, or a product that moves along a plastic conveyor can generate substantial voltage. Higher pressure and faster separation often increase charge generation, although the relationship is affected by material properties and surrounding conditions.
The most effective correction is usually to locate the ionizing air bar after the final major charging event and before the process that is vulnerable to static. If several charging events occur at different locations, more than one neutralization point may be required.
Yes. Static may appear to return when the original charge was only partially neutralized, temporarily masked, or measured at a location that did not represent the entire material surface.
An insulating material can hold different charge levels across its width, length, and surface. One area may carry a positive charge while another carries a negative charge. A single measurement at the center of the web may indicate a low voltage even though the edges remain highly charged. When the material moves or changes shape, these charge regions may produce a stronger field at the later measurement point.
Charge can also exist on both sides of a film or sheet. The electric fields may partly cancel at one measurement location, creating the appearance of neutrality. When the material separates from another surface, bends around a roller, or changes distance from grounded metal, the field becomes easier to detect.
Incomplete neutralization can occur when the operating distance is excessive, the line speed is too high, the airflow is too weak, or the air bar does not cover the full material width. The ions need sufficient time and a clear path to reach the charged surface. If the material passes through the effective zone too quickly, residual charge may remain.
Measurement technique is also important. A field meter reading changes with distance, angle, target size, nearby grounded objects, and material movement. Comparing readings taken under different conditions can make stable charge appear to disappear and return. Measurements should therefore be taken at consistent locations and distances.
| Observation | Possible explanation | Recommended check |
|---|---|---|
| Low voltage at the center but high voltage near the edges | Incomplete width coverage | Measure several points across the complete width |
| Voltage rises when the sheet leaves a metal plate | Charge was masked by field interaction | Measure before and after separation from the plate |
| One side appears neutral but the opposite side remains charged | Charge exists on both surfaces | Measure both sides where safely possible |
| Acceptable result at low speed but poor result at production speed | Insufficient exposure time | Test while the line operates at normal speed |
| Static changes with meter position | Inconsistent measurement geometry | Use a fixed measuring distance and location |
Higher line speed can increase charge generation while reducing the time available for ions to neutralize the material, making static more likely to remain or return.
Moving materials are continuously exposed to rollers, guides, belts, liners, and other surfaces. As speed increases, more contact and separation events occur during a given period. The material may therefore arrive at the ionizing point with a higher charge and then develop another charge soon after leaving it.
Neutralization requires ions to travel from the emitter points to the charged surface. The material must remain within the useful ionization zone long enough to receive a sufficient quantity of opposite polarity ions. At higher speed, each section of material spends less time in this zone. A system that performs well during slow setup may be inadequate during full production.
Airflow becomes especially important at longer operating distances or high speeds. Controlled airflow carries ions toward the target and helps them reach moving surfaces before they recombine in the air. However, excessive airflow is not always the answer. It can disturb lightweight products, spread contamination, increase noise, and raise energy consumption.
Production testing should be completed at minimum, normal, and maximum line speeds. Static measurements taken only when the machine is stopped do not represent actual operating conditions. If voltage increases sharply with speed, the system may need a shorter installation distance, improved airflow, a longer ionization zone, or an additional bar.
Yes. An ionizer installed too far from the material, before a later charging point, behind a physical obstruction, or outside the complete product width may not provide lasting static control.
The installation location should be selected according to the process sequence. If an ionizing air bar is placed before a nip roller, peel point, cutting station, or conveyor transfer, the material may be charged again immediately after neutralization. Moving the ionizer after the charging event often improves the result more than increasing its output.
Operating distance affects ion density and decay time. Ions spread and recombine as they travel through the air. When the distance is greater than the effective range of the equipment, fewer useful ions reach the product. At very short distances, physical clearance, contamination, uneven coverage, or electrical interaction with nearby conductors may become concerns.
The bar should face the charged surface with a clear path for ion delivery. Machine frames, guards, rollers, extraction ducts, and other metal components can block or redirect ions. Strong process airflow may also carry ions away from the target. The installation must be evaluated while all fans, extraction systems, and production movements are operating.
Coverage must include the complete active width. A bar that is shorter than the material may leave charged edge areas. Wide products may require sufficient bar length, appropriate positioning, or overlapping zones from multiple ionizers. The most highly charged location should not be assumed to be the center.
| Installation problem | Effect on static control | Possible correction |
|---|---|---|
| Ionizer before the final charging event | Material becomes charged again downstream | Move or add an ionizer after the charging point |
| Excessive operating distance | Reduced ion density and slower neutralization | Reduce distance within the approved range |
| Bar shorter than the active material width | Charged edges remain untreated | Use complete coverage or overlapping ionization zones |
| Metal obstruction between bar and product | Ions do not reach the target evenly | Create a clear ion delivery path |
| Strong cross airflow | Ions are carried away from the product | Adjust position, airflow, or shielding |
| Loose or vibrating mounting | Distance and angle change during production | Secure the mounting structure |
Poor grounding can allow charge to remain on conductive machine parts, tools, and people, while nearby charged conductors can transfer charge or influence measurements after a material has been neutralized.
Ionization is mainly required for insulating materials because their charge cannot easily flow to ground. Conductive objects should normally be controlled through reliable grounding. If a metal roller, machine frame, worktable, tool, or operator is electrically isolated, it can store charge and become another source of electrostatic problems.
An isolated conductor may receive charge through direct contact or electrostatic induction. When charged material passes nearby, electrons within the conductor redistribute. If the conductor touches another object or becomes grounded temporarily, it can retain a net charge after separation. That charged component may then influence or recharge later products.
Ground connections can deteriorate because of corrosion, paint, contamination, loose fasteners, damaged cables, or movement. Mechanical contact alone does not always provide dependable electrical continuity. A machine part may look connected to the frame while remaining electrically isolated by bearings, coatings, lubricants, or nonconductive mounts.
Grounding checks should be included in the static control program. Conductive machine parts, work surfaces, containers, and personnel control systems should be evaluated according to the requirements of the application. Ionizers should complement grounding rather than replace it.
Yes. Low humidity, temperature changes, strong airflow, dust, and changing surface conditions can increase charge generation or reduce the apparent effectiveness of neutralization.
Humidity influences how quickly charge leaks away from many surfaces. In dry air, surfaces often retain charge for a longer period. A process that operates without obvious static problems during humid weather may develop severe problems during a dry season or inside a climate controlled room.
Humidity alone should not be treated as the primary static control method. Many plastics and other insulators can remain highly charged even when humidity is moderate. Increasing humidity may also be unsuitable for electronics, clean production, coating, pharmaceutical, or moisture sensitive processes. Ionization and grounding should remain the main engineered controls.
Temperature can affect material flexibility, surface resistance, adhesive behavior, and contact conditions. Heated film, cooling molded parts, and material moving through drying equipment may behave differently from the same material at room temperature. These changes can alter both charge generation and measurement results.
Strong ventilation, cooling air, extraction flow, and machine generated turbulence can carry ions away from the intended target. Airborne dust and process residue can also contaminate emitter points. Environmental conditions should therefore be recorded when static measurements are taken.
| Environmental change | Possible static effect | Recommended response |
|---|---|---|
| Lower relative humidity | Charge remains on surfaces longer | Increase monitoring and verify ionization performance |
| Higher material temperature | Surface and contact behavior may change | Measure at the actual process temperature |
| Strong extraction airflow | Ions may be pulled away from the target | Review air direction and ionizer location |
| Increasing dust concentration | Emitters become contaminated faster | Shorten inspection and cleaning intervals |
| Changing material formulation | Charge polarity and magnitude may change | Repeat the process survey with the new material |
Yes. Contaminated emitter points, damaged cables, blocked air passages, incorrect air pressure, loose mounting, and poor electrical connections can reduce ion output and allow residual static to remain.
Emitter points create the electrical field that produces ions. Dust, fibers, oil, adhesive residue, and other contamination can collect around their tips. This changes the local electrical field and may reduce the quantity or consistency of ions produced. Neutralization becomes slower, and ion balance may move away from the desired range.
The decline is often gradual. Operators may not notice a sudden failure because the power indicator remains active and the bar continues to produce some ions. Static related defects may slowly increase until they are mistaken for changing material quality or another machine problem.
Air assisted systems also depend on clean, dry, and stable compressed air. Restricted filters, leaking tubes, blocked openings, and incorrect pressure can reduce ion delivery. Contaminated compressed air may deposit oil or moisture near the emitters, creating an additional maintenance problem.
A suitable program should combine visual inspection, safe emitter cleaning, electrical and pneumatic checks, and objective performance testing. Maintenance frequency should reflect the production environment. A clean electronics area may require less frequent cleaning than a paper, textile, adhesive, or dusty plastics process.
The source can be diagnosed by measuring static voltage at several controlled locations along the production path and identifying the exact point where the voltage rises again.
Begin with a process map. Mark every location where the material contacts, separates, slides, peels, unwinds, winds, cuts, or transfers. Also mark existing ionizers, grounded components, airflow sources, and quality sensitive operations. This creates a practical picture of where charge may be generated and where it must be controlled.
Measure the material immediately before and after the ionizing air bar. If voltage decreases substantially, the ionizer is performing a useful function. Continue measuring after each downstream roller, guide, peel point, or transfer. A sharp increase after one operation identifies a likely new charging source.
Measurements should be taken with a suitable instrument at a consistent distance. Record the polarity and magnitude rather than noting only that static is present. Test across the complete material width because the center and edges may behave differently.
Repeat the survey at normal production speed and with all ventilation equipment operating. If possible, compare different materials, machine speeds, humidity levels, and tension settings. Changing one variable at a time helps determine which condition has the strongest effect.
This method separates equipment problems from process generated charge. If the voltage remains high immediately after the ionizer, investigate coverage, distance, cleanliness, airflow, and capacity. If the voltage is low after the ionizer but rises later, locate the next charging event and control static closer to that location.
Manufacturers can prevent static from returning by controlling charge generation, grounding conductive objects, placing ionizers after major charging events, maintaining correct coverage, and verifying results during real production.
The first priority is to reduce unnecessary charge generation. Correct web alignment, eliminate slipping, maintain rollers, control material tension, and avoid excessive friction. A process cannot always eliminate contact and separation, but mechanical improvements may reduce the charge that the ionizing system must neutralize.
The ionizer should be positioned close to the critical operation and after the final significant charging event whenever possible. For example, a bar intended to protect a product from dust should be located after the last roller or separation point and before the exposed surface enters the sensitive area.
Some production lines need several ionization stages. One bar may control charge during unwinding, another may protect a printing or coating process, and a final bar may neutralize material before stacking or packaging. The number of bars should be determined by charging locations and process risk rather than line length alone.
Performance limits should be defined and documented. Operators need to know the acceptable residual voltage and the action required when it is exceeded. Critical applications may also require limits for positive decay time, negative decay time, and ion balance.
A successful strategy does not attempt to make an insulating material permanently immune to static. Instead, it keeps charge below an acceptable level at every critical stage of production. This process based approach is more reliable than expecting one neutralization point to protect the product through all later operations.
Static returns after neutralization mainly because a later process generates new charge, the original charge was not fully neutralized, charge transfers from another source, or the material leaves the effective ionization zone before the critical operation.
Contact and separation are the most common causes. Film passing over a roller, labels peeling from liners, sheets separating from a stack, parts leaving a mold, and products transferring between conveyors can all generate charge. Neutralization removes the charge present at one moment, but it does not permanently change the insulating material.
Static that appears to return may also be residual charge. Incomplete width coverage, excessive installation distance, high line speed, weak airflow, dirty emitter points, and inconsistent measurement methods can create misleading results. Charge on both sides of a material may also be hidden temporarily by interacting electrical fields.
The most reliable diagnostic method is to measure static voltage at several points along the complete process. Readings should be taken before and after the ionizer and after every major contact, separation, peeling, or transfer point. The test should be conducted at normal production speed with consistent measuring conditions.
Manufacturers can improve control by reducing friction, grounding conductive components, maintaining the ionizing equipment, and installing neutralization close to the final charging event. Complex lines may require multiple ionizing locations. With process mapping, objective measurement, and preventive maintenance, returning static can be identified and controlled before it causes dust attraction, material handling problems, electrostatic discharge damage, or product defects.
