Ionizing air bars are widely used to neutralize static electricity in printing, packaging, plastics processing, electronics manufacturing, semiconductor production, textile processing, battery assembly, medical device manufacturing, and other industrial applications. A correctly operating ionizing air bar produces positive and negative ions that reduce surface charges on insulating materials and isolated conductive objects.
When static remains after an ionizing air bar has been installed, the equipment is not necessarily defective. Poor neutralization can result from dirty emitter needles, excessive installation distance, incorrect positioning, incomplete coverage, unstable compressed air, inadequate grounding, high production speed, unsuitable environmental conditions, or new charge generation after the treatment point.
An ionizing air bar may fail to remove static when it does not generate enough ions, when the ions cannot reach the complete charged surface, or when the material passes through the treatment area too quickly. The solution is to inspect power, emitter cleanliness, working distance, mounting position, coverage, airflow, grounding, decay time, and downstream static generation in a systematic order.
Effective troubleshooting requires objective measurements. A power indicator can confirm that the unit receives electricity, but it cannot prove that ion balance and neutralization speed satisfy the production requirement. Static voltage should be measured before and after treatment, while ion balance and decay time should be checked with suitable test equipment.
The following guide explains how to identify the cause of poor ionizing air bar performance and how to restore reliable static neutralization without making unnecessary equipment changes.
An ionizing air bar removes static by generating positive and negative ions that move toward a charged surface and neutralize its electrical imbalance.
Static electricity develops when materials contact and separate, causing electrons to transfer between their surfaces. One material can become positively charged, while the other becomes negatively charged. Insulating materials such as plastic film, coated paper, glass, textiles, and composite products can retain this charge because it cannot flow easily to ground.
An ionizing air bar contains a series of sharp emitter needles. A controlled electrical potential creates a concentrated electrical field around each needle tip. This field ionizes nearby air molecules and produces positive and negative ions.
The charged material attracts ions of the opposite polarity. As these ions reach the surface, they reduce the charge toward a neutral condition. The process must occur quickly enough for the available production time and uniformly enough to treat the complete material width.
Three conditions are therefore necessary for successful neutralization:
If any one of these conditions is not satisfied, static may remain even though the ionizing air bar appears to be operating.

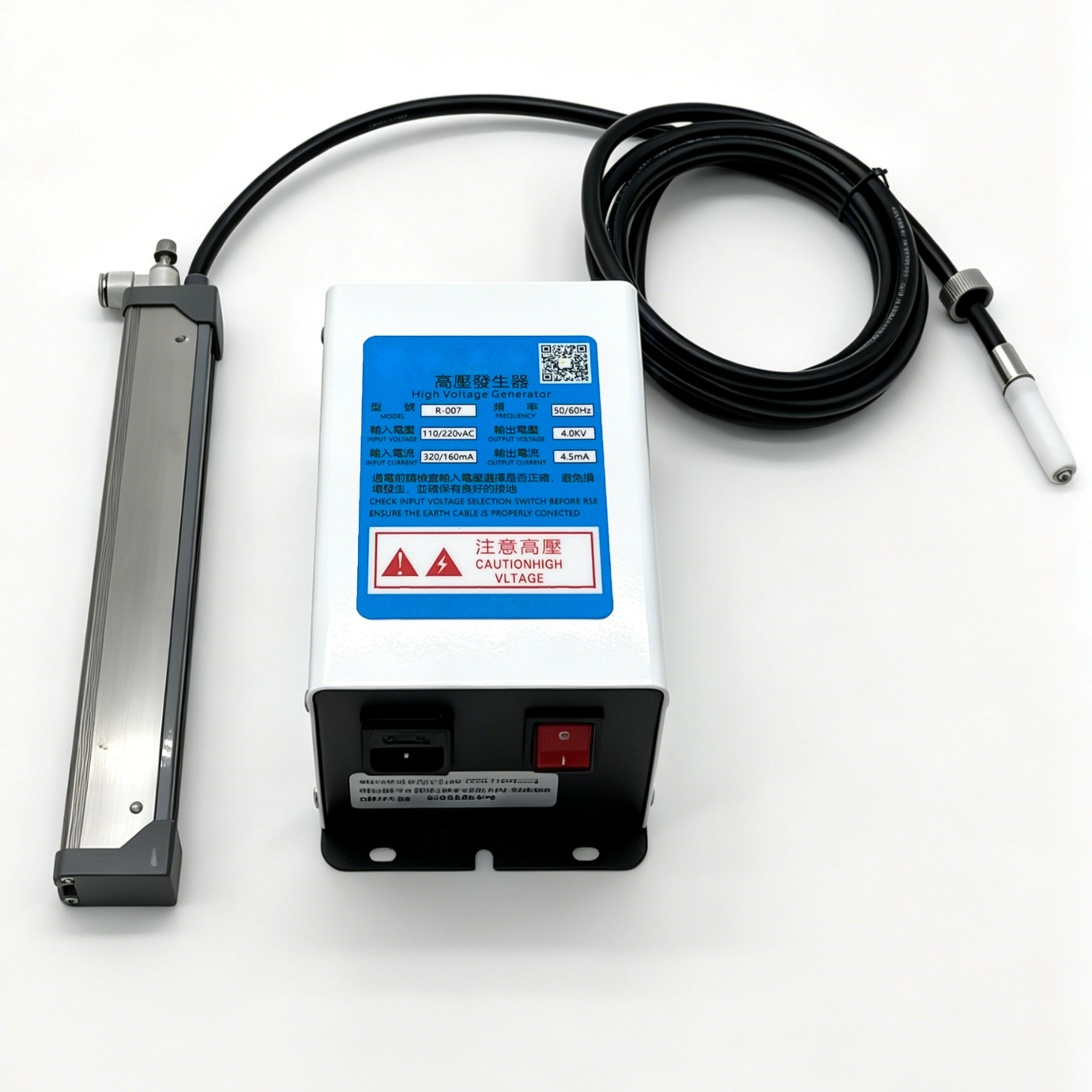

Confirm that the ionizing air bar receives the correct power and that its high voltage generation system is operating continuously without alarms or intermittent connections.
Begin with the basic electrical checks. Confirm the power switch position, input voltage, control signal, status indicators, and alarm display. If the bar is controlled by the production machine, make sure the ionization enable signal remains active throughout the required process cycle.
An illuminated power indicator may only show that input power is available. It may not confirm that the emitter circuit is generating ions at the required level. A damaged high voltage cable, loose connection, internal power problem, or protective shutdown can reduce ion output.
Observe the equipment during normal production. Intermittent operation may be caused by vibration, loose connectors, damaged cables, unstable supply voltage, or overheating. A bar that operates correctly when the machine is stationary may lose power as machine movement affects a damaged connection.
Switch off and isolate the power before touching cables, connectors, or emitter points. If an internal power supply fault is suspected, qualified personnel should perform the diagnosis. High voltage components may retain electrical energy after disconnection.
Dirty, worn, bent, broken, or corroded emitter needles can significantly reduce ion output and are a common cause of poor static neutralization.
The sharp shape of an emitter needle concentrates the electrical field required for ion generation. Dust, paper fibers, adhesive residue, oil, coating material, and other contamination can accumulate around the tip. This contamination changes the electrical field and reduces the quantity of useful ions.
Performance usually declines gradually as contamination increases. The bar may still neutralize materials at low speed but become ineffective when production reaches its normal operating rate. Ion balance can also shift if emitters producing one polarity are affected differently from those producing the opposite polarity.
Before cleaning, disconnect and isolate electrical power. Release compressed air pressure if the bar uses an air supply. Remove loose contamination with a clean soft brush. Persistent deposits may require a lint free swab lightly moistened with an approved cleaning material.
Do not use abrasive paper, knives, hard brushes, or aggressive scraping. These methods can damage the tip geometry. Allow all cleaned surfaces to dry completely before restoring power.
After cleaning, repeat the ion balance and decay time tests. Replace emitters that are broken, deeply corroded, severely bent, or permanently contaminated. If cleaning does not improve performance, continue investigating installation and electrical conditions.
An ionizing air bar installed too far from the charged material may produce ions normally but fail to deliver enough of them to the target surface.
Ion density decreases with distance. Positive and negative ions can recombine while traveling through the air, and surrounding grounded objects can attract them before they reach the product. The farther the bar is from the target, the longer neutralization usually takes.
Working distance becomes especially important on a fast production line. If the material remains inside the effective ionization zone for only a short period, a small increase in decay time can leave a significant residual charge.
Measure the actual distance between the active emitter area and the target surface. Compare it with the approved operating range and with the distance used when the equipment was originally commissioned. Machine adjustments, product changes, vibration, and maintenance work can alter the position over time.
| Distance Condition | Effect on Performance | Recommended Response |
|---|---|---|
| Too close | Material may contact or contaminate the emitters | Increase clearance to a safe distance |
| Correct distance | Strong ion density and effective neutralization | Secure and document the position |
| Slightly too far | Decay time increases | Move the bar closer and retest |
| Far beyond the effective range | Static remains on the material | Change the installation or treatment method |
| Distance varies during operation | Neutralization becomes inconsistent | Improve material control and mounting stability |
Closer installation usually improves performance, but the material must never strike the emitter points. Allow enough clearance for web flutter, product variation, vibration, and machine movement.
Install the ionizing air bar immediately after the primary static generation point and maintain a clear path between the emitter needles and charged surface.
Static is often generated when materials contact and separate. A bar installed before an unwind roll, separation point, liner removal station, or guide roller may neutralize the material temporarily, but the next separation event can charge it again.
The location where static becomes visible may not be where it originates. For example, dust may begin sticking to plastic film at an inspection station even though the charge developed earlier when the film separated from a roll. A complete static survey is needed to identify the true source.
Grounded machine parts can also interfere with ion movement. Metal frames, rollers, guards, ducts, and covers positioned between the bar and target may absorb ions. The bar requires a clear and direct ion path to the charged surface.
Some processes create static at several locations. One ionizing air bar may not be able to prevent every upstream and downstream problem. Additional bars may be required near separate charge generation points.
The ionizing air bar must provide uniform coverage across the entire charged material, including its edges and any areas with concentrated static.
A common troubleshooting mistake is measuring voltage only at the center of a wide web or sheet. The center may be neutral while the edges remain highly charged. Charged edges can attract dust, stick to rollers, disrupt alignment, or cause painful discharges.
The effective treatment width depends on more than the physical bar length. Emitter spacing, the location of the first and last needles, working distance, mounting angle, airflow, and nearby metal structures all affect ion distribution.
Measure static voltage at the left edge, center, right edge, and intermediate positions. Repeat the same pattern when testing decay time across a long bar. Large differences between positions may indicate incomplete coverage, dirty emitters, blocked air outlets, or a damaged emitter section.
| Coverage Problem | Typical Symptom | Possible Solution |
|---|---|---|
| Bar is too short | Charged material edges | Use wider coverage or add another treatment unit |
| Bar is not centered | One edge has higher voltage | Adjust bar alignment |
| Emitter section is dirty | Local strip of residual charge | Clean and inspect the affected emitters |
| Grounded object blocks ions | Weak treatment in one area | Remove the obstacle or change the mounting position |
| Gap between multiple bars | Narrow charged zone | Overlap the effective treatment areas |
| Complex product geometry | Hidden surfaces remain charged | Use several treatment angles |
Recheck coverage after changing material width, product shape, line speed, working distance, or mounting angle. The original configuration may no longer be suitable after a production change.
Air assisted ionizing bars require clean, dry, stable, and correctly adjusted compressed air to transport ions effectively toward the charged material.
When pressure is too low, ions may not reach a distant or recessed surface quickly enough. Low pressure can result from clogged filters, air leakage, undersized piping, damaged hoses, or demand from other machines connected to the same supply.
Pressure should be checked while the production line is operating. A system may show normal pressure when stationary but experience a major reduction during full factory demand. Measure the pressure at an appropriate point near the ionizing bar whenever possible.
Excessive pressure is not automatically better. Strong airflow can move thin film, scatter lightweight products, increase noise, spread contamination, and create turbulence. The optimum setting is the lowest pressure that delivers acceptable decay time and product voltage.
Oil, water, and particles carried by compressed air can contaminate the emitters. If performance improves after cleaning but declines again rapidly, inspect air filtration and moisture control. The contamination may be entering from the air system rather than from the surrounding production environment.
Reliable grounding and secure electrical connections are necessary for stable ion generation, safe operation, and repeatable static control measurements.
Grounding allows conductive machine components to release static charge and provides an electrical reference for the ionization system. A loose, corroded, painted, or contaminated grounding connection may look acceptable while providing poor electrical continuity.
Inspect the grounding conductors connected to the bar, power supply, machine frame, and related conductive structures. Use a suitable instrument to verify continuity according to the facility’s electrical requirements. Do not rely only on visual inspection.
Power cables and connectors should be checked for cuts, crushing, abrasion, heat exposure, damaged locking parts, and loose contacts. A connector affected by machine vibration can cause intermittent ion output.
Grounding alone cannot neutralize a charge held on an insulating surface. Plastic, coated paper, glass, and many composite materials require ionization because their charge cannot flow readily through a grounding connection.
At high production speed, the material may leave the ionization area before the bar has enough time to reduce static to an acceptable level.
Every ionizing system has a finite neutralization speed. A moving web, sheet, component, or conveyor product remains near the bar for only a limited period. When line speed increases, available treatment time decreases.
High speed can also generate more static through faster contact and separation. The bar must therefore neutralize a greater initial charge in less time. A system that works during machine setup may become inadequate during full production.
Measure product voltage before and after treatment at several operating speeds. If residual voltage rises as speed increases, the problem is related to treatment capacity or treatment time rather than complete equipment failure.
Always test the ionizing air bar under representative production conditions. Machine speed, vibration, process airflow, and material movement can create results that are very different from stationary testing.
Measure ion balance and both positive and negative decay times to confirm that the bar produces sufficient and reasonably balanced ions.
Ion balance indicates whether the positive and negative ion outputs create a residual voltage. If one polarity dominates, the bar can leave the target positively or negatively charged instead of bringing it close to neutral.
Decay time measures how quickly the ionizer reduces a known charge from one voltage level to another. Positive and negative decay should both be tested because performance may differ between polarities.
Use a suitable calibrated charged plate monitoring instrument. Position it at the normal working distance and record airflow, temperature, humidity, machine condition, and measurement location. Repeatable conditions are necessary for reliable comparison.
| Test Result | Likely Interpretation | Possible Cause |
|---|---|---|
| Both polarities decay slowly | Total ion output is low | Dirty emitters, excessive distance, weak airflow, or power issue |
| Positive charge decays slowly | Negative ion output may be insufficient | Emitter condition, balance shift, or electrical problem |
| Negative charge decays slowly | Positive ion output may be insufficient | Emitter condition, balance shift, or electrical problem |
| Balance is unstable | Ion output changes during operation | Contamination, loose connection, airflow variation, or power instability |
| Results vary by position | Output is not uniform | Coverage gap, blocked outlet, or damaged emitter |
Establish baseline measurements when the bar is clean, properly installed, and working correctly. Future values can then be compared with this reference. Gradual deterioration usually suggests contamination or wear, while sudden changes often indicate movement, damage, or an electrical problem.
If the material has low static immediately after the ionizing air bar but high static farther downstream, a later process step is generating a new charge.
Ionization does not permanently prevent a material from becoming charged. Every new contact and separation event can transfer electrons. A successfully neutralized film can become charged again when it contacts another roller or when a protective liner is removed.
Measure static directly before the bar, immediately after the bar, and at several downstream points. This measurement pattern shows whether the ionizer is failing or whether another part of the process is creating a new charge.
Replacing the original ionizing air bar will not solve downstream charge generation. Treatment must be moved closer to the later problem or an additional ionizer must be installed near the new generation point.
Process changes may also reduce charge generation. Improving roller grounding, reducing unnecessary friction, changing separation geometry, or controlling material movement can reduce the demand placed on downstream ionizers.
Humidity, temperature, contamination, material properties, and surrounding airflow can change both static generation and ion transport.
Low humidity generally allows static charges to remain on insulating surfaces longer. A bar that appears effective during humid conditions may produce a higher residual voltage when the environment becomes dry. Record humidity during troubleshooting rather than assuming the equipment has changed.
New materials can behave differently from previous materials. Changes in film composition, coating, adhesive, liner, thickness, surface texture, or paper grade may alter charge polarity and magnitude. Static control should be reevaluated whenever the material specification changes.
External airflow from fans, extraction ducts, cooling systems, dryers, and cleanroom ventilation can carry ions away from the target. Test performance with all normal ventilation and machine airflow operating.
If static problems appear only during certain seasons, shifts, or products, compare environmental and material records. The pattern may reveal the cause more quickly than electrical inspection alone.
Use a suitable calibrated static measuring instrument at a consistent distance and position to avoid inaccurate or misleading readings.
Static voltage readings depend partly on the distance between the instrument and the target. If the instrument is too close, too far away, or moved between tests, the results may not be directly comparable. Follow the measuring distance indicated for the instrument.
Moving materials often produce fluctuating readings. Observe a stable range or record several measurements instead of relying on one brief value. Measure the same locations before and after treatment.
Nearby grounded metal affects the electrical field and can influence measurement. Maintain consistent machine geometry and instrument orientation. Operator movement and distance can also affect sensitive measurements.
Ion balance and decay time require different test equipment from general surface voltage measurement. Use each instrument for its intended purpose and follow an approved test procedure.
Troubleshoot the ionizing air bar in a logical sequence, change one variable at a time, and repeat the same measurement after every corrective action.
Changing distance, air pressure, mounting angle, and electrical settings at the same time makes it difficult to identify the real cause. A systematic process creates reliable evidence and prevents unnecessary component replacement.
Begin by confirming the static problem and recording voltage before and after treatment. Check simple causes such as power status, visible contamination, incorrect position, or a disconnected air supply before investigating internal electrical faults.
Use the same material, line speed, instrument position, and environmental conditions whenever practical. If conditions change during troubleshooting, record the changes so the results can be interpreted correctly.
The following symptom table can help narrow the investigation:
| Observed Symptom | Most Likely Causes |
|---|---|
| No reduction anywhere | No ion output, severe contamination, power failure, or excessive distance |
| Static remains on one edge | Incomplete coverage, alignment problem, or damaged end emitter |
| Performance declines gradually | Emitter contamination, blocked filters, or emitter wear |
| Performance changes suddenly | Loose cable, moved bar, power issue, or process change |
| Good result only at low speed | Insufficient neutralization speed or treatment length |
| Static returns downstream | New contact and separation after treatment |
| Results change with the weather | Humidity or temperature variation |
Stop the equipment and request qualified support if there are signs of overheating, electrical tracking, damaged insulation, repeated alarms, visible discharge, or internal power failure.
Prevent recurring performance problems through scheduled cleaning, grounding inspection, airflow maintenance, decay testing, operator training, and accurate maintenance records.
Maintenance frequency should reflect operating hours, contamination levels, process sensitivity, and historical performance. A printing or converting line exposed to paper dust and adhesive residue may require more frequent cleaning than a controlled electronics assembly area.
Operators should check power status, alarms, airflow, mounting position, and visible contamination during routine production. Maintenance personnel should complete scheduled emitter cleaning, cable inspection, filter servicing, grounding verification, and performance testing.
Record every inspection and measurement. Useful information includes bar identification, installation distance, emitter condition, air pressure, ion balance, positive decay time, negative decay time, residual static voltage, humidity, line speed, and corrective actions.
| Interval | Recommended Activity | Purpose |
|---|---|---|
| Every shift | Inspect indicators, alarms, airflow, and obvious damage | Identify immediate faults |
| Weekly | Check emitters, mounting position, cables, and air hoses | Detect developing problems |
| Monthly | Clean emitters and inspect filters and grounding | Restore stable operating condition |
| Quarterly | Measure ion balance, decay time, and full width performance | Verify actual neutralization ability |
| Annually | Complete a detailed mechanical and electrical review | Support long term reliability |
Adjust these intervals according to actual findings. If decay time increases before the scheduled cleaning date, shorten the interval. If contamination repeatedly returns soon after cleaning, identify and correct the contamination source.
Your ionizing air bar is probably not removing static because ion generation, ion delivery, coverage, or treatment time is insufficient for the actual production conditions.
Begin by confirming power and normal operating status. Isolate the equipment and inspect emitter needles for dust, adhesive, oil, corrosion, bending, or wear. Cleaning contaminated emitters often restores performance, but damaged needles may require replacement.
Measure the working distance and verify that the bar is installed after the main static generation point. Maintain a clear path between the emitters and the charged surface, and ensure that grounded machine components are not absorbing the ions.
Check coverage across the complete material width. For air assisted systems, inspect pressure, airflow, filters, hoses, fittings, moisture, and oil contamination. Verify grounding and electrical connections using suitable test equipment.
Measure positive decay time, negative decay time, ion balance, and residual product voltage under normal production conditions. If performance is acceptable immediately after the bar but static returns downstream, locate the new charge generation point instead of replacing a working ionizer.
Finally, establish a preventive maintenance program based on actual contamination, operating hours, and process risk. Regular inspection, careful emitter cleaning, performance testing, and accurate records can prevent most static neutralization failures and help maintain reliable production quality.
