Static electricity is a recurring challenge in film converting, flexible packaging, protective film processing, and other operations that handle continuous plastic webs. As film separates from a supply roll, passes over rollers, and winds onto a new core, electrical charge can develop and remain on its insulating surfaces. The resulting effects may include dust attraction, unwanted adhesion, difficult material separation, and electrostatic shocks.
Reliable static control requires more than installing an ionizing air bar somewhere on the machine. The treatment must reach the relevant surface at the right stage of production, perform at the required line speed, and remain effective as roll diameter and operating conditions change.
Control static during film unwinding and rewinding by combining verified grounding of conductive machine components with targeted ionization of the insulating film. Treat the exposed web after unwinding, evaluate additional charge generating points, and neutralize the material before rewinding where measurements show a need. Confirm installation distance, full width coverage, airflow, maintenance access, and performance throughout the production cycle.
The most effective arrangement depends on the film structure, machine layout, winding direction, and quality requirements. A simple film rewinder may need a different configuration from a converting line that includes liner removal, printing, lamination, or slitting.
This guide explains how static develops, how to select practical control measures, and how to verify that the finished installation delivers useful results.
Film develops static primarily through contact and separation between materials, while its insulating properties can prevent the resulting charge from dissipating quickly.
During unwinding, adjacent layers separate continuously. Electrical charge can transfer between their surfaces, leaving the outgoing film charged. Sliding contact may also contribute, but visible rubbing is not necessary for electrification. A smooth running web can carry substantial charge even when the process appears mechanically stable.
Further contact and separation occur as film moves around guide rollers, leaves nip rollers, or separates from a release liner. Consequently, neutralizing the material at the unwind does not guarantee that it will remain neutral throughout the machine. Each later process stage may change the electrical condition of the web.
Rewinding brings film into close contact with other layers and may involve lay on rollers, nip contact, or additional separation events. Charge carried into the winding section can become difficult to assess once surfaces are enclosed within the roll. Treating accessible film before winding is therefore an important consideration.
Film chemistry and surface condition also matter. Additives, coatings, printing, contamination, and previous processing can influence charging behavior. Two materials with the same nominal thickness may respond differently, so a successful installation should be validated with representative production films.
Locate static problems by combining repeatable electrical measurements with observations of the film path, material behavior, and defect location.
Begin by documenting the symptoms. Dust attraction before coating points toward a different treatment objective from trim sticking after slitting. Likewise, an operator receiving a shock near a roll does not establish whether the main charge source is the film, an isolated metal component, or another nearby object.
Create a simple process map that includes the supply roll, guide rollers, separation points, processing stations, and rewind. Mark where the film surface becomes accessible and where problems first appear. This connects potential charge sources to practical installation locations.
Measure at several repeatable positions rather than relying on one reading. Useful inspection points may include the outgoing web after unwind separation, the entrance to a sensitive operation, and the final exposed span before rewinding. Where relevant, inspect both surfaces and several positions across the width.
Check mechanical causes at the same time. Wrinkles, telescoping, poor tracking, and blocking can result from tension, alignment, temperature, pressure, or material properties. Static may contribute to a symptom without being its primary cause. A sound diagnosis avoids expecting an ionizer to correct a mechanical defect.
| Observed problem | Static related possibility | Other conditions to inspect |
|---|---|---|
| Dust collects on film | Charged surface attracts particles | Airborne contamination and cleaning effectiveness |
| Film clings to a guide | Electrostatic attraction affects separation | Surface contamination and web tension |
| Layers are difficult to separate | Charge contributes to attraction | Blocking, temperature, and winding pressure |
| Trim handling becomes unstable | Charged waste adheres to equipment | Knife condition and extraction performance |
| Finished roll shape is poor | Static may affect handling | Alignment, tension profile, and winding setup |
Grounding provides a discharge path for suitably conductive components, but most untreated plastic films do not conduct charge readily enough for grounding alone to neutralize their surfaces.
Conductive machine frames, guards, shafts, and other relevant components should have the bonding and grounding required by the equipment design. A metal part that becomes electrically isolated can behave differently from the surrounding grounded structure. Bearings, coatings, contamination, or replacement components may affect electrical continuity.
Plastic film presents a different problem. Charge can remain localized on an insulating surface even when the film touches a grounded roller. Grounding the roller does not necessarily provide an effective path for charge located elsewhere on the web or on its opposite surface.
Ionization addresses this limitation by supplying positive and negative airborne ions that can reach exposed charged areas. The film attracts ions of the opposite polarity, reducing its charge. Effective treatment depends on access to the surface and suitable operating conditions rather than electrical contact with the film.
Use grounding and ionization as complementary measures. Have grounding continuity assessed using an appropriate procedure, and evaluate film neutralization separately. In operations involving flammable vapors or combustible dust, equipment suitability and the installation arrangement must also follow the site’s hazardous area assessment.
Treat the exposed film shortly after it separates from the supply roll, preferably at a stable web span before static affects the next process.
The outgoing web is a practical first treatment location because its surface has just become accessible. Installing an ionizing bar here can reduce charge before the material travels deeper into the machine. Industrial converting guidance identifies neutralization directly after unwinding as an important control measure. :chatgpt-content-reference{index="0"}
A fixed web span often offers a more consistent working distance than aiming directly at the changing supply roll surface. As the roll becomes smaller, the distance between a stationary bar and the roll changes. Equipment selected for direct roll treatment must accommodate that complete operating range.
Keep the relevant film surface visible to the ionizer. A nearby guard, departing liner, or roller may obstruct the treatment path. Positioning a bar close to the machine does not ensure that ions reach the charged area if another component lies between the emitters and the web.
Check threading, acceleration, and low tension operation before finalizing the bracket position. Thin films may flutter or move outside their normal running path. Provide sufficient clearance for foreseeable movement and ensure that operators can access the emitters safely during scheduled maintenance.
Finally, measure farther downstream. If another separation event creates new charge before printing or lamination, the unwind bar may be functioning correctly while an additional treatment point is still necessary.
Reduce charge on the exposed incoming film before it enters the winding roll, then evaluate whether changing geometry or additional charging requires treatment near the winding region.
The final accessible span before the rewind is often a useful installation point. It allows treatment before layers become enclosed. Where slitting occurs immediately upstream, evaluate the separated strips after they leave the cutting section rather than assuming an earlier treatment remains sufficient.
Do not expect an external ionizer to remove all charge enclosed deep within a completed insulating roll. Surface readings on the finished roll can also conceal a more complicated charge distribution. Prevention while the film is accessible is generally more practical than attempting to correct the entire roll afterward.
If a bar faces the winding roll, account for the distance change from the empty core to the largest finished diameter. Equipment may need a suitable operating range, adjustable positioning, or a compatible monitoring arrangement. Application guidance for film winding specifically considers changing roll diameter when selecting treatment equipment. :chatgpt-content-reference{index="1"}
Turret winders and reversible machines require checks in every operating configuration. A bar may treat the correct surface in one winding direction but face a less useful location after a changeover. Verify clearance and coverage during roll transfer as well as steady production.
Some machines intentionally use controlled electrostatic charging for functions such as attaching a film leader to a core. If that feature exists, coordinate neutralization with the machine designer so that one system does not undermine the intended function of another.
Select an ionizer for the actual film speed, working distance, active width, and environmental conditions, then mount it so ions can reach every surface requiring treatment.
The first specification should describe the process rather than simply request a bar of a certain length. Include maximum web width, normal and maximum speed, available installation gap, film structure, and the observed problem. Explain whether the unit will face a fixed span or a roll with changing diameter.
Distinguish active treatment length from overall housing length. A bar housing that matches the film width may have a shorter effective emitting region. Allow for normal web movement and the widest planned production job when confirming coverage with the supplier.

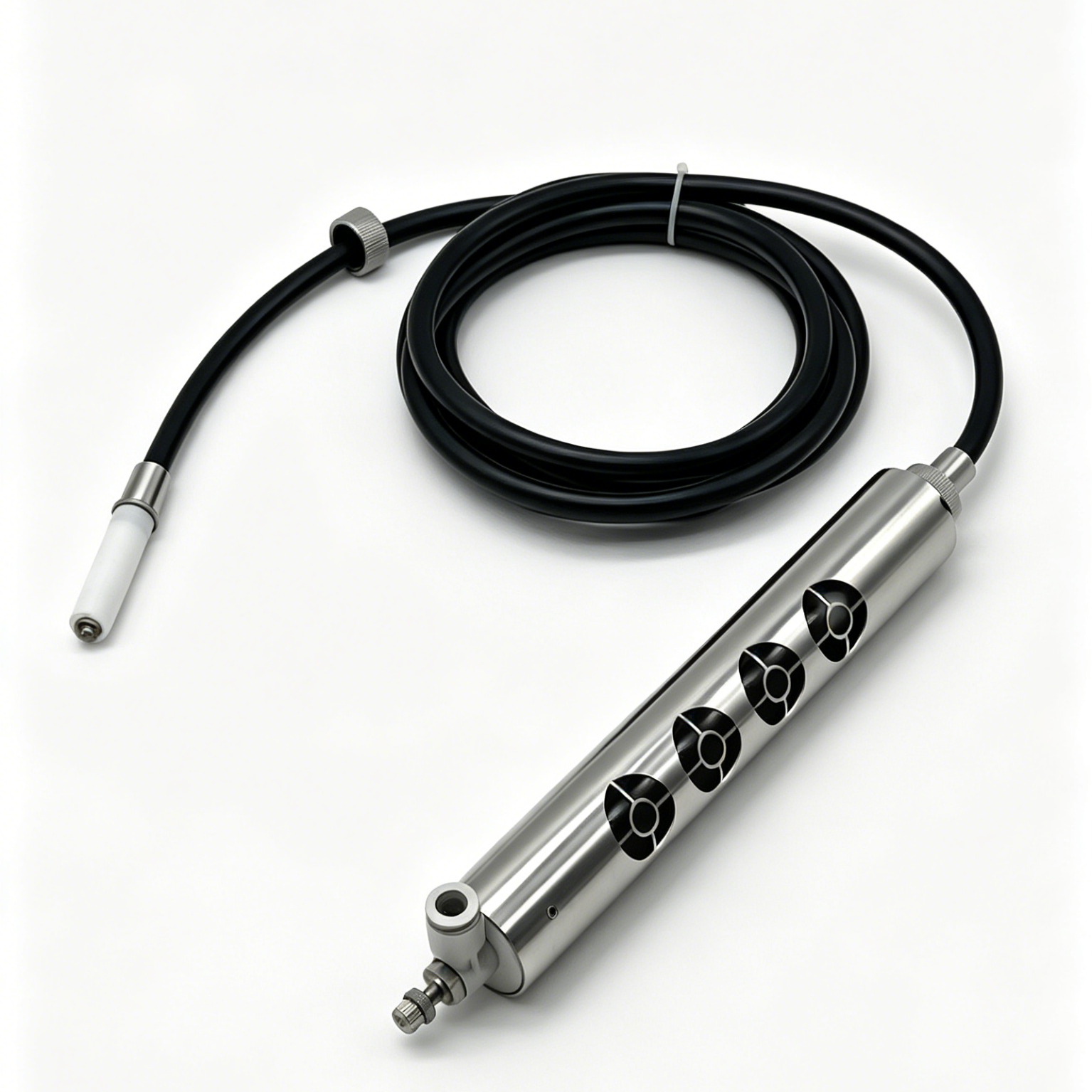

Air assisted and airless ionizers suit different arrangements. Compressed air can help transport ions, but may disturb delicate film or affect contamination control. An airless unit avoids that particular air supply requirement, although its suitability still depends on speed, distance, and the surrounding installation.
Do not choose a universal mounting distance. Follow the selected equipment’s instructions and validate its performance in the available space. Nearby grounded metal, mounting brackets, and guards can affect the treatment arrangement, so review the complete geometry rather than the emitter to film gap alone.
| Selection factor | Information to provide | Reason it matters |
|---|---|---|
| Film speed | Normal and maximum operating speed | Determines available treatment time |
| Web width | Maximum width and expected lateral movement | Supports complete treatment coverage |
| Working distance | Minimum and maximum gap during operation | Helps identify suitable ionizer designs |
| Film structure | Polymer, coatings, layers, and conductive features | Influences charging and measurement interpretation |
| Air sensitivity | Flutter limits and cleanliness requirements | Helps assess air assisted treatment |
| Environment | Dust, moisture, chemicals, and area classification | Determines installation and equipment suitability |
Support ionization with stable web handling, appropriate airflow, and controlled environmental conditions, while recognizing that these measures do not replace treatment of charged insulating film.
For air assisted equipment, use the specified pressure and air quality. Increasing pressure beyond the useful operating range can increase noise, energy consumption, and film movement without delivering a worthwhile improvement. Evaluate the lowest suitable setting that meets the validated production objective.
Compressed air must also meet the cleanliness needs of the product. Oil, moisture, or particles carried onto the web can create a new quality problem. Confirm filtration and drying requirements for both the ionizing equipment and the process receiving the treated film.
Humidity can influence surface charge dissipation, but the effect varies with material and surface condition. Many plastic films remain strongly insulating under ordinary factory conditions. Increasing humidity should therefore be evaluated as a supporting environmental measure, with attention to product requirements, rather than treated as a guaranteed solution.
Maintain correct tension, roller condition, and alignment. Unnecessary sliding, contaminated rollers, or unstable film movement can complicate static control and measurement. Mechanical optimization improves process consistency, but changes should remain within the validated operating window for the material.
Evaluate surrounding ventilation during testing. Extraction hoods and nearby air jets can redirect ionized airflow. If dust removal is required, combine neutralization with suitable particle capture rather than simply blowing contamination toward another part of the machine.
Verify performance through repeatable measurements before and after treatment, supported by production observations across representative materials, speeds, and roll diameters.
Use an appropriate electrostatic measuring instrument and follow its specified measuring distance. Record the instrument type, location, film position, and surrounding geometry. An indicated surface voltage is influenced by measurement conditions and should not be treated as a direct map of all charge within a multilayer film.
Establish baseline readings with the relevant production conditions documented. Repeat the measurements with ionization operating, keeping other variables as consistent as possible. Where a controlled comparison requires disabling treatment, follow the site’s operating procedure and avoid creating an unacceptable process condition.
Measure both edges and the center because coverage problems may be localized. Evaluate both accessible surfaces where the application requires it. A low net field reading at one location does not necessarily demonstrate the absence of opposite charges on different surfaces or within the film structure.
Test at the highest intended operating speed as well as a representative normal speed. For a fixed treatment region, increasing web speed reduces exposure time. As an illustrative calculation, a web traveling at 240 meters per minute moves at 4 meters per second. An assumed effective treatment length of 0.20 meter would provide 0.05 second of exposure. That assumption explains timing only and does not establish an ionizer’s actual performance.
Define acceptance around the application. Suitable criteria may include an agreed residual reading measured by a defined method, fewer static related handling interruptions, or improved cleanliness results. Recheck finished rolls during subsequent unwinding if customer processing performance is part of the objective.
Maintain performance by inspecting emitters, cleaning according to the equipment instructions, checking mounting and air supply conditions, and periodically repeating the commissioning measurements.
Dust, coating residue, and other deposits can accumulate on the emitting region. An ionizer may remain powered while delivering less useful treatment than it did when clean. Maintenance should therefore consider measured performance and contamination exposure rather than relying only on the power indicator.
Establish an inspection interval based on the actual process. A clean film handling area may require a different schedule from a line processing dusty materials or operating near adhesive mist. Start with the equipment guidance, then adjust the interval using inspection records and performance trends.
Isolate the equipment as instructed before cleaning. Use approved tools and cleaning materials, and avoid damaging emitter points or allowing incompatible chemicals into the assembly. Follow the specified drying and restart procedure before returning the unit to service.
Check brackets, cables, connectors, filters, and air settings during the same inspection. A bar moved during threading or maintenance may no longer sit at the approved distance. Position marks and recorded settings make it easier to restore the validated arrangement.
Where monitoring is available, distinguish equipment status from actual film condition. A healthy output signal can help identify faults, but it does not prove that a changed material or web path is adequately neutralized. Periodic process measurements remain useful.
When static remains, investigate treatment access, equipment condition, operating distance, speed, and charge generated after the bar before changing settings or adding more equipment.
First, confirm that the ionizer is operating and that its emitting region is clean. Check approved supply conditions and any fault indicators. Then compare the physical installation with the recorded commissioning position, including obstructions introduced by guards or machine modifications.
If performance worsens only as speed rises, the arrangement may have insufficient treatment capability under that condition. If it changes during roll buildup, the working distance or web geometry may be responsible. These patterns provide more useful evidence than a single measurement taken during an unspecified production state.
When static returns farther downstream, look for another contact and separation event. An upstream bar may have reduced charge successfully, followed by new charging at a roller, peel point, or slitting section. Measure on both sides of that event before deciding whether another ionizer is justified.
If electrical readings improve while the defect remains, revisit the original diagnosis. Adhesive blocking, poor extraction, incorrect winding tension, and material contamination require their own corrective actions. Static control should be judged against both a defined electrical condition and the production problem it was intended to address.
| Performance pattern | Possible explanation | Useful next check |
|---|---|---|
| Works at low speed only | Insufficient treatment at higher throughput | Verify distance and capability at maximum speed |
| Changes with roll diameter | Variable gap or exposed surface geometry | Measure across the complete roll build |
| Center improves but edges remain charged | Incomplete coverage or web movement | Check active length and lateral position |
| Static returns after another station | New charge develops downstream | Measure before and after that station |
| Performance declines gradually | Contamination or changing supply conditions | Inspect emitters, filters, and settings |
| Low readings but persistent defects | Measurement limitations or another process cause | Review measurement geometry and mechanical conditions |
Effective static control during film unwinding and rewinding combines sound machine grounding, accessible ionization points, suitable equipment selection, and verification throughout the operating range.
Begin by understanding where the film becomes charged and where that charge affects production. Treat the exposed web after unwinding when needed, and evaluate the final accessible span before rewinding. Add intermediate treatment only where measurements and process requirements justify it.
Match each ionizer to the actual application. Film width, speed, surface accessibility, changing roll diameter, airflow, and contamination exposure all influence the installation. Avoid assuming that one position or one equipment setting will suit every material processed on the machine.
Finally, preserve the results through documented settings, routine cleaning, and repeatable checks. Revalidate the arrangement when film structures, operating speeds, or web paths change. This gives the production team a practical basis for reducing static related problems and supplying rolls that perform more consistently in subsequent processing.
