Slitting machines convert wide rolls of film, paper, adhesive materials, and flexible laminates into narrower rolls for subsequent processing. During unwinding, roller contact, strip separation, and rewinding, electrostatic charge can accumulate on exposed material surfaces. When that charge affects production, operators may encounter dust attraction, trim adhesion, difficult material handling, and electrostatic shocks.
An ionizing air bar can help control these problems, but its effectiveness depends on placement and selection. A bar that performs well on a stationary sample may deliver inadequate treatment on a moving web. Similarly, a suitable ionizer installed behind a roller or outside the effective treatment distance may provide limited improvement.
For slitting machines, place ionizing air bars where charged material is accessible and before static affects the next operation. Common treatment points include the outgoing web after unwinding, the separated strips after slitting, the trim path, and the exposed web before rewinding. Select equipment according to material properties, maximum line speed, working distance, active treatment width, airflow requirements, and verified production performance.
The correct arrangement may involve one targeted bar or several treatment points. The decision should follow the machine’s charge generation pattern and production objectives rather than a standard equipment layout.
This guide explains how to assess a slitter, choose practical installation locations, compare ionizer configurations, and verify the completed system.
Static develops mainly through contact and separation between surfaces, and it can remain on insulating materials as they travel through the slitter.
The process begins at the unwind, where adjacent layers separate continuously. Material may also arrive with charge remaining from previous manufacturing or handling. As the outgoing web passes over rollers, its electrical condition can change again when it leaves each contact surface.
The cutting section introduces additional handling events. Depending on the machine design, strips separate, change direction, pass over spreader elements, and travel toward different winding shafts. These events can alter the charge condition even if the parent web was treated earlier.
Grounded machine components and insulating webs require different approaches. Proper bonding and grounding help control charge on suitably conductive equipment. However, grounding a roller does not necessarily neutralize charge across the surfaces of an insulating plastic film.
Begin with a charge map. Record measurements at accessible locations before and after major process stages, then connect those observations to production symptoms. Avoid assuming that cutting itself is the only source simply because the problem becomes visible near the knives.
Place ionization after a significant charge generating event and before the next operation that requires protection, using measurements to identify which locations need treatment.
After unwinding, a stable exposed span can provide an opportunity to reduce incoming charge. This location is useful when static contributes to contamination or handling problems before the cutting section. It does not guarantee that the web will remain adequately neutralized through every later stage.
After slitting and before rewinding is another important location to evaluate. Here, treatment can reach the outgoing material before it becomes enclosed within the finished rolls. Published converting application guidance identifies this region as a practical treatment point on slitter rewinders. :chatgpt-content-reference{index="0"}
A bar immediately upstream of the knives may be appropriate when the incoming web condition affects that area. However, it may not address charge generated or exposed when the strips subsequently separate. Compare measurements before and after the cutting and separation section before deciding whether upstream treatment is sufficient.
Mounting convenience should follow process suitability. A location with ample bracket space may still be ineffective if a guard blocks the treatment path or the material becomes charged again before reaching the problem area.
| Potential location | Primary objective | Condition to verify |
|---|---|---|
| After unwinding | Reduce incoming exposed surface charge | Whether downstream stages generate additional charge |
| Before the cutting section | Address static affecting incoming web handling | Whether the relevant surface remains accessible |
| After strip separation | Treat material before individual rewinds | Coverage of every outgoing strip path |
| Along the trim path | Reduce electrostatic adhesion of waste | Interaction with extraction and trim movement |
| Near the winding region | Address residual charge during winding | Performance across changing roll diameter |
Evaluate the separated strips individually and assess both relevant surfaces rather than assuming one bar can treat every material path equally.
On some slitters, all outgoing strips remain approximately in one plane. On others, alternate strips travel toward different rewind shafts or move through staggered roller arrangements. A single bar across the parent web width may not have a clear treatment path to each strip after separation.
Inspect the complete outgoing geometry. A strip may sit behind a spreader roller, run farther from the emitter face, or move outside the expected treatment region. Wide format installations deserve particular attention because the center and outer strips may experience different mounting conditions.
Insulating materials can carry different charge conditions on opposite surfaces. Treating one face should not automatically be assumed to neutralize the other face or charge enclosed within a laminate. Measurements and product requirements should determine whether treatment from both sides is necessary.
When multiple bars are proposed, review their spacing and orientation with the equipment supplier. Do not assume that placing additional emitters directly opposite each other will always improve performance. The approved arrangement should account for the ionizer design and surrounding machine structure.
Install targeted ionization where charged trim is exposed before it adheres to equipment or enters a difficult waste handling section.
Edge trim often follows a different path from the product strips. It may enter a suction duct, pass through a guide, or travel toward a separate waste winder. An ionizer aimed at the finished product may provide little useful treatment to this waste stream.
Identify where the trim first becomes difficult to control. If it clings immediately after separation, investigate a treatment position before that contact occurs. If the problem develops near the extraction inlet, evaluate both the charge condition and the airflow pattern in that region.
Ionization should complement the waste handling system. It cannot compensate for insufficient extraction, inappropriate duct geometry, adhesive contamination, or poor cutting quality. Neutralizing trim may reduce electrostatic attraction, while reliable waste transport still depends on suitable mechanical and pneumatic conditions.
Keep emitters accessible for cleaning because trim areas can accumulate dust and fibers. Avoid a position that directs loosened debris toward the finished material. Where an air assisted device is used, coordinate its airflow with the collection system.
Select equipment using the actual material structure, maximum operating speed, and available working distance, with performance evidence that reflects those conditions.
Material information should include more than a general description such as plastic film. Specify the polymer where known, thickness range, coatings, adhesive layers, and whether the construction includes conductive or metallized features. These details affect charging behavior and the interpretation of electrostatic measurements.
Line speed determines how long a moving surface remains within the effective treatment region. A device that works during slow setup may be inadequate at full production speed. Ask for application evidence at the intended speed and distance together, rather than comparing unrelated maximum ratings.
Working distance must include the full operating range. A fixed span may offer a relatively stable gap, while a bar facing a roll may experience substantial variation. Ionizers are available for different speed and distance requirements, so the equipment category should follow the installation geometry. :chatgpt-content-reference{index="1"}
Electrical technology alone does not establish suitability. Alternating current and direct current configurations can differ in output characteristics, adjustment options, and integration requirements. Compare the complete proposed system and its demonstrated performance instead of selecting solely by a technology label.
Also request the test conditions behind published results. Charge decay measured on a stationary test plate can help characterize equipment, but it does not directly establish the residual charge on every moving production material.
Cover the complete operating width with the active treatment region and maintain the approved gap despite web movement, vibration, and job changes.
Overall housing length and active ionizing length are not always identical. Confirm the effective treatment length with the supplier and compare it with the widest web or combined strip arrangement. Include expected lateral movement rather than matching only the nominal material width.
Measure the available installation envelope carefully. The proposed assembly must fit around guards, knife adjustment mechanisms, shafts, and threading routes. Leave room for cable connections, air fittings where applicable, and safe maintenance access.
Nearby grounded metal can influence the ionizing field and the path available to ions. Follow the selected equipment’s clearance instructions for brackets, rollers, and structural members. A short emitter to web distance is not sufficient if other parts compromise the installation.
Use a rigid, adjustable bracket that can return to a documented position. If operators move the bar during threading, provide a repeatable stop or position mark. Verify clearance with the machine stopped and during representative operating movement before accepting the installation.
Use air assistance when it provides a validated treatment benefit, and consider airless ionization where airflow could disturb the material or increase contamination and operating costs.
An air assisted ionizing bar uses supplied airflow to help transport ions toward the target. This can be useful in an appropriate installation, but increasing pressure does not automatically produce better neutralization. Excessive airflow may cause thin strips to flutter or interfere with waste extraction.
Airless ionizing bars generate ions without a dedicated compressed air supply. Their suitability still depends on the equipment design, working distance, line speed, and surrounding airflow. Airless operation should not be interpreted as unlimited range or immunity to installation conditions.
Compressed air quality matters when the material has cleanliness requirements. Oil, moisture, or particles introduced at the treatment point may undermine product quality. Confirm filtration and drying requirements for both the equipment and the material being processed.
Compare lifecycle costs as well as purchase price. Air consumption, filtration service, cleaning time, replacement components, and downtime can influence the long term value of the installation. Request consumption data at the proposed operating setting rather than assuming the highest rated setting will be necessary.
| Selection issue | Air assisted configuration | Airless configuration |
|---|---|---|
| Compressed air supply | Required at specified conditions | No dedicated compressed air required |
| Material disturbance | Airflow must be checked on lightweight strips | Avoids disturbance from dedicated treatment air |
| Cleanliness | Air quality must suit the product | Emitter cleanliness remains important |
| Operating cost | Include air generation and treatment costs | Include power, cleaning, and service costs |
| Performance approval | Validate speed, gap, and airflow together | Validate speed, gap, and installation geometry |
Verify treatment throughout the complete roll build and every intended winding configuration, especially when the ionizer faces a changing roll surface.
A fixed bar facing a rewind roll experiences a changing gap as the roll diameter increases. Depending on its position, the bar may become closer to or farther from the material. The equipment must operate within its validated range throughout that movement.
A stable incoming span can sometimes simplify the treatment geometry. However, measurements should confirm whether charge generated or exposed after that point still affects the winding region. Neither direct roll treatment nor incoming span treatment should be assumed universally sufficient.
Turret winders, upper and lower shafts, and reversible winding arrangements can create several different material paths. One bar may serve multiple positions only if coverage, distance, and access remain suitable in each configuration. Application guidance for winders and slitters recognizes that separate treatment units may be necessary when movement or limited access prevents one unit from serving both positions. :chatgpt-content-reference{index="2"}
Include roll transfer and threading in the installation review. A configuration that performs during steady running may obstruct a changeover or leave the material untreated after a path change. Record the approved arrangement for each relevant operating mode.
Provide the specified electrical supply, useful status signals, protected routing, and practical cleaning access so the ionization system remains reliable in daily operation.

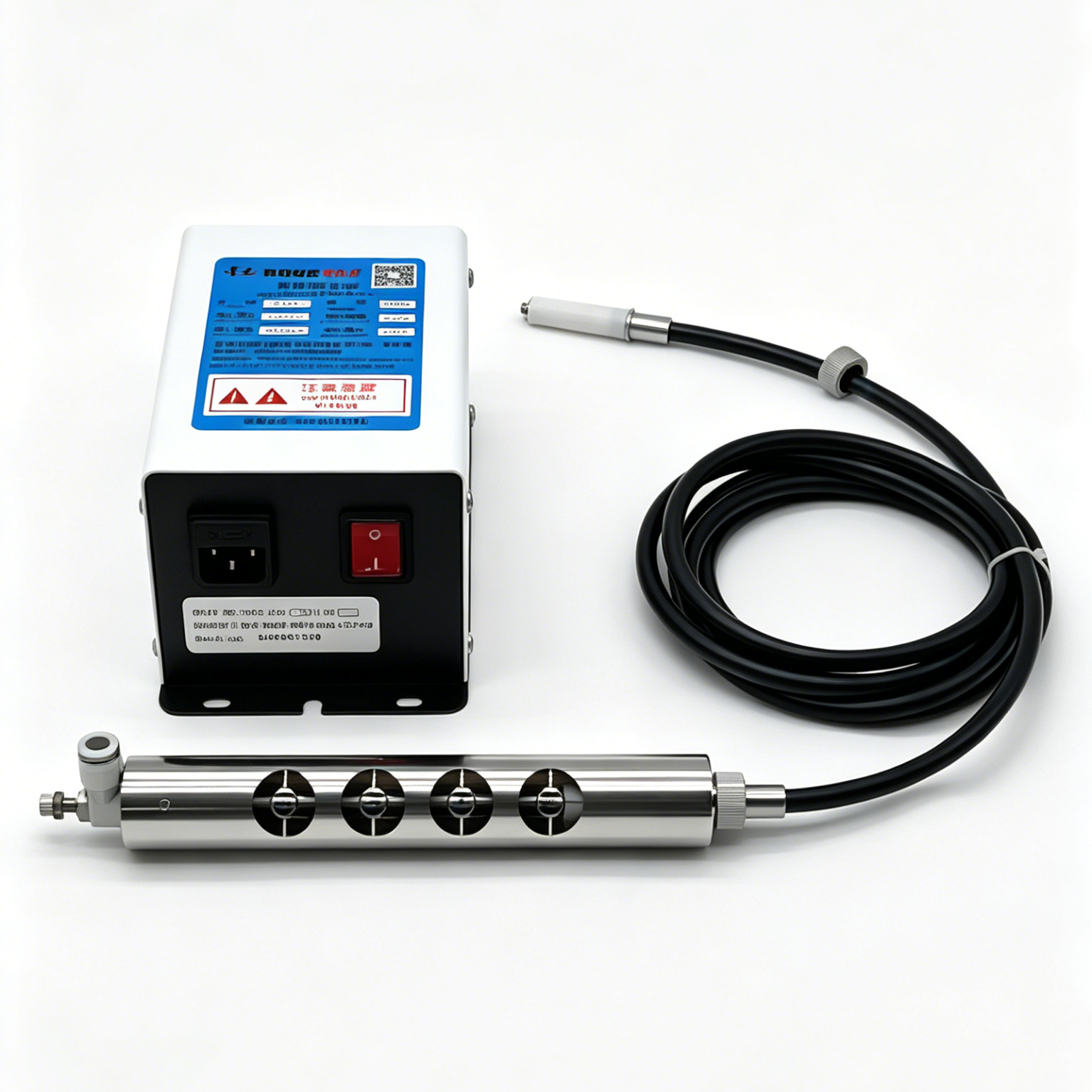

Check whether the selected bar uses an integrated power supply or a separate high voltage unit. Confirm supply requirements, connectors, cable length restrictions, and grounding instructions. A low voltage input does not remove the need to follow the complete installation procedure.
If connection to the machine controller is required, define what each signal means. Power status, fault indication, cleaning alerts, and measured web condition are different types of information. A healthy equipment status signal does not prove that every strip is adequately neutralized.
Route cables and hoses away from moving shafts, sharp edges, and knife adjustment areas. Include the full travel of any movable assembly. Connections should remain accessible without encouraging operators to reach into operating machinery.
Plan cleaning before finalizing the bracket. Emitters exposed to dust, fibers, or adhesive residue need inspection and maintenance according to the equipment instructions. A slightly more accessible position can provide more consistent long term performance than a difficult location that is rarely cleaned.
For classified environments, confirm suitability through the site’s area assessment and equipment documentation. Product selection must reflect the actual environment rather than assuming that a general industrial ionizer is appropriate everywhere.
Accept the installation only after repeatable electrical measurements and relevant production observations demonstrate adequate performance across the agreed operating range.
Record baseline conditions before evaluating improvement. Document the material, speed, slit pattern, roll diameter, ambient conditions, and measurement geometry. Use an appropriate instrument at its specified distance and avoid comparing readings taken in substantially different surroundings.
Measure where performance matters, including representative outgoing strips and the material approaching each rewind. Check the center and edges. Where both surfaces are relevant, include both in the procedure rather than relying on one convenient reading.
Evaluate maximum production speed as well as normal running. For illustration, a web traveling at 300 meters per minute moves at 5 meters per second. If an effective treatment region is assumed to extend 0.10 meter along the travel direction, exposure lasts approximately 0.02 second. This calculation explains the effect of speed; the assumed region does not represent a universal equipment specification.
Set application specific acceptance criteria. These may include a residual reading obtained by a defined method, reduced trim adhesion, or fewer contamination related interruptions. A low net field reading at one location does not establish that all surfaces or enclosed layers are free of charge.
Finally, assess the finished rolls during subsequent processing when that is part of the customer requirement. Save the validated settings and repeat the evaluation after significant changes to materials, speeds, or web paths.
Give suppliers a clear description of the machine, material, operating conditions, and desired result so proposals can be compared on the same basis.
Include photographs or drawings showing the unwind, cutting section, outgoing strip paths, trim handling, and rewind stations. Mark available mounting positions and dimensions. This helps the supplier identify obstructions and changing gaps before recommending equipment.
Describe the actual problem and provide measurements where available. State whether the objective concerns contamination, trim transport, operator shocks, or finished roll performance. A general request to remove static leaves too much uncertainty about the required result.
Ask each supplier to identify the proposed treatment locations, active length, operating gap, supply requirements, and maintenance needs. Request an explanation of any performance assumptions, especially when the proposal depends on a particular speed, air setting, or material configuration.
For a significant installation, arrange an application trial where practical. Compare proposals using the same test conditions and acceptance procedure. This produces a more useful purchasing decision than comparing bar length, nominal voltage, or purchase price alone.
| Inquiry item | Details to include |
|---|---|
| Material range | Construction, thickness, coatings, and representative samples |
| Production range | Maximum width, slit patterns, and operating speeds |
| Machine geometry | Drawings, available gaps, and outgoing strip paths |
| Rewind arrangement | Core size, finished diameter, shaft positions, and winding direction |
| Current problem | Symptoms, locations, measurements, and production impact |
| Utilities and controls | Electrical supply, air availability, and required signals |
| Acceptance requirements | Measurement method, operating conditions, and desired outcome |
The best ionizing air bar arrangement for a slitting machine treats the relevant material surfaces at accessible locations and meets defined performance requirements throughout production.
Begin by identifying where charge develops and where it creates a problem. Evaluate treatment after unwinding, after strip separation, along the trim path, and before rewinding. Each location should have a clear purpose supported by measurements and process observations.
Select equipment using the combined requirements of material, speed, distance, coverage, and airflow. Review every slit pattern and winding configuration that the installation must support. Include maintenance and integration requirements in the purchasing decision.
Complete the project with a documented acceptance trial and repeatable operating settings. With suitable placement, application based selection, and routine verification, ionizing air bars can become a dependable part of static control on industrial slitting machines.
