Static electricity can affect almost every stage of a roll to roll production process. As film, paper, foil laminates, or other flexible materials separate from a roll and travel through the machine, electrical charge can accumulate on their surfaces. This charge may contribute to dust attraction, material handling difficulties, operator discomfort, and inconsistent downstream processing.
Choosing an ionizing air bar is only part of the solution. Its installation position determines whether ions can reach the charged surface before static causes a production problem. A bar installed in a convenient location may provide limited benefit if the web becomes charged again before reaching the critical operation.
Install an ionizing air bar where the charged web is exposed, generally after a significant charge generating separation and before the next operation affected by static. Common locations include the outgoing web after unwinding, before cleaning or coating, after liner separation, near slitting operations, and before rewinding. The final position must account for web speed, installation distance, surface accessibility, nearby metal, airflow, and measured static levels.
There is no single installation position that suits every production line. A narrow label converting machine and a wide film laminating line may require different equipment, mounting arrangements, and treatment points. Some processes need several ionizers because charge develops repeatedly as the material moves through the machine.
The following guide explains how to evaluate these locations, select a practical mounting arrangement, and verify that the installation improves performance under actual production conditions.
Start by identifying where charge develops, where it creates defects, and where the material surface is accessible. Use this process map to select treatment locations instead of placing an ionizing air bar solely where mounting space is available.
In roll to roll production, charge commonly develops when surfaces contact and then separate. Examples include film leaving a supply roll, a release liner peeling away from adhesive, and a web separating from a process roller. Sliding contact can also contribute. The amount and polarity of charge depend on the materials, surface condition, operating environment, and process history.
Walk through the complete web path and record the location of each separation event. Include unwinding, guide rollers, coating stations, drying sections, laminating nips, slitting knives, and rewinding. Then identify the locations where operators observe dust attraction, sticking, unstable trim, or other suspected static problems.
Next, measure the web at repeatable locations using an appropriate electrostatic instrument. Keep measurement distance and surrounding geometry consistent. Measurements taken against a grounded roller may differ substantially from measurements on a free span, so readings from unlike positions should not be compared without considering those differences.
A useful installation plan connects a measured condition to a specific process objective. For example, the objective might be reducing charge before a cleaning head or limiting residual charge on material approaching a winding roll. Defining that objective makes later commissioning much more meaningful.
| Process observation | Location to investigate | Installation objective |
|---|---|---|
| Dust collects soon after unwinding | Exposed web leaving the supply roll | Reduce charge before further contamination develops |
| Contamination remains before coating | Web entering the cleaning and coating section | Support particle removal and reduce renewed attraction |
| Film charges strongly after liner removal | Both accessible surfaces leaving the peel point | Treat charge created by separation |
| Trim clings to equipment | Trim path after cutting and separation | Improve waste handling where static contributes |
| Finished material retains charge | Incoming web and exposed winding region | Reduce charge carried into the finished roll |
Position an ionizing air bar near the outgoing web after it separates from the supply roll, preferably at a stable, accessible span before the first operation affected by static.
Unwinding is an important inspection point because adjacent material layers separate continuously. A supply roll may also arrive with charge already present from previous processing. Treating the outgoing web provides an opportunity to reduce exposed surface charge before the material reaches cleaning, alignment, or processing equipment.
A fixed free span after unwinding can simplify installation because its position remains relatively constant as the supply roll becomes smaller. By comparison, a bar aimed directly at the roll surface experiences a changing working distance as the roll diameter decreases. That arrangement may require equipment specifically selected for the full distance range.
Evaluate the web path during startup, normal running, and roll changeover. The selected position should maintain sufficient clearance when tension varies or the material flutters. Mounting a bar extremely close to a nominal web position can create contact risk when actual operating movement is considered.
Early treatment does not guarantee adequate static control throughout the rest of the machine. If the web subsequently separates from rollers or another material layer, additional charge may develop. Treat the unwind location as one control point and confirm whether later operations require their own ionization.
Place ionization close enough to a sensitive operation that the web receives treatment before entering it, while allowing the cleaning equipment or process system to perform its separate function.
Printing, coating, and optical inspection can be sensitive to contamination on the web. If charged material attracts airborne particles, those particles may enter the next process and contribute to visible defects. A practical location is therefore often near the final cleaning stage before the quality critical operation.
Ionization and cleaning serve different purposes. An ionizing air bar reduces electrostatic charge, while a suitable cleaning system removes particles. Neutralizing the surface does not guarantee that dust will detach, and blowing particles away without capture can transfer contamination elsewhere. Industrial web cleaning systems may combine ionization with dedicated particle removal before downstream processing. :chatgpt-content-reference{index="0"}
Inspect the route between the treatment point and the process entrance. If the cleaned web contacts several rollers or undergoes another separation before coating, the initial treatment position may be too far upstream. Measurements near the actual process entrance help establish whether another control point is justified.
Protect the ionizing bar from coating mist, ink deposits, and cleaning chemicals. A position with strong initial performance but rapid contamination may become unreliable between maintenance intervals. Select a mounting arrangement that allows inspection and cleaning without disturbing the calibrated web path.
Install ionization after liner or film separation and, where needed, on each incoming web before the laminating nip. Treat accessible surfaces before they become enclosed within the finished laminate.
Peeling a protective film or release liner creates a fresh separation event. The two departing materials may carry different charge conditions, so measuring only one outgoing path can overlook a significant source of static. The product web and waste liner may each require attention for different reasons.
Place the treatment point where the separated surface is exposed and the ionizer has a clear path to it. Avoid directing the bar toward a region hidden by a peel roller, a machine guard, or the departing liner. Physical proximity alone does not ensure that ions reach the surface that needs treatment.
Before lamination, evaluate both incoming webs. One may appear relatively neutral while the other carries substantial charge. Treating accessible surfaces before joining is preferable to relying on an ionizer outside the completed structure to address charge enclosed between layers. Guidance for converting applications identifies treatment before lamination as a way to prevent charge from being enclosed within the laminate. :chatgpt-content-reference{index="1"}
Airflow requires particular care around exposed adhesive and lightweight films. Excessive air movement may disturb the material or carry contamination toward the bonding area. Where airflow is undesirable, evaluate an appropriate ionizing bar that operates without compressed air, provided its performance suits the available distance and line speed.
Evaluate ionization before the slitting section for incoming web problems and after cutting or separation for charged slit strips and trim. Select the position according to where the handling difficulty actually occurs.
A slitting section introduces several material paths within a small area. The parent web enters the knives, individual strips separate, and edge trim moves toward a collection system. A bar that treats the parent web may not adequately address charge that appears later on separated strips or waste.
If the incoming web attracts contamination before cutting, an upstream treatment point may help address that condition. If trim clings to guides after separation, the more relevant location may be on the exposed trim path before it enters the waste system. These are different objectives and should be tested separately.
Check coverage across the complete operating width. Slit patterns can change between jobs, and the outermost strips may run close to the ends of the ionizer’s effective treatment area. An installation that works for a narrow product arrangement may leave edge material inadequately treated during a wider production run.
Do not assume every trim problem comes from static. Dull knives, adhesive buildup, incorrect tension, and insufficient extraction can produce similar symptoms. Compare static measurements with mechanical observations so that ionization addresses an identified electrical contribution rather than masking an unrelated process fault.
Place an ionizing air bar on the exposed incoming web before winding, and assess whether the winding geometry requires additional treatment near the roll. Verify performance from the smallest core condition to the largest finished diameter.
The final free span before the winding roll is often a useful location because the material remains accessible before layers are wound together. Treatment here can reduce the charge carried into the roll, although subsequent contact and separation within the winding process can still affect the finished condition.
Directing a bar toward the growing roll introduces a variable working distance. A bar that performs well near a small core may operate outside its effective range as the roll grows, or the reverse may occur depending on the mounting arrangement. Evaluate the entire roll build rather than checking only the start of production.
Turret winders and reversible winding systems need additional consideration. Roll changes can alter the web path, exposed surfaces, and distance from the ionizer. Record each operating configuration and confirm that the bar remains correctly positioned when the machine changes winding direction or transfers to another station.
Residual charge in finished rolls should be evaluated using a defined procedure suited to the material and application. A low reading at one exposed location does not demonstrate that every layer or both surfaces are neutral. Include downstream unwinding observations when finished roll static is a customer concern.
Follow the selected ionizer’s installation requirements, cover the full web width, and maintain a clear treatment path. There is no universal mounting distance that applies to every ionizing air bar.
Different ionizers are designed for different combinations of speed and working distance. A unit intended for close treatment should not be assumed to perform effectively across a large gap. Conversely, equipment developed for longer distances may have different installation and operating requirements. Published product guidance distinguishes ionizers according to these application conditions. :chatgpt-content-reference{index="2"}
Specify the required active treatment length, not simply the overall housing length. The effective ionizing area may be shorter than the complete assembly. Account for web wandering, edge position changes, and the maximum width used on the machine so that normal movement does not carry part of the material beyond the treatment zone.
Nearby metal and mounting geometry also deserve attention. Follow the equipment instructions for clearances around emitters and grounded structures. Brackets, guards, rollers, and frame members can interfere with an otherwise suitable arrangement, particularly when they sit between the emitters and the web.
Keep the assembly rigid and provide adjustment without allowing accidental movement into the web. Mark the approved position after commissioning. If operators move the bar for threading or cleaning, a repeatable return position helps preserve the verified distance and angle.

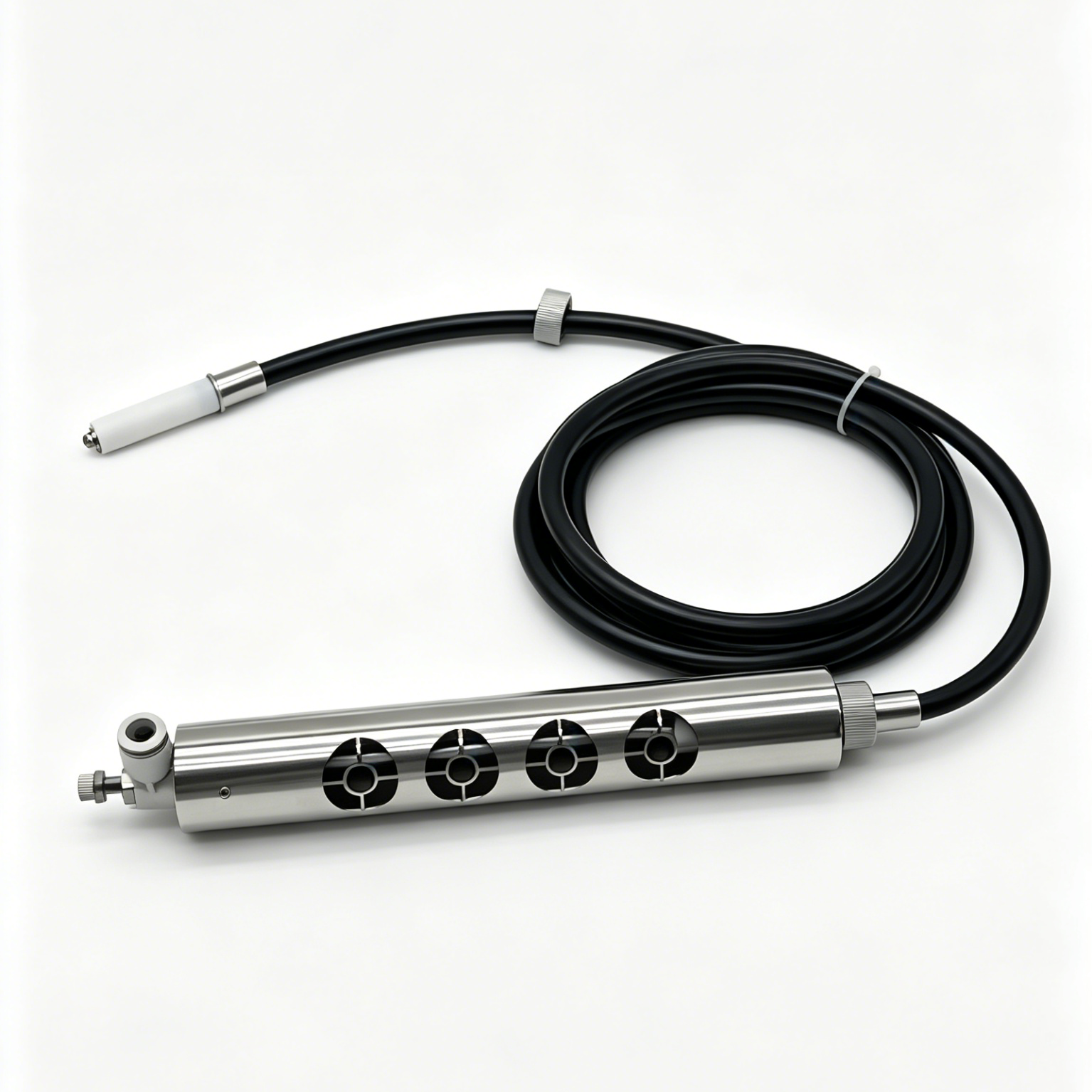

For an air assisted ionizing bar, use the specified air supply conditions and adjust airflow to deliver ions without destabilizing the web or spreading contamination.
Compressed air can assist ion delivery, but the highest available pressure is not automatically the best setting. Excessive flow may increase material flutter, noise, and energy use. Start within the equipment’s recommended operating conditions and evaluate the result at the actual treatment point.
Air quality must suit both the ionizer and the product. Oil, moisture, or particles introduced through the air supply can undermine the purpose of treating a clean web. Confirm filtration and drying requirements with the equipment supplier and the production team rather than assuming the general factory air supply is suitable.
Consider surrounding airflow as well. Extraction systems, enclosure ventilation, and nearby air knives may redirect the ionized air before it reaches the intended surface. Evaluate the installation with these systems operating at their normal production settings, since a test performed with ventilation stopped may not represent the real process.
Where dust removal is part of the objective, plan where the displaced particles will go. Positioning an air assisted bar without considering collection can move dust toward another web surface or sensitive station. Coordinate ionization, airflow direction, and extraction as one process arrangement.
A production line needs multiple treatment points when significant charge develops again after an earlier ionizer or when separate surfaces and material paths require independent treatment.
The number of bars should follow the charge map and production objectives. Machine length alone is a poor basis for selection. A relatively short machine with several liner separation points may require more targeted treatment than a longer line handling a simpler material path.
Separate the objectives at the unwind, process entrance, and rewind. The first location addresses material entering the machine, the second protects a sensitive operation, and the third addresses material leaving the process. Combining these objectives into one installation can leave important sections uncontrolled.
Both sides of an insulating web may need evaluation. Treatment of one exposed surface should not automatically be assumed to neutralize the opposite surface or charge enclosed within a multilayer structure. Measure the relevant surfaces and choose a configuration based on the observed condition.
The following arrangement is an illustrative planning framework rather than a required layout. Add or remove treatment points after reviewing the actual material, measurements, and process needs.
| Potential treatment point | Main purpose | Reason to consider another bar |
|---|---|---|
| After unwind separation | Reduce incoming exposed surface charge | Later rollers or separation steps create new charge |
| Near web cleaning | Support contamination control | Charge returns before the sensitive process |
| After liner peeling | Treat newly separated surfaces | Product and waste liner need independent treatment |
| After slitting | Address separated strips or trim | Different paths fall outside one treatment zone |
| Before rewind | Reduce charge entering the finished roll | Changing winding geometry limits effective treatment |
Approve the installation only after comparing repeatable static measurements and relevant production results across the intended speed, material, and roll diameter range.
Begin with a baseline recorded before the ionizer is enabled. Document material type, web width, line speed, measurement distance, ambient conditions, and the position of each reading. Repeat the measurements with the ionizer operating while keeping the other conditions as consistent as possible.
Measure downstream of the treatment point where the result matters. An instrument placed too close to the ionizer may respond to its electric field and complicate interpretation. Follow the measurement instrument’s instructions and choose a location that produces meaningful, repeatable observations of the web.
Test more than one operating condition. Include startup and maximum approved production speed, representative materials, and relevant roll diameters. A successful low speed trial does not establish performance at full throughput because the web spends less time within a fixed treatment region as speed increases.
For illustration, if a web travels at 180 meters per minute, its speed is 3 meters per second. If the effective treatment region along the direction of travel is assumed to be 0.15 meter, the exposure time is approximately 0.05 second. This calculation explains the influence of speed, but the assumed treatment length is not a product specification and does not establish neutralization performance.
Set acceptance criteria around the application. These may include a defined residual reading using an agreed measurement method, improved trim handling, or fewer contamination related defects. Avoid adopting a universal voltage target without considering the material, instrument, measurement geometry, and downstream sensitivity.
The best installation position is an accessible point after significant charge generation and before the operation that needs protection. Use measurements to confirm whether treatment is required after unwinding, near cleaning, after separation, around slitting, or before rewinding.
Start with the web path rather than the available mounting bracket. Identify where surfaces separate, where defects occur, and which surface must receive ions. This approach provides a clear reason for each installation and helps avoid purchasing equipment that cannot reach the required material area.
Then match the hardware to the operating conditions. Working distance, active width, line speed, changing roll geometry, and airflow all influence whether a proposed location is practical. Maintain access for cleaning and preserve the verified mounting position during routine machine operation.
Finally, treat commissioning as part of the installation. Confirm performance using repeatable measurements and relevant production results, then revisit the arrangement when materials, speeds, or web paths change. A documented, tested installation gives a roll to roll production team a stronger basis for reliable static control and future process improvements.
