Conveyors are used throughout electronics manufacturing, food packaging, printing, plastics processing, pharmaceutical production, automotive assembly, textile operations, and general material handling. As products move along a conveyor, friction, contact, separation, and induction can create significant static electricity on product surfaces, packaging materials, belts, guides, and containers.

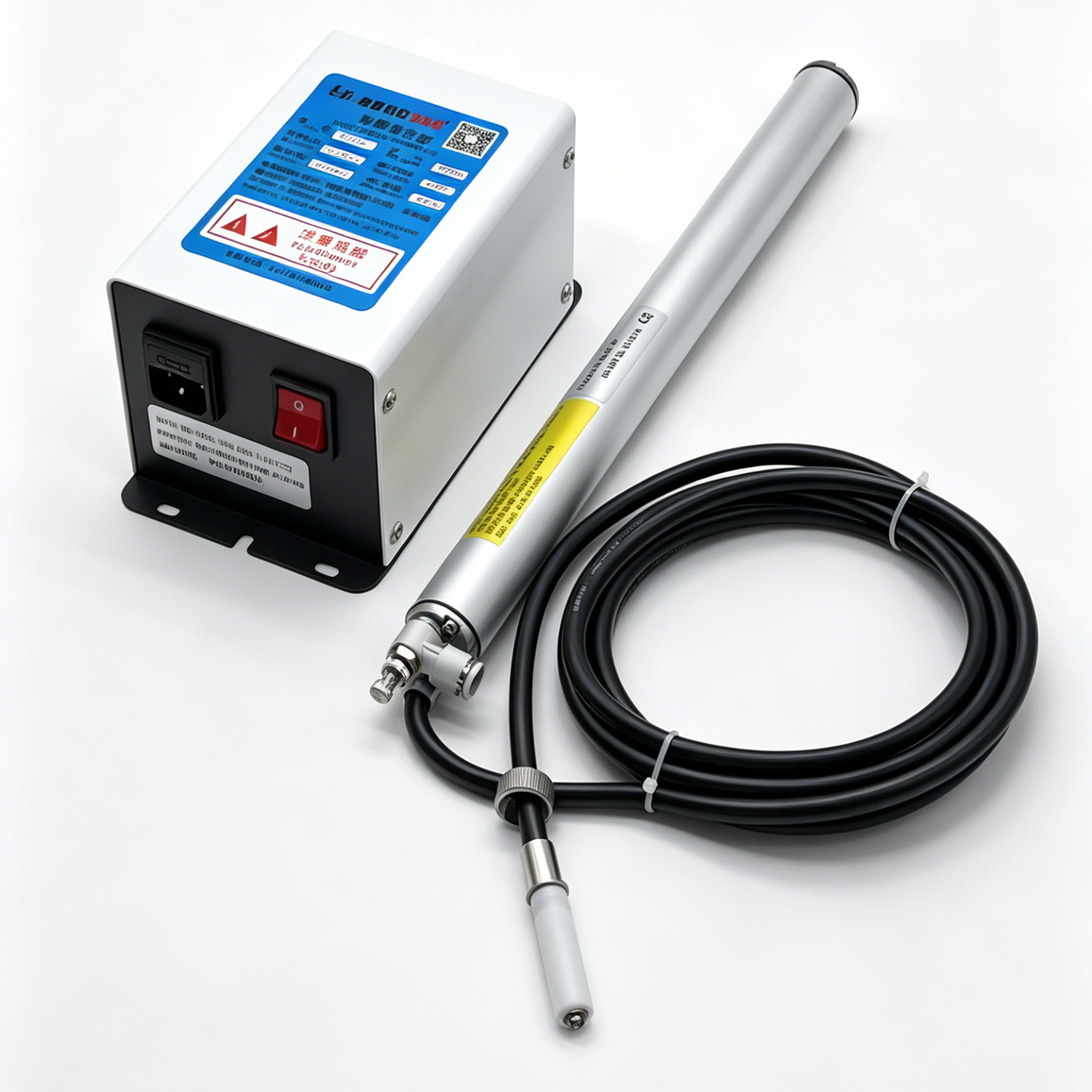

An ionizing air bar can neutralize these charges by producing positive and negative ions above or beside the conveyor. However, installing one bar does not automatically mean that every product and every part of the conveyor will receive effective treatment. Conveyor width, product height, line speed, static generation points, airflow, and installation distance all influence coverage.
One ionizing air bar can cover an entire conveyor when its active length covers the full treatment width, its ion output reaches every target surface, and the available exposure time is sufficient to reduce static to the required level. Multiple bars may be necessary for wide conveyors, high speed lines, tall or irregular products, hidden surfaces, heavy static charges, or processes with several charge generating points.
The objective is not necessarily to ionize every meter of the conveyor. In many applications, one strategically positioned treatment zone can control static effectively if the bar is installed after the main charge generating event and before the point where static causes a problem.
This guide explains how to determine whether one ionizing air bar is enough, how bar length relates to conveyor width, how speed and product geometry affect treatment, and when additional ionizers should be installed.
This article covers the coverage capacity of one ionizing air bar, the factors that influence conveyor treatment, and the methods used to calculate, test, and improve static neutralization performance.
Conveyor coverage involves more than matching the physical length of the bar with the width of the belt. Effective coverage requires adequate ion density, uniform distribution, suitable working distance, sufficient treatment time, and access to all charged surfaces.
The following sections provide practical guidance for production engineers, equipment designers, quality managers, maintenance teams, and purchasing professionals who need to control static electricity on conveyor systems.
Each section focuses on actual performance at the product surface. This is important because a bar can be electrically active and physically long enough while still failing to neutralize products at the conveyor edges, below overhanging sections, or beyond the intended working distance.
One ionizing air bar can cover a conveyor when the treatment area is within the bar's effective width and distance, products remain in the ionized zone long enough, and all important charged surfaces are exposed to the ions.
A simple conveyor carrying flat products in a single layer is often suitable for treatment with one bar. The bar can be mounted across the belt so that its active emitter length covers the complete product path. This arrangement creates an ionization zone through which every product passes.
One bar may also be sufficient when static is generated at one known location. For example, products may become charged when they separate from a transfer belt or when a protective liner is removed. Installing the bar immediately after that event can neutralize the charge before the products reach inspection, assembly, filling, or packaging.
The amount of available treatment time must be sufficient. Products on a slow conveyor may remain under the ionizing bar long enough for effective neutralization. Products on a fast conveyor may leave the ion zone before static decay is complete.
A conveyor should be evaluated by its active product area rather than its total mechanical width. A wide machine frame may contain a much narrower product path. The bar needs to cover all locations where charged products can travel, with a reasonable margin for movement and alignment variation.
One bar is less likely to be sufficient when products are stacked, overlap one another, or have deep cavities. Ions primarily reach surfaces exposed to the air. Shielded surfaces may remain charged even when the top of the product is neutralized.
Static may also be regenerated after the treatment zone. If a product is neutralized and then slides against an insulating guide, separates from the belt, or enters plastic packaging, another ionizing position may be necessary.
The active ionizing length should normally cover the full product travel width, but it does not always need to equal the total width of the conveyor frame.
The active length is the part of the bar that contains emitter points and produces useful ions. The overall physical length may include end sections, electrical connectors, mounting areas, and air fittings that do not contribute to ionization.
Buyers should therefore compare the conveyor treatment width with the active length rather than the external dimensions of the bar. If products can travel across 800 millimeters of the belt, the active ionization zone should cover that complete area.
A small coverage margin is usually beneficial. Products may shift sideways because of vibration, belt tracking, guide adjustment, or loading variation. A bar sized exactly to the nominal product path may leave edge positions untreated when normal movement occurs.
| Width Measurement | Meaning | Importance for Selection |
|---|---|---|
| Total conveyor width | Complete mechanical width including frame | Useful for installation planning |
| Belt width | Width of the moving conveyor surface | May be wider than the actual product path |
| Product travel width | Area where products can actually move | Main value for ionization coverage |
| Product width | Width of one individual product | Useful only when product position is fixed |
| Active ionizing length | Emitter area that produces useful ions | Should cover the required treatment width |
| Overall bar length | Full external length of the equipment | Important for available machine space |
If the available bar is shorter than the required treatment width, two or more bars may be installed with overlapping active areas. The overlap prevents a weak ionization zone between adjacent bars.
Another option is to restrict the product path with guides, provided that the guides do not create additional static or interfere with production. A narrower controlled path may allow one bar to cover all products more effectively.
Wide coverage must also be uniform. A bar may technically extend across the entire conveyor while producing weaker performance near its ends. Testing at the center, edges, and intermediate points is necessary to confirm effective coverage.
Conveyor speed affects coverage by determining how long each product remains inside the ionization zone. Faster movement reduces exposure time and may require stronger ion output, closer installation, or multiple bars.
An ionizing air bar does not neutralize static instantly. It requires time to deliver sufficient positive or negative ions to the charged surface. This period is described through static decay time.
If a product moves slowly through a 300 millimeter long treatment zone, it may receive ionization for several seconds. If the same product moves rapidly, its exposure may be only a fraction of a second. The physical width of the bar may remain correct, but the treatment can still be insufficient.
Available exposure time can be estimated by dividing the effective treatment length in the direction of movement by conveyor speed.
Exposure time equals effective treatment length divided by conveyor speed.
| Treatment Length | Conveyor Speed | Approximate Exposure Time |
|---|---|---|
| 300 mm | 100 mm per second | 3 seconds |
| 300 mm | 300 mm per second | 1 second |
| 300 mm | 600 mm per second | 0.5 seconds |
| 300 mm | 1000 mm per second | 0.3 seconds |
| 500 mm | 1000 mm per second | 0.5 seconds |
The required static decay time should generally be shorter than the available exposure time. A safety margin is advisable because initial charge, product position, humidity, emitter contamination, and conveyor speed may vary.
High speed conveyors can sometimes be treated with one bar if it provides very fast decay at a close working distance. In other cases, two bars installed sequentially can create a longer treatment zone and give the product more time to reach the required residual voltage.
The bar may also be installed at an angle relative to the direction of movement. This can increase the effective treatment path, but it must not create uneven coverage across the conveyor. Measurements should confirm that all product positions receive similar treatment.
Product height and shape influence coverage because ions must reach the charged surfaces directly, and changes in distance or surface orientation can create weak or shielded treatment areas.
A flat sheet or low profile component provides a relatively simple target. A bar mounted above the conveyor can treat the upper surface uniformly if its active length covers the product path and the working distance is suitable.
Tall products create a variable distance. The top surface may be close to the bar while the conveyor belt and lower side surfaces are much farther away. If the bar is positioned for the tallest product, low products may receive slower neutralization.
Complex shapes can contain cavities, vertical walls, deep openings, and overhanging features. Natural ion movement may not reach these areas effectively. Air assisted ionization or bars installed from several directions may be necessary.
| Product Type | Main Coverage Challenge | Possible Solution |
|---|---|---|
| Flat sheets | Edge coverage | Use a bar that covers the full travel width |
| Tall containers | Different distances from top to bottom | Add side treatment or adjust bar position |
| Irregular molded parts | Hidden and recessed surfaces | Use directed ionized airflow |
| Stacked products | Inner surfaces are shielded | Treat before stacking or separate the products |
| Overlapping film or sheets | Contact surfaces cannot receive ions | Neutralize during separation |
| Open trays | Interior surfaces may remain charged | Angle the ion flow into the opening |
| Products with charged undersides | Top mounted bar cannot reach the lower surface | Add ionization below or beside the conveyor |
Charge location matters as much as product shape. A plastic container may have a strong charge inside its cavity while the external surface has relatively little charge. A measurement taken only on the outside could incorrectly suggest that the complete product is neutral.
Product orientation should remain stable during treatment. If products rotate or tilt randomly, some surfaces may receive less ionization. Guides can improve consistency, but they should be selected carefully because contact with insulating guides can generate new static.
For products with variable dimensions, testing should include the tallest, shortest, widest, and most complex items expected on the line. A system verified with only one convenient sample may not protect the full product range.
The ionizing air bar should be installed after the main static generating event and before static causes feeding, contamination, safety, assembly, or quality problems.
Static electricity can be generated at many locations along a conveyor. Products may rub against a belt, slide through guides, separate from rollers, release from tooling, lose protective film, or transfer between conveyor sections.
Installing the bar near the source of charge generally produces better results than placing it far away. The product spends less time carrying a high voltage, and fewer additional interactions occur before treatment.
The bar should also be positioned close to the location where static creates a process problem. If static causes dust attraction before visual inspection, the bar should neutralize the product before the inspection area. If static disrupts product transfer, the treatment zone should be located before the transfer point.
Installing one bar at the beginning of a long conveyor does not guarantee that the product will remain neutral until the end. Charge can be regenerated during movement. Measurements should be taken along the entire process to identify where voltage rises again.
Grounded metal structures should not block the ion path. Ions may be attracted to grounded frames, rollers, guards, or support beams before reaching the product. A clear path between the emitter points and the charged target improves efficiency.
The installation should also allow access for cleaning and testing. An ionizing bar hidden behind machine structures may receive little maintenance, allowing emitter contamination to reduce its effective coverage over time.
Working distance and airflow determine how many ions reach the conveyor, how widely they spread, and how quickly static can be neutralized across the treatment area.
A short working distance generally provides a higher concentration of ions at the target. This can produce faster decay and make one bar more effective on a high speed conveyor. However, the bar must maintain safe clearance from the tallest product and moving machine parts.
As distance increases, ions spread through a larger volume of air. Some positive and negative ions recombine before reaching the product, while others are attracted to nearby structures. The resulting decay time usually becomes longer.
A greater distance may create broader physical dispersion, but broader dispersion is not always effective coverage. The ion concentration at the edges or lower surfaces may become too weak to meet the required residual voltage.
| Distance Condition | Likely Ion Density | Likely Decay Performance | Coverage Consideration |
|---|---|---|---|
| Short distance | High | Fast | Confirm full width uniformity and mechanical clearance |
| Moderate distance | Moderate | Application dependent | Suitable for many conveyor processes |
| Long distance without airflow | Low | Slow | May leave weak areas or residual charge |
| Long distance with controlled airflow | Improved at the target | Faster than natural delivery | Useful for tall products and recessed surfaces |
| Variable distance | Uneven | Changes by product height | Test all expected product sizes |
Compressed air or blower airflow transports ions farther and more quickly. This can increase the effective range of the bar and improve penetration into irregular product shapes. The airflow should be clean, dry, and properly regulated.
Excessive airflow can move lightweight products, spread dust, disturb coatings, increase noise, and raise energy cost. It can also direct ions toward one part of the conveyor while leaving another area untreated.
Factory airflow should be evaluated as well. Cooling fans, ventilation systems, extraction equipment, and machine movement can carry ions away from the target. Final testing should be performed with all normal airflow systems operating.
Multiple ionizing air bars are necessary when one bar cannot cover the full width, cannot reach all charged surfaces, cannot provide sufficient treatment time, or cannot control charge regenerated at several locations.
A very wide conveyor may exceed the active length of one practical bar. Two bars can be installed across adjacent sections with overlapping treatment areas. The overlap prevents a weak zone between the ends of the bars.
Multiple bars may also be installed sequentially in the direction of movement. This arrangement increases the length of the ionization zone, providing more exposure time for high speed products or heavily charged materials.
Products with charged upper and lower surfaces may require treatment from both directions. A top bar cannot always neutralize the underside, especially when the conveyor belt blocks ions. A lower or side mounted bar may be needed.
| Multiple Bar Arrangement | Purpose | Main Design Consideration |
|---|---|---|
| Bars placed end to end | Increase treatment width | Provide sufficient overlap |
| Bars placed sequentially | Increase treatment time | Position them before critical process points |
| Bars above and below | Treat both product surfaces | Confirm conveyor does not block lower ion flow |
| Bars on both sides | Treat tall or vertical surfaces | Maintain consistent distance |
| Bars at separate process points | Control regenerated charge | Measure static after each major event |
Adding more bars should be based on measured need rather than assumption. An unnecessary bar adds purchase cost, power consumption, maintenance, and installation complexity. A better position for one bar may sometimes solve the problem more efficiently.
When several bars operate in the same area, their outputs should be evaluated together. Airflow and electrical fields can interact, and the total ion balance at the target may differ from the performance of each bar tested separately.
Multiple bar systems should have clear identification and maintenance records. If one bar fails or becomes contaminated, the remaining bars may hide the problem temporarily while coverage becomes uneven.
Conveyor coverage can be estimated by comparing active bar length with product travel width and comparing required static decay time with the available exposure time.
The first calculation concerns width. The active ionizing length should cover the maximum area in which products may travel. A margin can be added for sideways movement, belt tracking, and installation tolerance.
If one bar does not provide enough active length, the estimated number of bars can be calculated by dividing the required treatment width by the effective coverage of one bar. The result should be rounded up to the next whole number.
Required number of bars equals treatment width divided by effective coverage per bar.
A conveyor has a product travel width of 1200 millimeters. The selected bar provides 700 millimeters of effective active coverage under the intended installation conditions.
1200 divided by 700 equals approximately 1.71. Since part of a bar cannot be installed, the result is rounded up to two bars. Their active areas should overlap sufficiently to avoid a weak center zone.
A product passes through an effective ionization zone that extends 400 millimeters in the direction of travel. The conveyor speed is 800 millimeters per second.
400 divided by 800 equals 0.5 seconds of approximate exposure time. The ionizing system must therefore achieve the required voltage reduction within 0.5 seconds, preferably with a reasonable performance margin.
| Calculation Item | Required Input | Result |
|---|---|---|
| Width coverage | Product travel width and active bar length | Number of bars required across the conveyor |
| Exposure time | Treatment length and conveyor speed | Available neutralization time |
| Distance suitability | Working distance and measured decay data | Expected performance at the target |
| Height coverage | Minimum and maximum product height | Range of treatment distances |
| Process coverage | Number of static generating locations | Number of treatment zones required |
Calculations provide an initial design, but they cannot fully predict airflow, product geometry, contamination, ion recombination, or the effect of nearby metal structures. The result must be verified through measurement.
Coverage should be defined by an acceptable residual voltage rather than the visible width of the ion cloud. If the center of the conveyor reaches the target voltage but the edges remain highly charged, the complete width is not effectively covered.
Coverage should be tested by measuring ion balance, positive and negative decay time, and residual product voltage at multiple positions across the conveyor under normal operating conditions.
A charged plate monitor can evaluate ionizer balance and decay performance at defined points. Measurements should be taken at the center, both edges, and important intermediate positions across the product path.
The monitor should be placed at the same height as the target surface. If products have different heights, the test should be repeated at the minimum and maximum operating distances.
Positive and negative decay times should both be measured because a bar may deliver one polarity more effectively than the other. Ion balance should also remain within the process acceptance range at every important location.
Actual product voltage should be checked where practical. A field meter can measure charge before and after ionization. This confirms the complete process result rather than only the performance of the bar on a standardized plate.
Testing should be performed with the conveyor running at normal speed. Machine guards, ventilation, extraction, cooling fans, and other equipment should be in their normal operating condition because they may influence ion transport.
The most challenging operating condition should also be tested. This may include maximum line speed, maximum product height, highest expected initial voltage, widest product distribution, or the largest number of products on the belt.
Results should be documented as a baseline. Future tests can then identify contamination, emitter wear, balance drift, blocked airflow, or changes in conveyor conditions.
Common mistakes include selecting the bar by overall length, mounting it too far away, placing grounded metal in the ion path, ignoring conveyor speed, treating only one surface, and failing to test the edges.
A frequent purchasing mistake is assuming that a bar with the same external length as the conveyor provides complete coverage. The active emitter length may be shorter than the housing, leaving untreated zones near the conveyor edges.
Another mistake is selecting the mounting position only according to available space. The easiest location may be far from the charged surface or behind a machine guard. Effective performance should determine the position, with mechanical design adapted where practical.
Static can also be regenerated after treatment. A bar may neutralize the product successfully, but the product can become charged again when it separates from the belt or passes through an insulating guide.
| Installation Error | Coverage Problem | Corrective Action |
|---|---|---|
| Bar active length is too short | Edges remain charged | Use a longer bar or overlapping bars |
| Bar is mounted too far away | Decay time becomes too slow | Reduce distance or add controlled airflow |
| Grounded guard blocks the ion path | Ions are attracted away from the product | Reposition the bar or guard |
| Conveyor speed is ignored | Exposure time is insufficient | Increase treatment length or ion output |
| Only the center is tested | Weak edge zones are missed | Measure across the entire width |
| Only the top surface is treated | Side or bottom surfaces remain charged | Add treatment from another direction |
| Emitters are not cleaned | Coverage deteriorates over time | Create a planned maintenance schedule |
| Cross airflow is ignored | Ions miss the target | Control airflow or change orientation |
Emitter contamination may develop unevenly along the bar. A section close to a dusty process could deteriorate faster than the rest. Visual inspection and several test positions help identify localized weakness.
Incorrect compressed air settings can also reduce coverage. Excessive airflow may become turbulent, while insufficient airflow may fail to carry ions to distant surfaces. Pressure and flow should be verified rather than adjusted by sound alone.
Finally, equipment should not be considered effective simply because static related problems temporarily disappear. Instrument measurements provide objective evidence and help identify marginal performance before defects return.
Buyers should select an ionizing air bar according to active coverage length, measured decay time, ion balance, conveyor speed, product geometry, working distance, airflow requirements, environment, and maintenance access.
The purchasing process should begin with a conveyor survey. The survey should record belt width, product travel width, minimum and maximum product height, line speed, initial static voltage, target residual voltage, and important process locations.
The active length should cover the complete product path. If one bar is not long enough, the design should show the number of bars and the required overlap. The overall physical dimensions must also fit the available machine space.
Decay time should be evaluated at the intended working distance. A value measured very close to the bar may not represent actual conveyor performance. Both positive and negative decay values should be considered.
Environmental compatibility is important. Dusty printing and textile lines may require frequent emitter cleaning. Electronics and medical production may require stable ion balance, clean air, and low particle generation. Wet or corrosive processes require suitable materials and protection.
The buyer should also consider future production changes. If the conveyor may later carry wider, taller, faster, or more sensitive products, additional performance capacity or flexible mounting can reduce the need for complete replacement.
A production trial is valuable for critical applications. Testing should use actual products, normal speed, machine guards, airflow systems, and realistic contamination conditions. Final approval should be based on measured performance across the full operating range.
One ionizing air bar can cover an entire conveyor when its active length spans the full product path, its ion output reaches every charged surface, and products receive enough treatment time to achieve the required residual voltage.
Conveyor coverage cannot be determined from bar length alone. Active ionizing length, working distance, conveyor speed, product height, surface shape, airflow, charge level, and machine geometry must all be considered.
A single bar is often sufficient for a narrow conveyor carrying flat, consistently positioned products through one clearly defined treatment zone. It is less likely to be sufficient for wide belts, high speed lines, tall containers, irregular molded parts, stacked products, or products with charged upper and lower surfaces.
The best installation position is usually after the main static generating event and before static causes a process problem. If charge is regenerated later, an additional treatment point may be necessary even when the first bar performs correctly.
Calculations can estimate required width coverage and exposure time. However, final performance must be verified by measuring ion balance, positive and negative decay time, and actual product voltage at the center, edges, and other important locations.
Multiple ionizing bars may be installed across the conveyor to increase width, along the direction of movement to increase treatment time, or above and below the product to reach several surfaces. Their treatment zones should overlap appropriately.
With careful selection, correct positioning, full width testing, and regular maintenance, one ionizing air bar can provide effective conveyor coverage in many industrial applications. When one bar is not enough, a properly engineered multiple bar system can deliver uniform static control, reduce contamination, improve product handling, and support consistent production quality.
