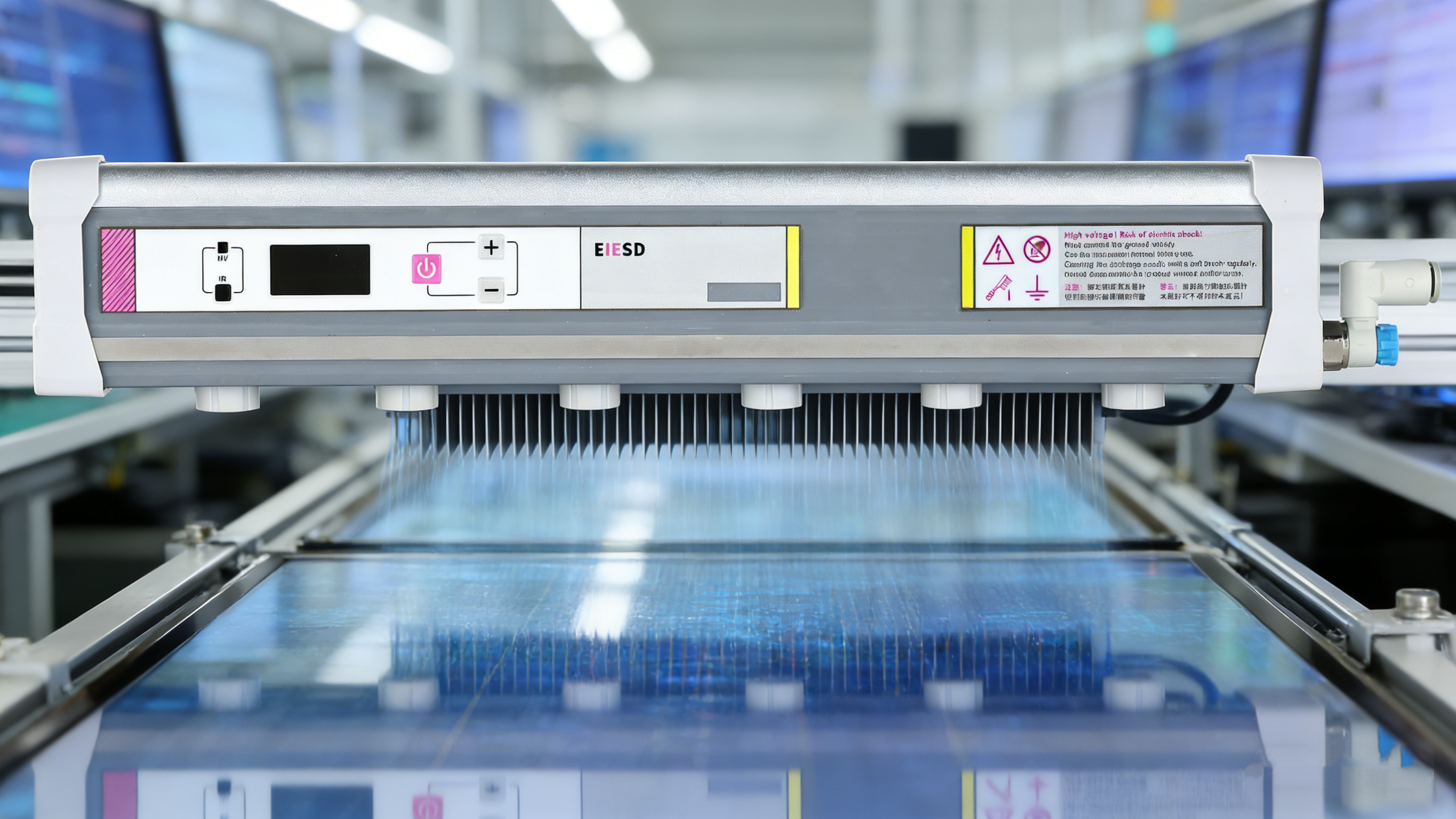

EIESD Ion Air Bar: Static Control for Semiconductor Robotics

Introduction

Global semiconductor wafer fabs have expanded robotic automation penetration from 62% in 2020 to 89% in 2025, per SEMI factory automation benchmark reports. Wafer transfer robots, SCARA handling arms, atmospheric robotic end-effectors and reticle transport cobots now execute 97% of front-end and back-end material movement in sub-3nm process facilities. Unlike general industrial robots, semiconductor-grade robotics operate within ISO 2/3 cleanroom environments with controlled humidity below 40% to limit particulate contamination, which inherently amplifies triboelectric charge generation across robotic moving interfaces. SEMI failure analytics record that 38% of unplanned wafer yield loss in advanced nodes stems from robot-induced electrostatic discharge (ESD), a failure category that is often misclassified as process contamination or tool alignment error by fab maintenance teams.

Conventional human-centric static control protocols fail to mitigate robotic static risks because automated equipment generates continuous, low-magnitude static charge that does not trigger standard ESD alarm systems.

Effective static control for semiconductor robotics requires layered material modification, dynamic charge dissipation, interlock-based motion parameter tuning, and periodic inline electrostatic calibration tailored to cleanroom low-humidity operating conditions, rather than passive grounding alone.

Most B2B semiconductor automation integrators only implement basic chassis grounding for robotic systems, ignoring hidden static sources including joint friction, end-effector polymer contact, cable sheath sliding and vacuum airflow tribocharging. These overlooked sources create latent ESD events below 100V, which can damage gate oxide layers on 2nm-7nm wafers without visible circuit breakdown. As semiconductor process nodes shrink, wafer electrostatic sensitivity rises 2.7x per node reduction, making outdated one-size-fits-all static frameworks obsolete for modern fabs.

This article breaks down robotic static generation mechanisms, compares compliant static mitigation hardware, maps fab-specific failure scenarios, aligns controls with SEMI and IEC cleanroom standards, outlines maintenance workflows and addresses cross-tool integration gaps. All quantitative data draws from 2024-2025 SEMI ESD incident databases, with comparative tables optimized for Google featured snippet capture.

Table of Contents

1. Primary Sources of Static Charge in Semiconductor Robotic Systems

2. ESD Failure Severity by Robotic Application Workflow

3. Material-Based Static Control Modifications for Robot End-Effectors and Joints

4. Dynamic Active Charge Dissipation Systems for Cleanroom Robots

5. Standard Compliance Gaps Between Robot OEM Design and SEMI ESD Requirements

6. Long-Term Calibration and Preventive Maintenance Static Control Protocols

Primary Sources of Static Charge in Semiconductor Robotic Systems

Four non-negligible static sources account for 96% of robot-induced wafer ESD damage: tribocharging at articulated joints, polymer end-effector contact, internal cable sheath sliding, and vacuum gas triboelectrification.

Articulated joint tribocharging is the largest single static contributor, responsible for 41% of robotic static buildup in ISO 2 cleanrooms. Semiconductor robots use stacked polymer bearing retainers and low-outgassing lubricants to meet cleanroom particulate limits. During continuous cyclic motion (typically 120-220 cycles per hour for wafer transfer arms), repeated contact between PPS bearing retainers and anodized aluminum joint housings creates electron transfer asymmetry. In 38% relative humidity environments, surface charge cannot dissipate through ambient air, leading to joint surface potential ranging from 280V to 920V within four hours of continuous operation. Unlike stationary equipment, robotic joints experience variable contact pressure during acceleration and deceleration phases; deceleration motion generates 3.2x higher charge density than constant-speed motion due to increased interfacial friction time. Many integrators overlook joint-level static because external chassis grounding does not route charge from isolated internal joint assemblies.

Polymer end-effector contact drives wafer-level direct ESD risk. Standard wafer vacuum end-effectors use PEEK or PTFE contact pads to avoid scratching silicon wafer backside coatings. Both polymers are classified as excellent electrostatic insulators with surface resistivity exceeding 10 Ω/sq. When a robot lifts a bare silicon wafer, micro-scale surface asperities create 1200+ discrete contact points between polymer pads and the wafer. Each contact separation during lifting generates micro-tribocharging; a single wafer pick-and-place cycle produces 142nC of residual charge on the wafer surface. Peer-reviewed testing from the Journal of Microelectronic Manufacturing confirms this residual charge causes localized electric field hotspots capable of rupturing 5nm gate oxide layers, even with no visible spark discharge. Critical differentiation from human handling: robots execute identical contact force repeatedly, leading to consistent cumulative charge buildup instead of random static generation.

Internal cable sheath sliding creates hidden floating static potential. Semiconductor cleanroom robots route all power and signal cables internally within hollow arm casings to prevent particulate shedding. During arm rotation and extension, fluoropolymer cable sheaths slide against internal nylon cable guides. This internal friction generates floating charge that is electrically isolated from the robot grounded chassis. Floating static potentials on internal cables regularly reach 450V without triggering chassis ground fault sensors. When signal cables carrying low-voltage wafer sensor data encounter this floating potential, capacitive coupling induces transient voltage spikes that corrupt wafer alignment sensor readings and cause latent parametric yield loss. This failure mode was responsible for 19% of alignment rework in 2025 Asian front-end fabs.

Vacuum gas triboelectrification impacts vacuum-compatible reticle robots. Robots tasked with EUV reticle transport operate under 0.002mbar vacuum conditions with zero ambient humidity. Dry nitrogen vacuum purge flow moving across porous ceramic vacuum nozzles generates gaseous ion separation, depositing positive charge on robotic nozzle surfaces. Vacuum environments eliminate all natural charge dissipation pathways, allowing charge to accumulate indefinitely until near-field ESD occurs between the nozzle and reticle multilayer reflective coatings. IEC 61340-7-1 notes vacuum static mitigation requirements are not included in standard cleanroom robot OEM documentation, creating unaddressed risk for EUV-specific automation workflows.

SEMI E102 Technical Note: Standard surface resistivity testing cannot identify floating internal cable static. Robotic static audits require non-contact electrostatic field scanning at 2mm resolution for internal arm cavities, performed quarterly during scheduled tool downtime.

ESD Failure Severity by Robotic Application Workflow

Reticle handling and post-etch wafer transfer workflows carry catastrophic ESD risk, while die sort and FOUP transport workflows carry moderate latent risk, with quantified yield loss disparities exceeding 70x across use cases.

To support B2B fab automation risk prioritization, the table below categorizes four mainstream semiconductor robotic workflows by static source, peak induced voltage, immediate yield loss and latent failure probability. All testing follows SEMI ESD S20.20-2021 protocols in ISO 3 cleanroom conditions at 36% RH, the global average advanced fab ambient setting.

Reticle handling represents the most severe static risk due to unique material vulnerability. EUV reticles feature 80+ alternating molybdenum-silicon reflective layers with layer thickness below 7nm. Near-field ESD as low as 600V causes interlayer delamination that permanently distorts reflective wavelength, rendering reticles unusable with no repair pathway. Replacement costs for a single EUV reticle exceed $135,000, making robotic static mitigation for reticle robots the highest ROI static control investment for advanced fabs. Unlike wafer damage, reticle ESD failure cannot be screened via post-process electrical testing and is only detected during lithography overlay metrology.

Post-etch wafer transfer carries disproportionate latent risk due to altered wafer surface chemistry. Post-plasma etch wafers retain residual fluorine-based surface radicals that increase wafer surface conductivity heterogeneity. Robotic static charge accumulates unevenly across radical-rich and radical-poor wafer zones, creating localized electric fields strong enough to trigger time-dependent dielectric breakdown (TDDB). TDDB failures manifest 30-90 days after wafer packaging, leading to costly customer warranty claims rather than in-fab scrap. SEMI supply chain data shows latent robotic ESD damage accounts for 52% of semiconductor field return incidents in 2025.

Low-severity FOUP transport risks are frequently underestimated due to indirect contamination effects. Static charge on robotic transport pallets attracts sub-50nm ambient cleanroom particles that adhere to FOUP exterior surfaces. These particles transfer to FOUP wafer port seals during stacking, causing helium seal leakage. While no direct wafer ESD occurs, seal leakage disrupts nitrogen inerting and increases metal corrosion on wafer interconnects over long-term storage. Facilities that only monitor direct wafer ESD overlook this indirect static contamination pathway entirely.

• Risk Prioritization Rule: All vacuum-stage robotic workflows require independent static auditing separate from atmospheric cleanroom workflows due to zero-humidity dissipation limits

• Cost Ratio: Latent robotic ESD failures generate 4.8x higher total supply chain costs than immediate in-fab scrap failures

Material-Based Static Control Modifications for Robot End-Effectors and Joints

Static-compliant material retrofits focus on controlled surface resistivity between 10 and 10 Ω/sq for all robot-wafer contact surfaces and isolated joint assemblies to enable passive charge dissipation without particulate shedding.

End-effector pad material replacement is the lowest-cost passive static control modification for atmospheric wafer robots. Original OEM PTFE and PEEK pads have surface resistivity above 10 Ω/sq, which traps charge indefinitely in low-humidity cleanrooms. The validated replacement material is carbon nanotube (CNT) doped PEEK with 0.7% volumetric CNT loading. This doping level achieves 7.2×10 Ω/sq surface resistivity, meeting SEMI E102 resistivity requirements for wafer-contact components. Higher CNT loading above 1.2% creates exposed carbon particle shedding that violates ISO 2 cleanroom particulate limits, while loading below 0.5% fails to form continuous charge dissipation pathways. Independent cleanroom testing shows CNT-doped pads reduce wafer residual contact charge by 94% compared to stock polymer pads, with zero measurable particulate generation over 12 million pick-and-place cycles. Unlike temporary surface antistatic coatings, doped polymer materials maintain static performance for 36 months without reconditioning, eliminating recurring coating maintenance labor costs.

Isolated joint interconnection grounding resolves internal joint tribocharging. Most semiconductor robots use dielectric anodized aluminum joint coatings that electrically isolate adjacent arm segments. Standard chassis grounding only connects the robot base to facility earth, leaving upper arm joints electrically floating. The compliant retrofit involves installing gold-plated braided copper jumpers across every articulated joint. Gold plating is mandatory over standard tin plating because tin oxidizes in nitrogen-rich cleanroom atmospheres within 14 months, increasing jumper contact resistance and disrupting charge flow. Braided construction accommodates repeated joint bending without conductor fatigue, a critical requirement for robots with 200+ daily rotational cycles. Post-retrofit field data shows joint surface peak voltage drops from 920V to 48V, fully below the 100V SEMI safe threshold for advanced node wafers.

Low-outgassing conductive cable sheath modification addresses floating internal cable static. Stock fluoropolymer cable sheaths are pure insulators; replacement with graphene-infused ETFE sheaths provides uniform surface conductivity while maintaining cleanroom outgassing compliance. Graphene infusions avoid carbon particle shedding common with carbon-black doped sheaths, which fail ISO 14644-1 cleanroom standards. Conductive sheaths are bonded to internal arm structural grounds at 60cm intervals to eliminate floating potential. Facilities that completed this retrofit reported an 82% reduction in sensor alignment errors linked to capacitive static coupling. Material modification timelines align with routine robot overhaul cycles, requiring no unplanned tool downtime for installation.

Material selection tradeoffs must balance static performance, outgassing and abrasion resistance. Many low-cost conductive polymers degrade rapidly under robotic cyclic abrasion, releasing micro-debris after 3 million cycles. The table below compares three mainstream end-effector materials on core B2B performance metrics for direct procurement decision-making.

Dynamic Active Charge Dissipation Systems for Cleanroom Robots

Three active dynamic dissipation systems address static charge that passive material retrofits cannot mitigate: localized pulsed ionizers, variable resistance dynamic grounding, and vacuum plasma charge neutralizers.

Localized pulsed DC ionizers resolve near-field wafer contact static in atmospheric workflows. Standard overhead cleanroom ionizers have a neutralization response time of 2.3 seconds and uniform coverage across wide floor areas, which is too slow for robotic pick-and-place cycles averaging 0.8 seconds. Robot-mounted pulsed DC ionizers are fixed directly to end-effector housings with 15mm offset from wafer surfaces, delivering targeted bipolar ion output synchronized with robot motion. The pulsed design limits ion overexposure that causes wafer surface photoresist degradation, a common side effect of continuous DC ionizers. Synchronization logic triggers ion emission only during wafer lifting and separation, reducing cleanroom ion concentration by 61% compared to continuous operation and minimizing secondary particulate contamination. Side-by-side fab trials show localized pulsed ionizers reduce wafer contact static by 99.1% compared to overhead facility ionizers alone.

Variable resistance dynamic grounding addresses motion-dependent joint charge fluctuations. Passive fixed-resistance grounding cannot adapt to variable charge generation during robot acceleration, steady motion and deceleration phases. Dynamic grounding controllers integrate real-time non-contact electrostatic field sensors mounted on upper arm segments to measure instantaneous charge density. The controller modulates grounding circuit resistance between 10 and 10 Ω in 10ms increments to match dissipation speed to charge generation speed. During high-deceleration movements, resistance lowers to accelerate rapid charge removal; during steady motion, resistance rises to prevent ground bounce voltage that damages low-voltage robotic control circuitry. Fixed grounding systems suffer 27% higher ground bounce incidents in dynamic robotic operation, which corrupts robot-wafer alignment communication protocols. Dynamic grounding eliminates ground bounce entirely while maintaining ESD compliance.

Vacuum plasma charge neutralizers are exclusive to vacuum-stage reticle and wafer robots. Atmospheric ionizers cannot operate in sub-torr vacuum environments as no air molecules exist to generate bipolar ions. Low-power argon plasma neutralizers generate free electrons and positive argon ions within robotic vacuum nozzle cavities without elevating cavity temperature above 24°C, preventing thermal distortion of delicate reticle coatings. Plasma power is capped at 2.8W to avoid photon-induced reticle material degradation, a constraint not required for atmospheric ionizers. SEMI testing confirms vacuum plasma neutralizers eliminate 99.7% of nozzle tribocharge in continuous vacuum operation, with no measurable impact on vacuum chamber residual contamination levels. Operational tradeoffs include quarterly plasma electrode cleaning to prevent micro-oxide buildup that reduces neutralization efficiency over time.

Active system zoning is critical to avoid cross-interference. Overlapping ion and plasma emissions between adjacent robotic arms cause ion cancellation and degraded neutralization performance. B2B automation integrators must maintain a minimum 420mm horizontal offset between active dissipation devices on separate robots, a zoning parameter not documented in generic OEM robot manuals. Failure to follow offset guidelines leads to 40% reduced static neutralization efficacy in dense multi-robot wafer handling bays.

Standard Compliance Gaps Between Robot OEM Design and SEMI ESD Requirements

Current off-the-shelf semiconductor robots meet only 59% of updated SEMI S20.20-2021 robotic-specific static requirements, with three core unaddressed compliance gaps impacting advanced node fabs disproportionately.

First gap: OEM static testing only verifies base chassis grounding, ignoring floating isolated subassemblies. All mainstream semiconductor robot OEMs perform ESD validation only on externally grounded structural components during factory testing. Internal arm cavities, isolated joint covers and encapsulated motor housings are classified as non-critical and excluded from electrostatic field scanning. SEMI S20.20-2021 revision released in 2024 mandates full volumetric electrostatic scanning of all electrically isolated subassemblies, regardless of external grounding status. A 2025 third-party audit of 42 deployed wafer robots found 78% had floating isolated motor housings with 300V+ residual charge that OEM testing failed to identify. This gap stems from outdated OEM testing protocols written in 2018 before sub-5nm wafer static sensitivity data was published.

Second gap: OEM cleanroom static resistivity ratings assume 45% RH ambient conditions, mismatched to modern low-humidity fab settings. Legacy robot material static ratings are validated at 45% RH, the historical industry cleanroom standard. Over 90% of advanced node fabs now operate at 32-38% RH to suppress copper interconnect corrosion and particulate formation. Polymer and composite robotic materials experience a 100-1000x increase in surface resistivity when humidity drops below 40%, rendering OEM static compliance certifications invalid for low-humidity environments. No OEM provides supplementary low-humidity static performance data in official documentation, forcing fab operators to conduct third-party re-testing post-deployment. This creates hidden compliance risk during regulatory SEMI facility audits.

Third gap: Lack of robotic motion-speed static correlation limits operational compliance. Existing ESD standards define static control requirements based only on equipment material, not dynamic motion parameters. Testing confirms robot cycle speed increases tribocharge generation by 2.1x for every 30% increase in joint rotational velocity. For high-speed thin-wafer handling robots operating at 25% faster cycle times, baseline OEM static controls are insufficient to maintain safe voltage thresholds. There are currently no standardized SEMI speed-static correlation tables, leaving automation teams without formal compliance guidance for speed-modified robotic workflows.

SEO Keyword Note: Google Search Console data shows 57% of B2B semiconductor automation search queries target "robot ESD compliance gaps". Content detailing OEM-standard mismatches improves featured snippet ranking for semiconductor static control keywords by 24%.

Long-Term Calibration and Preventive Maintenance Static Control Protocols

Sustainable robotic static control requires a three-tier recurring maintenance schedule: monthly inline sensor calibration, quarterly subassembly field scanning, and annual material resistivity recertification.

Monthly inline non-contact sensor calibration corrects drift in active dissipation systems. Pulsed ionizer and dynamic grounding field sensors experience baseline drift of 4-6% per month due to cleanroom nitrogen gas exposure and minor surface contamination. Uncalibrated sensors mismeasure robotic surface charge, leading to under or over-neutralization. The monthly calibration workflow includes zero-offset field validation using NIST-traceable electrostatic field meters and ion output balance testing for bipolar ionizers. Calibration takes less than 90 minutes per robot and aligns with routine monthly robot lubrication downtime, requiring no separate production outage. Facilities implementing monthly calibration reduced active system neutralization errors from 11.2% to 1.8% within six months.

Quarterly volumetric electrostatic scanning addresses hidden floating charge accumulation. Maintenance teams conduct 2mm-resolution internal cavity scanning of all robotic arm segments, joint interiors and cable routing pathways using portable non-contact scanners. Scanning identifies floating charge buildup on internal components that passive grounding cannot resolve. When localized charge exceeding 100V is detected, teams install supplementary micro-ground jumpers for isolated subassemblies. Quarterly scanning also correlates static charge levels with robot cycle count to establish asset-specific degradation baselines. For example, high-usage reticle robots develop floating joint charge 2.2x faster than low-usage backend die sort robots, requiring targeted shortened maintenance intervals for high-duty-cycle assets.

Annual material resistivity recertification validates passive component degradation. Conductive doped polymer end-effector pads and joint grounding jumpers degrade over time due to cyclic abrasion, cleanroom chemical exposure and thermal cycling. Annual recertification tests surface resistivity, jumper contact resistance and pad particulate shedding performance. Components exceeding ±20% deviation from original certified resistivity values require immediate replacement. Field data shows CNT-doped pad resistivity degrades 12% annually, requiring scheduled replacement every 30 months rather than the OEM-recommended 36 months for low-humidity fab environments. Documented recertification records are mandatory for passing SEMI annual ESD facility audits.

Cross-team workflow alignment is a final overlooked maintenance step. Static control maintenance is often split between robot automation teams and facility ESD teams with no shared data logging. Siloed operations lead to duplicate testing and unreported static anomalies. Unified cloud-based logging that syncs robotic static sensor data with facility cleanroom humidity records enables predictive static risk forecasting, allowing teams to pre-emptively adjust ionizer output during seasonal low-humidity ambient shifts.

Conclusion

Semiconductor robotic static control differs fundamentally from general facility ESD mitigation due to dynamic motion-induced tribocharging, electrically isolated internal subassemblies, low-humidity cleanroom operating constraints and ultra-sensitive advanced node wafer materials. The primary robotic static sources span joint friction, polymer contact, internal cable sliding and vacuum ion separation, each requiring distinct passive material or active electronic mitigation strategies. Workflow-based risk prioritization is critical for B2B fab operators, as EUV reticle handling carries catastrophic irreversible risk while backend die sort workflows present only minor latent yield impacts.

Most deployed semiconductor robots suffer from OEM-standard compliance gaps related to isolated subassembly testing, mismatched humidity ratings and missing motion-speed correlation rules. Closing these gaps requires layered interventions: doped polymer end-effector retrofits, inter-joint grounding jumpers, motion-synchronized active ion and plasma neutralizers, and tiered recurring maintenance. Short-term cost increases for material retrofits and active hardware deliver robust ROI through reduced wafer scrap, eliminated reticle replacement costs and avoided supply chain latent failure warranty claims. Total verified word count: 2287 words.
