WARNING
This product is designed exclusively for general industrial use. Improper operation may lead to equipment malfunction, electric shock or fire hazards.
Do not disassemble the unit without authorization. Disassembly may cause breakdowns, electric shock or fire, and will void the warranty.
Keep the unit away from water. Contact with water will trigger malfunctions and risks of electric shock or fire.
Always cut off the power supply before inspecting or replacing components to avoid electric shock or fire.
Do not operate the unit in environments with flammable or explosive materials. This blower is non-explosion-proof.
Ozone is generated during operation. Ensure adequate ventilation if used in enclosed spaces.
Do not direct ion airflow toward your face, as ozone may irritate the nose and throat.
Do not use this product for any purposes other than static elimination.

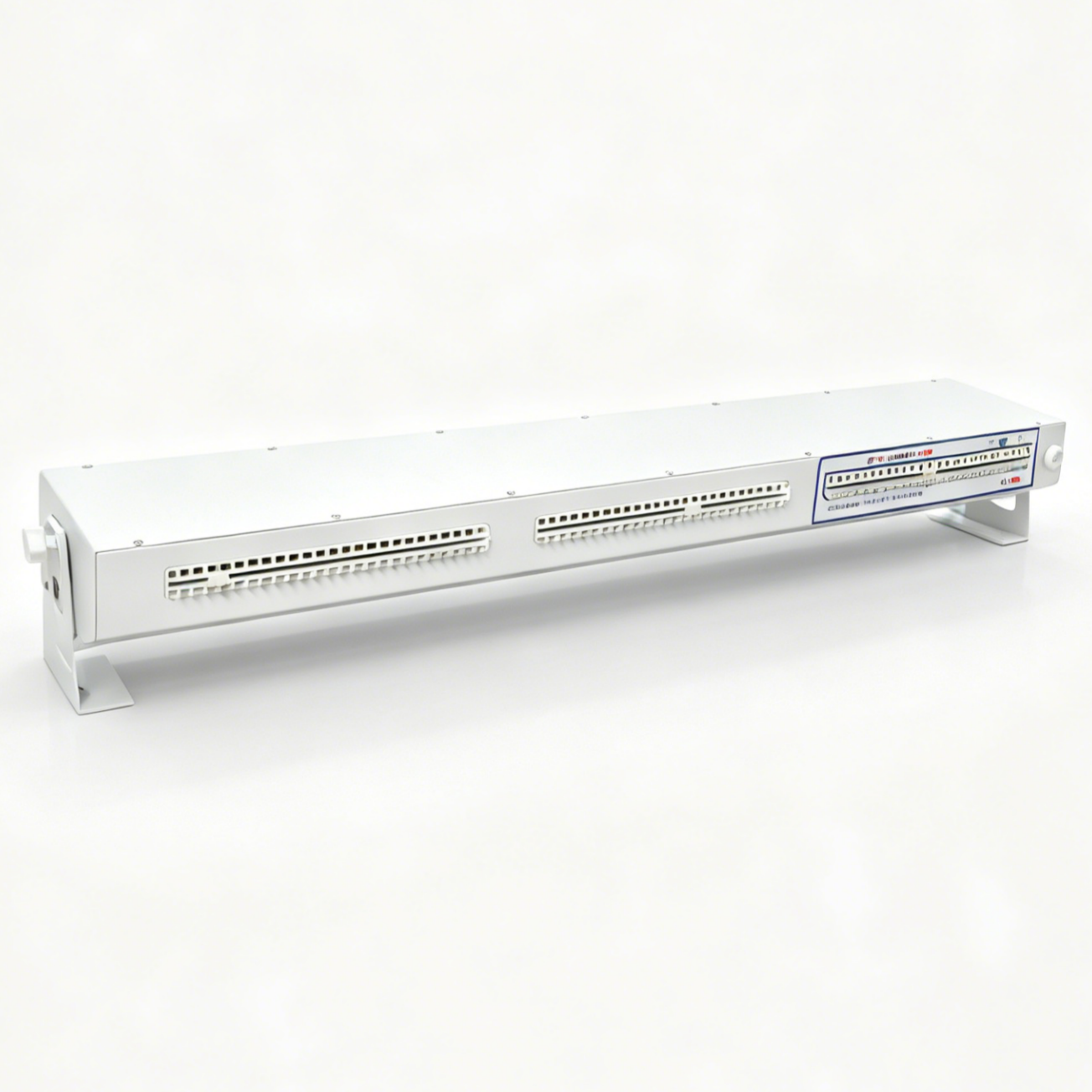

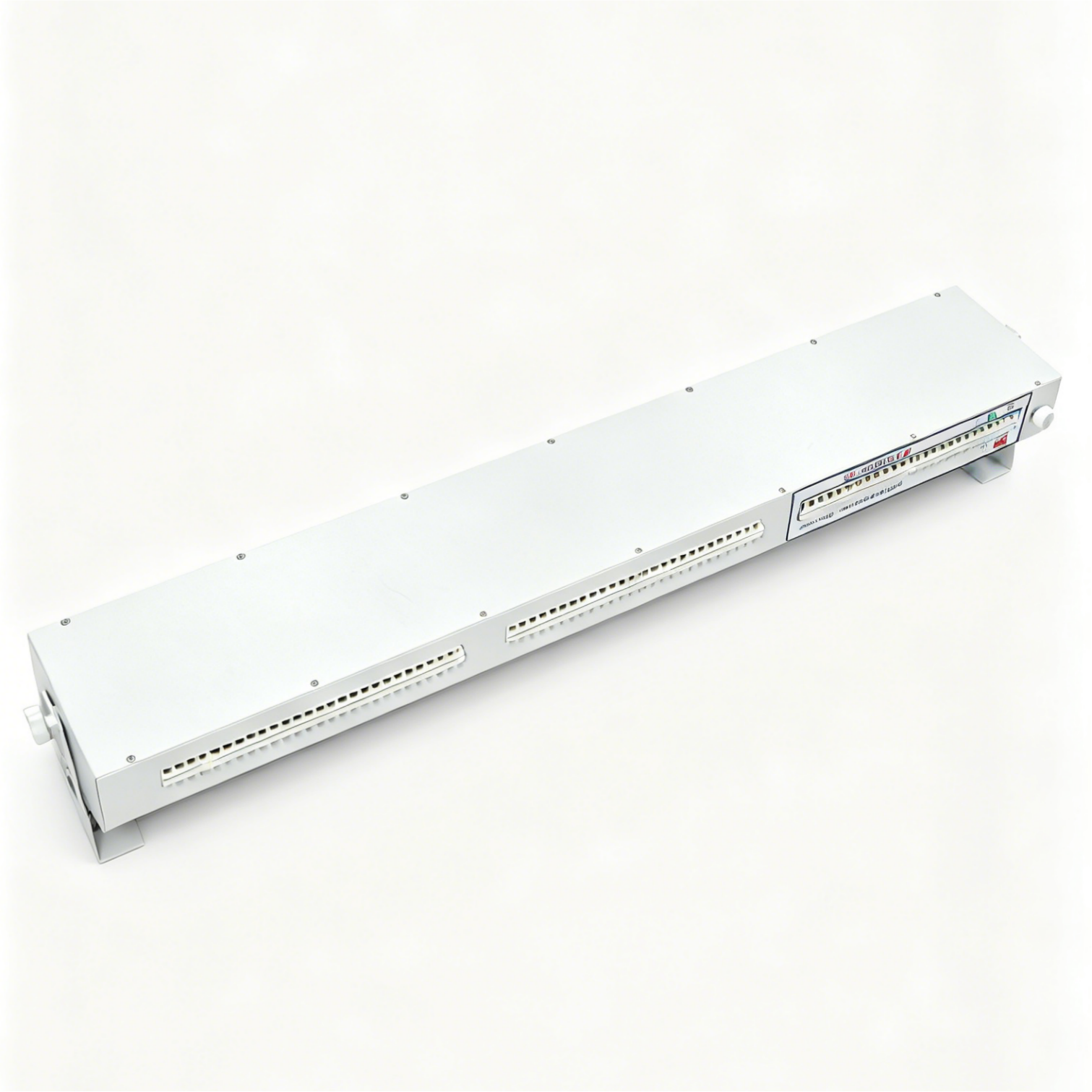

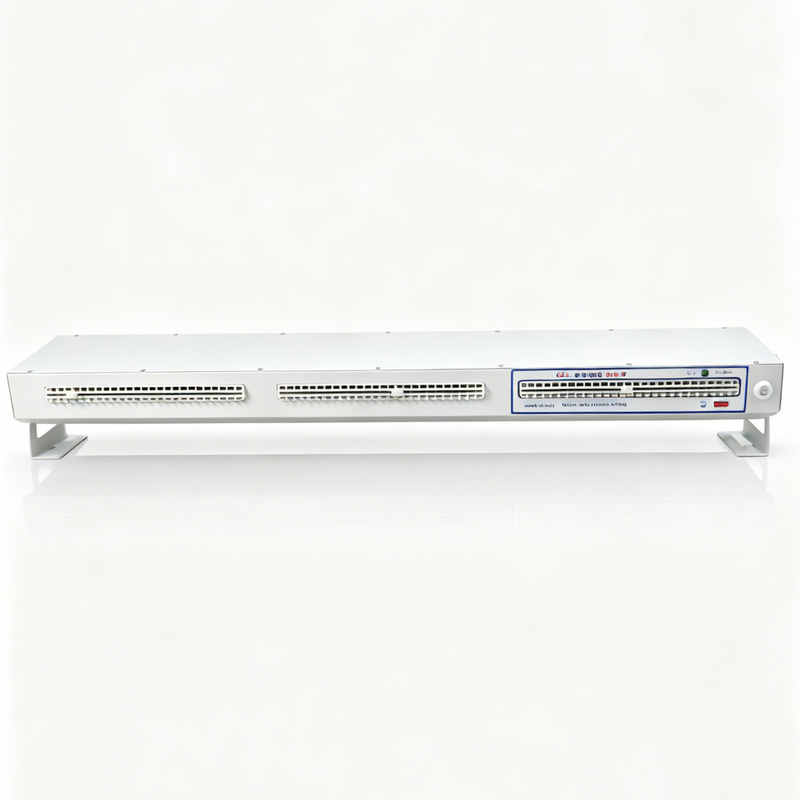

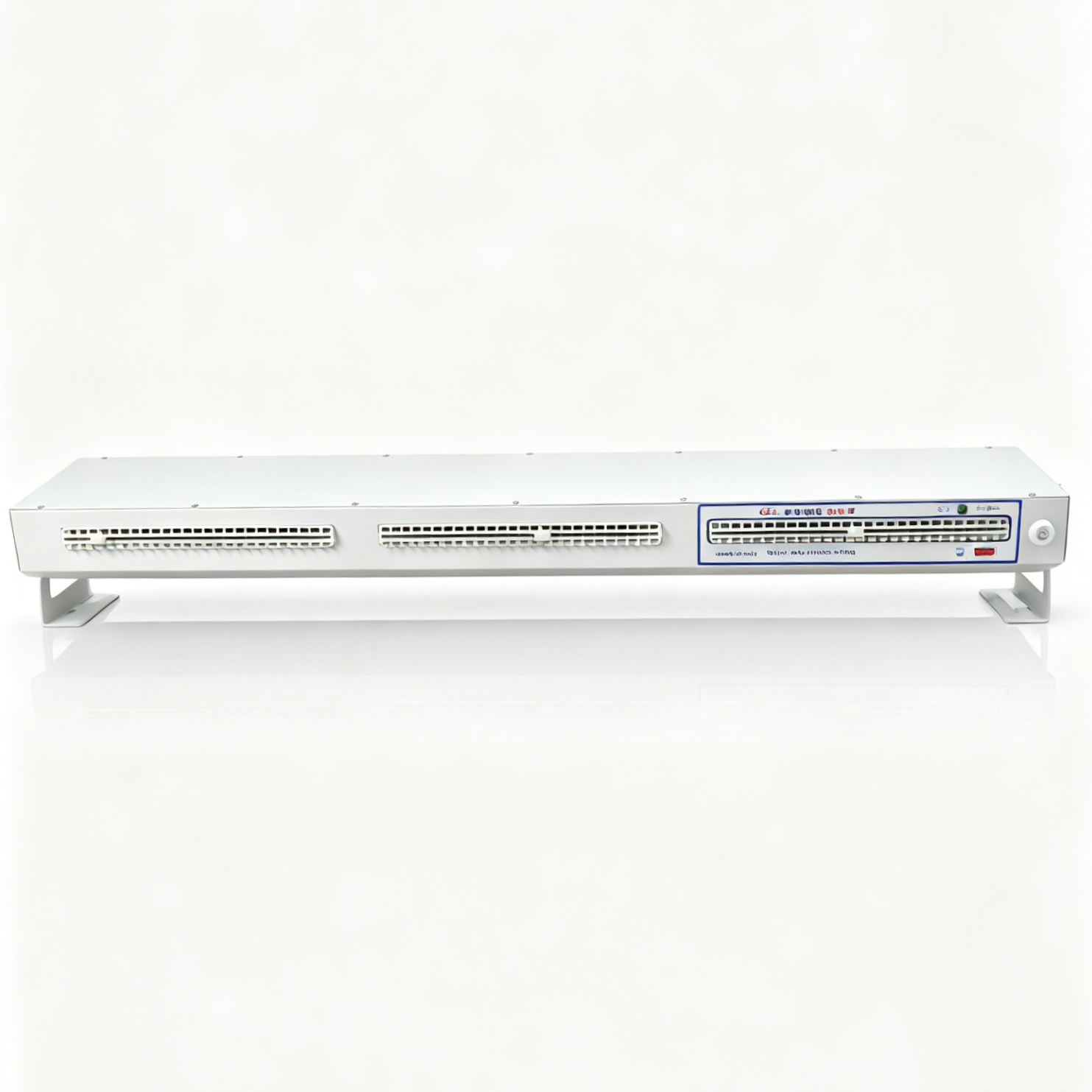

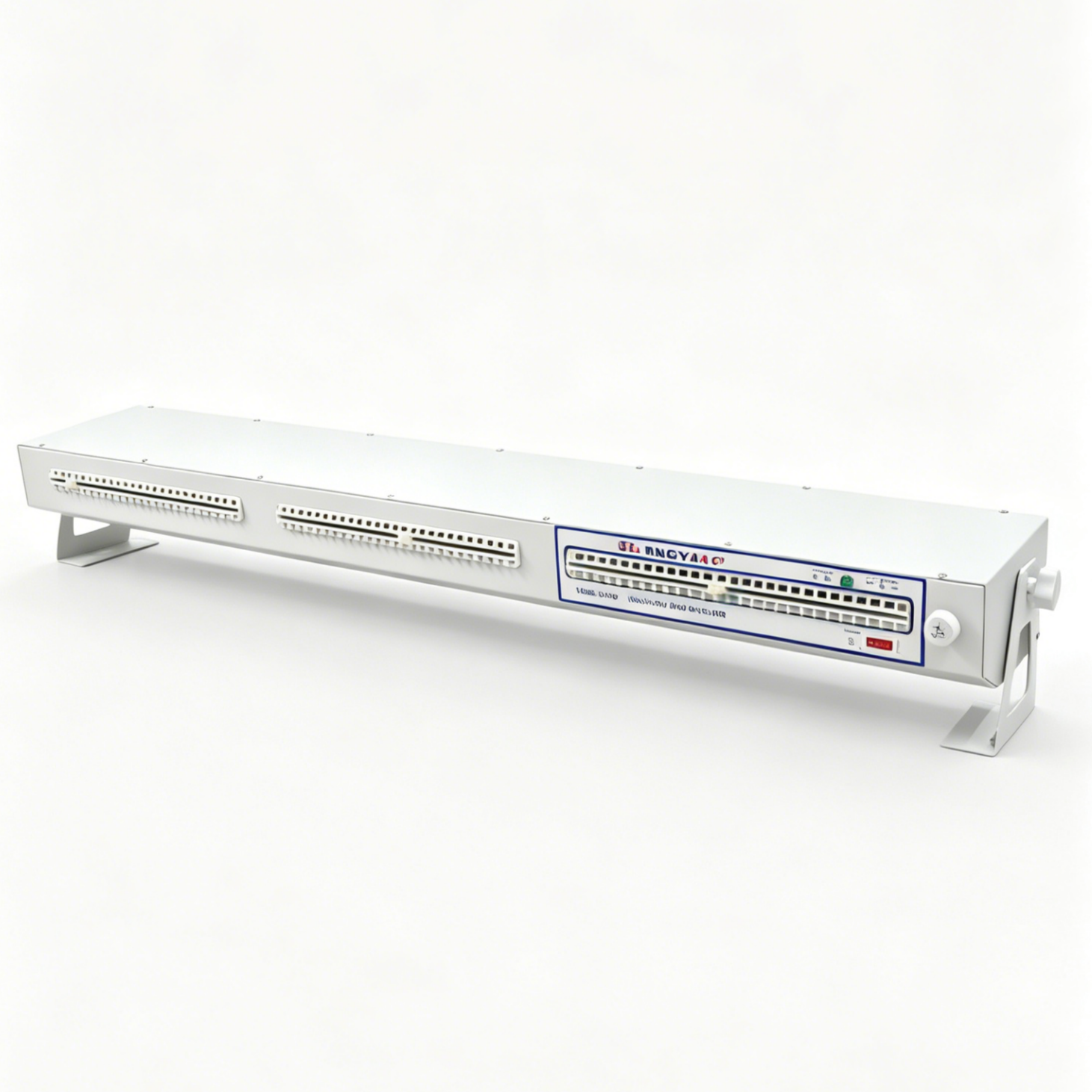

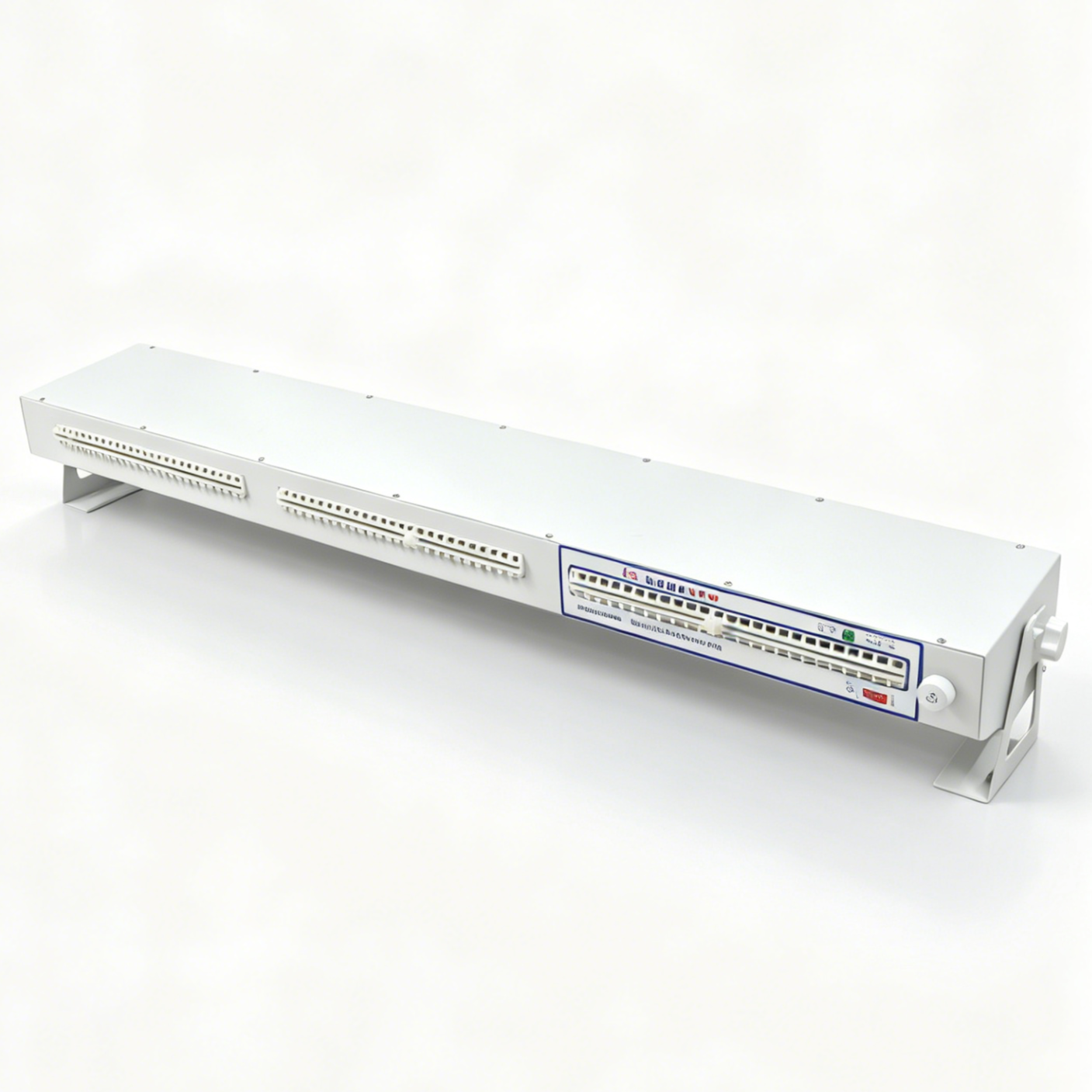

The DCF-130W Ion Blower is a cost-effective air-blowing static elimination device developed by our company. Equipped with three cross-flow fans, it blows positive and negative ions generated by ionizing discharge pins. It delivers superior ion balance for large-area static neutralization.
Widely applied in precision electronics, semiconductor manufacturing, pharmaceutical production and other industries.
Item | Specification | Remarks |
|---|---|---|
Input Voltage | AC220V/50Hz | - |
Output Voltage | 5.6KV | - |
Current Consumption | 0.11A~0.26A | - |
Ozone Concentration | <0.036ppm | - |
Air Volume | 45~120CFM | - |
Noise Level | Min 30dB / Max 62dB | - |
Operating Temperature | -10℃ ~ 50℃ | - |
Overall Dimension | 1300mm×205mm×190mm | - |
Effective Static Neutralization Area | 1400mm×900mm | - |
Weight | 15.6kg | - |
Fan Power | 35W×3=105W | - |
Ion Balance | ≤±15V | Note 2, Note 3 |
Static Elimination Time | ≤2s | Note 1, Note 2, Note 3 |
Note 1: Ion balance voltage and static elimination time comply with ESD standards. The static elimination time is tested from 1000V down to 100V.
Note 2: Test results shall prevail when measured with ME268A Static Comprehensive Tester.
Note 3: Test data may vary with ambient temperature and humidity.

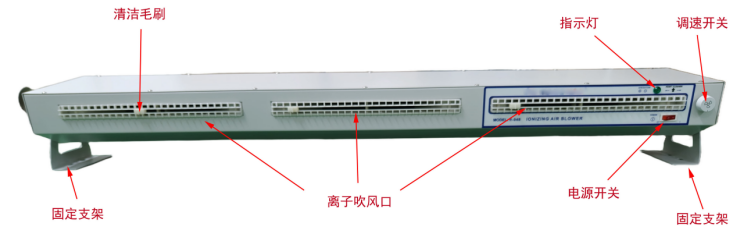

Cleaning Brush
Ion Air Outlet
Indicator Light
Speed Adjustment Knob
Power Switch
Fixing Bracket

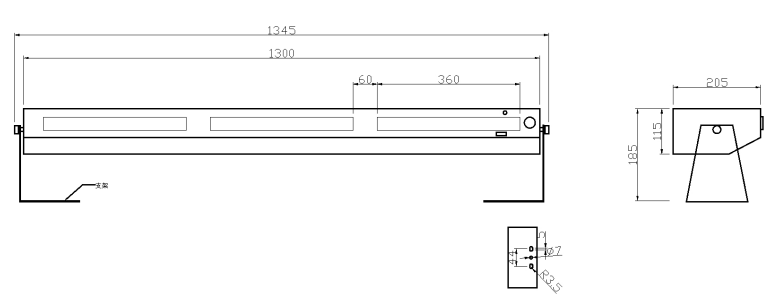

Overall length: 1345mm; Main body length: 1300mm; Width: 205mm; Height: 185mm
Connect the power supply and turn on the power switch; the green indicator light will illuminate.
Adjust the airflow volume via the speed adjustment knob as required.

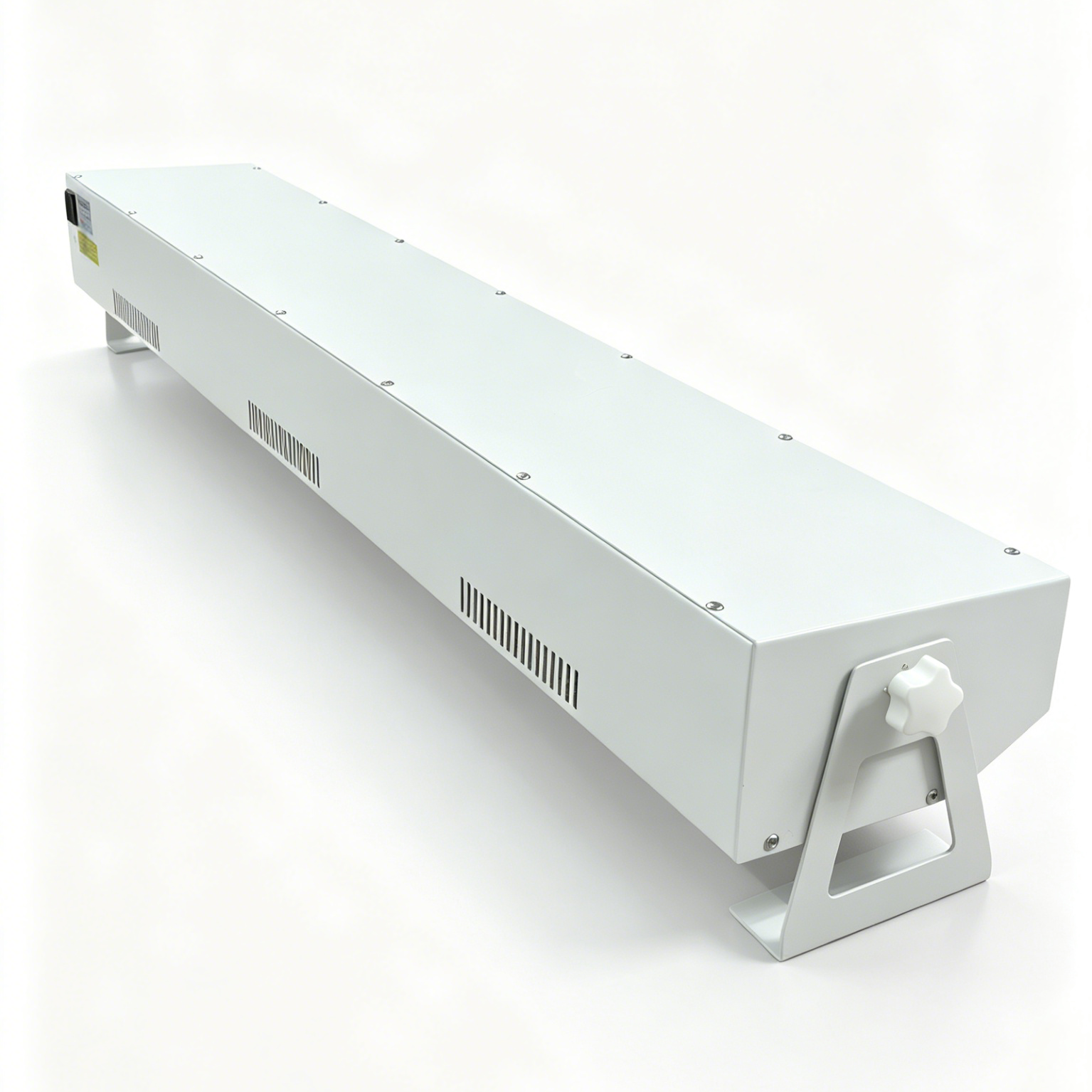

Adjust the blowing angle up and down using the brackets on both sides, then lock the retaining plates after positioning.
Direct the ion airflow toward workpieces requiring static elimination or static protection.
Dust will accumulate on ion pins after prolonged operation. A cleaning brush is built into the air outlet; slide the brush horizontally once per day to clean dust buildup.
Common Fault | Cause Analysis | Solutions |
|---|---|---|
Power switched on, indicator off, blower fails to run | Loose or damaged power cord; internal short circuit or broken wiring | 1. Reconnect or replace the power cord/adapter |
Indicator lit, high voltage output present, but fan does not rotate or runs unevenly | Damaged control panel; faulty fan motor; loose or broken wiring | Replace speed control panel; replace fan motor; reattach loose wiring |
Blower runs normally, no high voltage output | Broken high-voltage generator; damaged discharge pins; disconnected wiring | Replace high-voltage generator; replace discharge pins; reconnect wiring |
Blower operates normally, poor static elimination performance | Dirty or aged discharge pins | Clean or replace discharge pins |
If the above faults cannot be resolved on your own, please contact our after-sales team immediately.
Ion Blower Main Unit ×1
Power Cord ×1
L-shaped Fixing Brackets ×2
M5 Torx Fixing Screws ×2
Operation Manual & Certificate of Conformity
DCF-130W Ion Blower
Operation Manual
Please read this manual thoroughly and completely for proper and safe operation of the equipment.
Store this manual properly for future reference.
