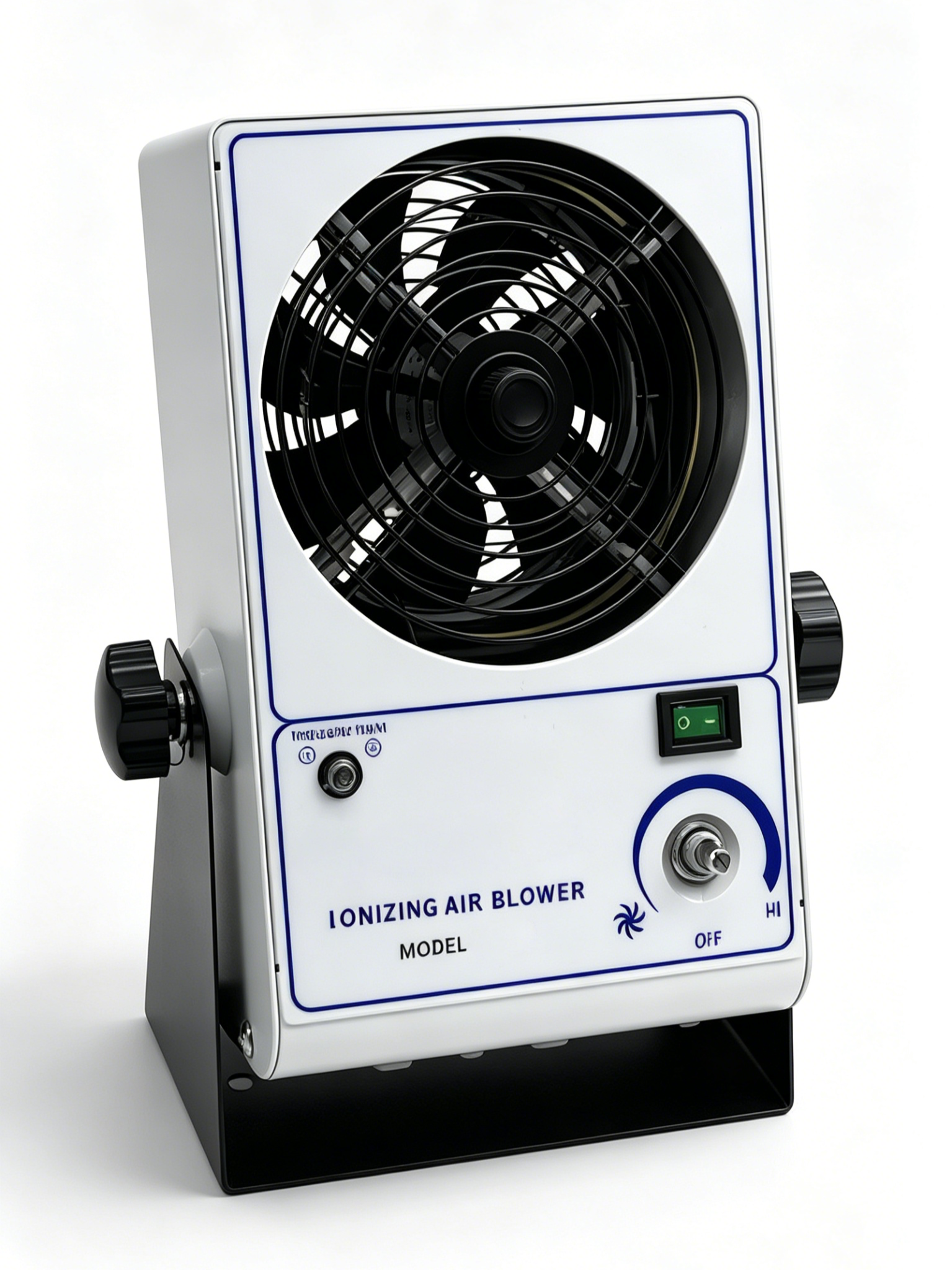

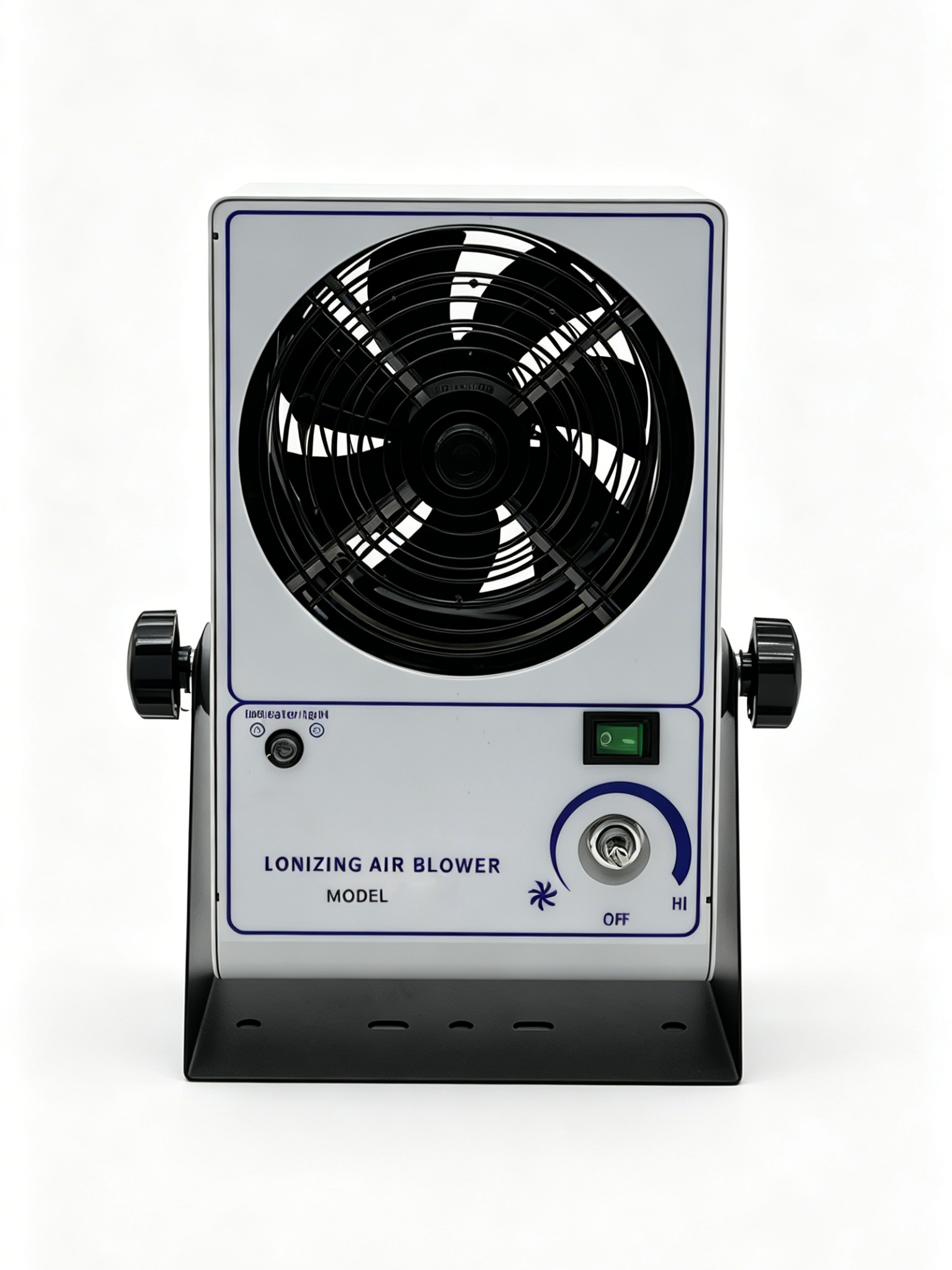

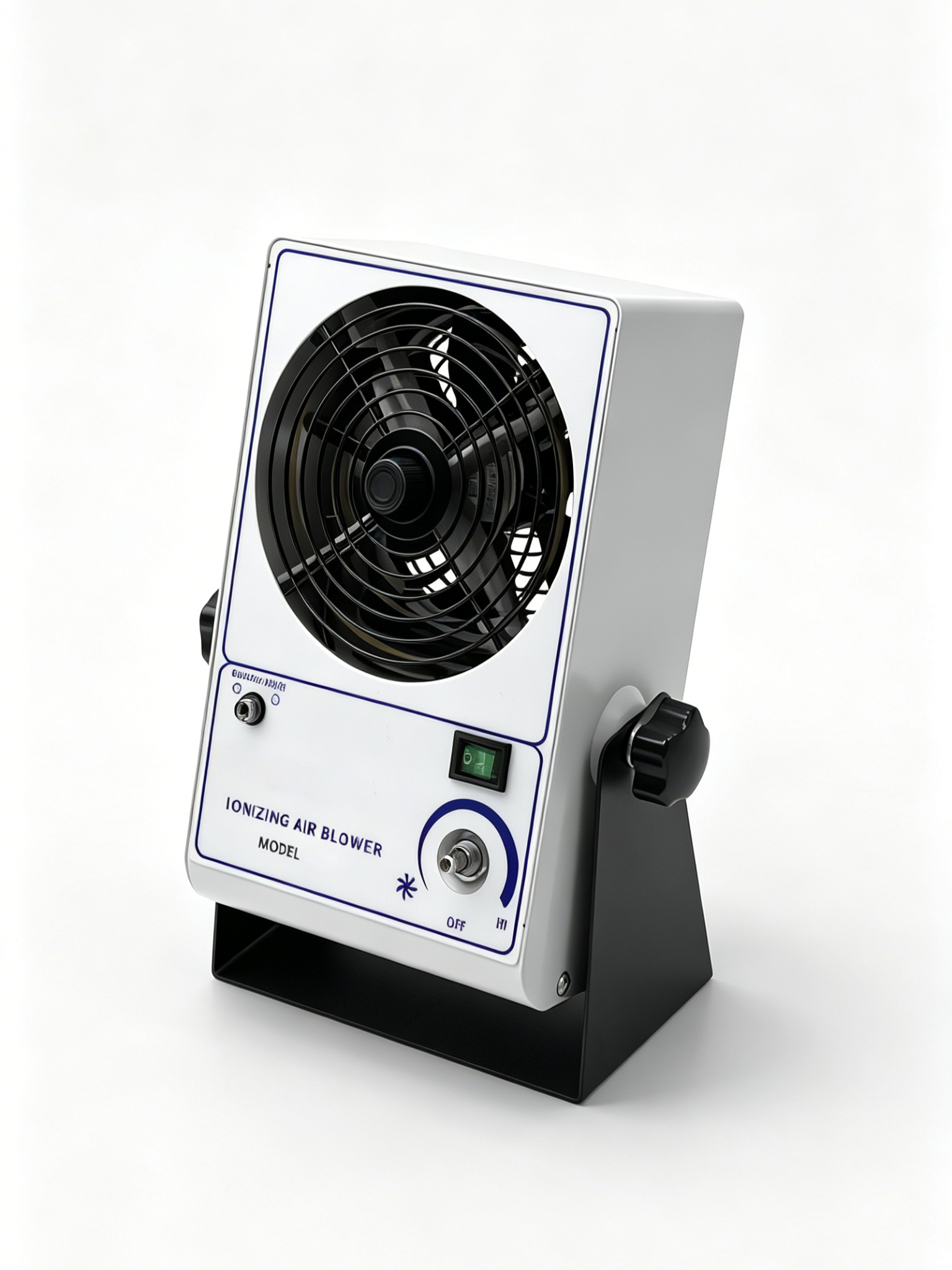

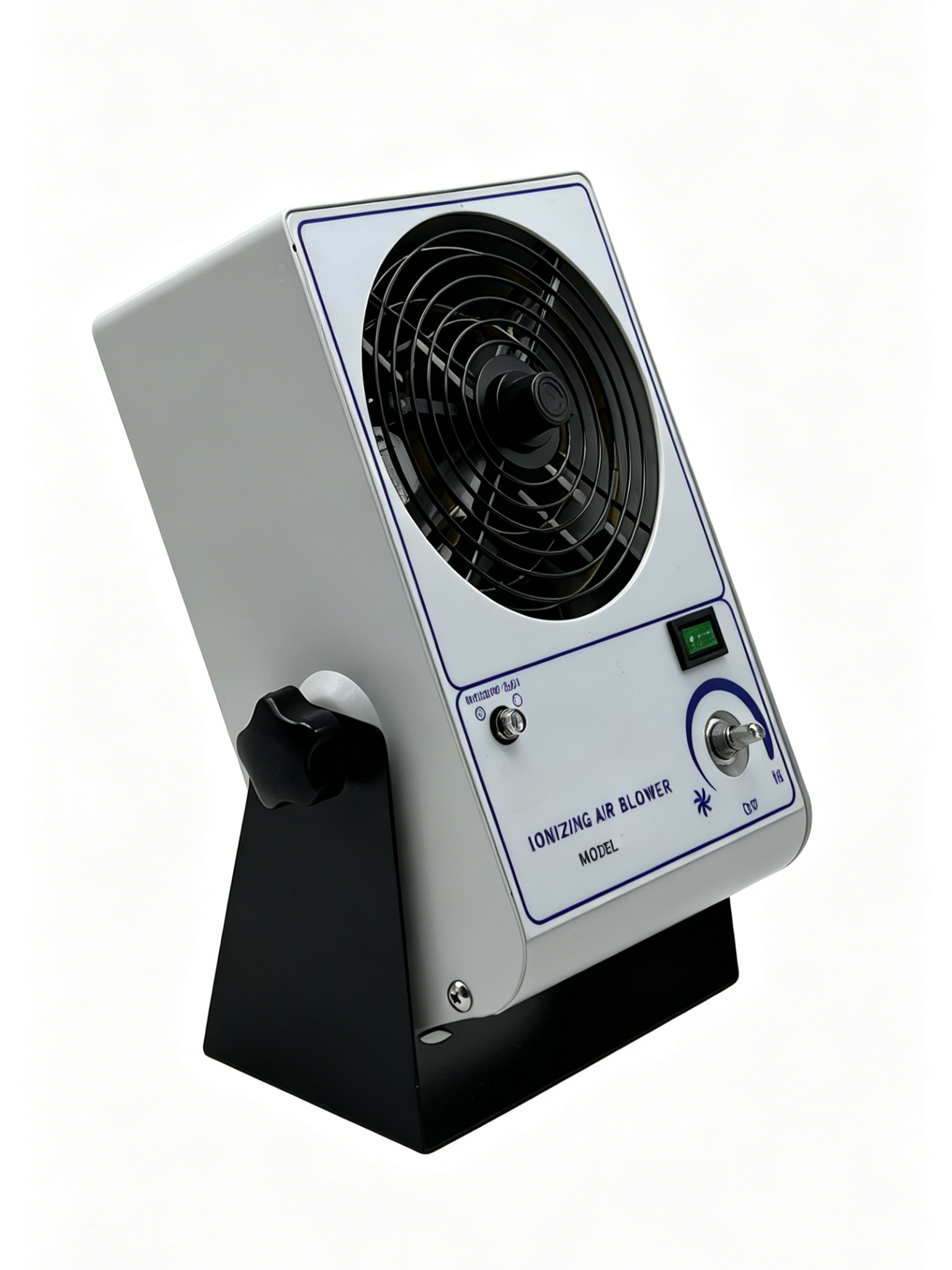

The DF-20S Benchtop Ion Blower is designed based on the principle of AC static eliminator, categorized as electronic equipment. It is suitable for static elimination in small working areas, featuring easy movement and installation with adjustable ion airflow and a built-in high-voltage generator.
Compact and delicate, easy to move; ideal for static removal on workstations within small coverage areas.
Fast static neutralization with ion balance voltage of 0V±10V; stepless adjustable wind speed.
Equipped with an ion pin cleaner and ion generation indicator light; built-in fan and high-voltage power supply.
Alloy housing with sturdy structure, low maintenance requirements and long service life.
Ball bearing fan design: low noise, low power consumption and extended service lifespan.

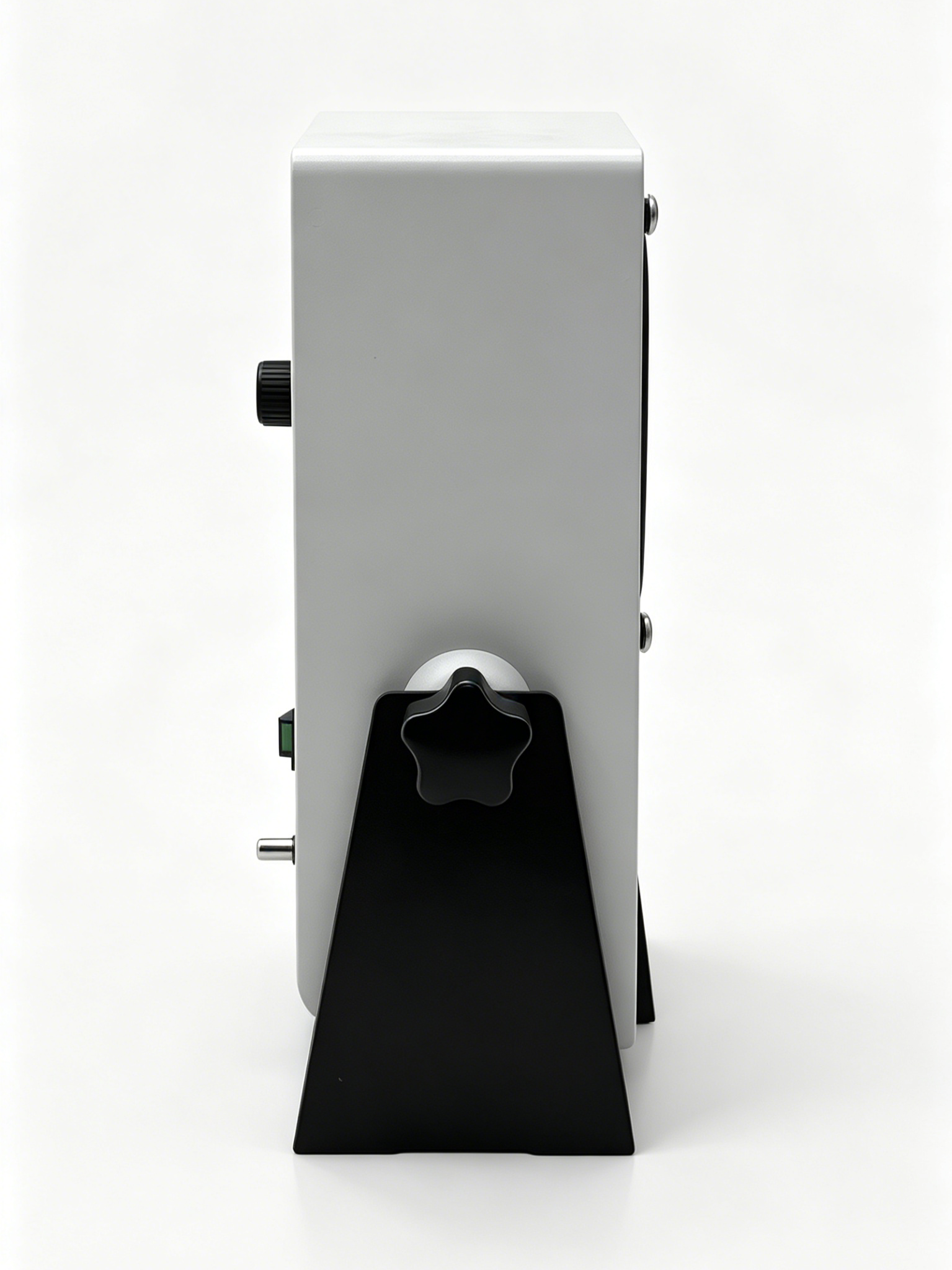

Rotatable support bracket for multi-angle installation.
Low cost with high cost performance.
Precision electronics production, electronic assembly lines, microelectronics manufacturing, optoelectronics industry, pharmaceutical assembly lines, printing & packaging, molding of tiny components, slitting of plastic films, winding & film lamination, mold demolding and other processes.

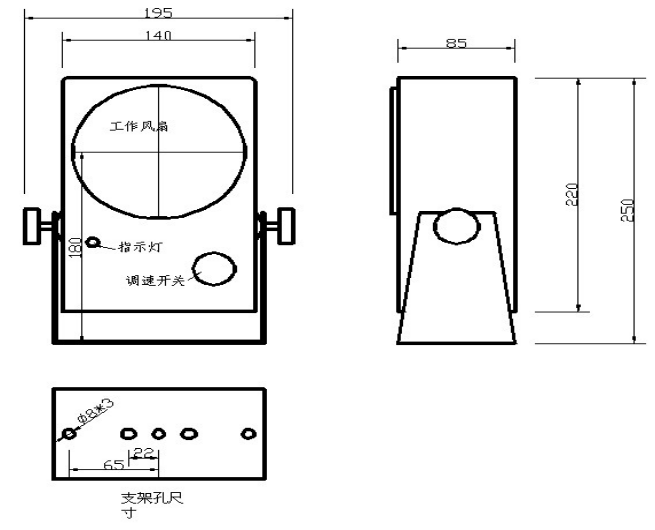

Overall size: 90mm (L) × 195mm (W) × 250mm (H)
Support mounting hole dimensions: 65mm spacing between hole centers, hole diameter 3mm
Main body width: 195mm, fan opening width: 140mm
Height of unit: 250mm, effective body height: 220mm, depth: 85mm

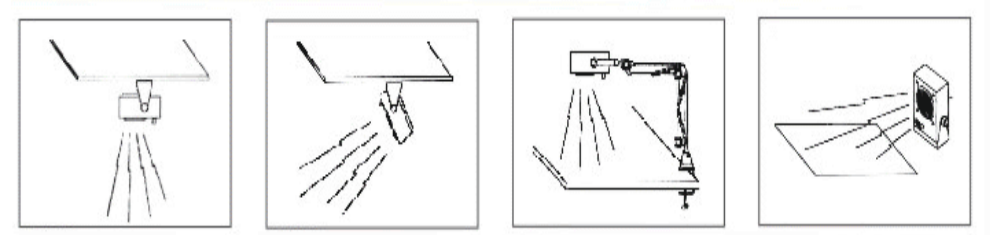

(Standard bracket mounting; adjustable tilt angle via side rotary knobs)

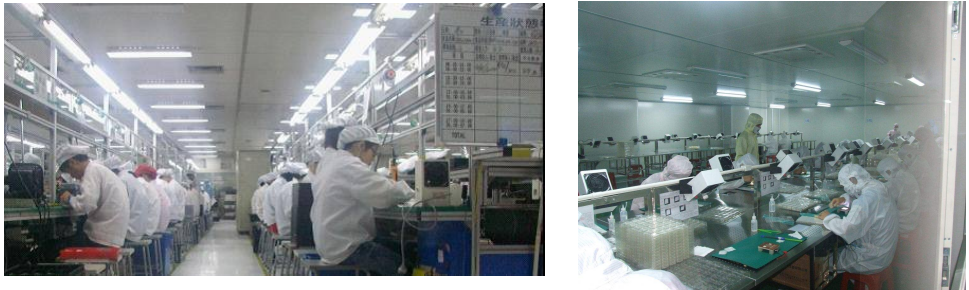

Widely deployed in dust-free clean rooms, electronic assembly production lines, precision component processing workshops.
Item | Parameter |
|---|---|

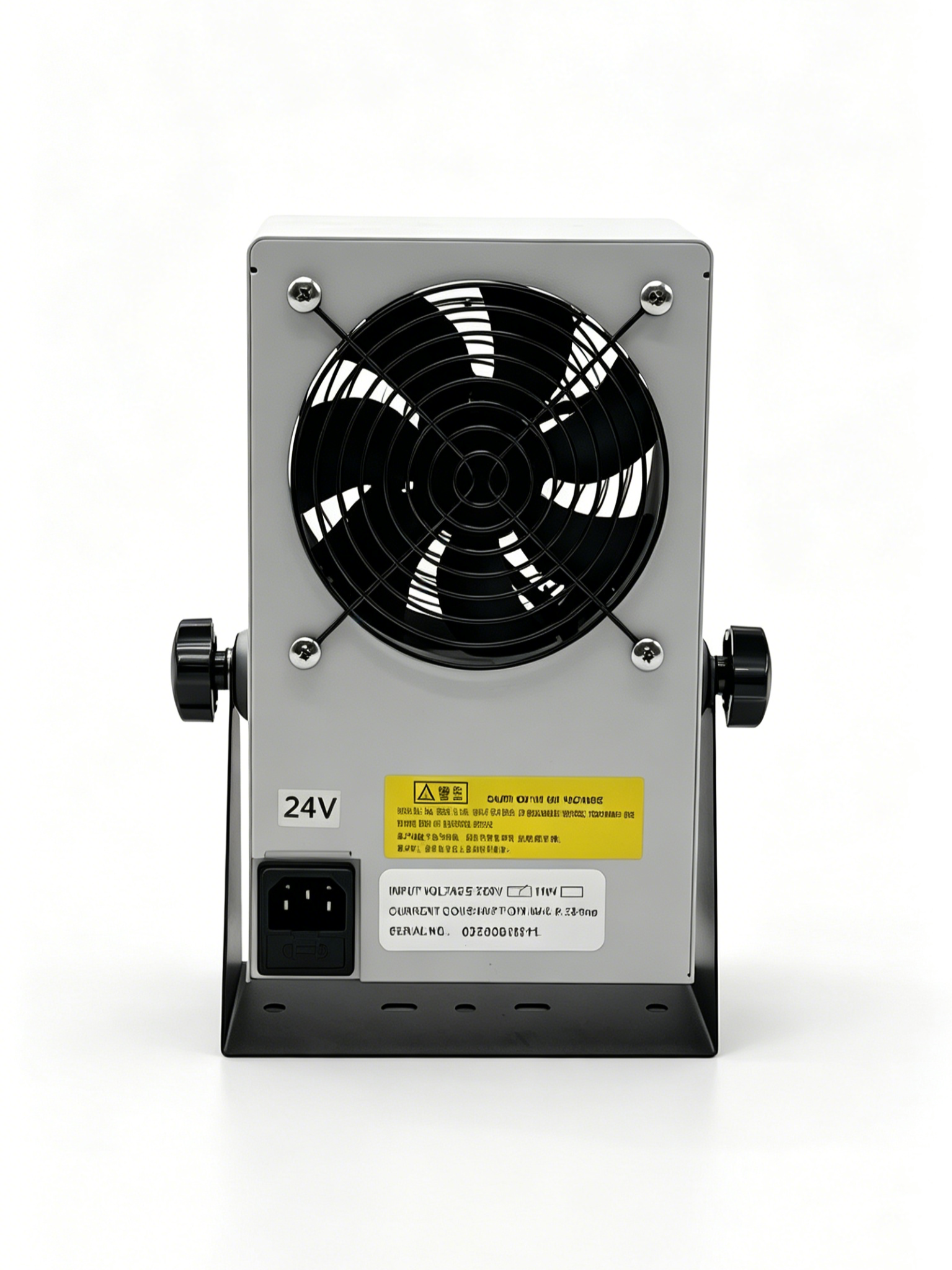

Input Voltage | 110V/60Hz or 220V/50Hz |
Operating Voltage | 5.6KV |
Current Consumption | 0.25A |
Ozone Concentration | 0.0043PPM |
Operating Temperature | -10℃ ~ 50℃ |
Overall Dimension | 90mm(L) × 195mm(W) × 250mm(H) |
Net Weight | 2.5kg |
Fan Power | 30W |
Fan Blades | 7 blades |
Air Volume | 45~110CFM (adjustable) |
Ion Balance | 0V±30V |
Static Decay Time | ≤1.5s (measured at 200mm distance) |
Warranty Period | 1 Year |
Decay Time (±1000V to ±100V): ≤3s
Residual Voltage: ＜±35V
All test data are measured by ME268A Static Comprehensive Tester.
Test results may fluctuate due to environmental factors such as ambient temperature and humidity.
