The ESF-02E Mini DC Ion Blower is a fixed-airflow static eliminator for small-area static removal. It adopts the latest DC static elimination technology, equipped with ion pins made of special alloy material to achieve fast charge neutralization. It is widely suitable for semiconductor, electronics, plastic and other industries, with adjustable ion balance voltage of 0V±20V.
Item | Parameter |
|---|---|
Input Voltage | DC 24V |
Output Voltage | DC 6.8KV |
Current Consumption | 300mA |
Operating Temperature | -20℃ ~ 50℃ |
Overall Dimension | 72mm(L) × 50mm(W) × 110mm(H) |
Net Weight | Approx. 560g |
Fan Power | 8W |
Ion Balance | 0V±20V (Adjustable) |
Fan Rotation Speed | 6500 r/min |
Noise Level | 62dB |
Test Voltage: 1000V to 100V
Ambient Temperature: 22℃
Test Humidity: ≤65%RH
Test Instrument: ME268A Static Charged Plate Analyzer
Test Distance | Static Elimination Time (Positive Charge) | Static Elimination Time (Negative Charge) | Residual Positive Voltage | Residual Negative Voltage |
|---|---|---|---|---|
200mm | 1.2s | 1.0s | +15V | -16V |
300mm | 2.4s | 2.0s | +20V | -18V |
Tested per ANSI/ESD STM3.1-2000 standard issued by ESD Association of America:
Simulated static voltage: 1000V
Residual voltage after neutralization: within ±50V
Static elimination time: within 5s
The test instrument is Monroe Model 268A (USA brand).
Test data will fluctuate with changes of ambient temperature and humidity.

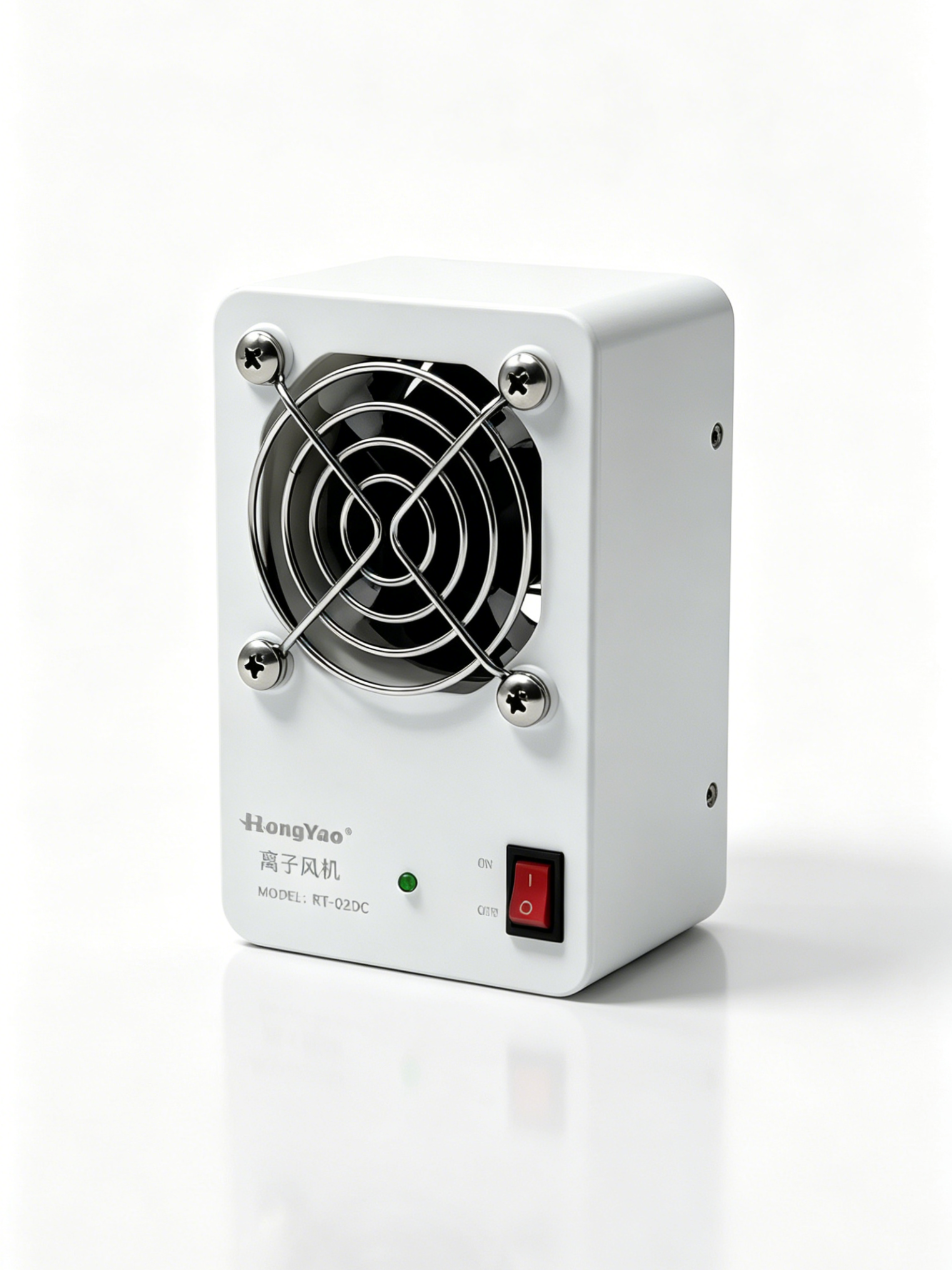

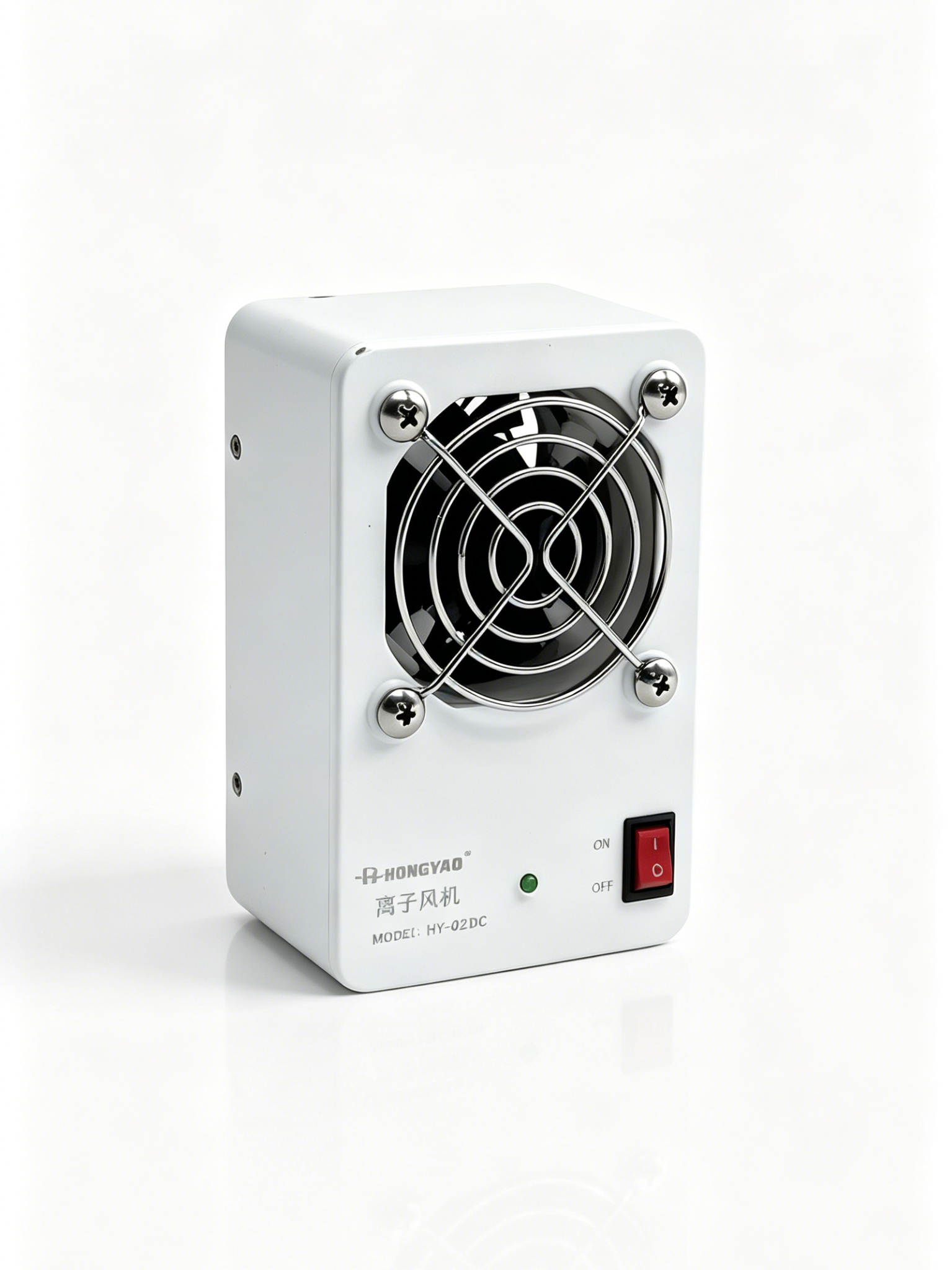

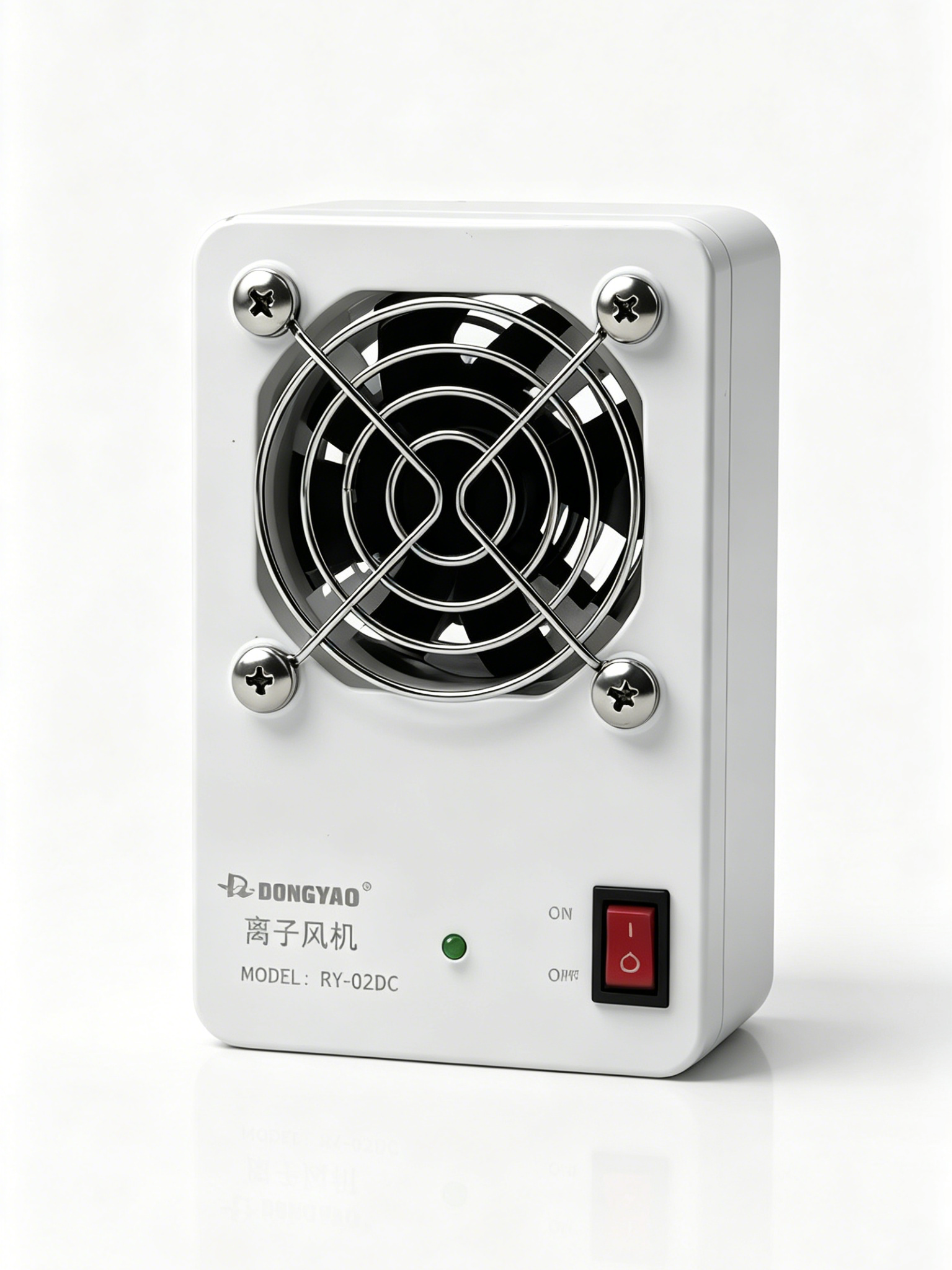

Front panel: Fan grille, green working indicator, ON/OFF power switch

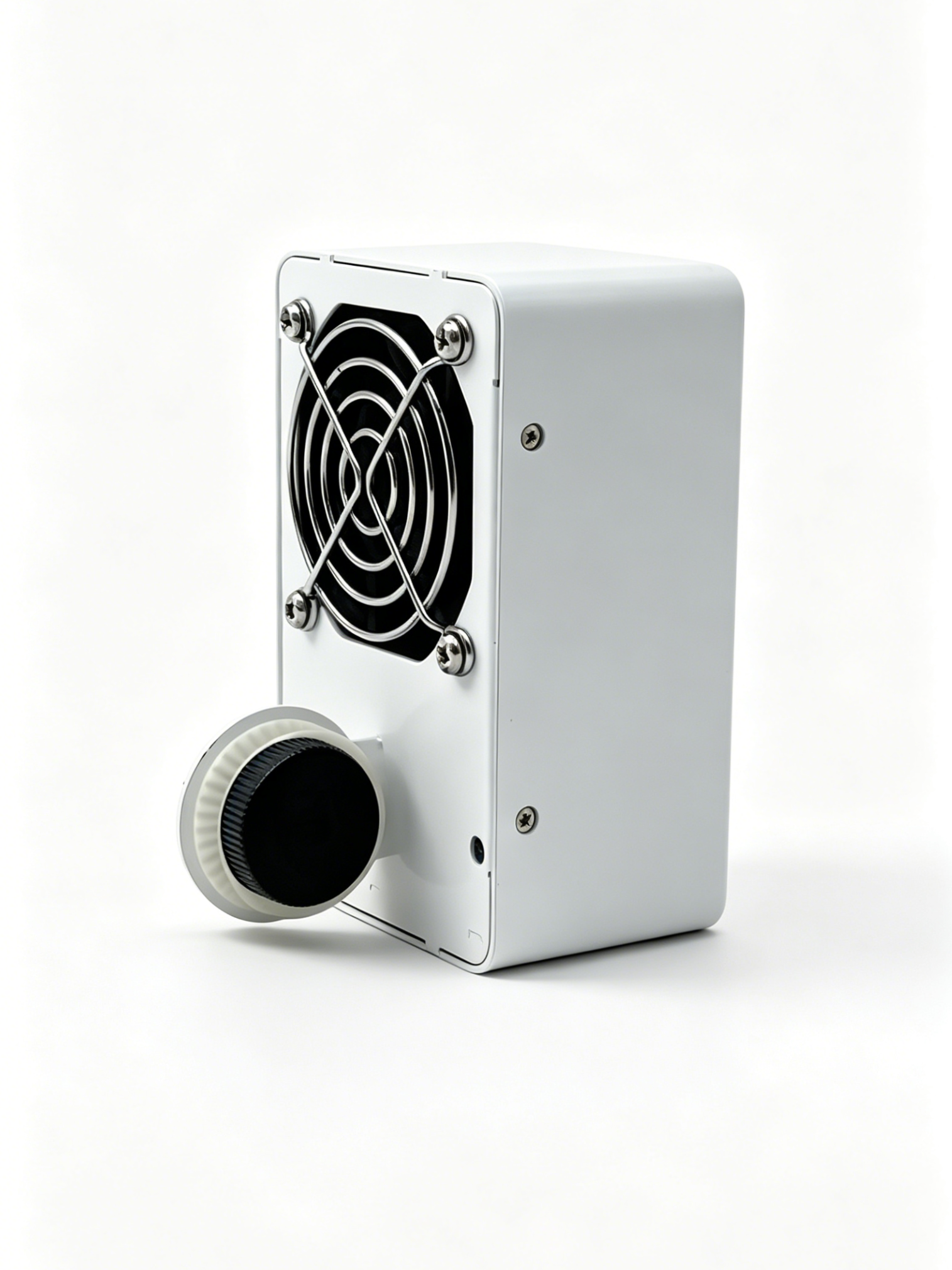

Side: Adjustable mounting knob

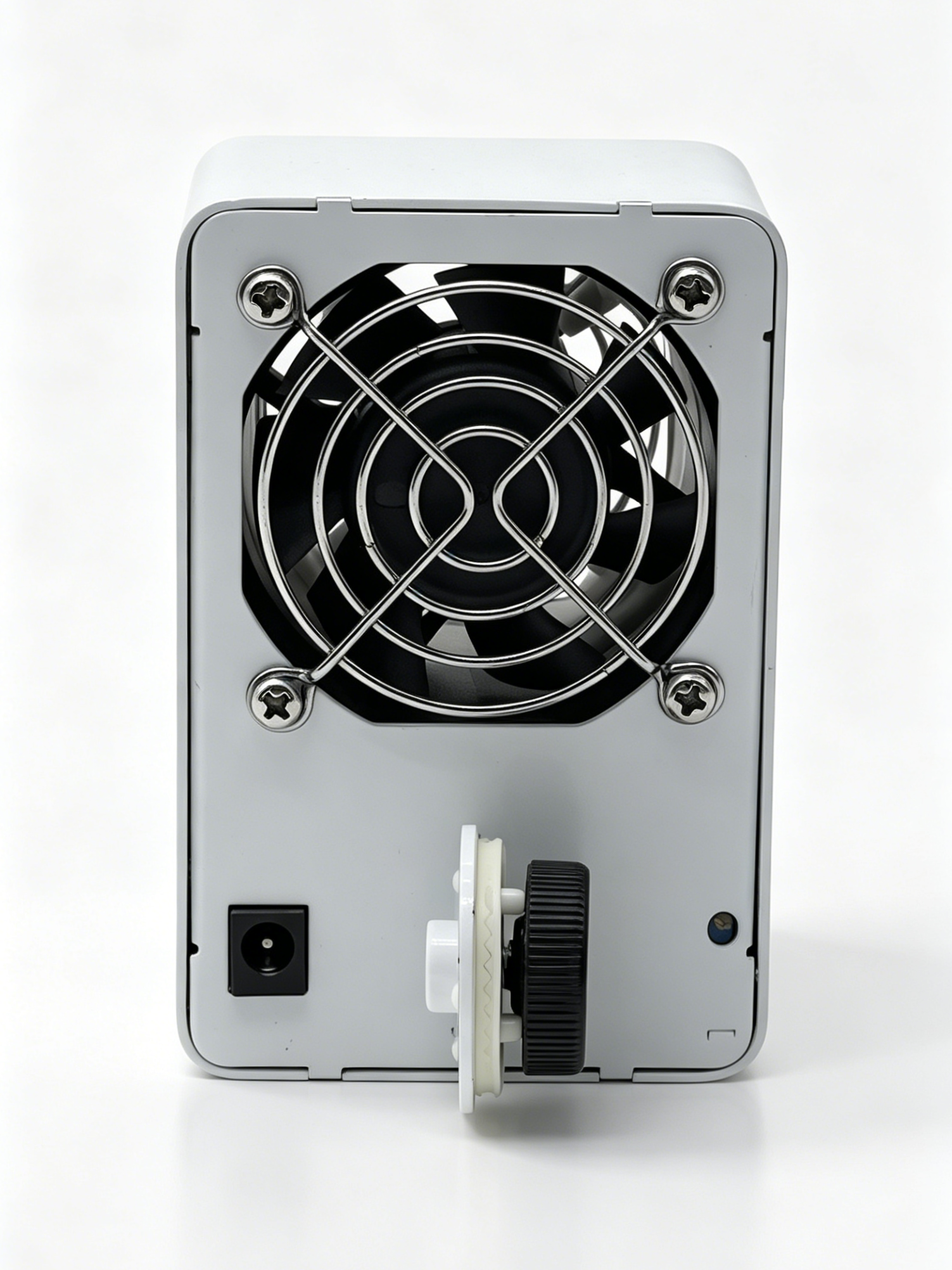

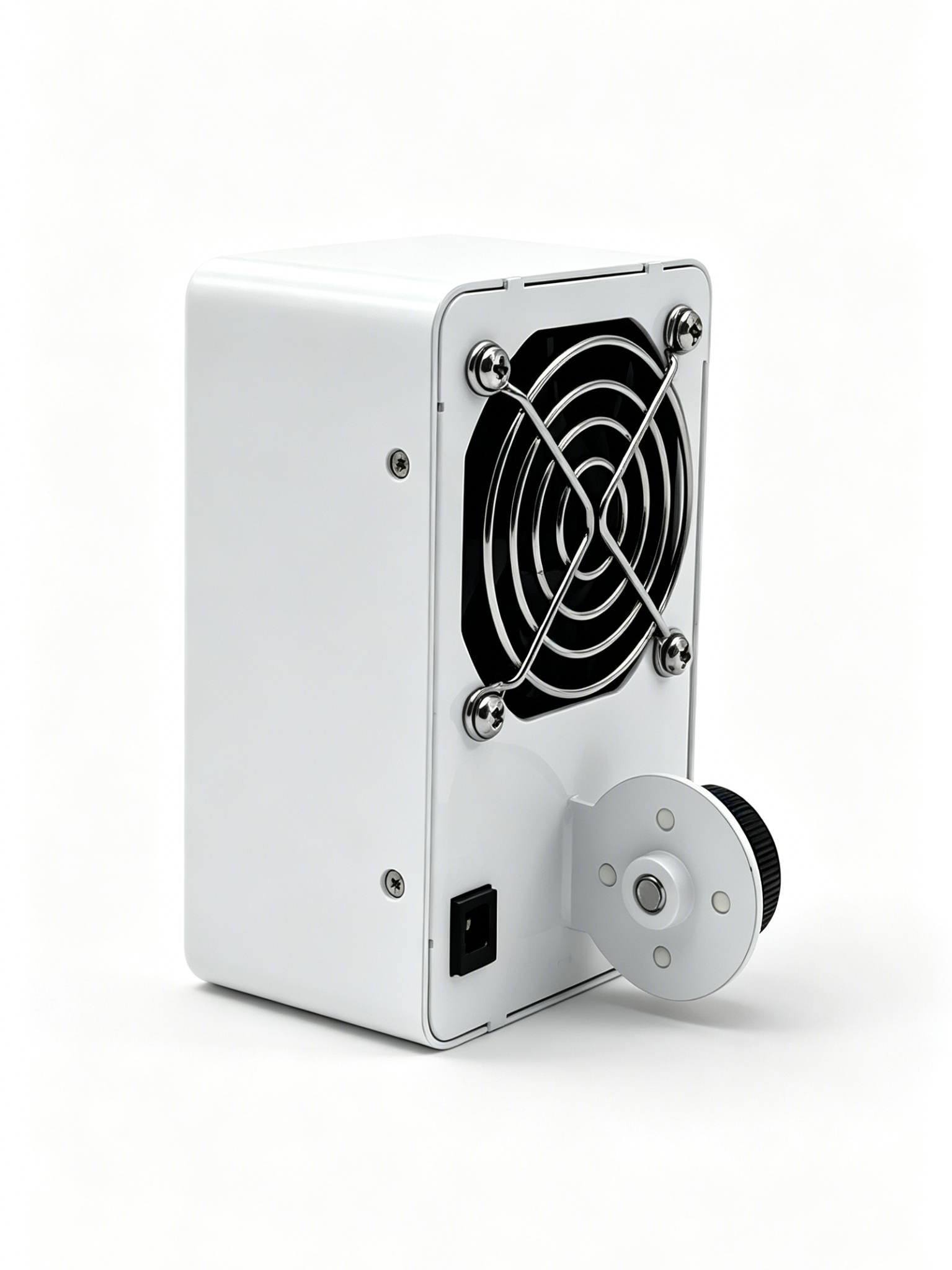

Rear panel: DC24V power input port, ion balance adjustment knob
AC-DC switching power adapter
Input: AC100-240V 50/60Hz 0.65A
Output: DC 24V 1000mA

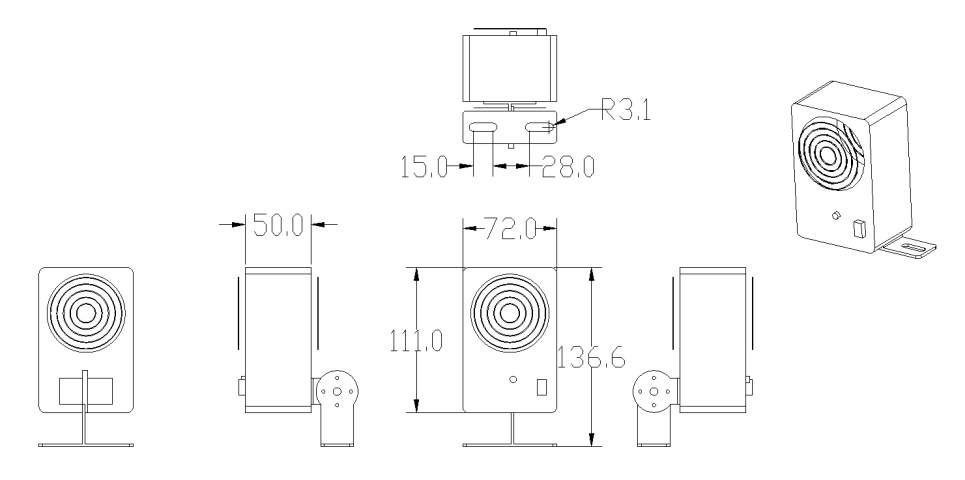

Overall size: 72mm (Length) × 50mm (Width) × 111mm (Height)
Total height with bracket: 136.6mm
Ion Blower Main Unit ×1
24V Power Adapter ×1
2-year limited warranty
