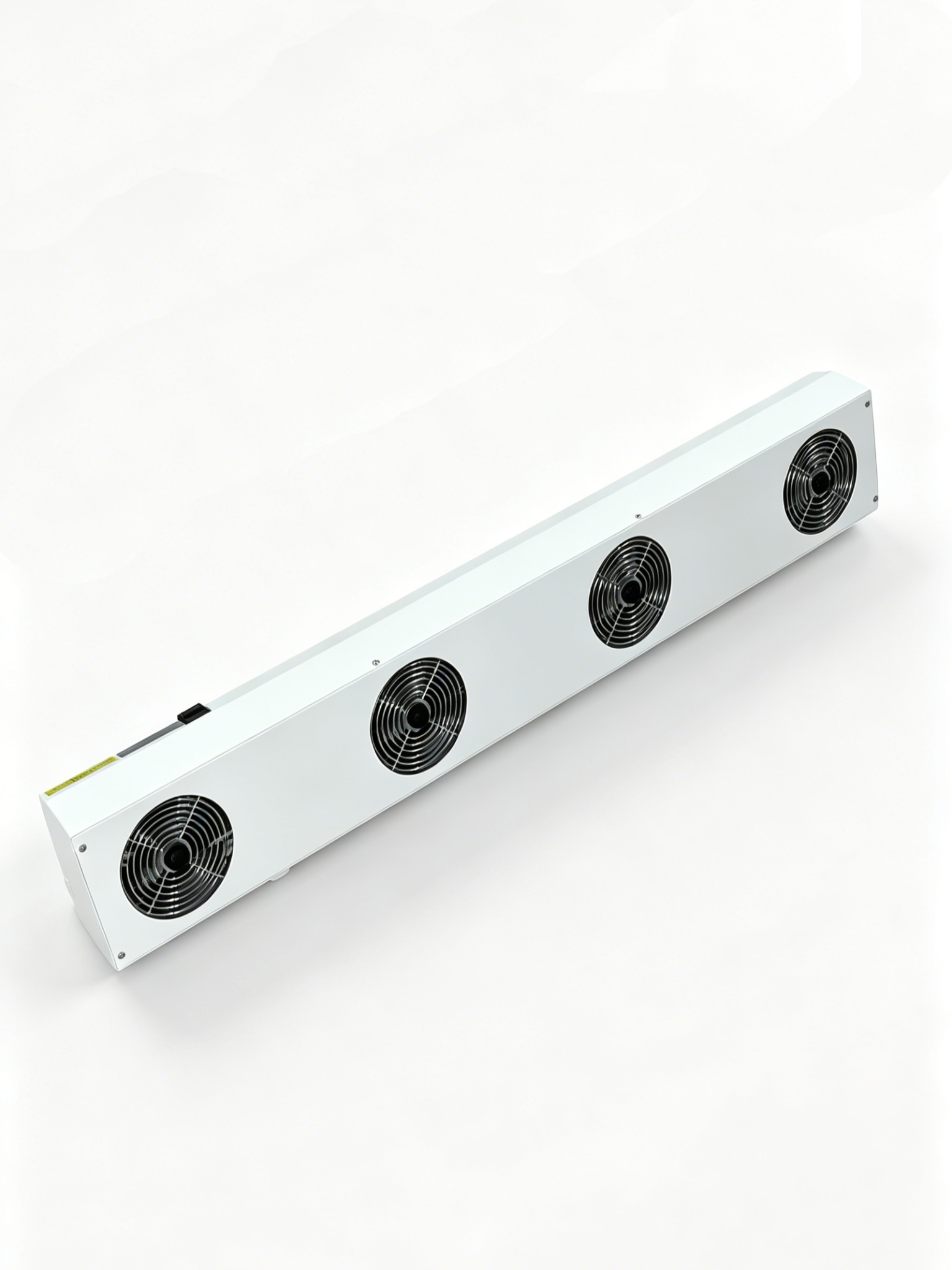

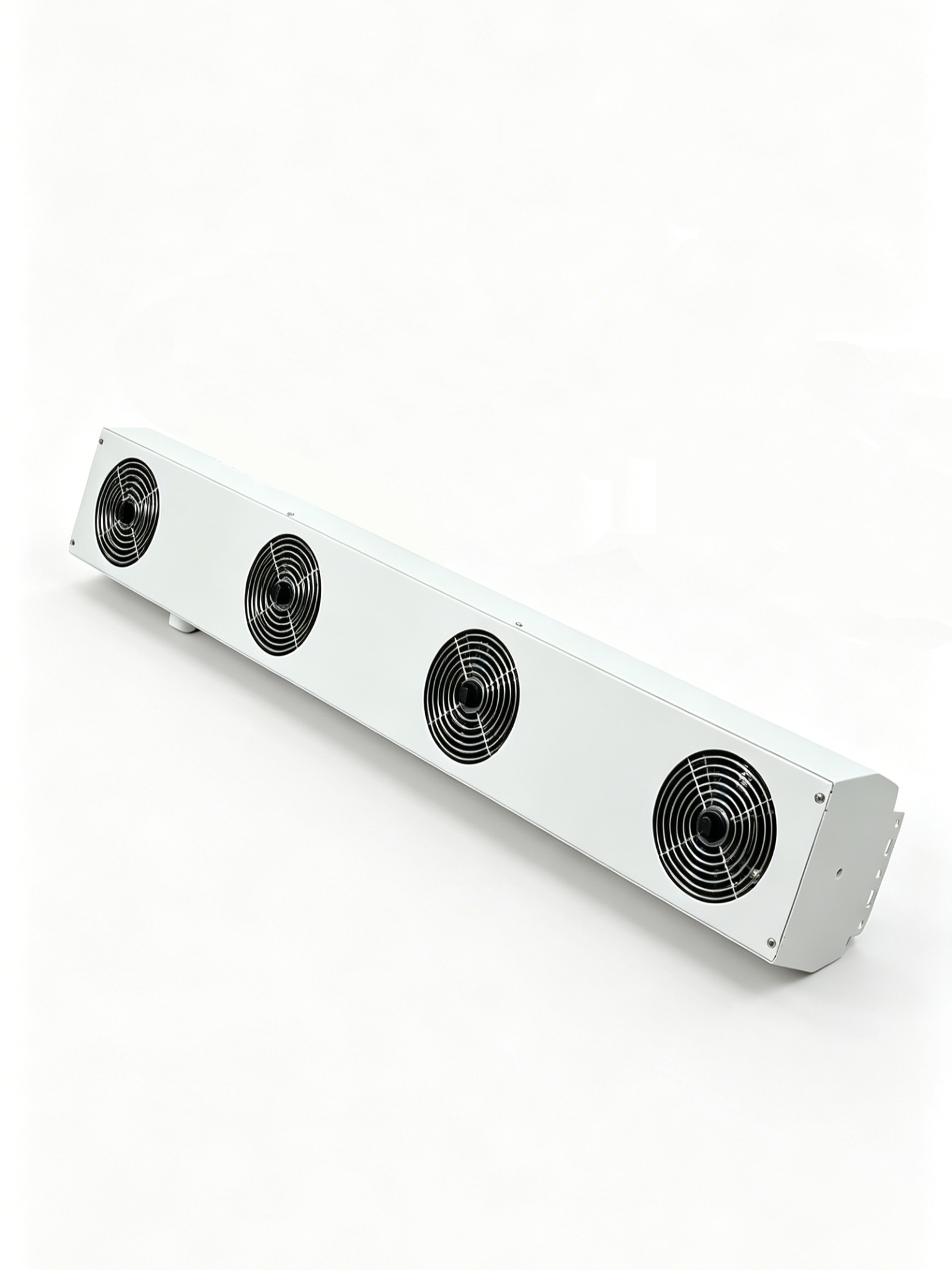

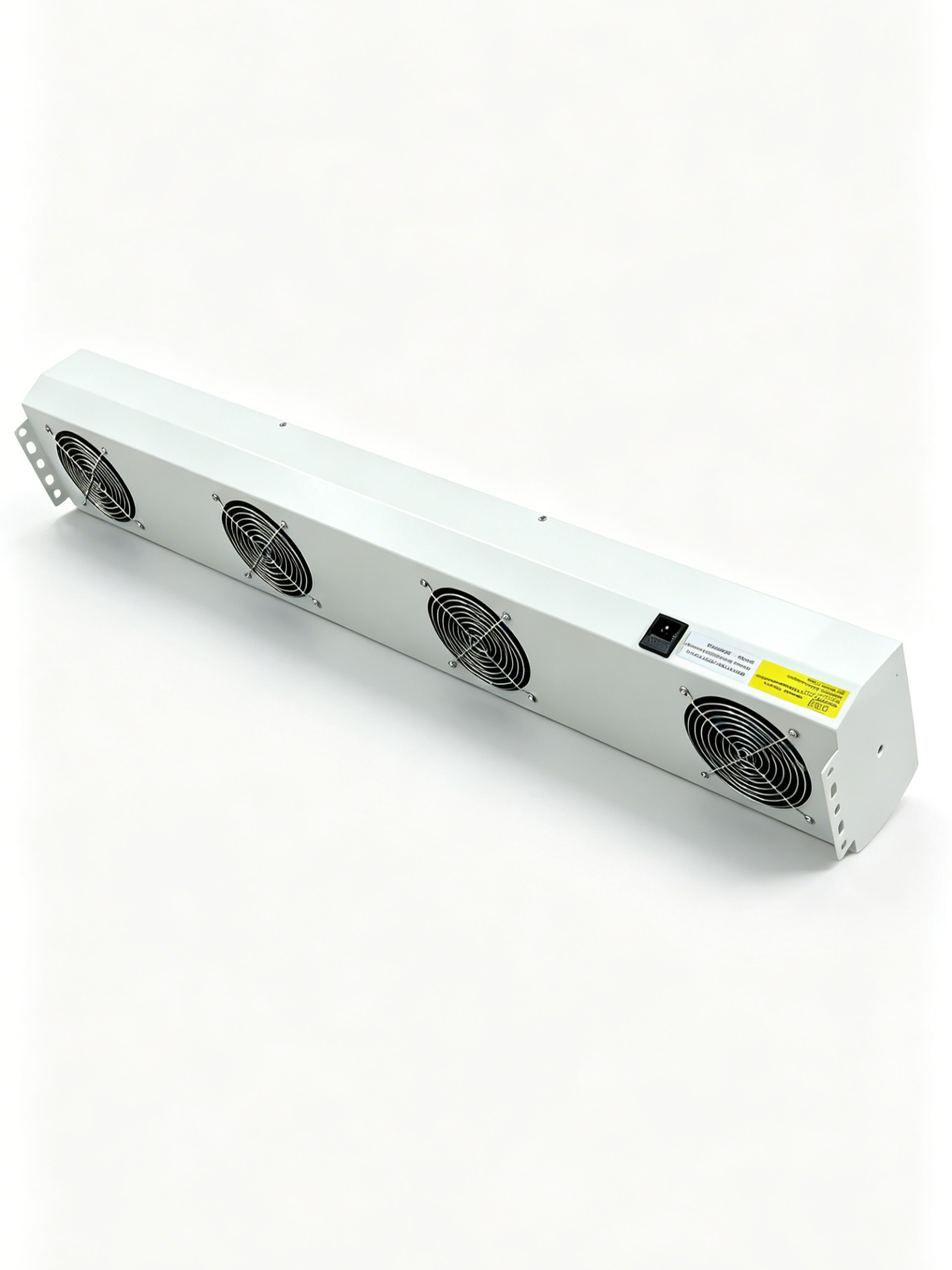

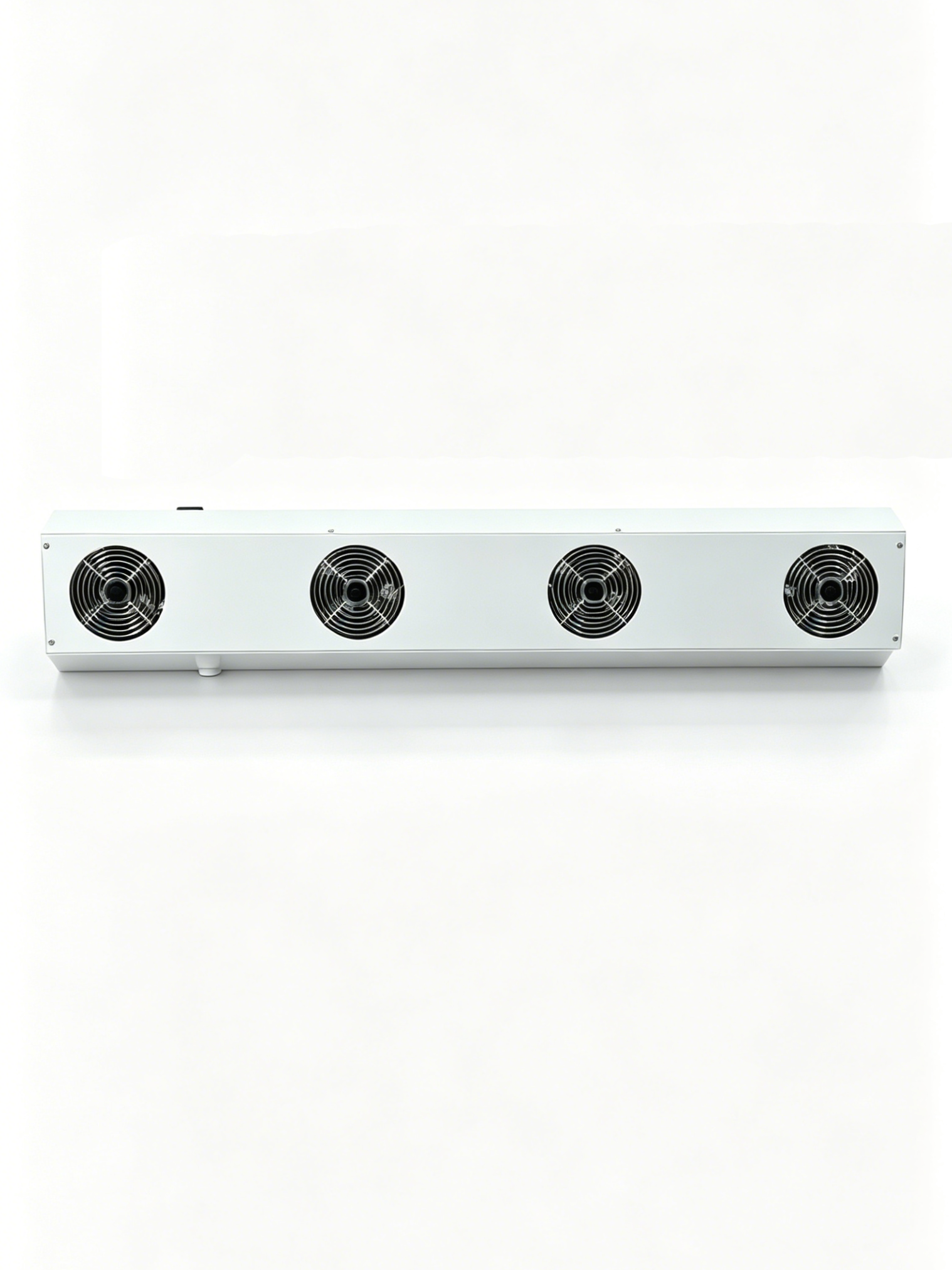

The ESF-104E overhead 4-fan ion blower is a static eliminator delivering balanced ion airflow. Equipped with four air outlets and synchronous positive/negative discharge electrodes, it generates corona discharge under high voltage to ionize air molecules and produce abundant positive and negative ions. Built-in fans blow ion airflow onto workpieces to eliminate static electricity.
Widely used in precision electronics production, electronic assembly lines, microelectronics manufacturing, optoelectronics, semiconductors, pharmaceutical manufacturing, printing, packaging, molding of tiny parts, plastic film slitting, winding & film lamination, mold demolding and other industries.
Suitable for static elimination over large-area work zones
Fast static neutralization, ion balance voltage: 0V±20V
Four air outlets with adjustable wind speed
Customizable main body length
Built-in cleaning brush
Stainless steel housing, sturdy and durable
Reliable grounding protection
AC power supply design with stable performance
Item | Parameter |
|---|---|
Input Voltage | AC220V |
Output Voltage | 5.6KV |
Current Consumption | 0.12A ~ 0.25A |
Ozone Concentration | ＜0.04PPM |
Air Volume | 45 ~ 110CFM |
Noise Level | Min 49dB / Max 59dB |
Operating Temperature | -10℃ ~ 50℃ |
Overall Dimension | 1100mm(L) × 170mm(W) × 100mm(H) |
Housing Material | Stainless Steel |
Effective Coverage Area | 1200mm × 200mm |
Net Weight | 5.5kg |
Single Fan Power | 18W |
Ion Balance | 0V±20V |
Effective Working Distance | 500mm |
Test Voltage: 1000V to 20V; Operating Voltage: AC220V; Ambient Temperature: 22℃; Humidity: 65%RH
Test Distance: 300mm from charged workpiece
Fan No. | 1# | 2# | 3# | 4# | ||||
|---|---|---|---|---|---|---|---|---|
Item | Decay Time | Residual Voltage | Decay Time | Residual Voltage | Decay Time | Residual Voltage | Decay Time | Residual Voltage |
Positive Charge | 1.2s | +18V | 1.2s | +5V | 1.6s | +10V | 1.1s | +11V |
Negative Charge | 1.0s | -16V | 1.0s | -12V | 1.8s | -15V | 1.2s | -15V |
All test data are measured by ME268A Static Charged Plate Analyzer.
Test performance will fluctuate with ambient temperature and humidity.

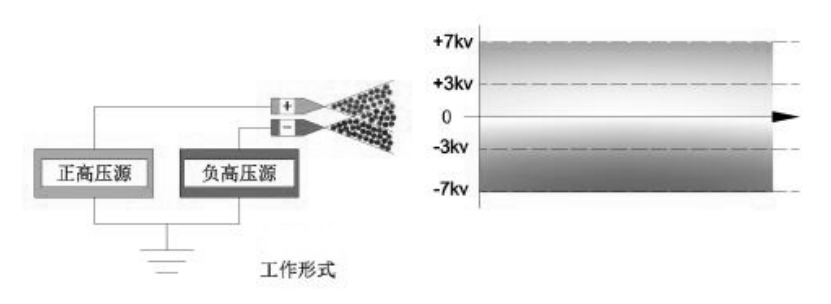

The internal ionizing components form a stable high-voltage electric field driven by the high-voltage generator, ionizing surrounding air into ion plasma. Fans carry the ion airflow to workpiece surfaces. Negative surfaces attract positive ions, while positive surfaces attract negative ions, fully neutralizing static charges on materials.
Read this manual thoroughly before installation and operation.
The unit must be reliably grounded during operation.
Do not operate in environments with humidity higher than 80%RH.
Do not disassemble the unit without authorization; internal maintenance must be completed by professional technicians.
Forbidden to use in flammable and explosive environments.
Keep the unit away from water or liquid, which may cause malfunction, electric shock or fire hazards.
Cut off power supply before maintenance.
This device is exclusively designed for static elimination; improper use may lead to equipment failure, electric shock or fire risks.
Do not touch discharge pins while powered on to avoid electric shock and unit damage.
Verify power supply specifications before powering on; mismatched power will damage the unit.
Inspect power cords regularly; replace damaged cords immediately to prevent leakage and abnormal operation.

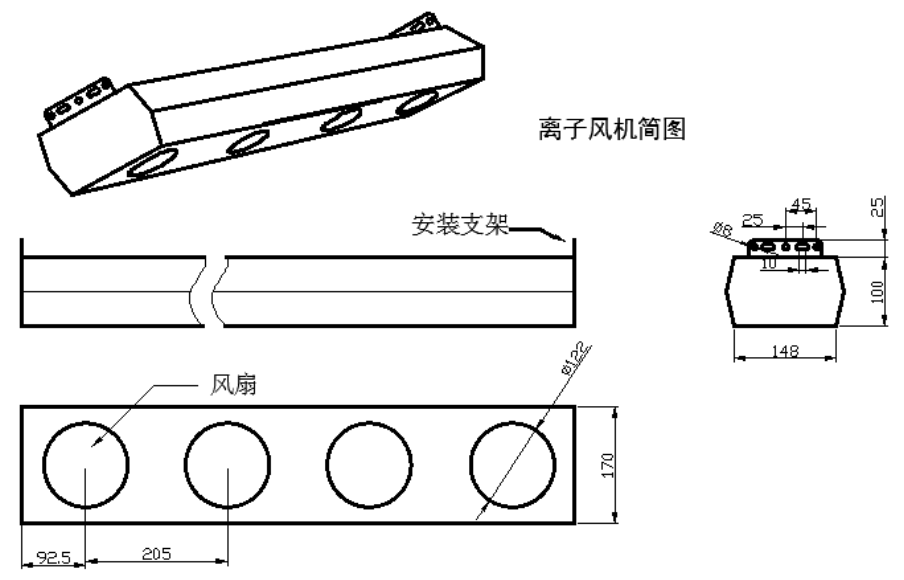

Main body width: 170mm, height: 100mm
Spacing between fan centers: 205mm
Mounting bracket reserved hole size: Φ8, hole spacing 45mm

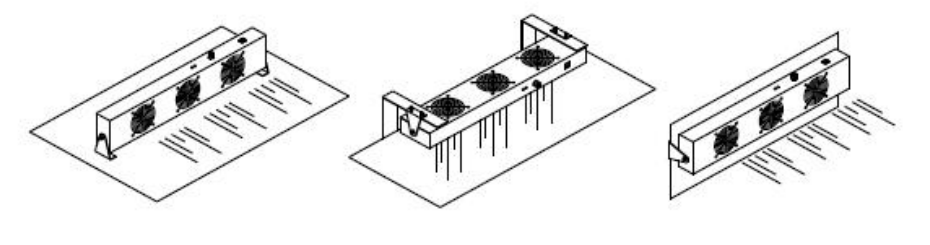

Mount the unit above static elimination work zones, with air outlet perpendicular to workpiece surfaces, working distance 100~500mm.

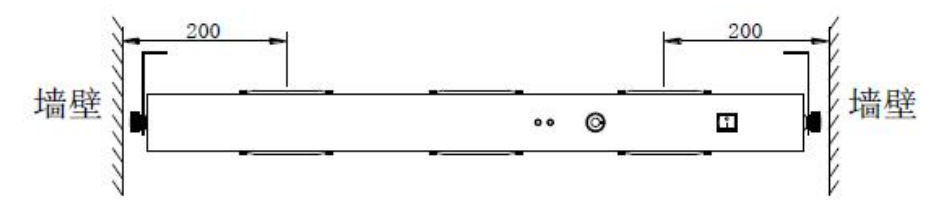

Keep at least 200mm clearance from metal conductors and grounded metal parts.

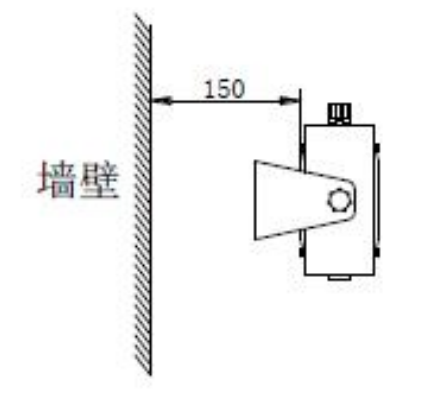

Maintain minimum 150mm clearance from walls and obstacles.
Leave 150mm or more space at air intake side away from walls.
No. | Fault Phenomenon | Possible Cause | Solution |
|---|---|---|---|
1 | Fan fails to rotate | Loose power cord / Mismatched input voltage | Reconnect or replace power cord; Use standard AC220V 50/60Hz power supply |
2 | Poor static elimination performance | Dirty discharge pins / Too close conductive objects nearby | Clean discharge pins; Remove surrounding conductive materials |
3 | Indicator & lighting lamp off | Broken internal wiring | Return to factory for repair |
4 | Cannot eliminate static electricity | Damaged high-voltage module / Broken wiring | Return to factory for repair |
5 | Smoke or physical damage to unit | Burned internal components | Return to factory for repair |
Regular cleaning is required to maintain stable performance. Use anti-static brush and lint-free cloth dipped in anhydrous alcohol to wipe carbon deposits on discharge pins and metal mesh covers.
A. Cut off power supply and wait 10 minutes before cleaning.
B. Clean immediately when dust or white residue accumulates on pin tips during use.
C. Do not power on until alcohol fully evaporates; other organic solvents are prohibited for cleaning.
D. Ion pin assemblies are consumable parts; replacement fees apply after warranty expires.
Do not press or twist control knobs excessively to avoid permanent component damage.
Stop operation immediately if the working indicator light goes out; arrange professional inspection before reuse.
Each ESF-104E overhead 4-fan ion blower undergoes strict testing and aging treatment before delivery, fully complying with all technical indexes listed in this manual.
Free repair or replacement of defective parts within 1 year from purchase date.
Warranty void under the following conditions:
Incorrect installation or operation;
Damage caused by negligence or accident;
Unauthorized disassembly, modification or maintenance by non-official service providers.
The company shall not bear any additional liability beyond the specified warranty terms.
Operation Manual
Warranty Card
Certificate of Conformity
Power Cord
