The ESF-102E overhead dual-head ion blower is designed based on the principle of AC static eliminator and classified as electronic equipment, with an all-metal housing.
In industrial production, friction, peeling, extrusion and electrostatic induction between objects will accumulate charges of different polarities on material surfaces. Once static charge accumulates to a certain level, electrostatic adhesion and discharge will occur. Static buildup and discharge cause severe adverse impacts and damages to production, including material adhesion/repulsion, electrostatic breakdown, electric shock to operators, and even explosion risks.
This ion blower ionizes air to generate massive positive and negative ions, which are blown out by built-in fans to form ion airflow. The airflow neutralizes static charges on workpiece surfaces: negatively charged surfaces attract positive ions, while positively charged surfaces attract negative ions, thereby eliminating static electricity completely.
Fast static neutralization speed
Large coverage area of ion airflow
Wide adjustable range of ion balance
Equipped with dedicated ion emitter cleaning tool
Built-in ionization indicator light
Reliable grounding protection for fans
Item | Parameter |
|---|---|
Operating Voltage | 110V/60Hz or 220V/50Hz |
Current Consumption | 0.9A (110V) / 0.4A (220V) |
Operating Temperature | -10℃ ~ 50℃ |
Overall Dimension | 600mm(L) × 170mm(W) × 100mm(H) |
Net Weight | 7.5kg |
Air Volume | 160~440CFM |
Ion Balance | 0V±10V |
Effective Air Coverage Area | 40cm × 90cm |
Test Voltage: 1000V to 100V; Operating Voltage: 110V/220V; Ambient Temperature: 22℃; Humidity: 75%RH
Test Position | Decay Time at 300mm | Decay Time at 400mm | Decay Time at 500mm |
|---|---|---|---|
Left Side | 1.5s | 2.2s | 4.6s |
Center | 1.3s | 2.0s | 4.0s |
Right Side | 1.6s | 2.4s | 4.9s |
All test data are measured by ME268A Static Charged Plate Analyzer.
Test performance will vary with ambient temperature and humidity.

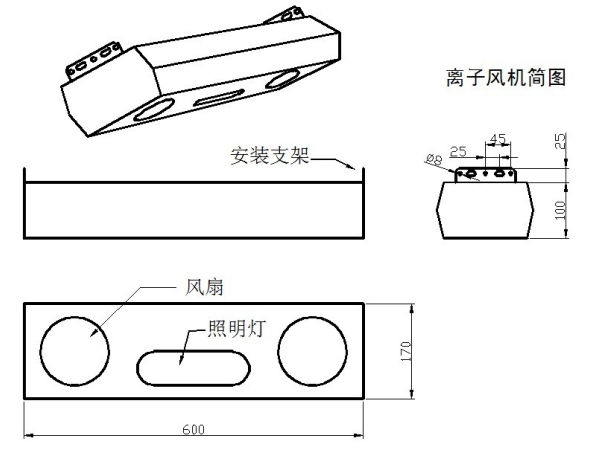

Mounting bracket
Dual fans
Built-in indicator lamp
Main body length: 600mm, width: 170mm, height: 100mm
