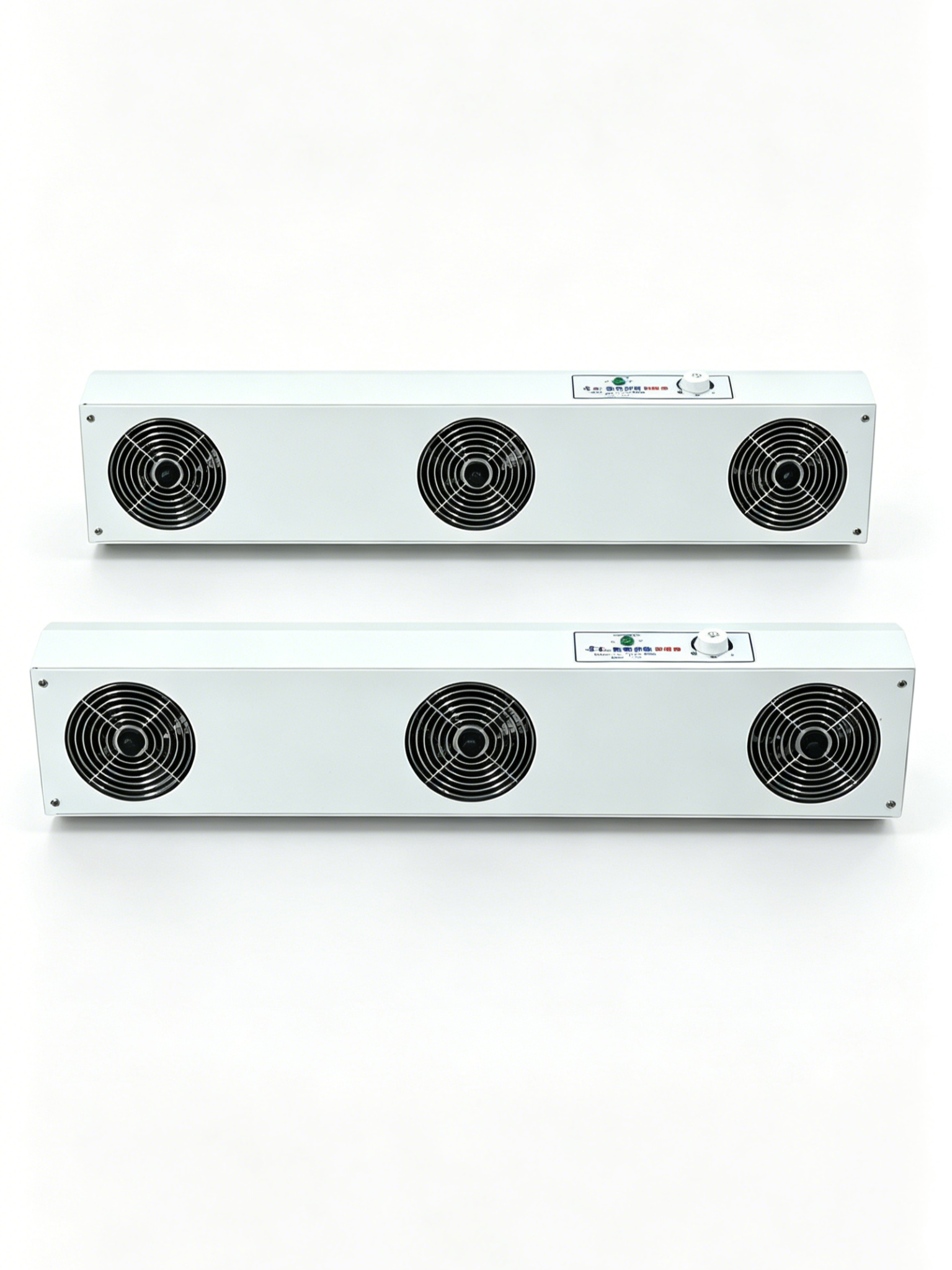

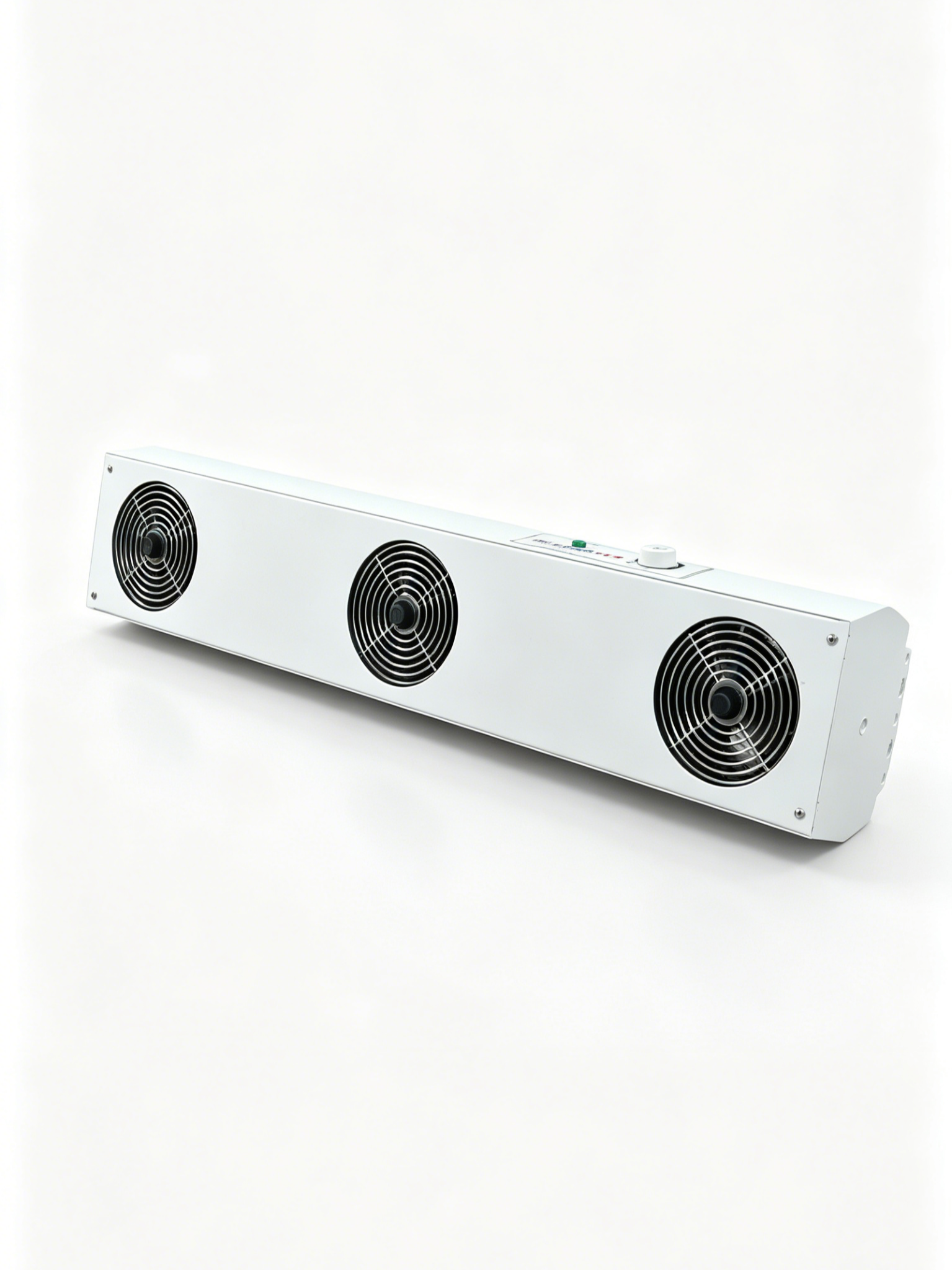

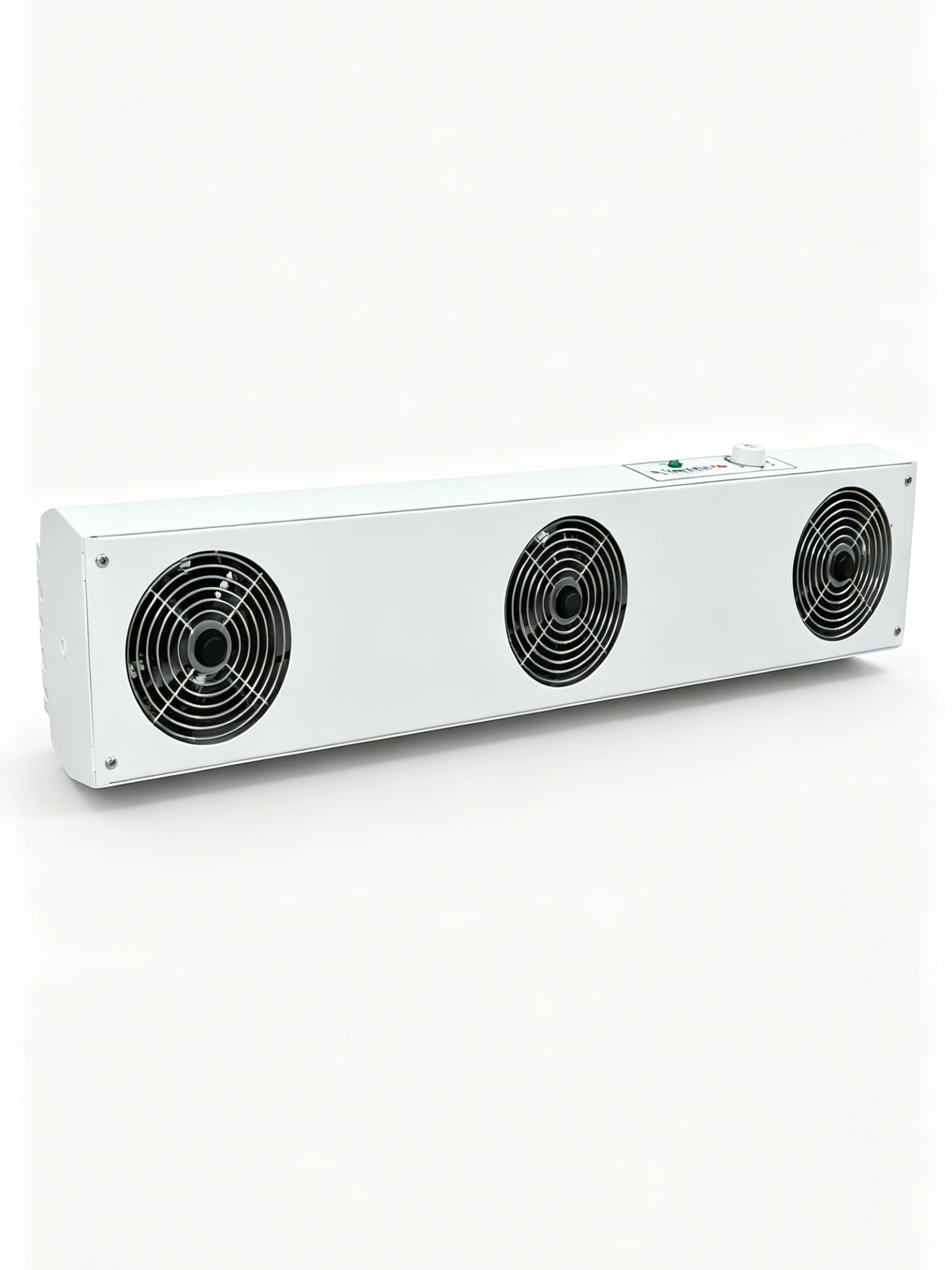

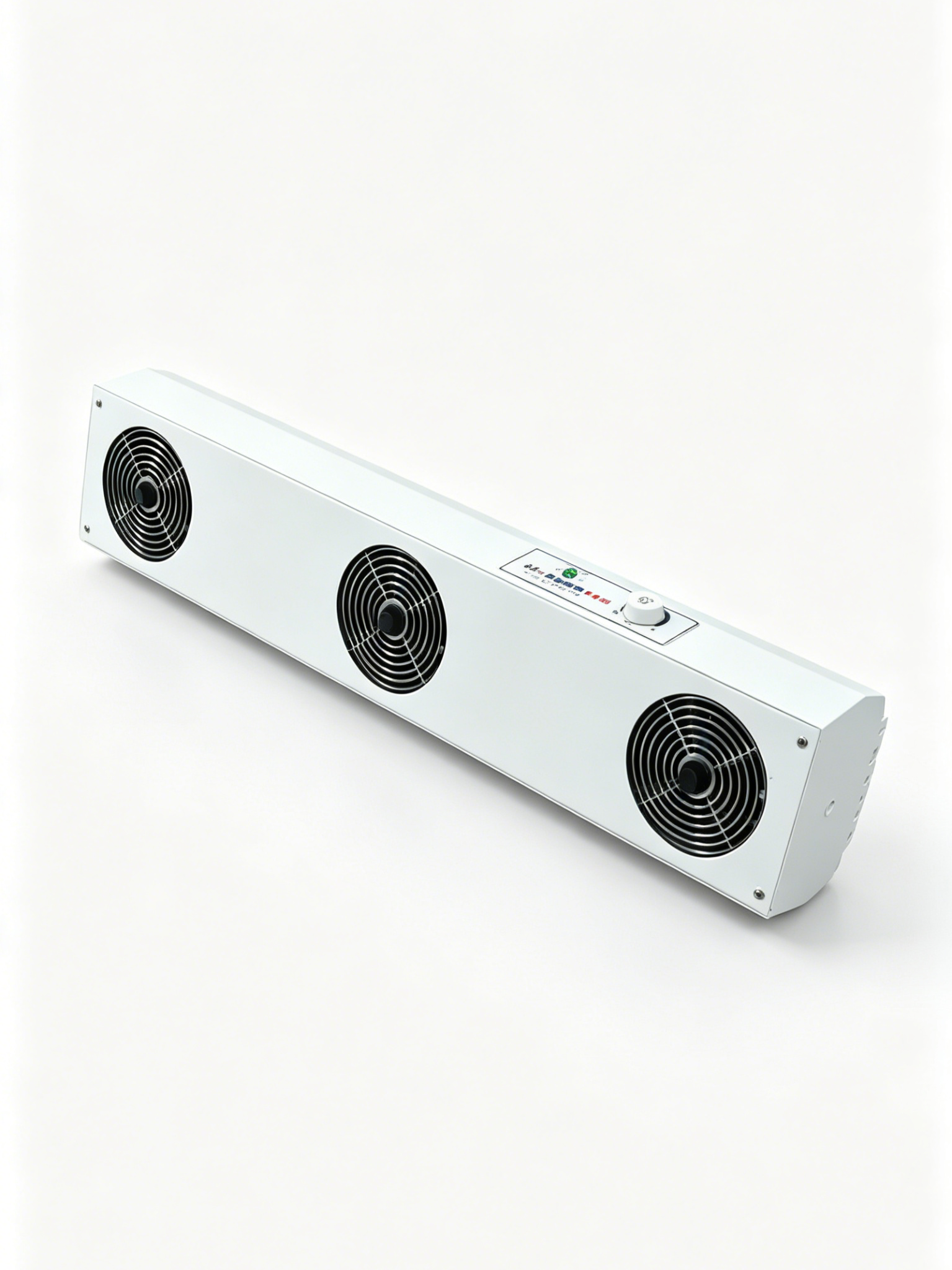

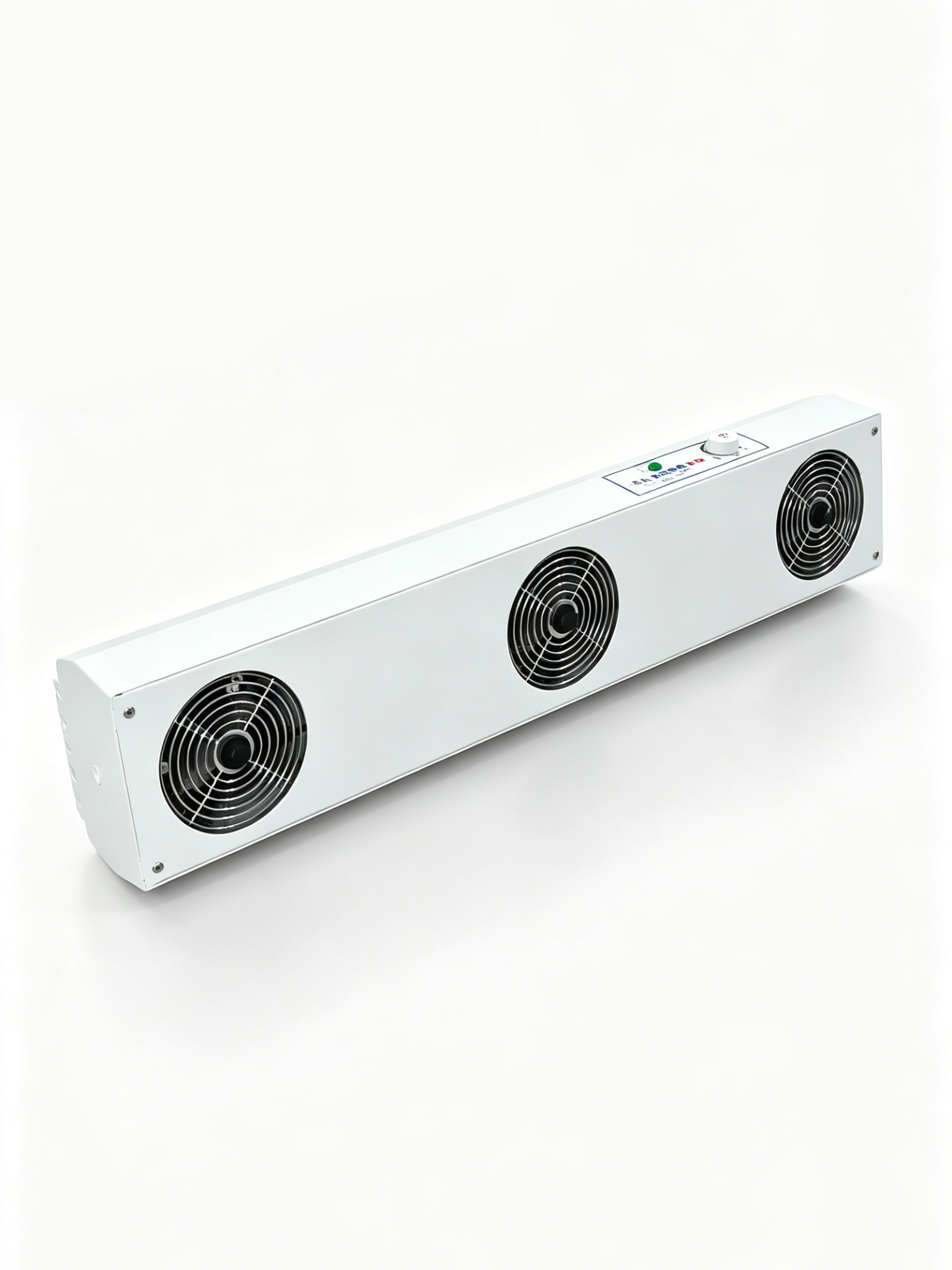

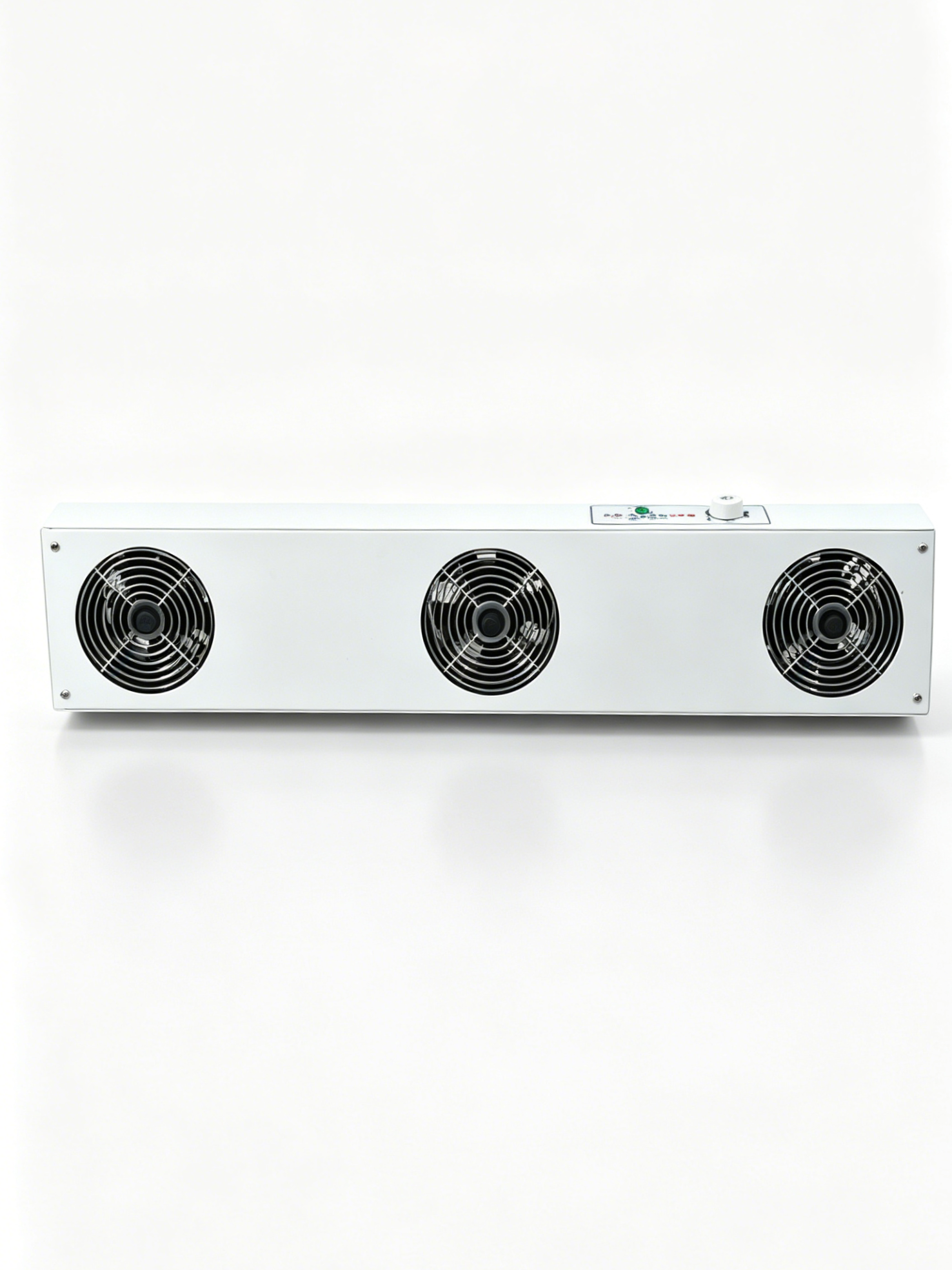

The ESF-103E ion blower is a large-area static eliminator that delivers balanced ion airflow. It neutralizes static charges over concentrated wide zones or hard-to-reach areas. The unit features an all-metal housing with dense ion airflow and nearly gapless coverage, delivering superior static removal performance. It is equipped with a built-in lighting fixture.
The ESF-103E generates abundant airflow carrying positive and negative ions to neutralize static charges on workpiece surfaces. Negatively charged surfaces attract positive ions from the airflow, while positively charged surfaces attract negative ions. This neutralizes surface static electricity and achieves static elimination.
Rapid static charge neutralization
Large ion airflow coverage area
Wide adjustable wind speed range
Specialized ion emitter cleaning tool included
Heating device can be installed upon customer request
Ionization indicator light
Reliable grounding protection for fans
Built-in lighting fixture on main body
Total length: 800mm
Fan diameter: Φ120mm
Spacing between adjacent fans: 315mm
Mounting bracket span: 750mm
Unit width: 168mm, unit thickness: 102mm
Item | Parameter |
|---|---|
Operating Voltage | 220V/50Hz |
Current Consumption | 0.9A / 0.4A |
Operating Temperature | -10℃ ~ 50℃ |
Overall Dimension | 800mm(L) × 170mm(W) × 100mm(H) |
Net Weight | 4.5kg |
Air Volume | 50~130CFM |
Offset Voltage (Ion Balance) | 0V±15V |
Effective Air Coverage Area | 20cm × 100cm |
Test Voltage: 1000V to 100V
Operating Voltage: 110V/220V
Ambient Temperature: 22℃
Test Position | Decay Time at 200mm | Decay Time at 400mm | Decay Time at 600mm |
|---|---|---|---|
Left Zone | 1.1s | 2.2s | 3.9s |
Center Zone | 1.1s | 2.0s | 3.70s |
Right Zone | 1.2s | 2.4s | 3.9s |
All test data are measured by ME268A Static Charged Plate Analyzer.
Test results may vary subject to ambient conditions including air temperature and humidity.
