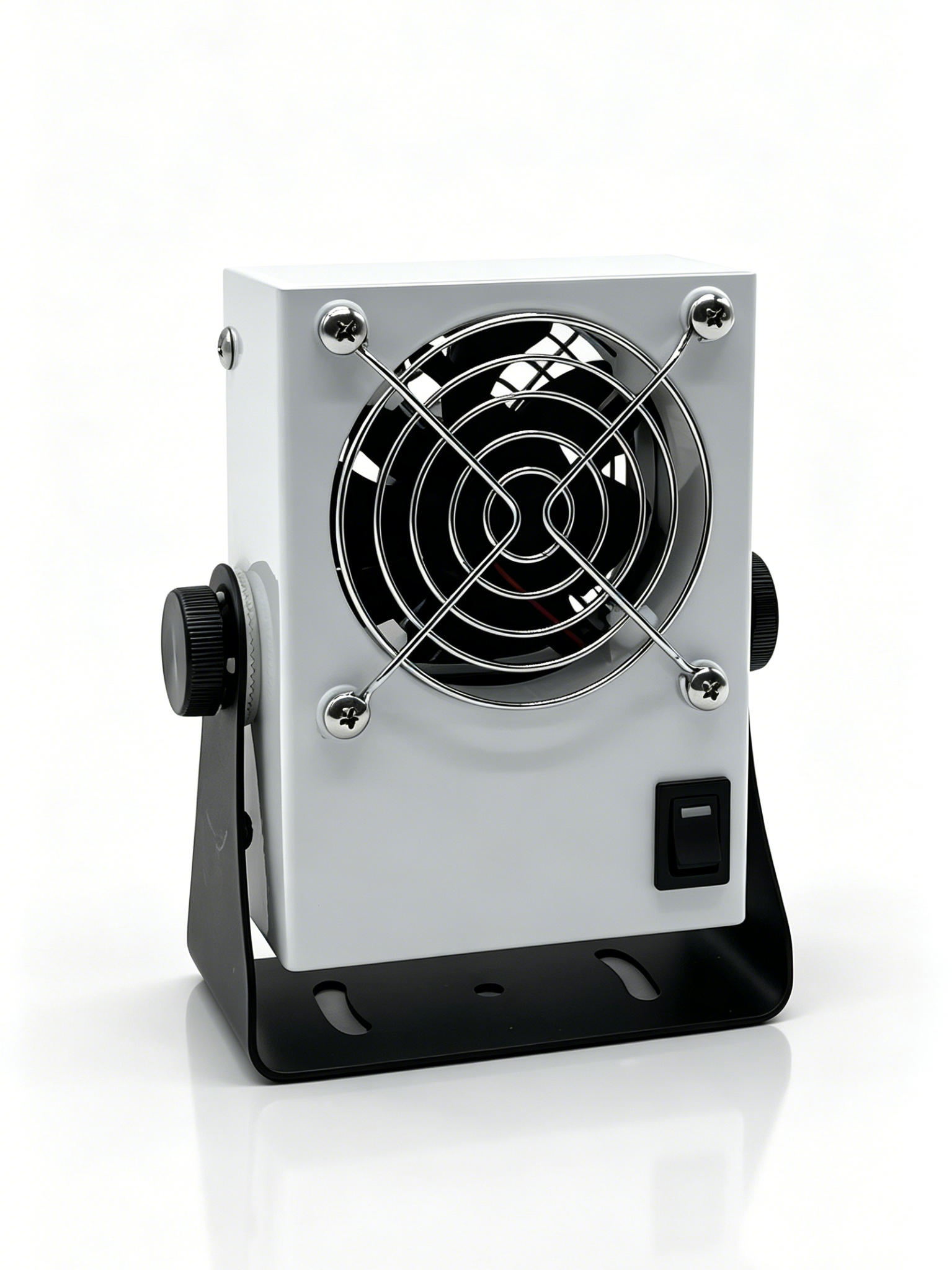

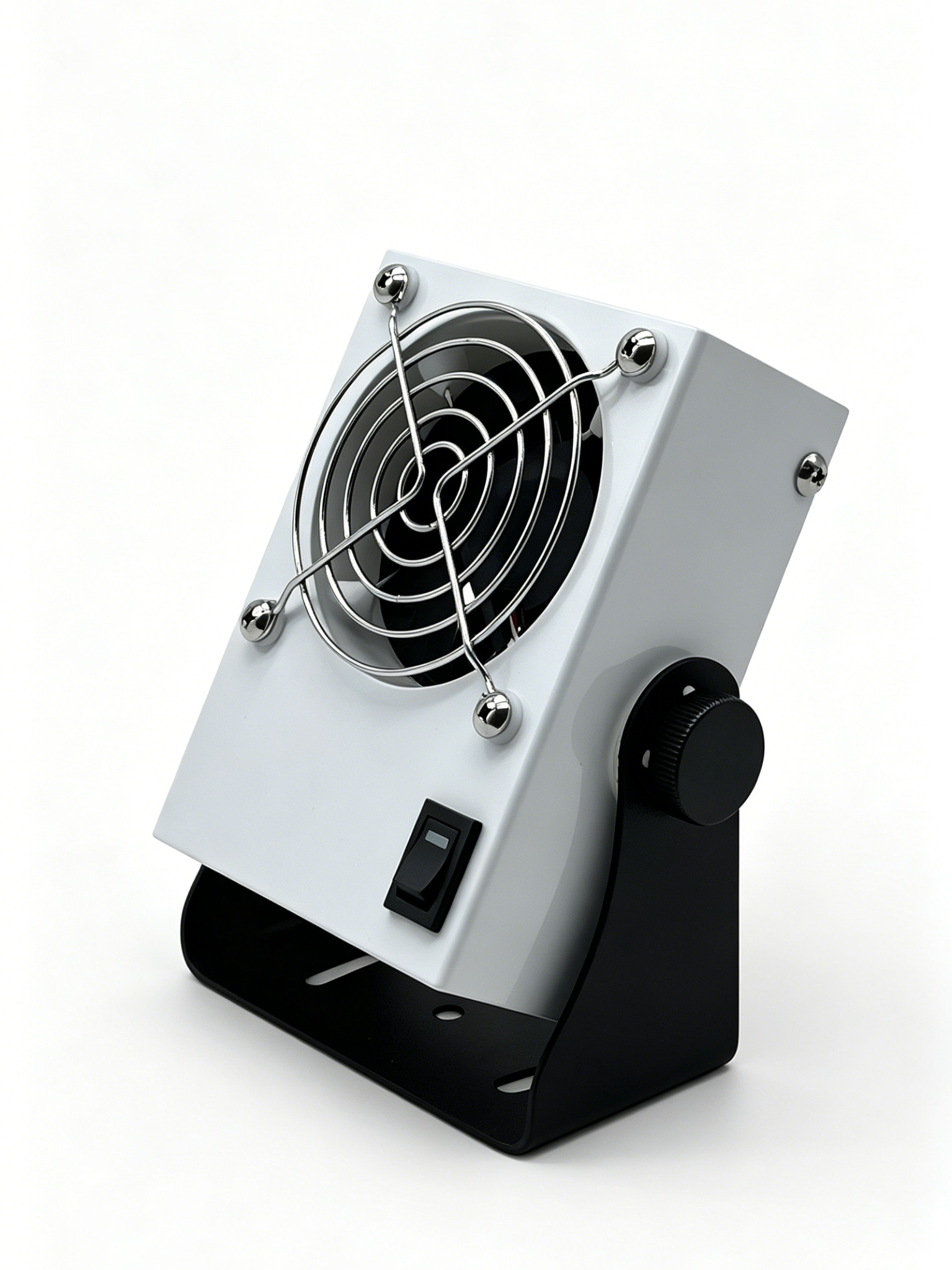

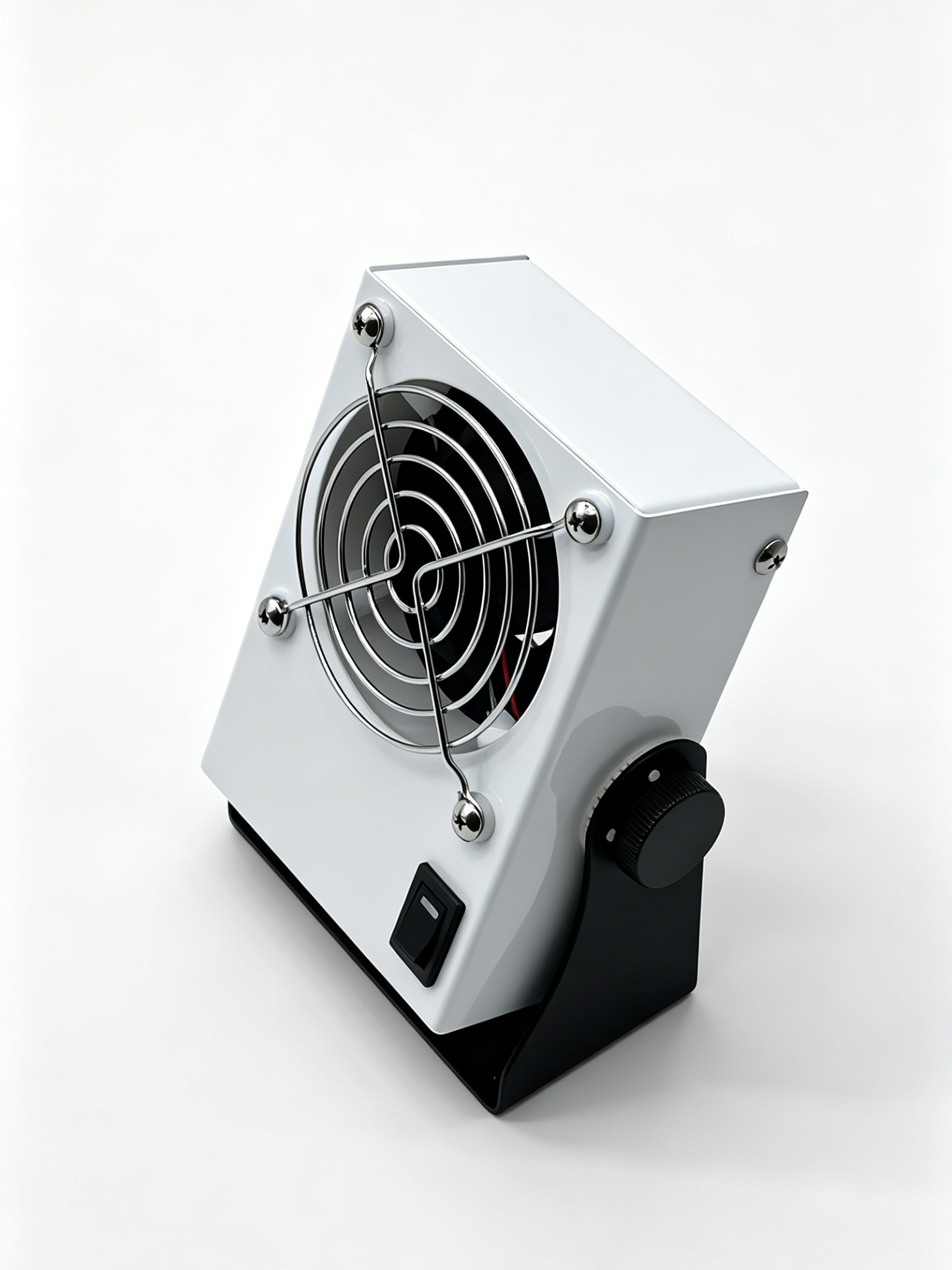

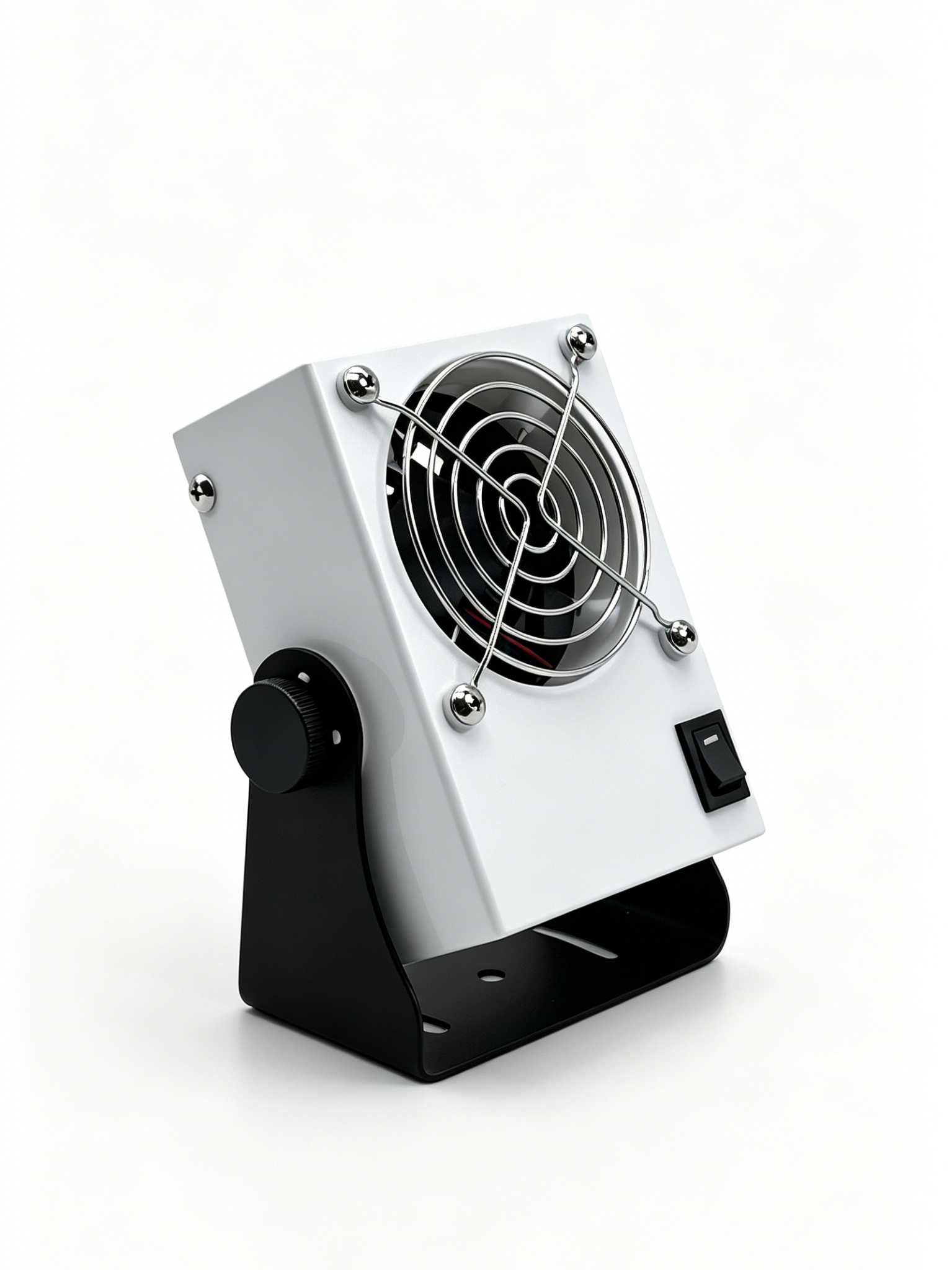

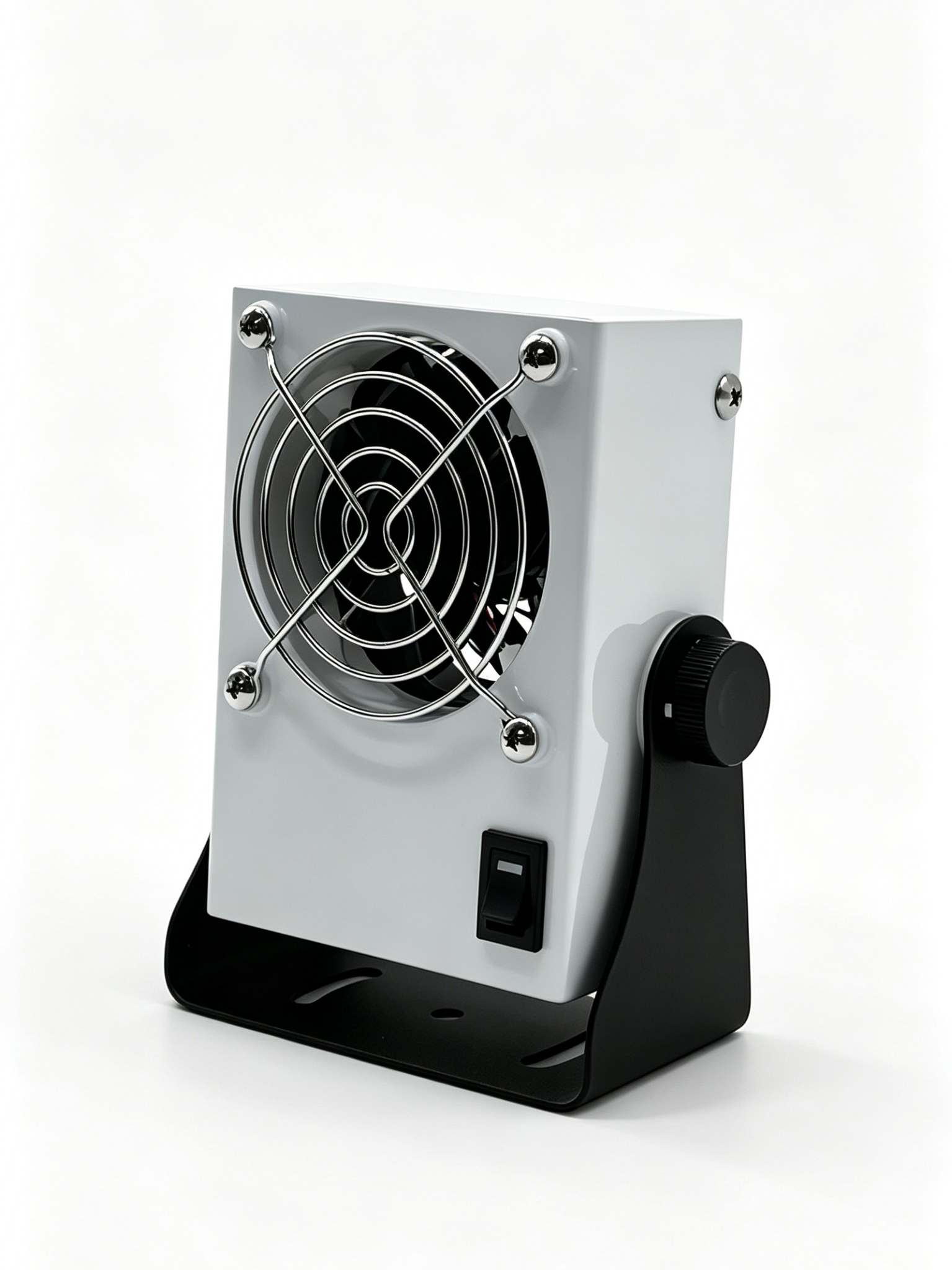

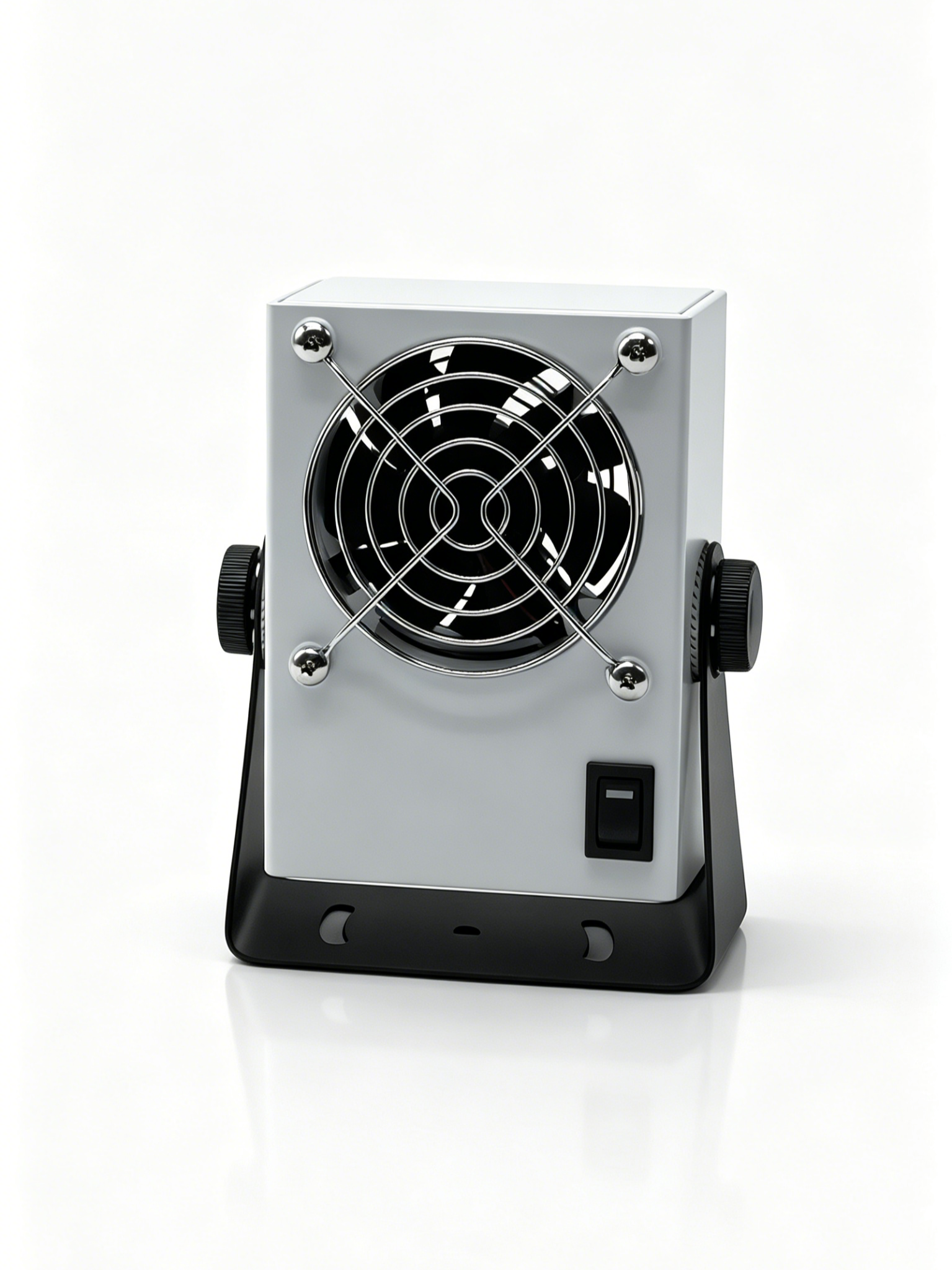

The ESF-01E Mini Ion Blower is a fixed-airflow static eliminator for small-area use. Adopting the latest DC technology and ion pins made of special alloy material, it delivers fast static neutralization performance. It is widely applied in semiconductor, electronics, plastic and other industries, with an ion balance voltage of 0V±20V.
Item | Parameter |
|---|---|
Input Voltage | DC 24V |
Output Voltage | DC 5.6KV |
Current Consumption | 300mA |
Operating Temperature | -20℃ ~ 50℃ |

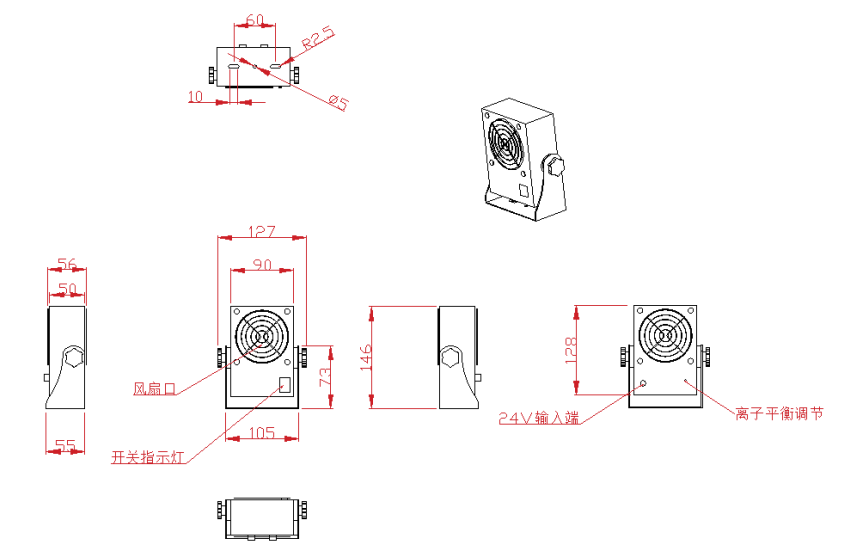

Overall Dimension | 90mm(L) × 50mm(W) × 146mm(H) |
Net Weight | 650g |
Output Power | 7W |
Ion Balance | 0V±20V |
Max Air Volume | 90CFM |
Effective Working Distance | 500mm |
Test Voltage: 1KV–50V; Operating Voltage: AC220V; Ambient Temperature: 22℃; Humidity: 75%RH
Test Distance | Static Elimination Time | Residual Static Voltage Range |
|---|---|---|
100mm | 0.8s | +11V ~ -12V |
200mm | 1.2s | +13V ~ -11V |
300mm | 1.8s | +12V ~ -15V |
500mm | 5s | +18V ~ -17V |
Tested in accordance with ANSI/ESD STM3.1-2000 ion standard of ESD Association:
Simulated static voltage: 1000V
Residual voltage after neutralization: within ±50V
Static elimination time: within 5s
Max test distance: 500mm
5.1 Rated Input: DC 24V, 1000mA
5.2 External Input Power: AC100~240V, 50/60Hz, 0.65A
5.3 Ambient Temperature: -10℃ ~ 50℃
5.4 Ambient Humidity: 30%RH ~ 90%RH
Fan Air Outlet
Power Switch & Indicator Light
DC24V Input Port
Ion Balance Adjustment Knob
Ion Blower Main Unit
24V Power Adapter
